KiteRF is an SDR system with K210 & FPGA & ESP32 as its core controller, which makes SDR more intelligent, portable and cheap.

README

KiteRF

KiteRF is a SDR system with K210 & FPGA & ESP32 as its core controller, which make SDR more intelligent, portable and cheap.

• KiteRF Structure



  • DS (Digital Signal) unit

    • FPGA (Field-Programmable Gate Array)

      • Radio Frequency Data Processing

      • DS Control

      • Communication with PC

    • K210 (Kendryte K210)

      • LCD control

      • Camera control

      • Audio

      • FFT

    • ESP32 (Espressif ESP32)

      • Wi-Fi Data Transmission

      • SDCARD control

      • Touch Button

      • RGB LED Control

  • RF (Radio Freqency) unit

    • ADC (Analog-to-Digital Converter)

      • Sampling Analog Baseband IQ Data

    • DAC (Digital-to-Analog Converter)

      • Output Analog Baseband IQ Data

    • RF Transceiver

      • Mixing IF signal to baseband and outputting IQ analog signal

    • VCO (Voltage-Controlled oscillator)

      • Provide local IF frequency

    • Mixer (Frequency mixer)

      • Mixing HF signal to IF signal

    • LNA (Low-Noise Amplifier)

      • Suppression of Mirror Noise Signal

    • RF Switch

      • Switching signal paths in different frequencies

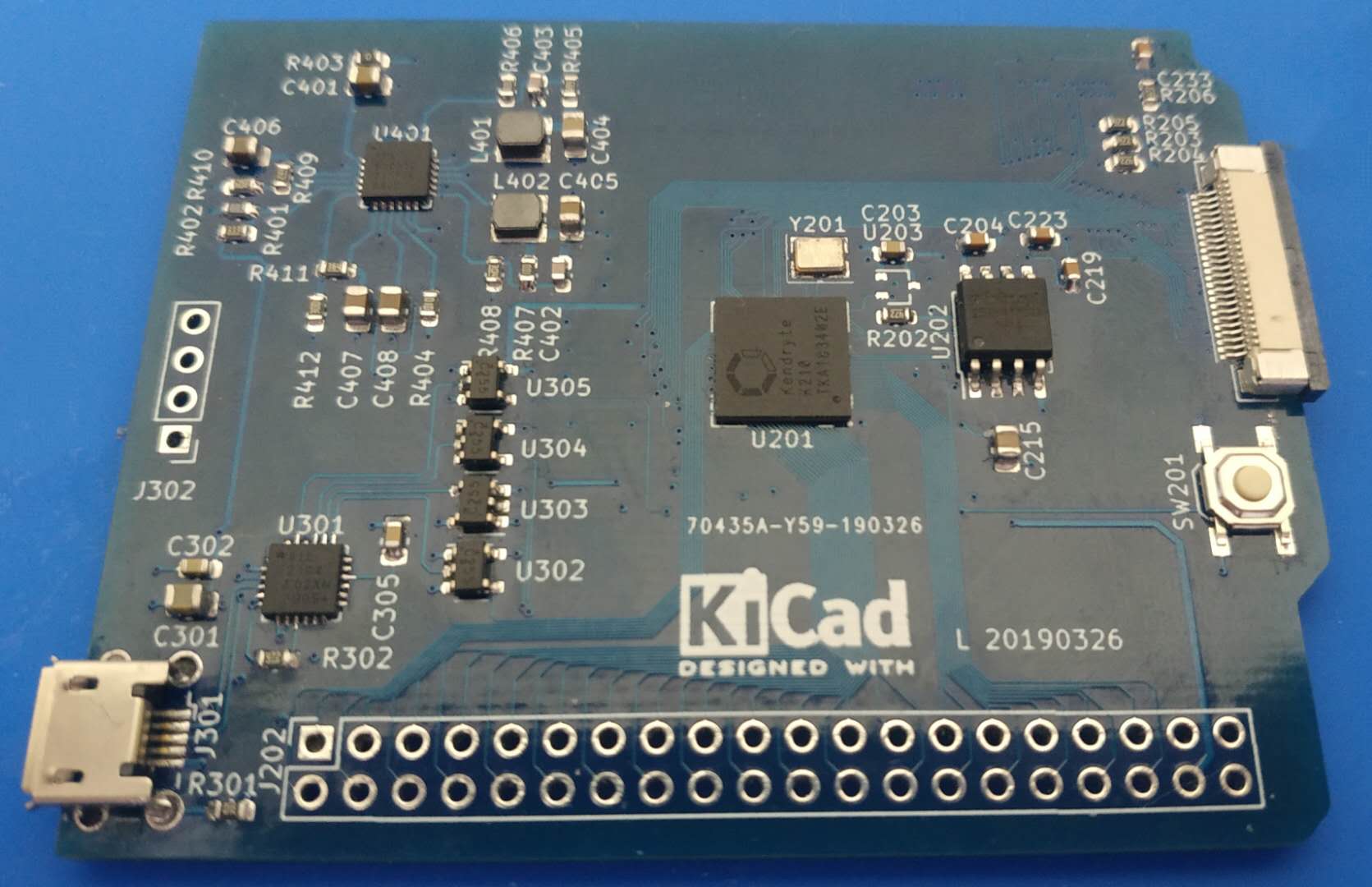

• KiteRF coreborad v1.0.0



Contents

• Directory tree

  ├── add_path.sh
  ├── data
  │   ├── kiterf_1.0.0.jpg
  │   ├── kiterf_structure.pos
  │   └── kiterf_structure.svg
  ├── docs
  │   ├── kendryte_datasheet.pdf
  │   └── kendryte_freertos_programming_guide.pdf
  ├── LICENSE
  ├── project
  │   ├── code
  │   │   ├── ESP32
  │   │   └── K210
  │   └── pcb
  │       ├── ESP32
  │       ├── K210
  │       └── RF
  ├── README.md
  └── tools
      ├── ESP32
      │   ├── esp-idf
      │   └── xtensa-esp32-elf
      └── K210
          ├── kendryte-freertos-sdk
          ├── kendryte-toolchain
          └── kflash


  • project

    • PCB project (KiCAD)

    • FPGA project (ISE)

    • ESP32 project (esp-idf)

    • K210 project (Kendryte FreeRTOS)

  • release

    • PCB gerber

    • FPGA bin

    • ESP32 bin

    • K210 bin

  • tools

    • script

    • sdk

    • toolchain

How to use

• clone

  git clone --recursive https://github.com/ATmega8/kiterf
  cd kiterf


  • note

    Don't omit --recursive, because we use submodule.

• update

  git pull
  git submodule update --init --recursive


• Install toolchain

  • K210

    • Ubuntu/Debian/Kali

      wget https://s3.cn-north-1.amazonaws.com.cn/dl.kendryte.com/documents/kendryte-toolchain-ubuntu-amd64-8.2.0-20190213.tar.gz
      tar zxvf kendryte-toolchain-ubuntu-amd64-8.2.0-20190213.tar.gz -C tools/K210/
      rm kendryte-toolchain-ubuntu-amd64-8.2.0-20190213.tar.gz


    • Arch

      wget https://www.kiterf.xyz/download/kendryte-toolchain-arch-amd64-8.2.0-20190415.tar.gz
      tar zxvf kendryte-toolchain-arch-amd64-8.2.0-20190415.tar.gz -C tools/K210/
      rm kendryte-toolchain-arch-amd64-8.2.0-20190415.tar.gz


  • ESP32

    • Ubuntu/Debian/Kali/Arch

      wget https://dl.espressif.com/dl/xtensa-esp32-elf-linux64-1.22.0-80-g6c4433a-5.2.0.tar.gz
      tar zxvf xtensa-esp32-elf-linux64-1.22.0-80-g6c4433a-5.2.0.tar.gz -C tools/ESP32/
      rm xtensa-esp32-elf-linux64-1.22.0-80-g6c4433a-5.2.0.tar.gz


• Add environment variables

  . add_path.sh


  • note

    Don't forget "."
