Pico GG LCD

RP2040-based Game Gear screen replacement kit. Even a cheapo modern LCD has much, much, much better contrast ratio than the OG screen.

Building the software

Clone this repository and pull all submodules:

git clone https://github.com/Trirosmos/pico_gg_lcd
cd pico_gg_lcd
git submodule update --init --recursive

Then, run sw/build.sh:

cd sw
mkdir build
cd build
cmake ../CMakeLists.txt
make

This should generate an uf2 file you can upload to the RP2040;

Building the hardware

Componentes you'll need and their approximate cost:

• Pico GG LCD PCB ($5)
• PMOD HDMI adapter board ($4)
• 54-pin FPC connector adapter board ($2)
• LQ035NC111 LCD module ($10)
• RP2040 board that exposes all 30 GPIOs ($4)
• BS170 or similar NMOSFET ($0.3)
• ~470uH axial THT inductor ($0.2)
• 2x SOD-123 Schottky diode ($0.4)
• 10k 0805 resistor ($0.05)
• 100k 0805 resistor ($0.05)
• 100nF 0805 resistor ($0.05)
• 100uF 0805 resistor ($0.05)
• 22uF 0805 resistor ($0.05)

Total approximate BOM cost: $26

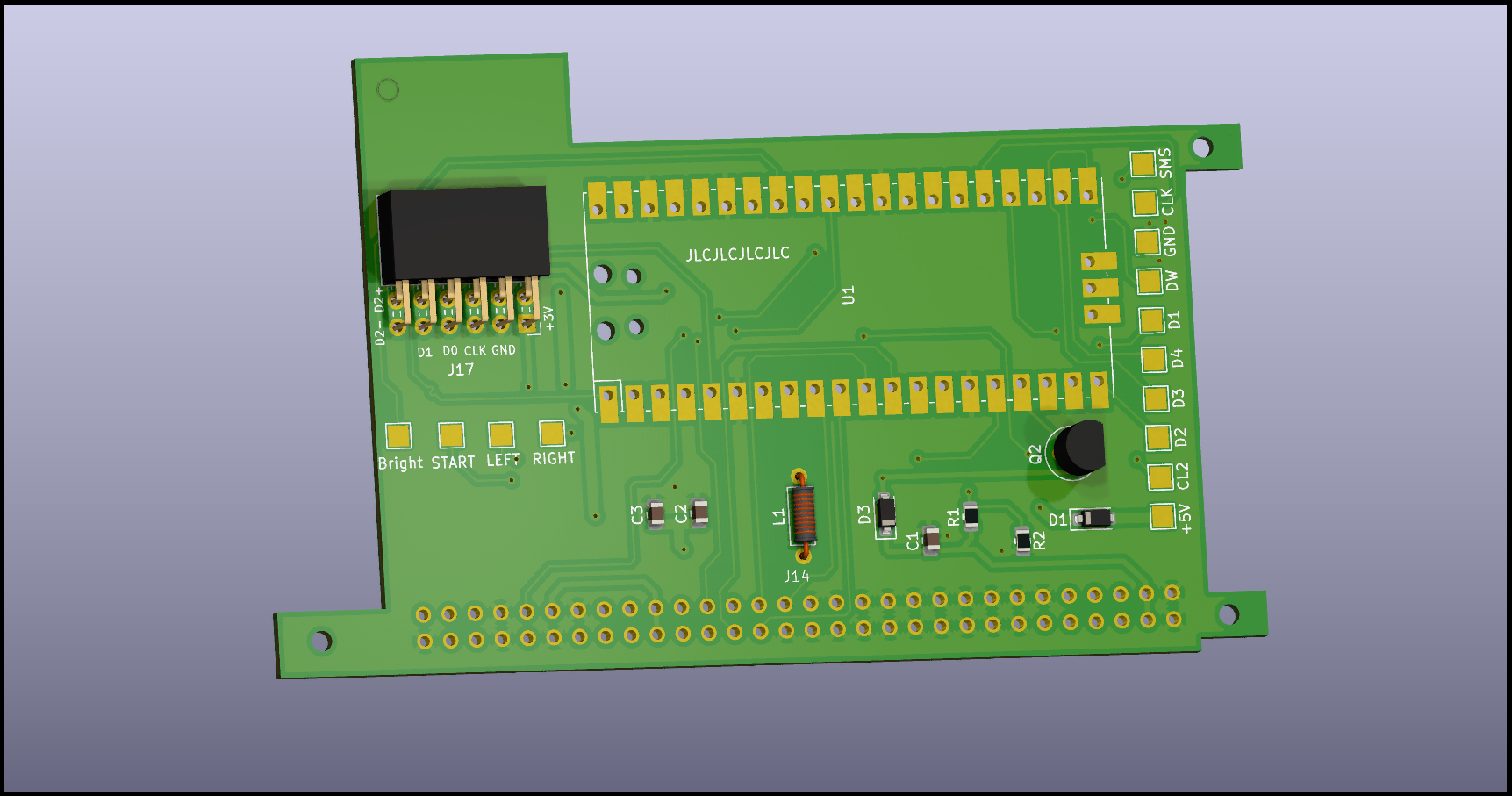

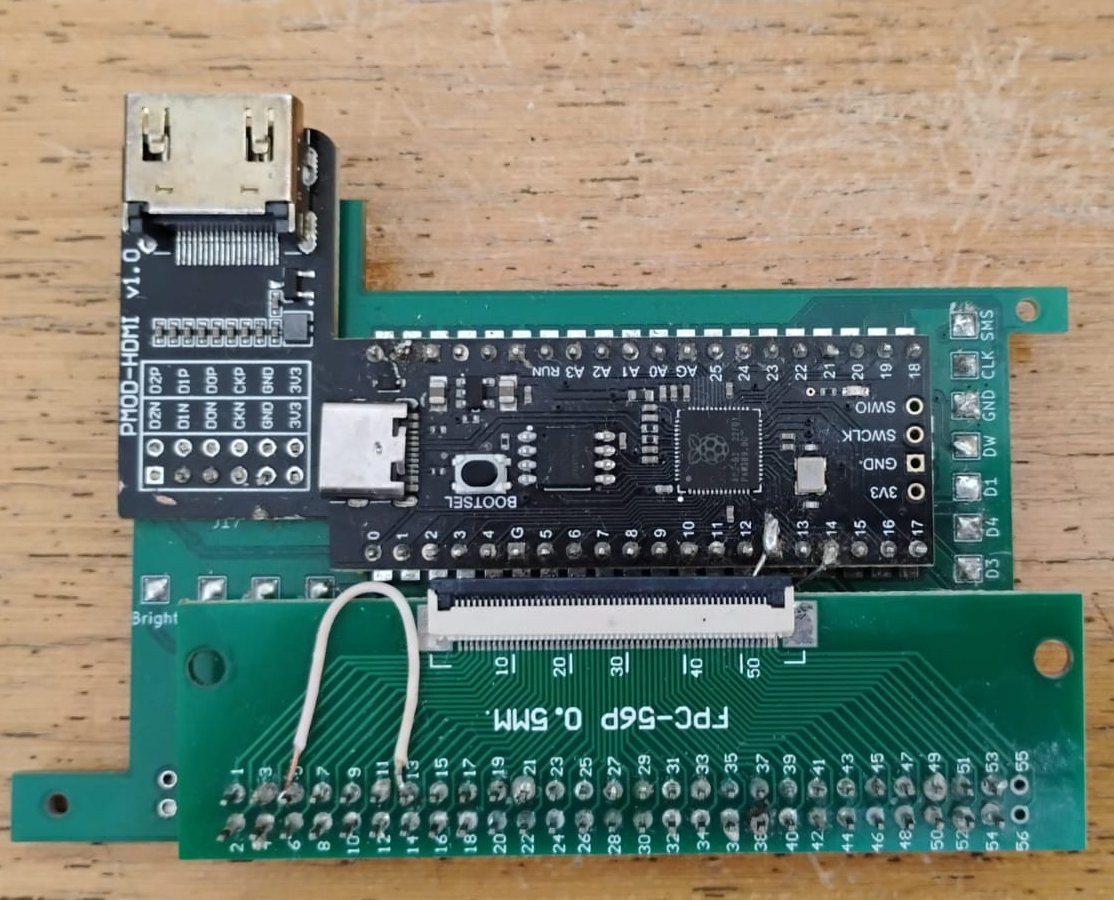

First assemble passive components and transistor, then the RP2040 board and leave the FPC connector to be connected last. The final board should look something like this, sans the bodge wire:

How Game Gear video signals work

The Game Gear ASIC generates digital video signals that the LCD drivers in the LCD ribbon use to drive the actual display segments.

In NTSC mode, i.e, when test pad T10 is connected to +5V, the timings of the signals from the ASIC closely resemble what one would expect from a console like the Master System. All screen replacement kits run the Game Gear in this mode, as far as I'm aware.

The communication protocol used between the ASIC and the LCD drivers in this mode is well documented and essentially boils down to:

• 32 MHz pixel clock (same as the main system clock)
• 4 bit data bus carrying one channel of color data at a time
• VSync signal
• HSync signal

How the RP2040 captures GG video

One of the PIOs is takes alongside three DMA channels with building a live framebuffer in RAM with the image data the GG is sending out.

Three PIO SMs are used in the following manner:

• SM0 detects when a frame starts and triggers an IRQ.
• SM1 detects the IRQ from SM0 and starts detecting HSync pulses. It triggers an IRQ when it does.
• SM2 detects the IRQ from SM1 and proceeds to capture pixel data and push it out to the RX FIFO.

One of the DMA channels then takes the 12bpp pixel data from the PIO RX FIFO and saves it into RAM.

Finally, one of the CPU cores upscales the image and sends it out to the LCD.
