This repository contains the KiCad schematics and design files for a 19″ backplane designed according to IEEE 1101.1-1998 to mount the laser electronics in the Eurocard form factor developed by APQ. See below for a list of compatible devices. The design files can be found on the releases page.
This repository contains the schematics for the APQ 19″ sub-rack backplanes to mount electronics within a 19″ rack. The backplanes use several IEC 60603-2 C64AC connectors that can be configured to mount several different types of Eurocard devices used by this group. There is space for up to 6 connectors mountable in different positions to accommodate both the Fischer Elektronik HB ME 14 and the Fischer Elektronik TFP 3 14 system.
Compatible devices can be found here:
There is a datasheet available that lists the most important electrical and mechanical specifications. The latest version can be found here. Older version can be found attached to the respective release.
The backplane is designed to be mounted inside a 19″ sub-rack chassis. The most common systems used in this group are the Schroff EuropacPRO and the Fischer Elektronik BGT 384 180. Additionally a power supply must be provided. Typically, a rack mountable DC power supply like an HP 6632B is used for each rail.
[!IMPORTANT] Use a torque screwdriver (0.3 Nm) to tighten the screws holding the PCB, otherwise the PCB might flex and damage components.
The board has a MSTBA 2,5 HC/ 3-G-5,08 header. The plug required on the cable side is a MSTB 2,5 HC/ 3-ST-5,08 Do note, there is an HC (16 A) and a non-HC (12 A) variant of the connector. The HC variant is required to meet the specifications. Typically, the other end of the cable features 4 mm connectors like the Stäubli LQ-4N-39 to connect to the DC power supply.
For low currents up to 5 A per rail (Note: This means 10 A combined on the common return rail) a LAPP ÖLFLEX CLASSIC 115 CY 3G1,5 shielded cable with 3 cores and 1.5 mm² wires can be used. For the full rated current a 2.5 mm² 3-core cable like a LAPP ÖLFLEX CLASSIC 115 CY 3G2,5 is required. The cables recommended do not have an inner sheath and are therefore lighter and more flexible than regular cables with an inner sheath. This is convenient for routing the cable inside the rack. The cables are not colour-coded, but rather use numbers printed on each of the black wires. Alternative cables that have an inner sheath are LAPP ÖLFLEX CLASSIC 110 CY 3G2,5 (more rigid) and LAPP ÖLFLEX CLASSIC 100 CY 300/500V 3G2,5 (more rigid and colour-coded). The author does not have any affiliation with the Lapp Group and any other cable with similar specifications will work as well. The cables mentioned are meant as examples.

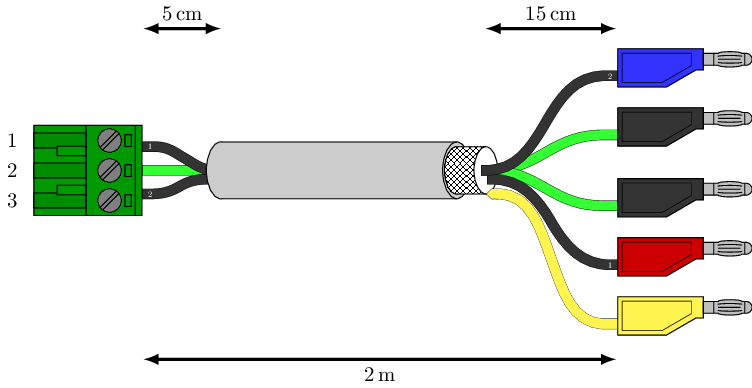

To assemble a cable proceed as follows to produce a cable with the dimensions shown below.
The backplane side, using a MSTB 2,5 HC/ 3-ST-5,08 connector, is straightforward:
The 4 mm connectors for the DC power supply require more work because the common conductor needs to be spliced. The desired end result is:
To get there, do the following:
Use a label maker and put a label stating the maximum current and voltage on the cable:
16 A/60 V max if using an HC connector and 2.5 mm² cables12 A/60 V max if using a non-HC connector or any 1.5 mm² cables (excluding the yellow cable connected to the braid)The design files required for the PCB production and assembly can be found on the releases page and include the following resources:
The latest revision of those files can be found here.
Several variants of the design files are provided for the user. There is a so-called default variant, a HBME variant and a TFP variant.
The default variant does not contain any IEC 60603-2 connectors. This is the version sent to the boardhouse for assembly and it is the version that is found on new backplanes. It allows the user to customize the backplane for several different devices. Depending on the type of device used in the subrack, the IEC 60603-2 connector must be installed in a different position. This is discussed below.
This variant is an example where all slots are equipped with IEC 60603-2 connectors for devices that come in the Fischer Elektronik HB ME 14 form factor. These are fully shielded devices that come with an enclosure.
The TFP variant is used for devices utilizing the Fischer Elektronik TFP 3 14 assembly. These device have an open frame. The design files show an example configuration that uses IEC 60603-2 connectors considering a subrack full of TFP devices.
To work on the KiCad design files, a number of external libraries are needed. Those libraries show up as empty folders in the zip file, because they are not included in the release, but must be downloaded separately from the links given below. This can be avoided by checking out the whole repository using git. This way the libraries will be downloaded as well. Use the following command to clone the git repository along with the submodules using the --recurse-submodules flag.
git clone --recurse-submodules https://github.com/TU-Darmstadt-APQ/DIN_41612_Backplane.git
See the following repositories for more information as these are part of the design files.
I use SemVer for versioning. For the versions available, see the tags available for this repository.
This work is released under the CERN-OHL-W See https://ohwr.org/cern_ohl_w_v2.pdf or the included LICENSE file for more information.
