README

Tympan Rev E Hardware v2.0.0

Repository for Tympan Rev E v2 Electronics and case designs. This version of the Rev E is based on the Teensy 4.1 by PJRC and incorporates the Teensy 4.1 into our own design, as we did with the Tympan Rev D. Checkout the v1 branch for the previous daughter card version of this project.

Check Back For Updates

Update

This project is also on Circuit Hub

Click HERE to view this project on Circuit Hub

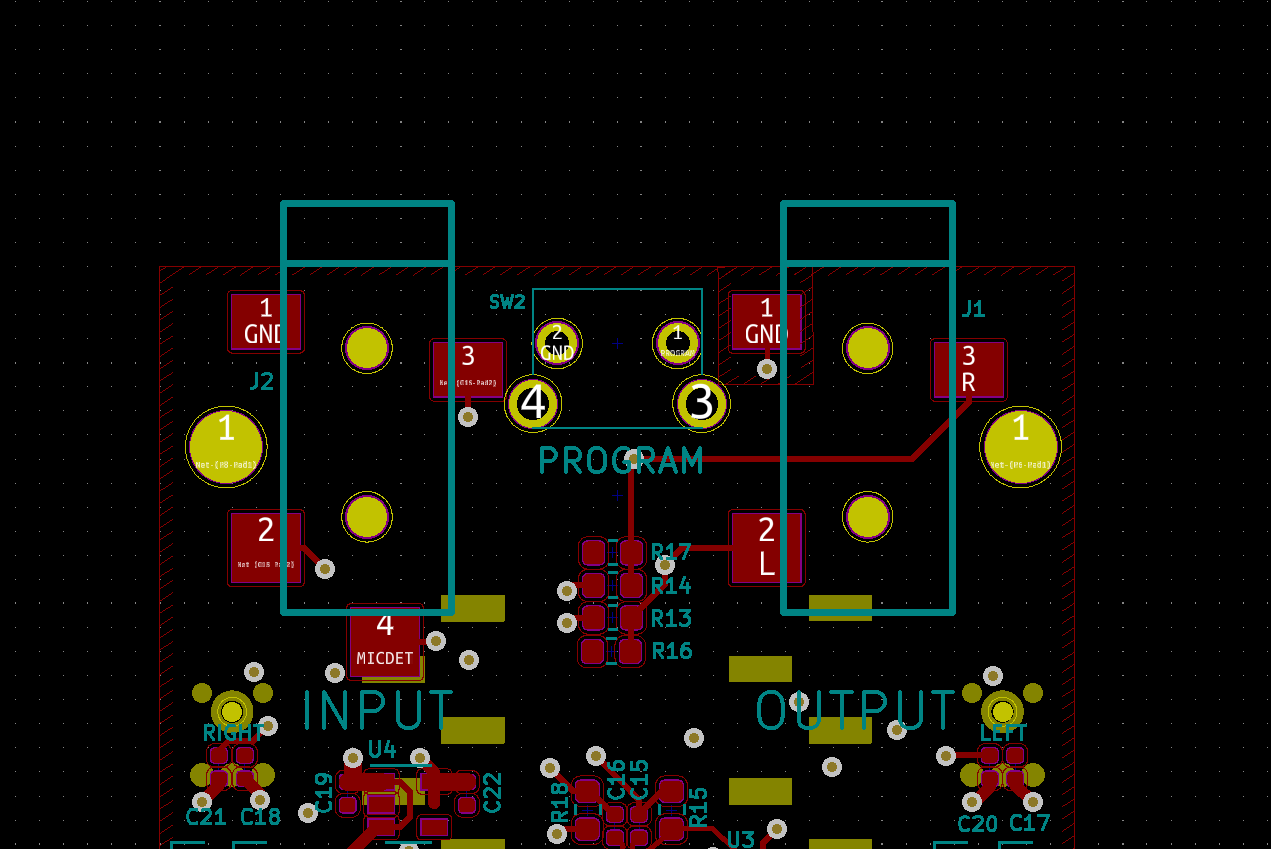

Push of 5/13/21 Added breakout of the Program pin to an Tympan board pushbutton. Location of Pushbutton is between the IN OUT at the TOP of the board.
