IR Illuminator and Camera Mount for Valve Index DIY Eye Tracker

README

flow-eye

IR Illuminator and Camera Mount for Valve Index DIY Eye Tracker

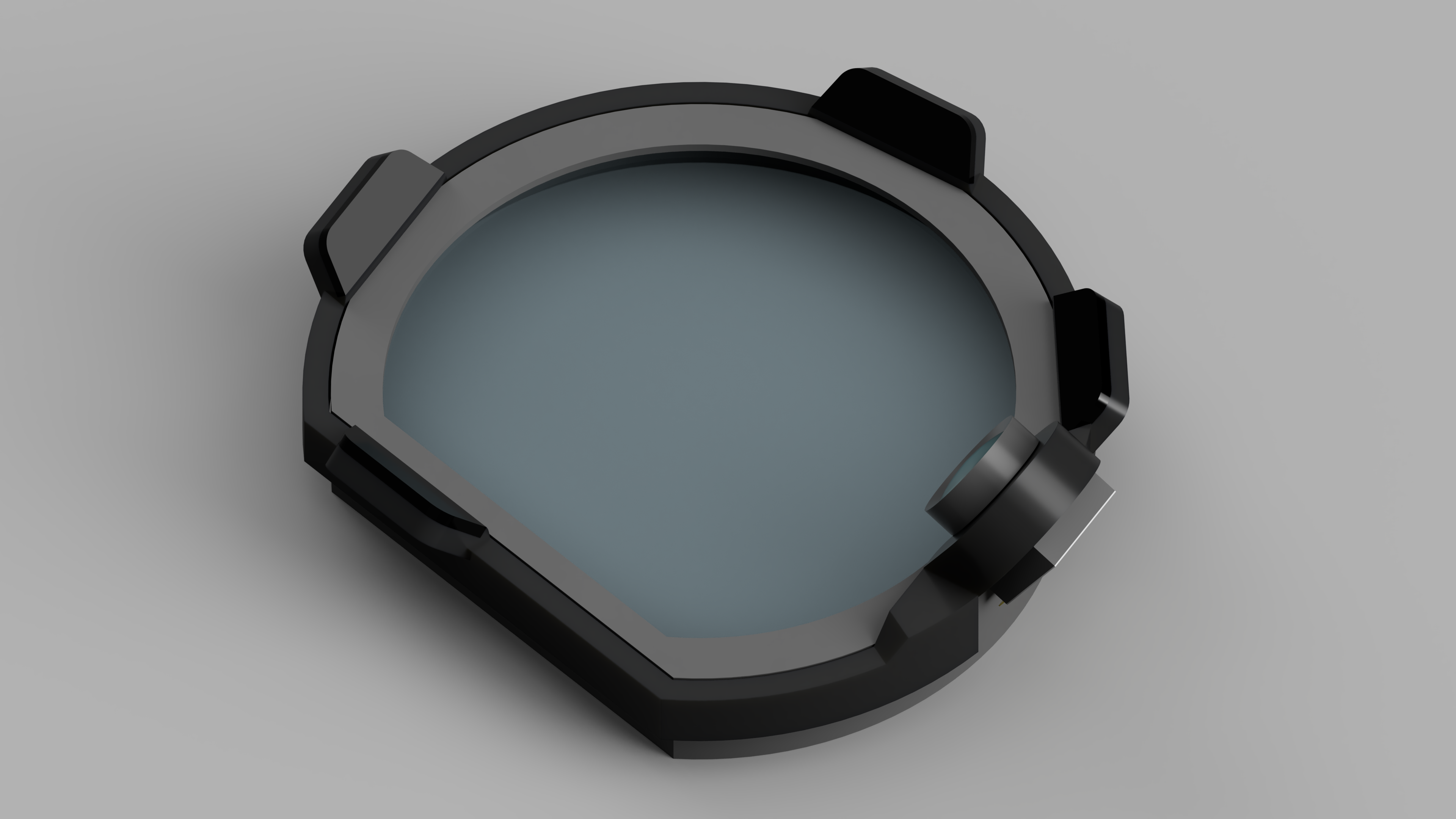

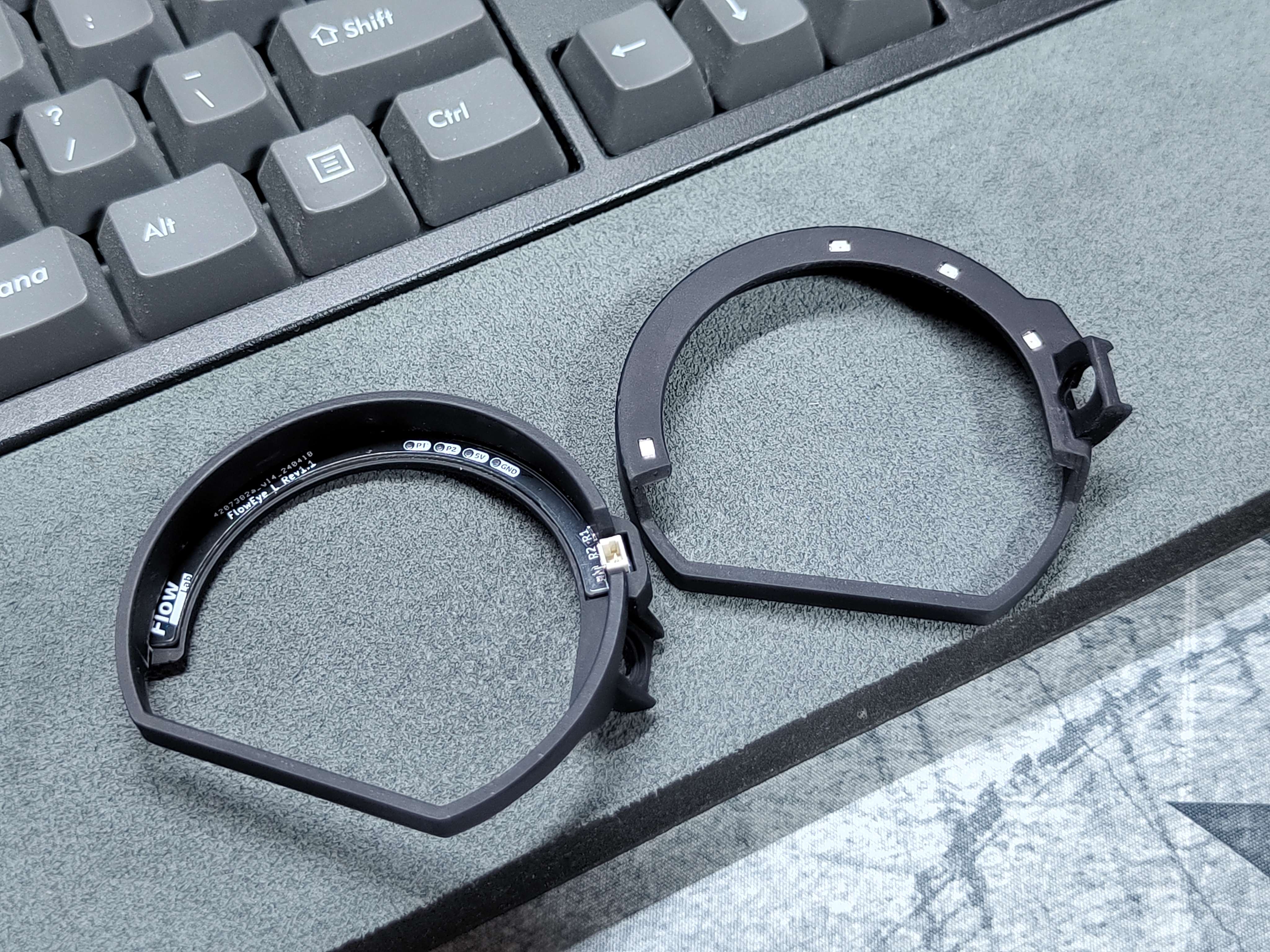

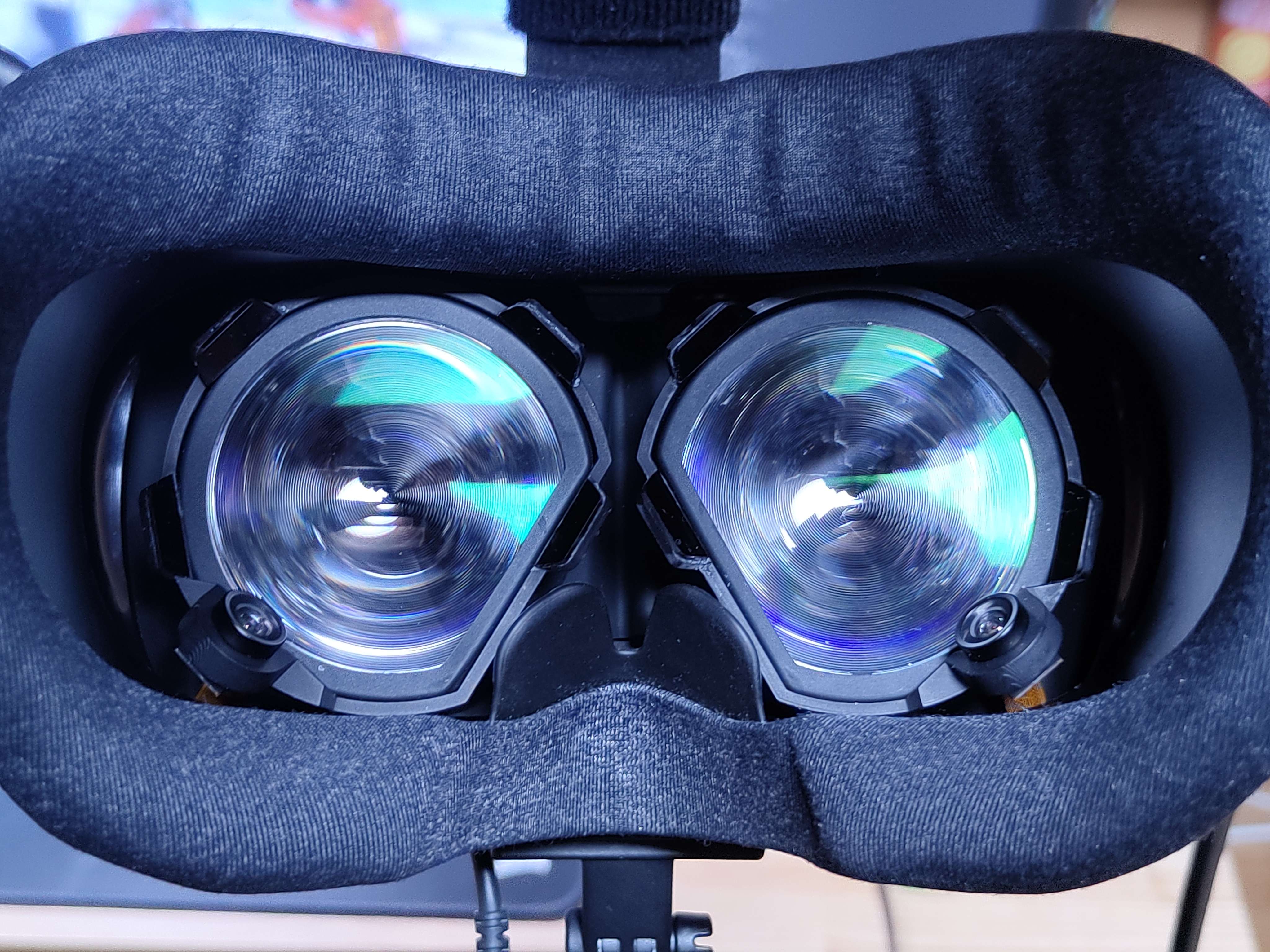

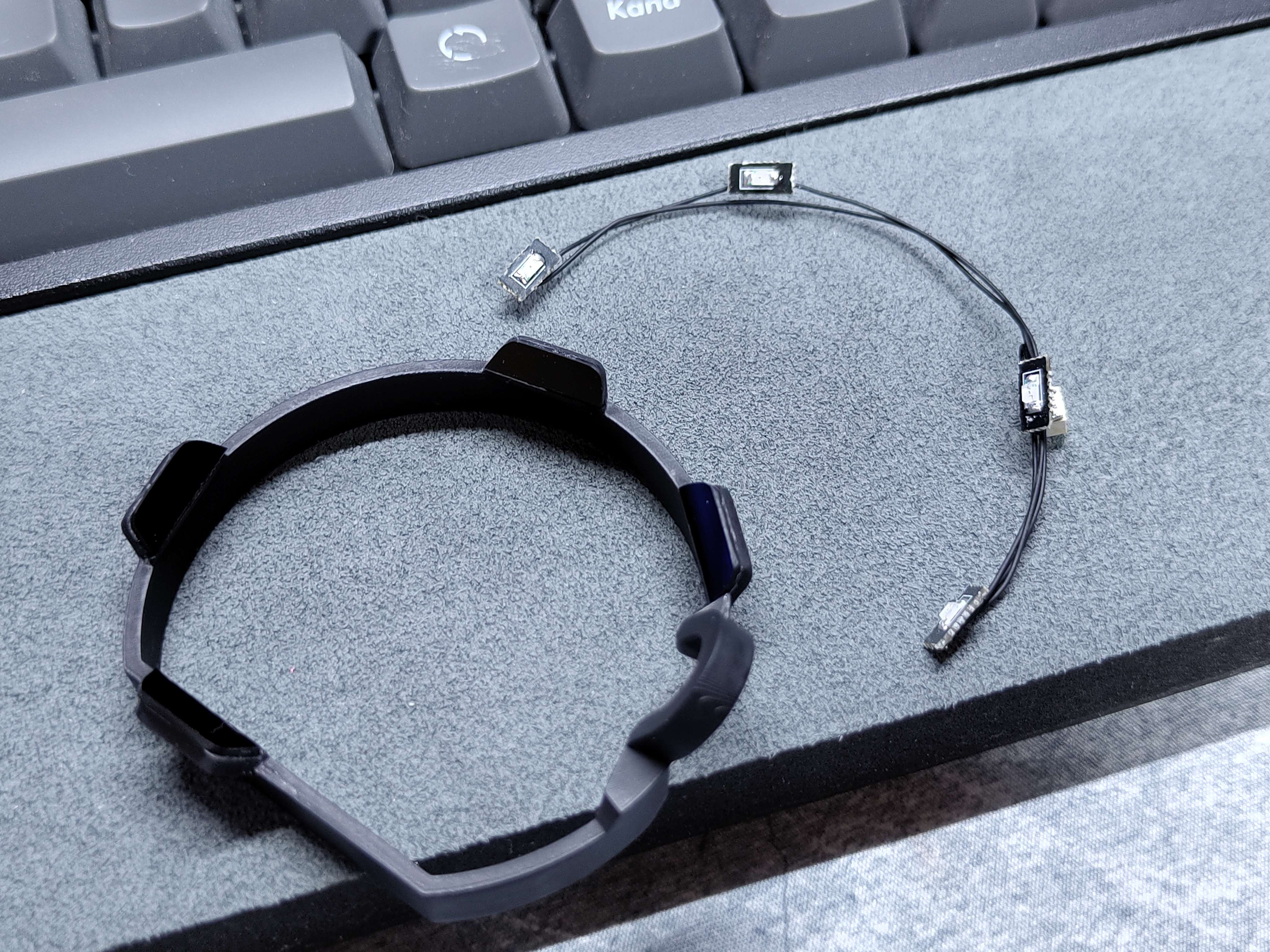

Prototype

Note

• Designed for OV2640-160°.
• A rubber ring is used to mount the camera.
• The part in front of the LED is a visible light filter (acrylic that passes only infrared light). It is attached for appearance.

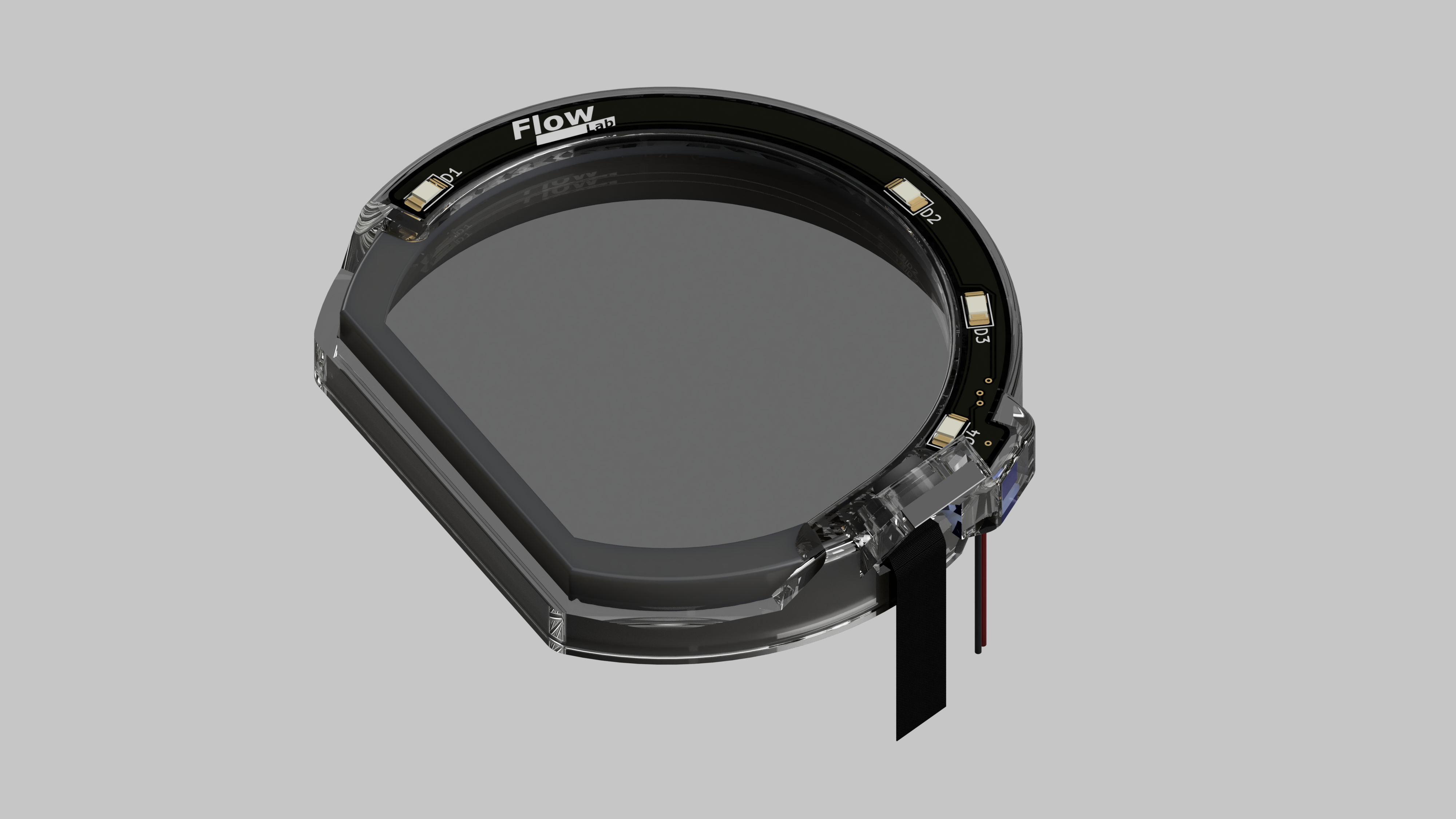

Rev1.1

Note

• Designed for OV2640-130°.
• Select a thickness of 0.8 mm when creating PCBs.
• Schematic.
• Other Notes (Japanese).

Frunk

3D data for the integration of a USB 3.0 2-port hub. It was created based on the following data
Index Hardware
