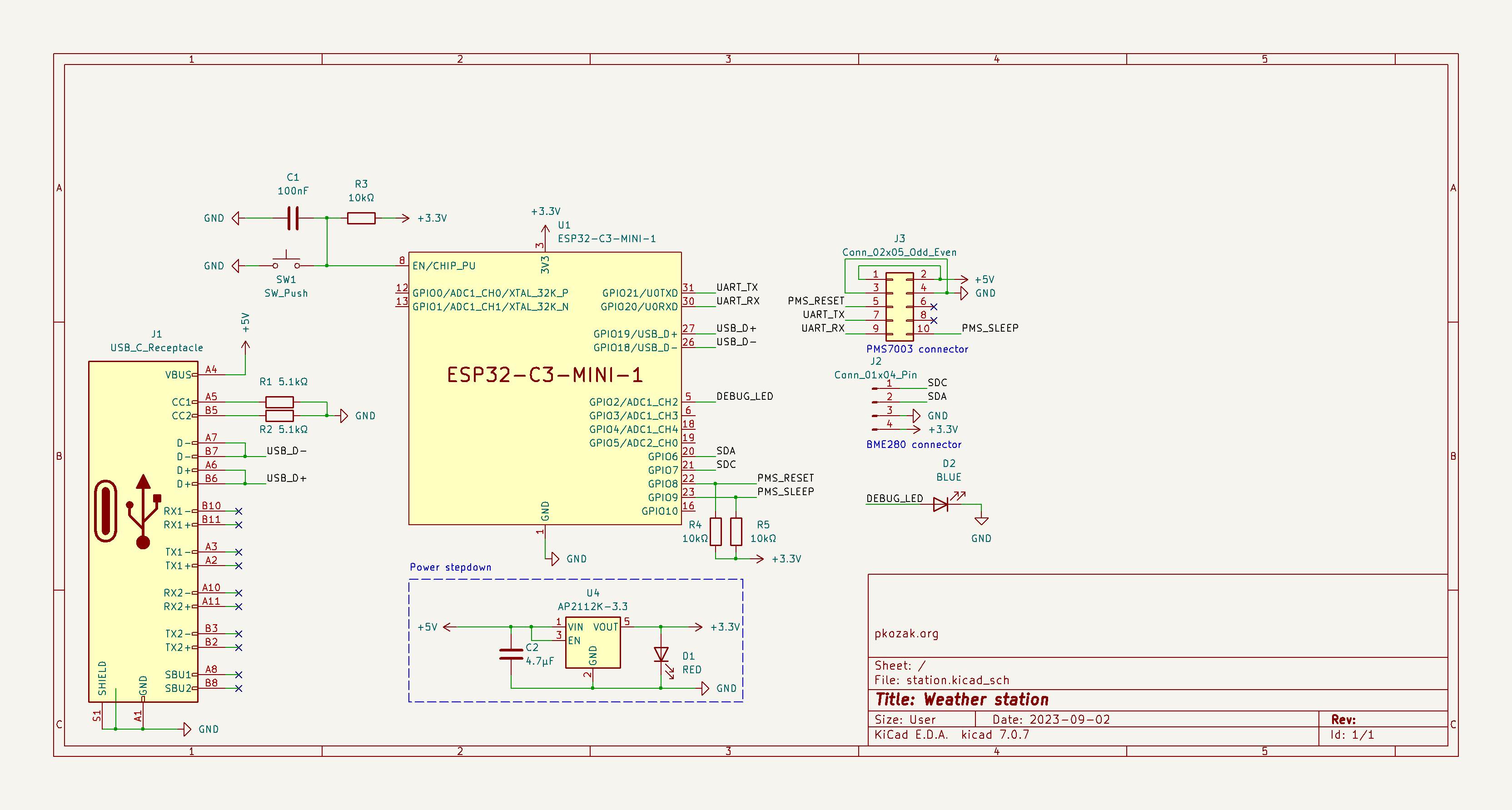

cloudy Schematic SVG view

Imported from GitHub: UltimateDoge5/Cloudy · commit 87a586a

Description

A weather station project based on the BME280 sensor with live database updates and a web ui.

publicNo license

cloudy

@ultimatedoge5

A weather station project based on the BME280 sensor with live database updates and a web ui.

Tags

bme280esp32weather-stationparticulate-pms7003capacitorresistorregulatorledconnectorswitchUSB-C
