README

UNewHaven 2024 eCTF

Rev A

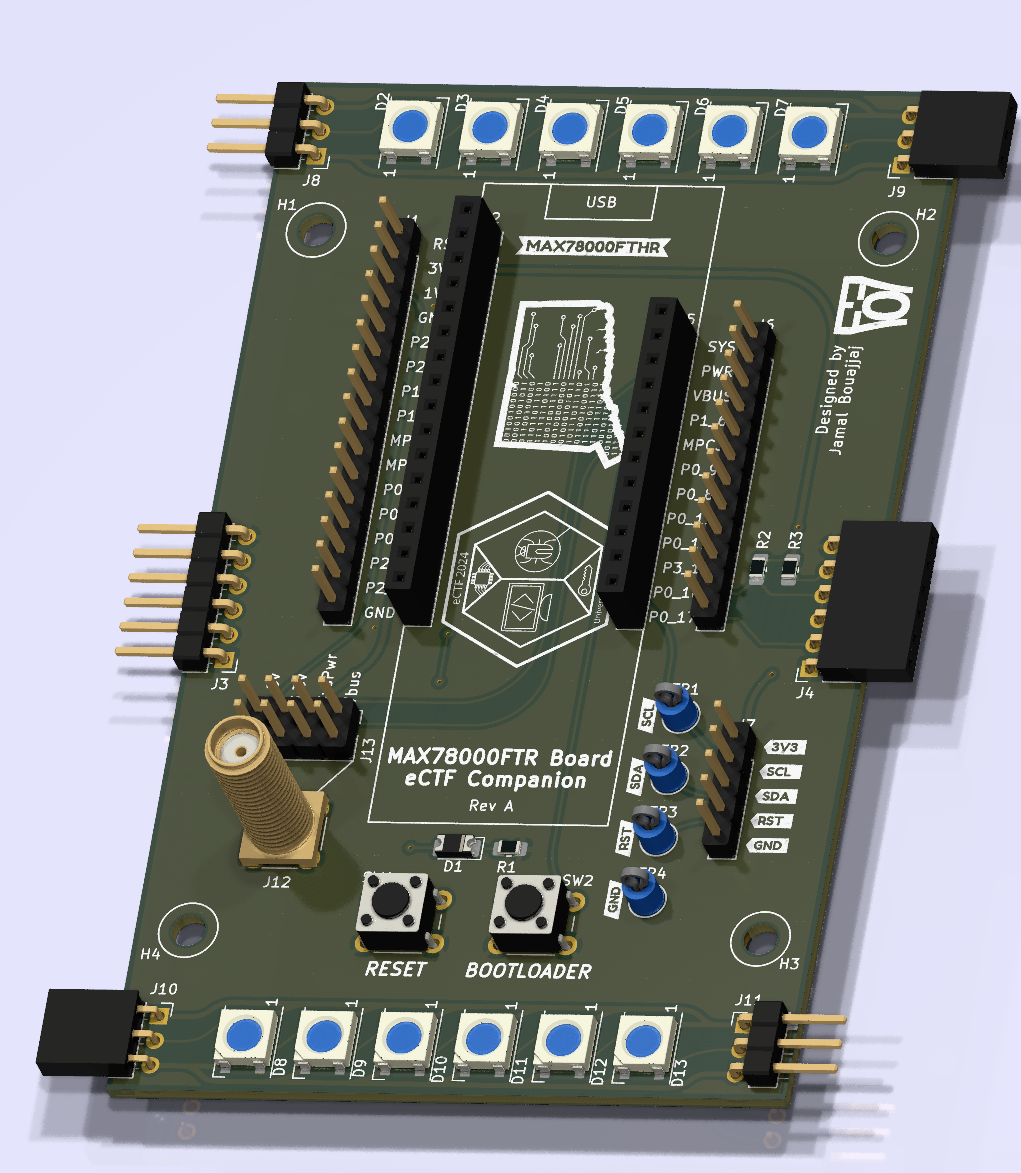

This is a daughterboard for the MAX78000FT development board, designed for the 2024 eCTF competition.

This was partially inspired by MITRE's own board design, and from a joke gone too far (the leds are what started it all).

Features

  • As the competition has 3 interconnected boards, this design provisions for side-interconnects
  • Independent and chain-able WS2812B LEDs on the top of the board, for some true ectf gaming
  • Expandable IO for MAX78000FT board
  • SMA monitoring for a selection of voltage lines

License

This project is licensed under GPLv3.
