README

Airborne dosimeter device - AIRDOS

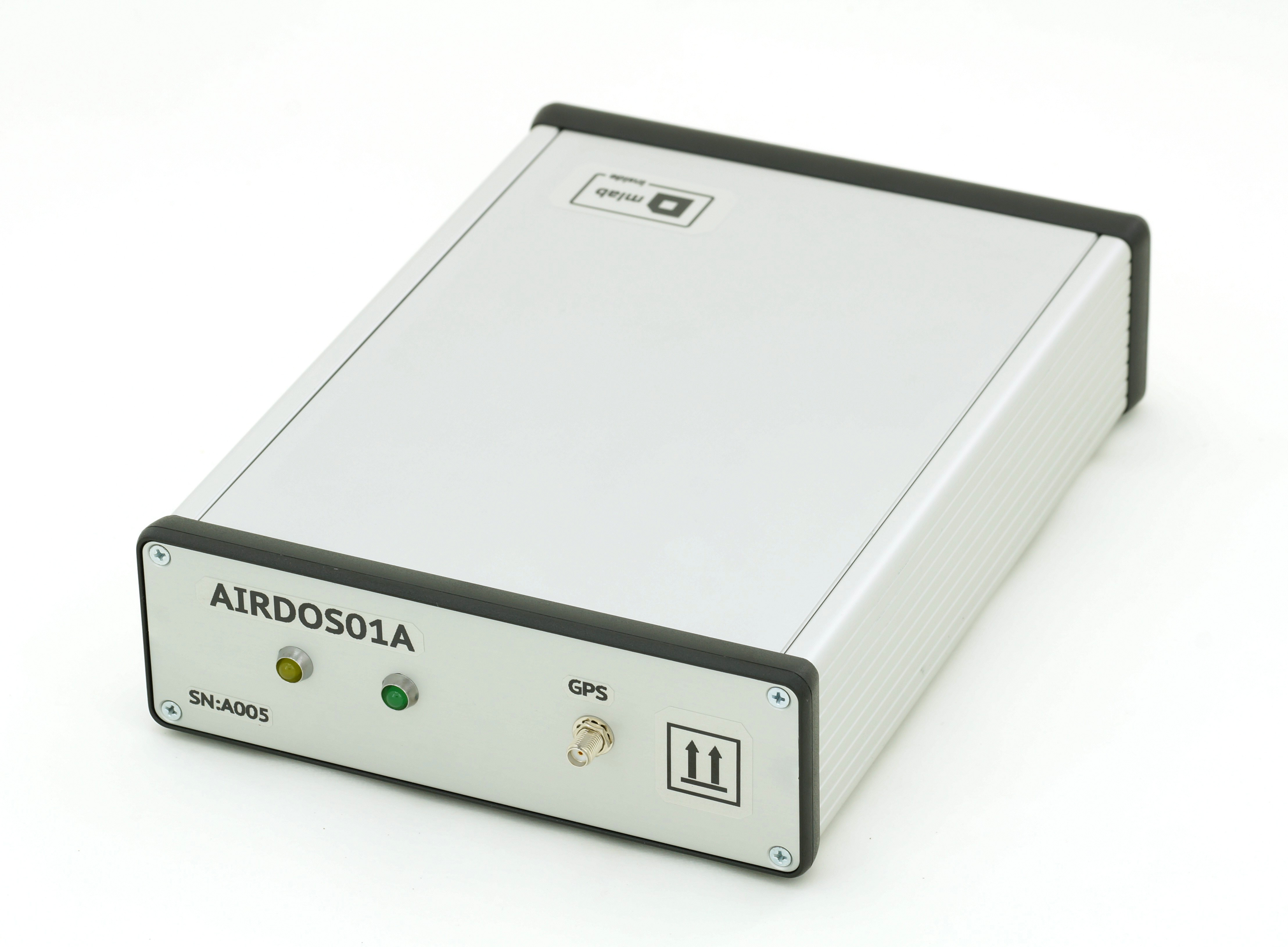

Cosmic radiation dosimeter unit. It is intended for airborne measurement of cosmic radiation and dosimetry in mixed ionization fields on board of aircraft.

Technical parameters are following:

  • Silicon PIN diode detector with 60mm³ detection volume
  • Measurement endurance 32 days
  • Number of erengy channels 252
  • Energy measurement resolution <30 keV/channel
  • GPS logging interval 5 minutes
  • Time to GPS fix 26 s
  • Airborne GPS parameters (Navigation altitude verified up to 36km amsl)
  • Integration time 8 s
  • Weight 1.225 kg (Without batteries and GPS antenna)

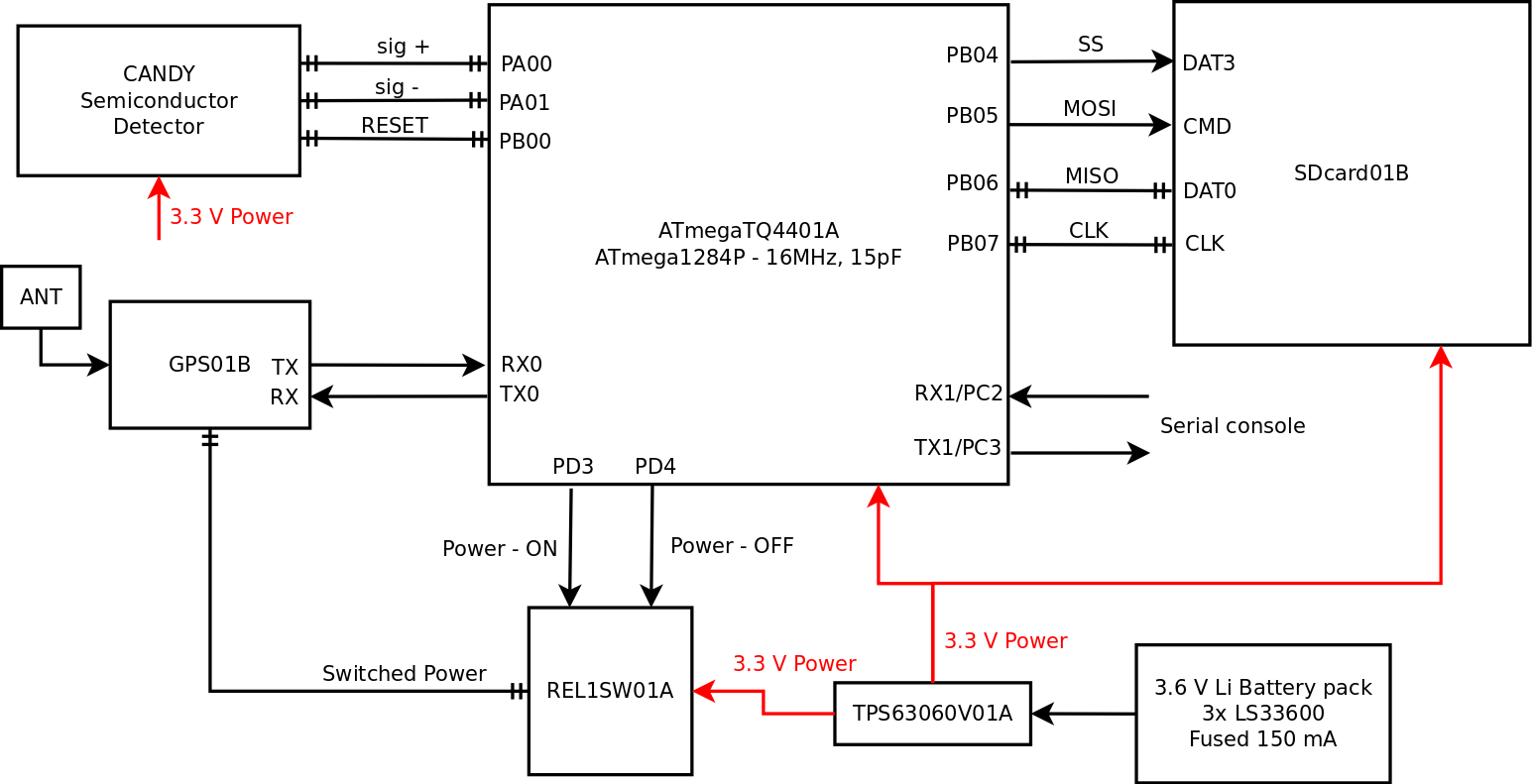

Device block diagram

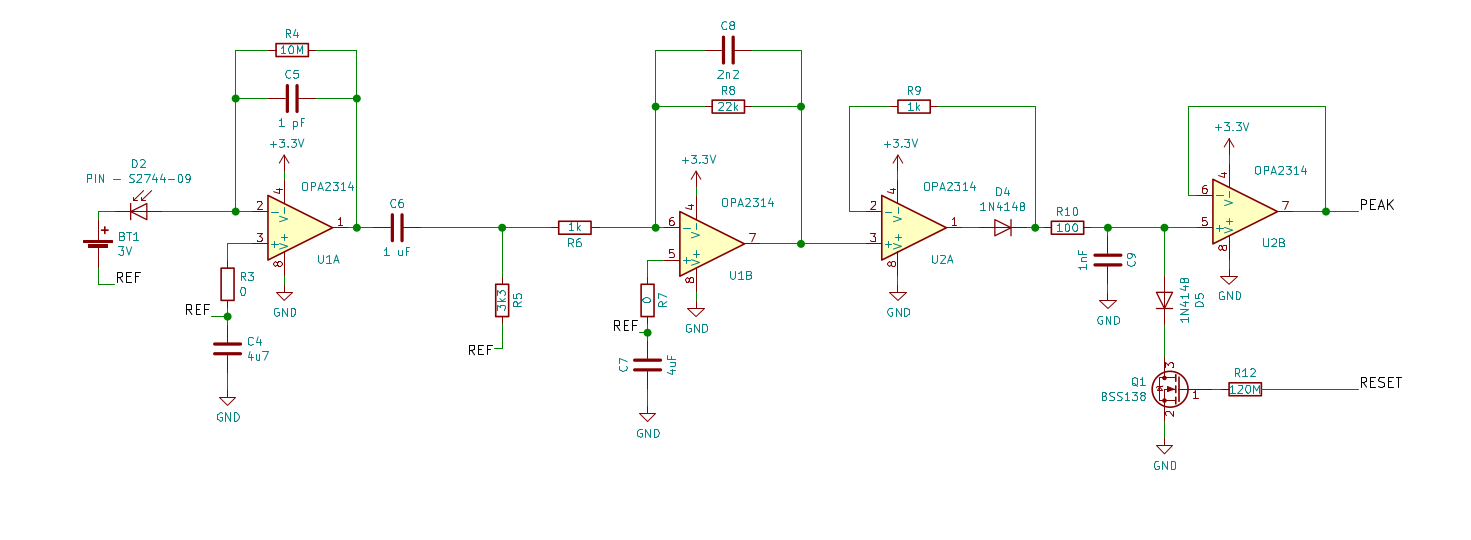

CANDY detector schematics

The device is replaced with updated version AIRDOS02.
