Cloxie

Schematics and code for Cloxie: my Nixie Tube Clock.

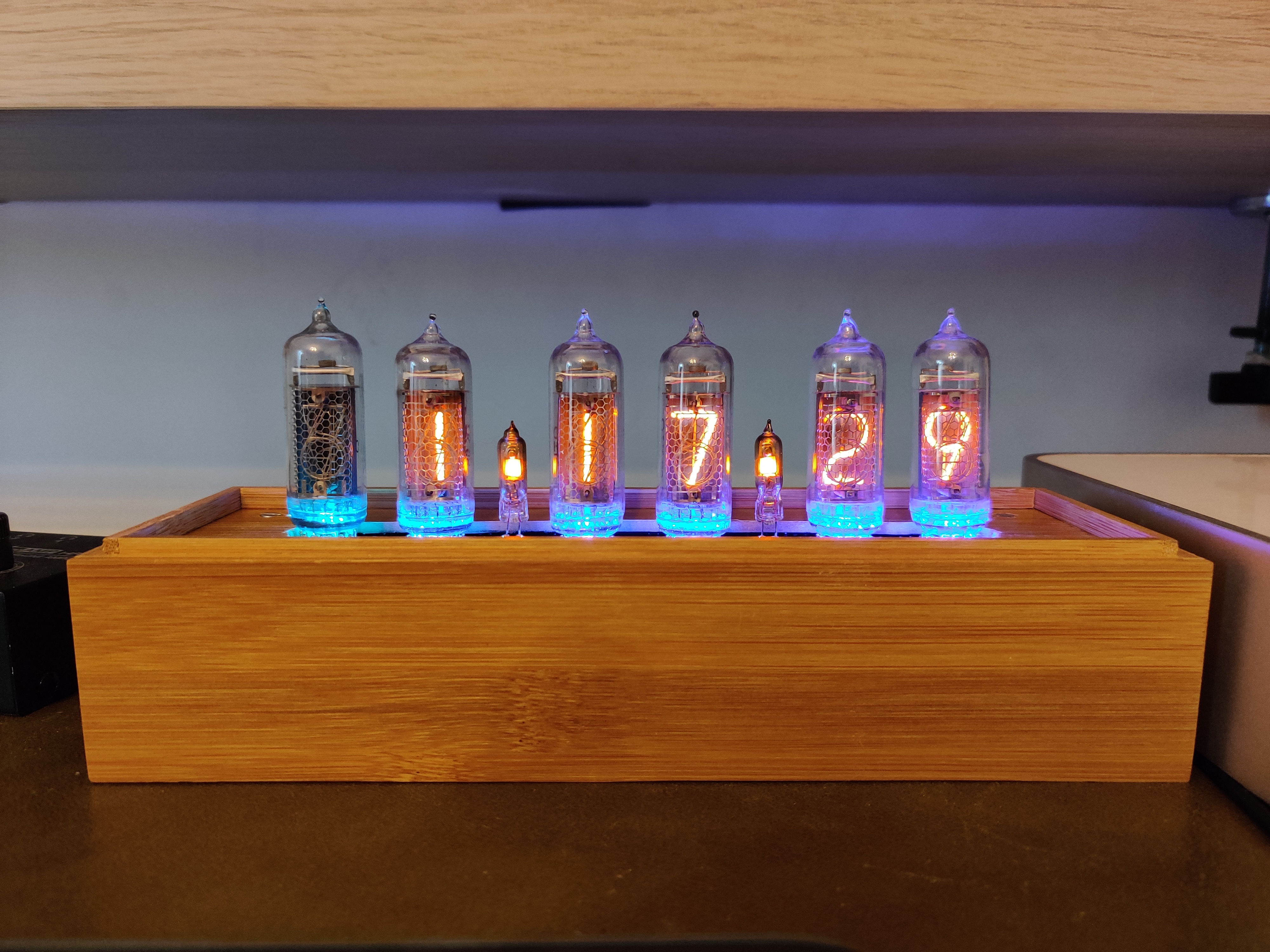

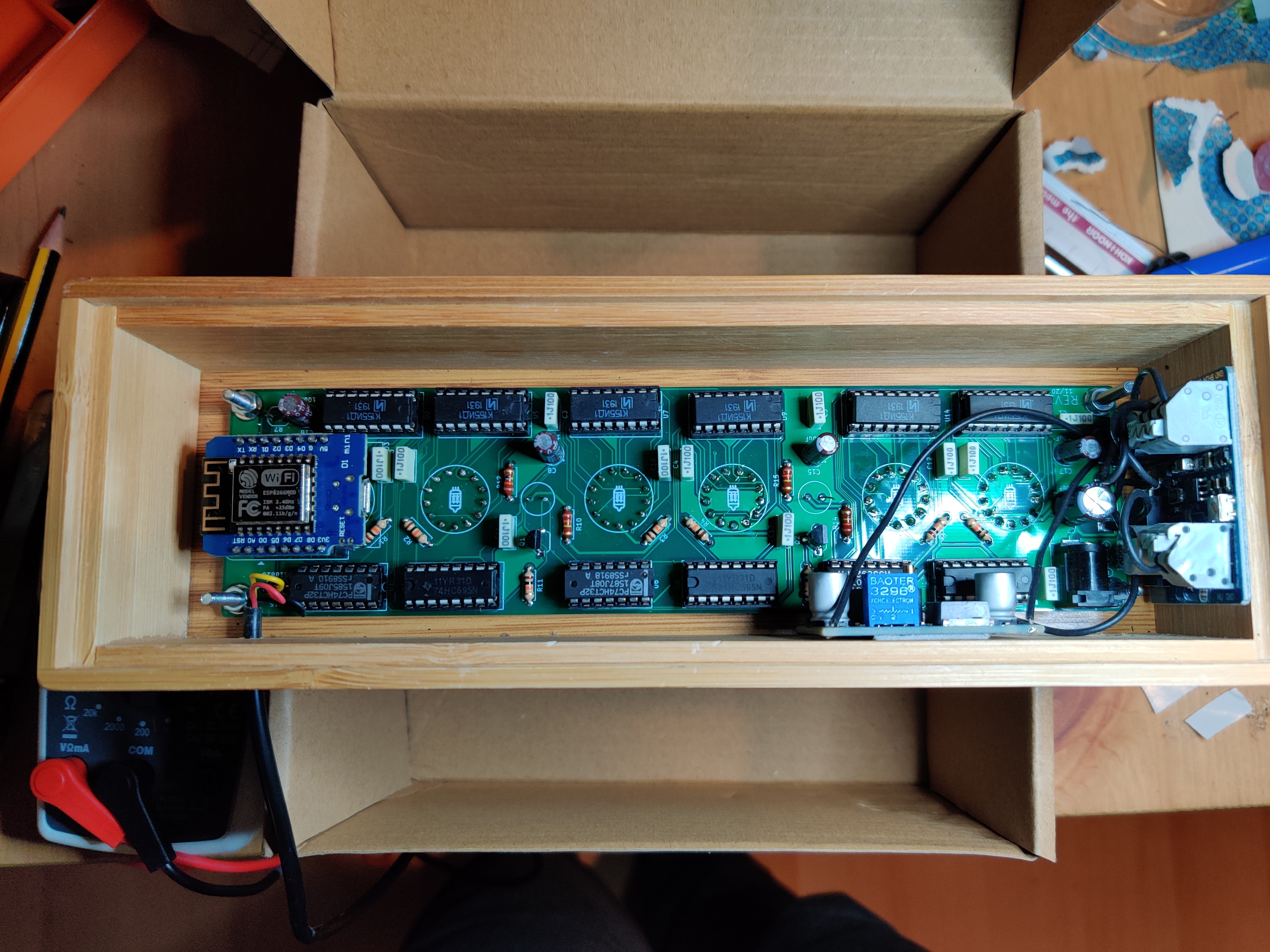

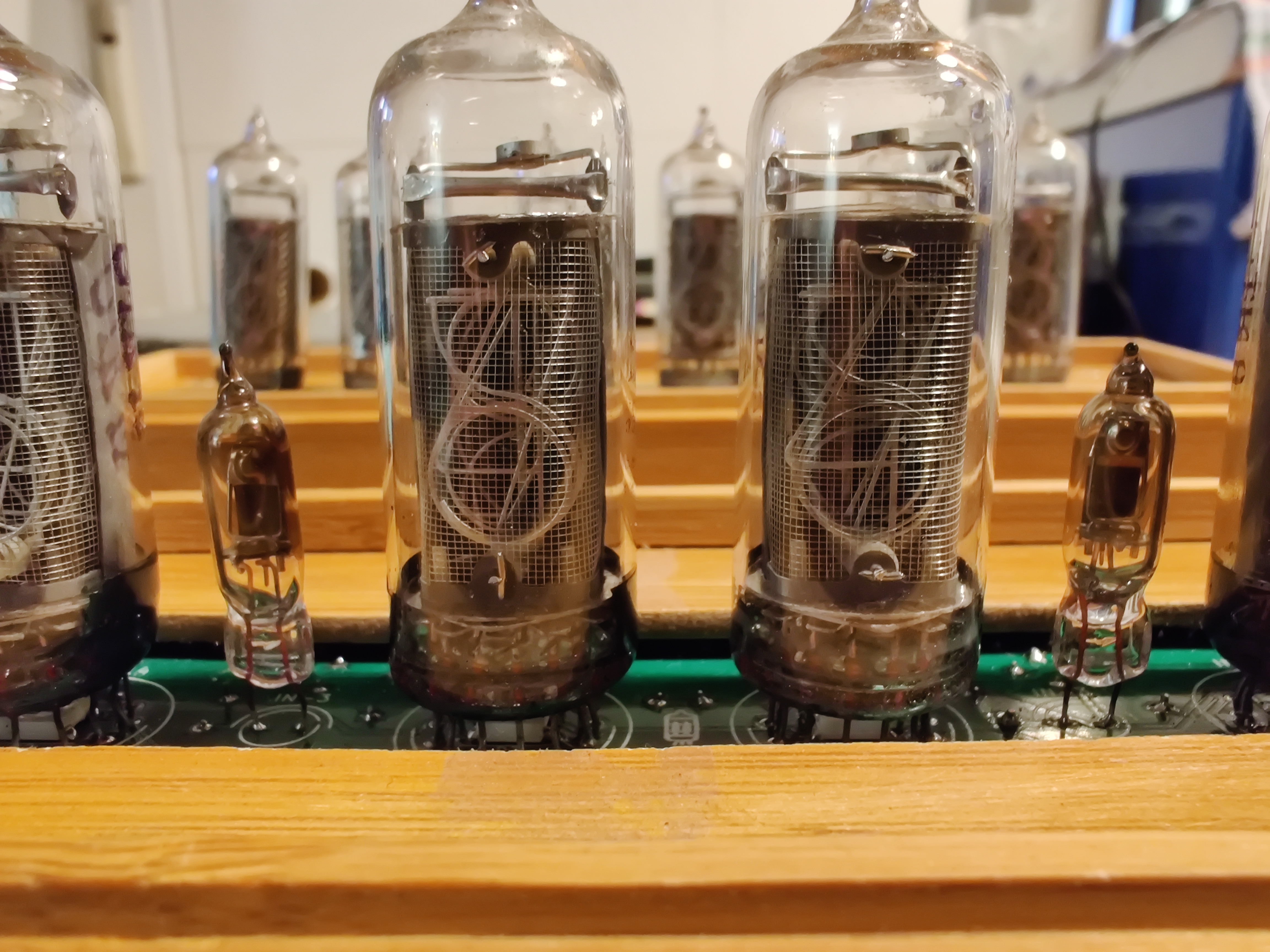

The circuit and custom PCB are designed around the popular IN-14 Nixie tubes.

You can find the schematics here: https://github.com/vascofazza/cloxie_nixie_clock/blob/main/nixie_board/schematics.pdf

Watch the clock in action: https://www.youtube.com/watch?v=ZD35oEGX9IY

Features

  • NTP time sync over Wi-Fi
  • The tubes are dimmable via PWM
  • 6 RGB leds under the tubes with configurable patterns
  • Automatic brightness control with a photoresistor
  • Configurable via an onboard web server (reachable on the local network at: http://cloxie.local)
  • Configurable via a dedicated Android App (available here: https://github.com/vascofazza/Cloxie-connect)
  • Optional temperature sensor
  • Alarm/Timer/StopWatch functionalities
