simplefoc all-in-one 50W hybrid stepper + bldc driver

README

Lemon Pepper Stepper Driver

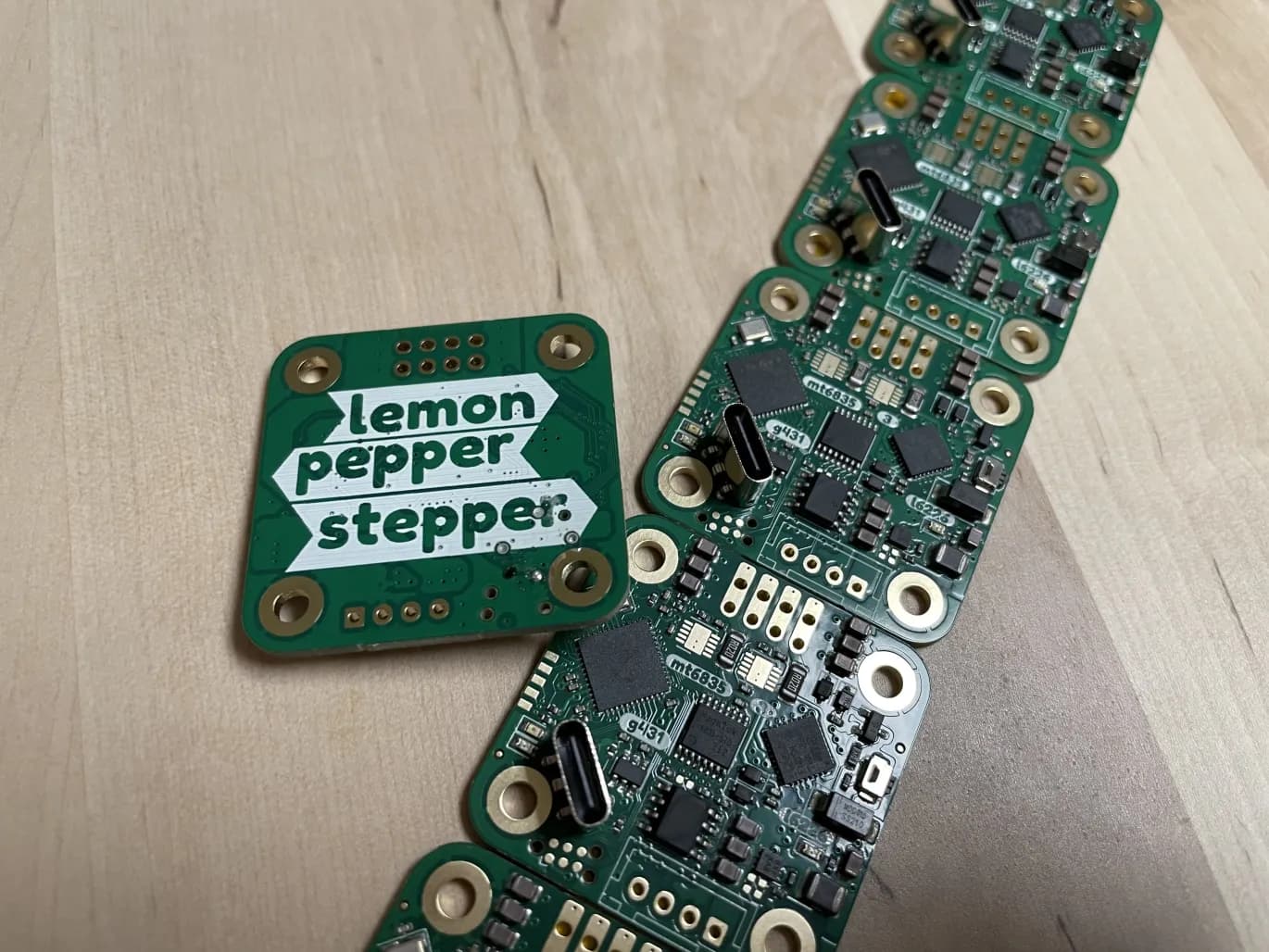

Small, all in one hybrid stepper + BLDC driver, designed to mount to the back of NEMA 14/17 size stepper motors. The board supports up to 48V @ 1.5A with a choice of either step-dir, CAN bus, I2C, UART or USB input. Additionally, there are 5 GPIO broken out that can be used for a second encoder (AB hardware encoder or I2C), endstops or other general purposes. Current sensing is also included on-board. The boards can easily be assembled by JLC and the design has been cost-optimized, coming in at about $20 per board fully assembled (minus connectors, which need to be modified to sit flat on motor back).

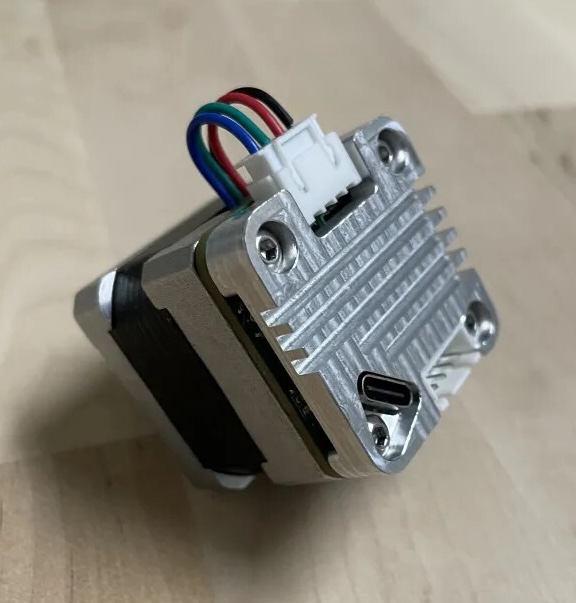

Due to the high pole pair count of stepper motors, a high resolution (21 bit) magnetic encoder is used, supporting both SPI and hardware ABI position encoding. Despite the rather high theoretical performance of this board I think you would need some serious cooling to actually hit the potential 50-70W specs of the parts. A heatsink has been designed and produced that works well with the board, giving a uniform back profile and small fins for heat dissipation.
