Description

🤖 Python module to control a 32x32 Matrix Led in the Raspberry Pi

README

Adapter PCB to support up to 2 panels

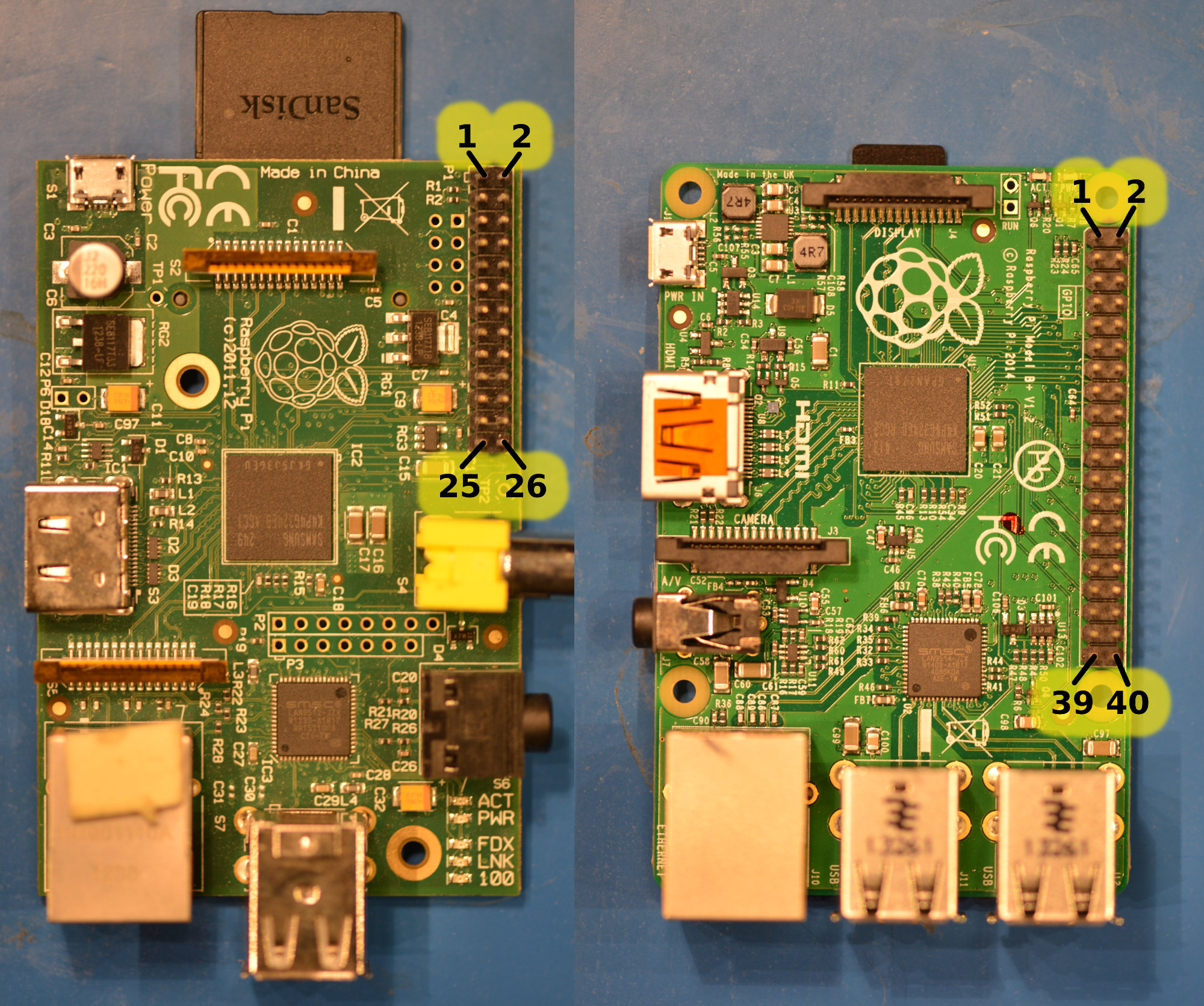

• Supports one panel for Raspberry PIs with 26 GPIO pins and two panels for newer plus models and Raspberry Pi 2 that have 40 GPIO pins.
• Uses HCT245 to level shift signals from 3.3V to 5V and shield the Raspberry Pi GPIOs from overloading.
• This supports two panels and provides convenient breakouts for I²C and the serial interface.
• Open source KiCAD PCB EDA format.
• If you are interested in connecting three RGB panels, check out the Active-3 board (it won't support the serial intefaces though).

For multiple parallel boards to work and using the I2C and serial interface you have to uncomment

 #DEFINES+=-DSUPPORT_MULTI_PARALLEL   # remove the '#' in the begging

in lib/Makefile.
