Description

RF Pentesting tool, but small enough for your wallet. Features: Wifi & Bluetooth, NFC, IR, (Sub Ghz, Planned)

README

pen-card

RF Pentesting tool,small enough for your wallet. Please see the docs for more detailed info: https://volkov997.github.io/pen-card/

Features

• ESP-32 processor with U.FL connector
• onboard 2.54GHz chip antenna with U.FL to MHF4 cable
• ST253916 NFC controller (read, write, emulate)
• IR LEDs + Reciever (38kHz)
• 0.96" OLED (might switch to a smaller one if i find one tho)
• 150mAh 3mm LiPo, max. 3uA shutdown current

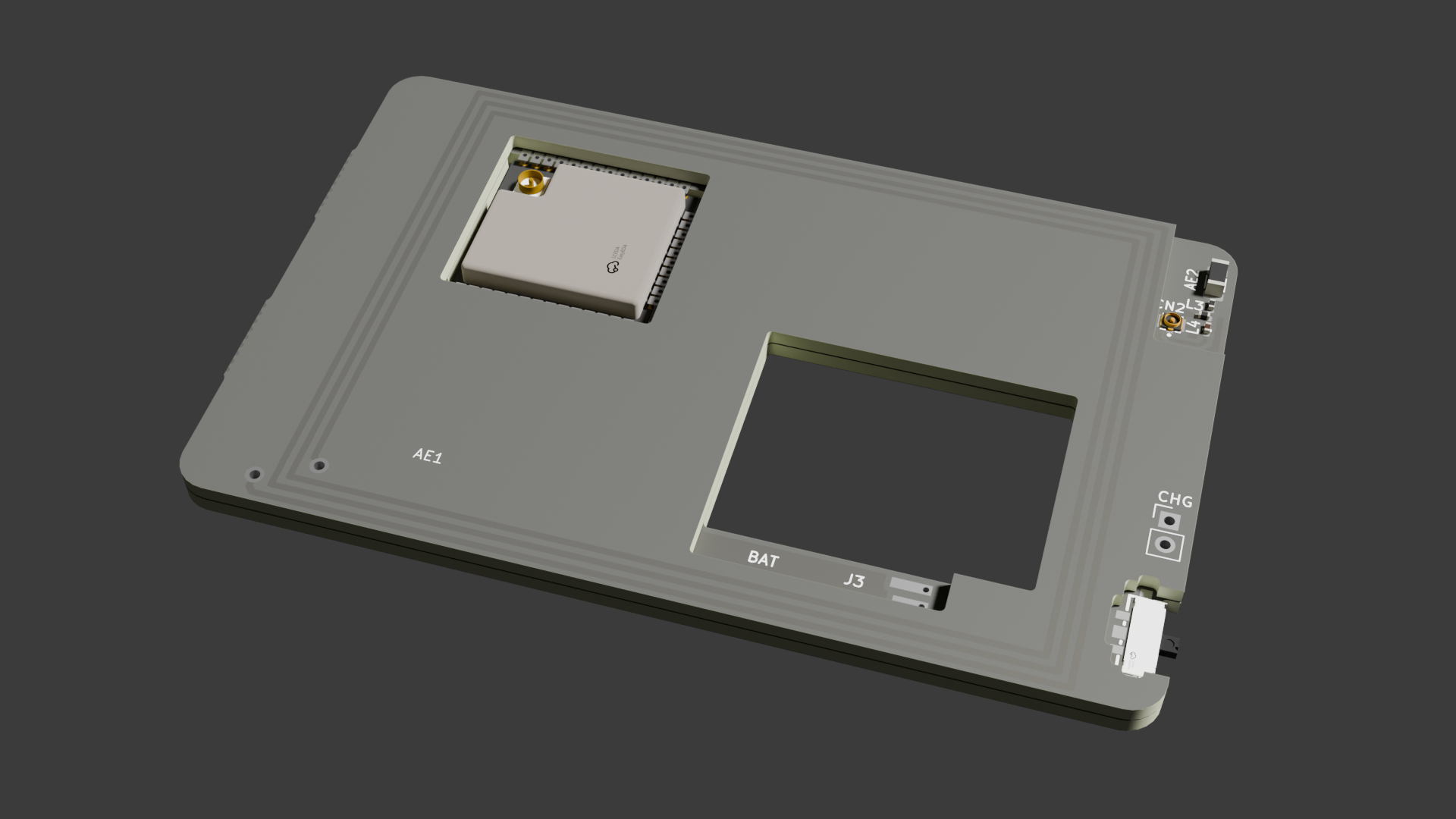

The card is constructed from two stacked 1.6mm PCBs, for a full height of 3.2mm, width and height being 86mm x 54mm. Components are chosen and placed as to not stick out.

This project is WIP, and will be ordered through OnBoard once finished.
