FilaScale-S

Simple through-hole board implementing a no-gui FilaScale

This is a small Arduino Nano-based board designed to implement the sensor suite of a FilaScale but without a GUI, and using through-hole parts.

It was built to the requirements of a filament monitoring device. The board provides:

• Humidity, temperature and weight monitoring of a spool of filament in a drybox
• RFID tag reader
• Serial communications with a host over USB

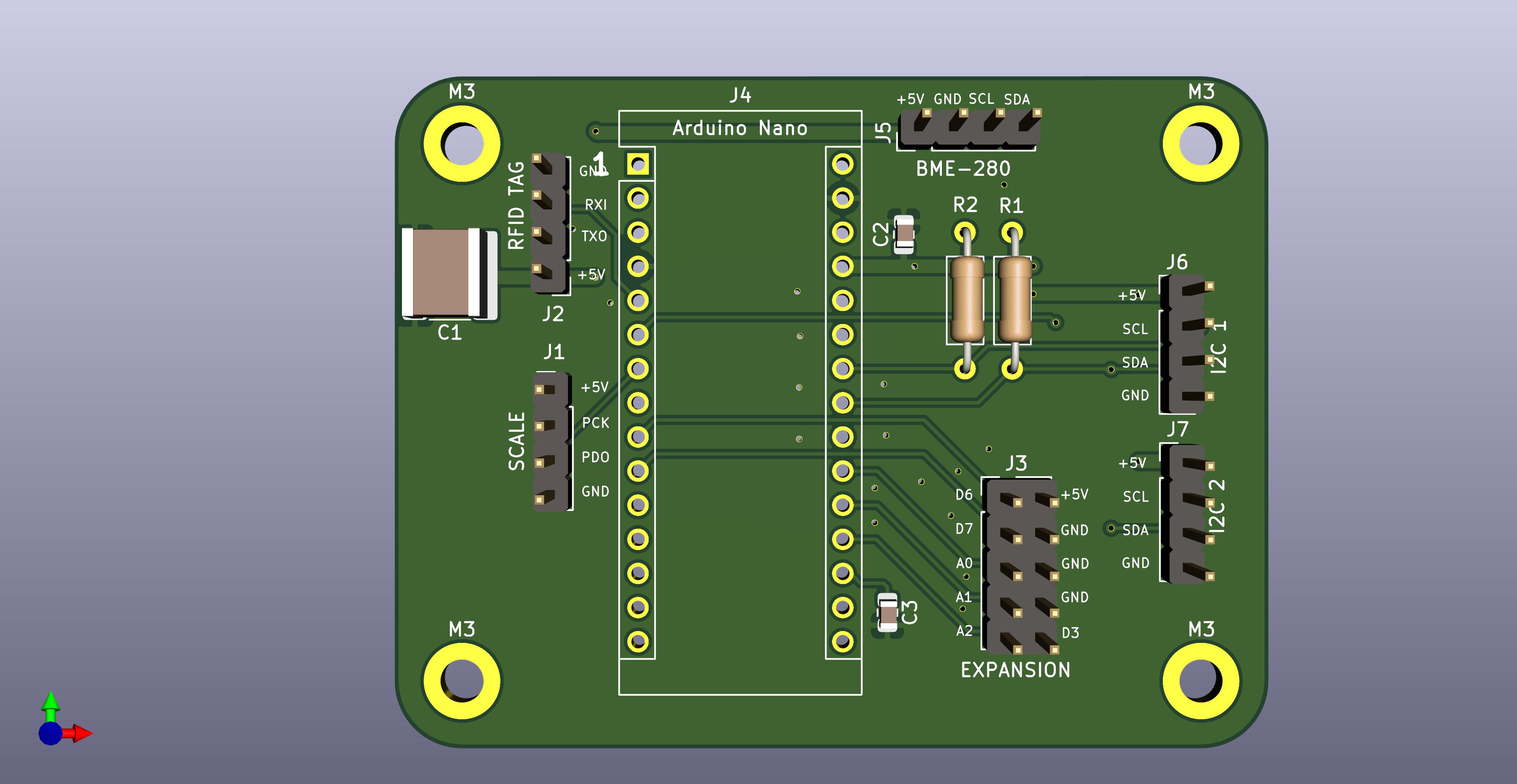

The board (KiCAD rendering)

The code

The Code is at https://github.com/wallaceowen/FilaScale/tree/nogui_nano
