The included script can be used to plot data stored in a file, as sent by the controller. Data are stored line-wise as JSON strings.
Run the script, passing the name of a log file as the argument (an example file is included):
$ sh make_plot.sh reflow_example.log

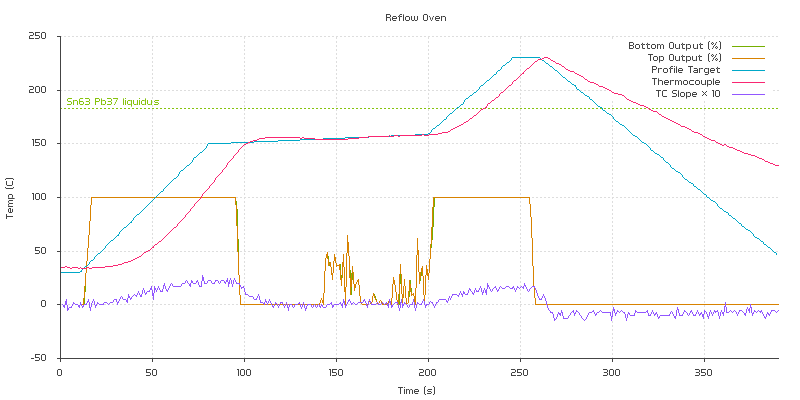

You may get a warning from gnuplot about plotting with an 'unknown' terminal -- this can be ignored. The resulting plots (with light and dark background) are generated in the current directory.
