README

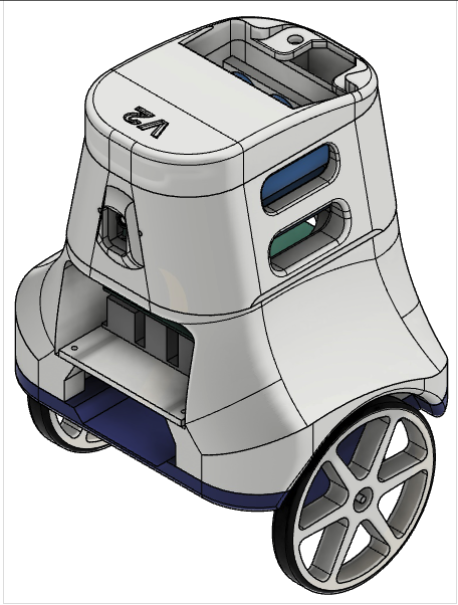

Two Wheel Self Balancing Mobile Robot

Final Year Capstone Mechatronics Project. Designed to be a cost effective platform for research and development of autonomous mobile robotics. The non linear and unstable dynamics of the Two Wheel Self Balancing Mobile Robot (TWSBMR) make it a challenging platform for control and navigation.

Low Level motor control implemented on STM32F411RE microcontroller, using LibOpenCM3. High Level Monocular Navigation uses RaspberryPi 5 with the Pi Camera V3. ComsTerm used as engineering UI.

Design

The project was built around milestones of autonomy:

  • Stabilization
  • Positional Control
  • Teleoperation

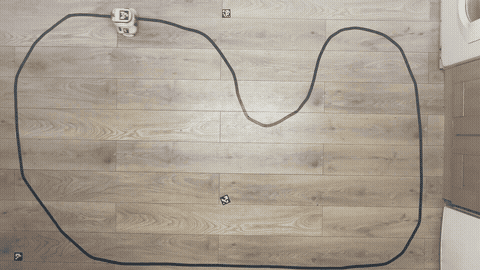

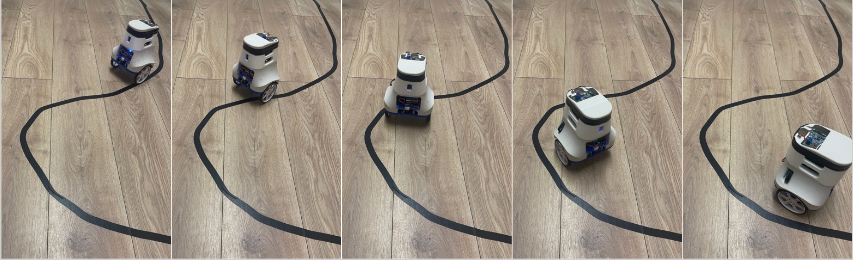

  • Path Following
  • Path Recovery
  • Track Racing
