lois_ecu

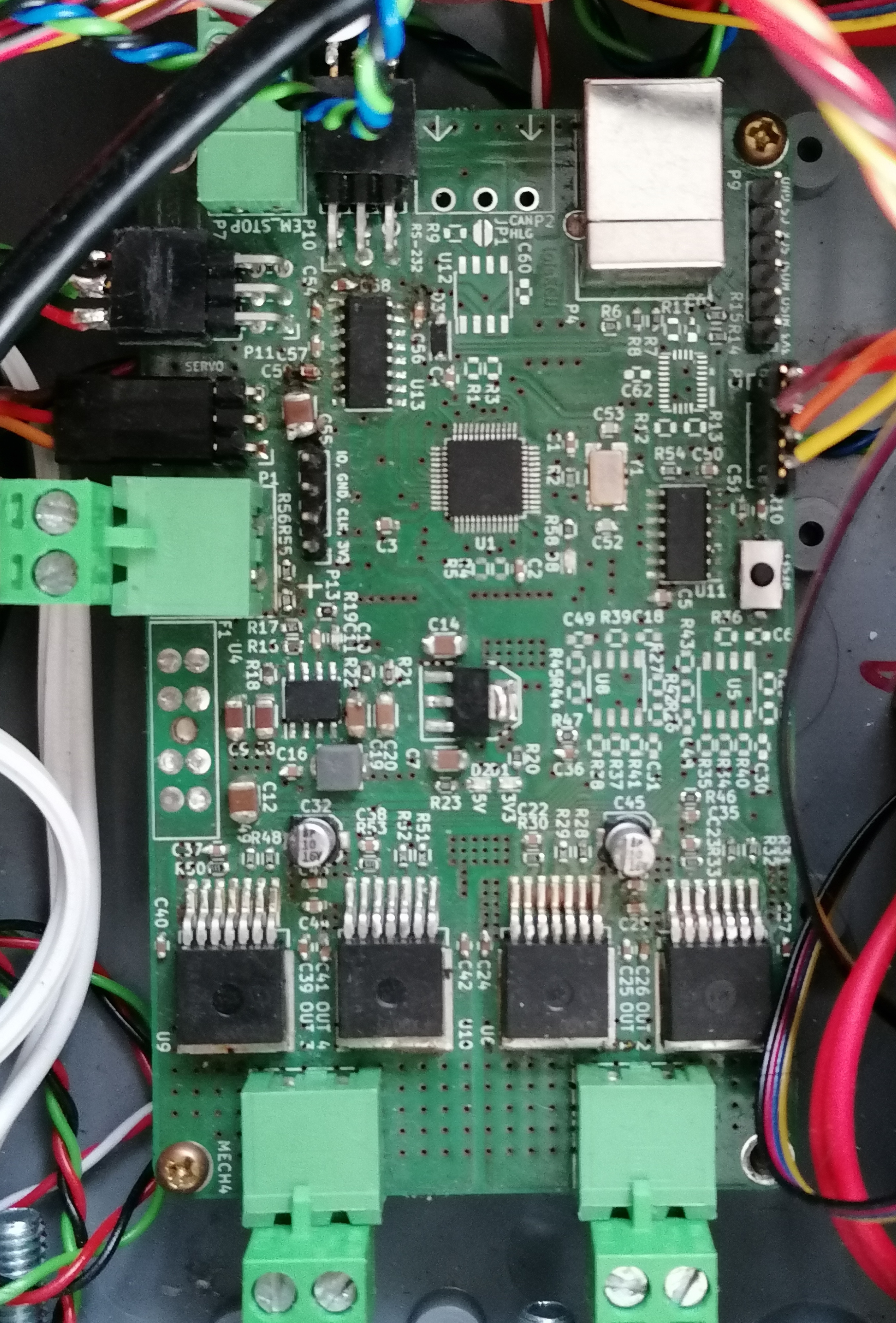

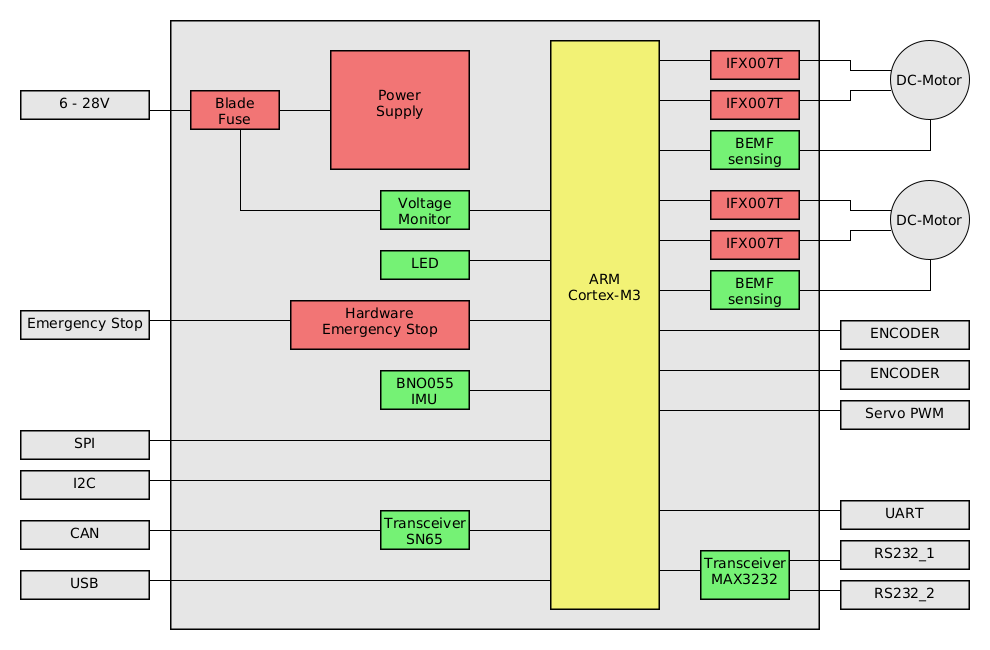

This repository contains the hardware, firmware and tooling for a general purpose control unit for differential drive based wheeled robotics platforms. An image of the real hardware and a component diagram are shown below.

Firmware

The firmware comes as a STM32 CubeIDE project and currently implements the following features:

• Closed single loop RPM-control for two DC-motors with encoders
• Realtime calculation of differential drive odometry
• Servo sweep for the ball distribution device
• NMEA parser on RS232_1 (used for UBLOX GPS)
• NMEA parser on RS232_2 (used for KVH-C100 fluxgate compass)
• Host communication via UART
• 2048 Byte reealtime reord buffer ( recording of RPM, torque and compass heading over a given time )
• Easy human readable and debuggable ASCII communication leaned on modbus protocol with optional checksum

Host communication protocol

The communication protocol is ASCII-based and the messages have the following format:

:<8-bit command><32-bit payload><8-bit crc><\n>

All values are written in hexadecimal, so that every message has a fixed length of 14 characters. There is also a ROS2 driver, which uses the given protocol to make the functionalities available via ROS.

The table below shows the currently implemented messages. There are also some periodic messages from the ECU to the Host. By writing the commands of this messages to the ECU, the period can be changed. The payload is then interpreted as an uint16 containing the period time in milliseconds. 0xfffe then means requesting a periodic message once and 0xffff turns the message off completely.

Command	Function	To ECU (E)/ To Host (H)	Payload interpretation	Periodic
0x01	Dutycycle of left and right motor, RPM controller gets disabled	E	2 x int16 ( -100 % - 100 %)
0x02	RPM of left and right motor, RPM controller gets enabled	E	2 x int16
0x03	Turn board LED on or off	E	bool
0x04	Record a given amount of RPM samples	E / H	2 x uint16 ( m samples left and n right ) to ECU or sequential max(m, n) 2 x uint16 ( tick timestamps in 100 ns followed by 0x00000000 ) to Host
0x05	Emergency stop button pressed	H	bool
0x06	Kp left controller	E	float32
0x07	Tn left controller	E	float32
0x08	Td left controller	E	float32
0x09	Kp right controller	E	float32
0x0a	Tn right controller	E	float32
0x0b	Td right controller	E	float32
0x0c	Record a given amount of compass heading samples	E	uint32 n samples to ECU or sequential n + 1 2 x int16 ( heading data in degrees ) followed by 0x016A016A to Host
0x0d	GPS position	E / H	3 sequential uint32, 2 x float32 ( 0xffffffff, latitude, longitude )	x
0x0e	GPS time	E / H	3 x uint8 ( hours, minutes, seconds )	x
0x0f	GPS date	E / H	3 x uint8 ( year, month, day )	x
0x10	Compass heading	E / H	1 x int16 ( degrees to north )	x
0x11	Terminal mode ( forward serial sensor Rx input on this interface )	E	uint8 ( Host protocol, GPS sensor, compass sensor )
0x12	Encoder overall ticks	E / H	4 sequential 4 x uint32 ( 0xffffffff, timestamp in nanoseconds, left encoder, right encoder )	x
0x13	Left encoder short level time correction	E	float32
0x14	Left encoder long level time correction	E	float32
0x15	Right encoder short level time correction	E	float32
0x16	Right encoder long level time correction	E	float32
0x17	Record a given amount of Torque samples	E / H	2 x uint16 ( m samples left and n right ) to ECU or sequential max(m, n) 2 x uint16 ( torque 12-bit ADC values followed by 0x00000000 ) to Host
0x18	Reset all controllers, interfaces and counters	E	-
0x19	Use ball distribution device once	E	-
0x20	Odometry calculated on robot	E / H	sequential 7 started with 0xffffffff followed by 6 x float32 ( x, y, phi, dx, dy, dphi )	x

Encoder and RPM controller tuning

There is tooling in Scilab provided, that can be used to find the parameters for the implemented RPM controller. The first step is recording a step response with full torque/ dutycycle and data of free spinning wheels at a constant dutycycle and saving the data as *.csv files. This can for instance be done by using the ROS ecosystem of lois. There are also some examples in the controller tuning folder.

Encoder correction

The ECU determines the RPM values of the robot by measuring the time of high and low levels of the encoder signals. With this implementation, also encoders with fewer steps ( usually mounted directly on the wheel ) can be used with a sufficient resolution. The problem is, that some encoders have inequal high and low times. Therefore correction factors can be calculated and entered at runtime ( commands 0x13 - 0x16 ) from the free spinning record.

Finding the controller parameters

The controller is updated in the ECU with a frequency of 5 Hz. It is only a single loop RPM controller without a cascade for torque control, as it is not necessary for most differential drivetrain applications.

There is one band limited PI controller for each motor with the transfer function G(s) = Kp * ( 1 + s * Tn ) / ( s * Tn * ( 1 + s * Td )).

The Scilab tooling helps to approximate the plant from the step response as 1st or 2nd order system and find sufficient controller settings. The tuning paradigm is the compensation of the most critical pole of the plant followed by gain optimization. The following goal parameters that can be selected:

• Encoder steps per revolution
• Controller frequency in Hz
• Don't optimize for phase margin with gain optimum ( Td = 0 )
• Maximum overshoot inpercent
• Step response destination in % for optimization ( average RPM value during operation )
• Stabilization time in seconds
• Tolerance band in %

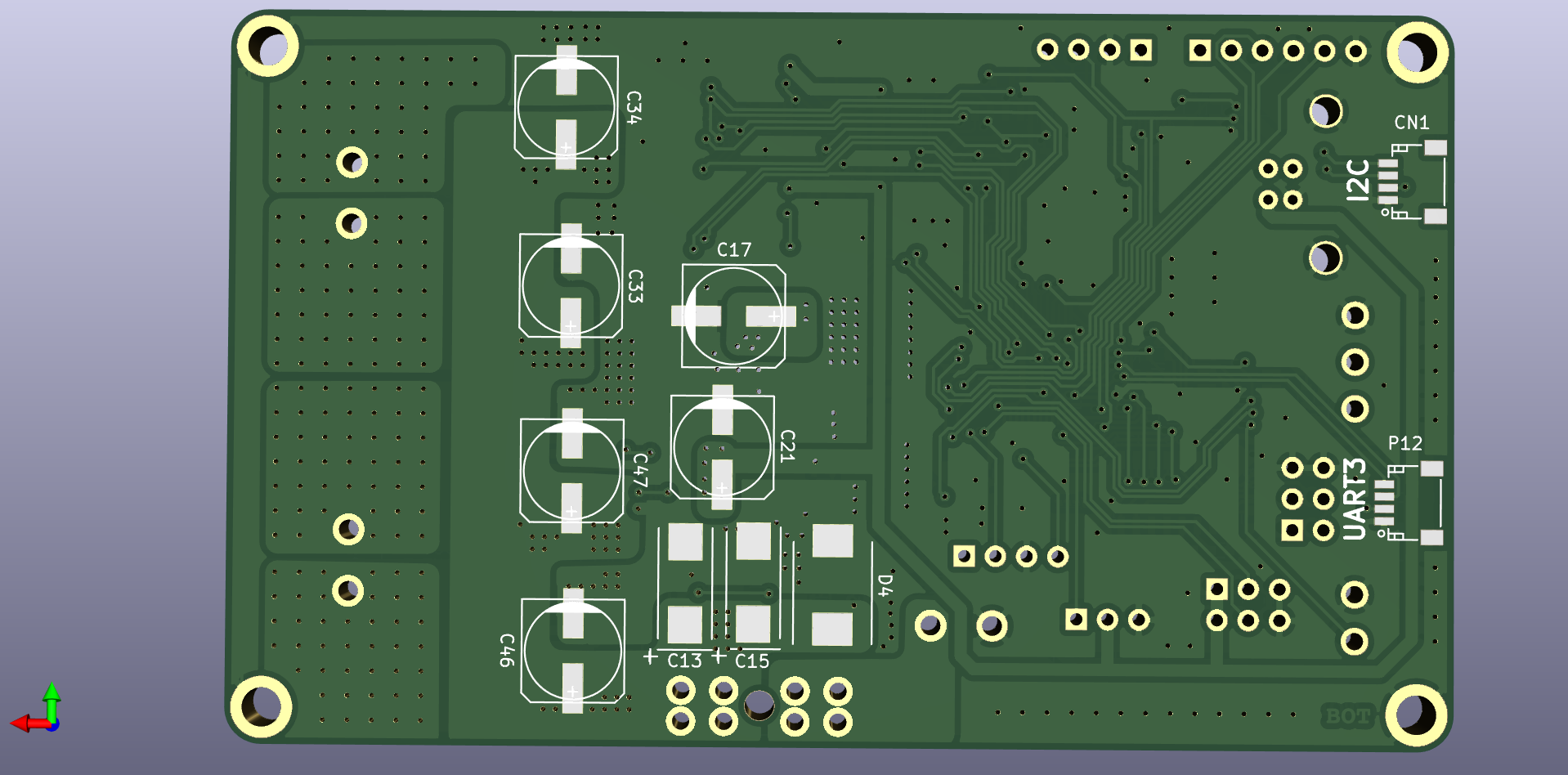

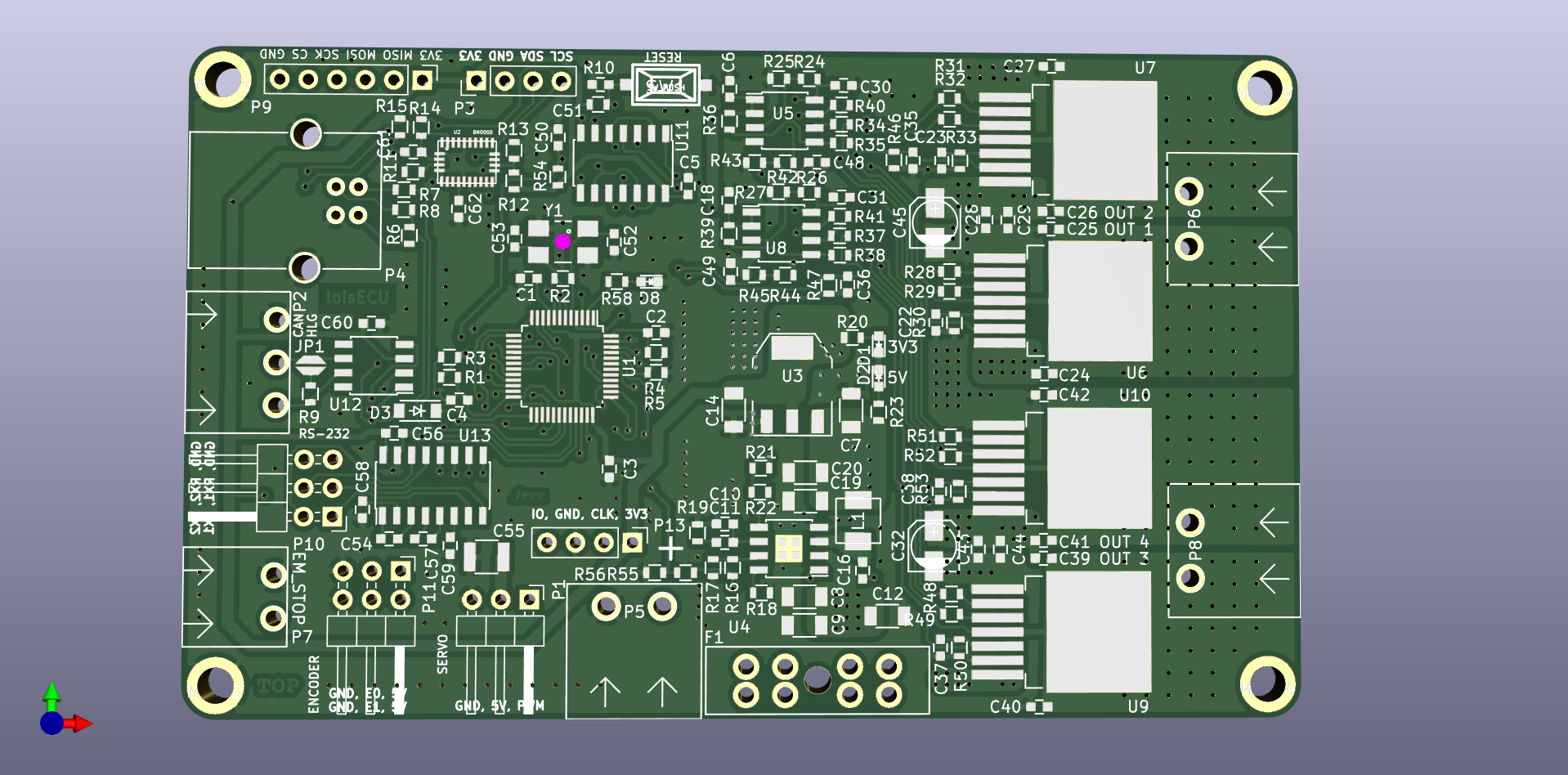

PCB toplayer
