Open source numpad Electrostatic Capacitive PCB.
This project is a continuation of my development of open source EC boards.

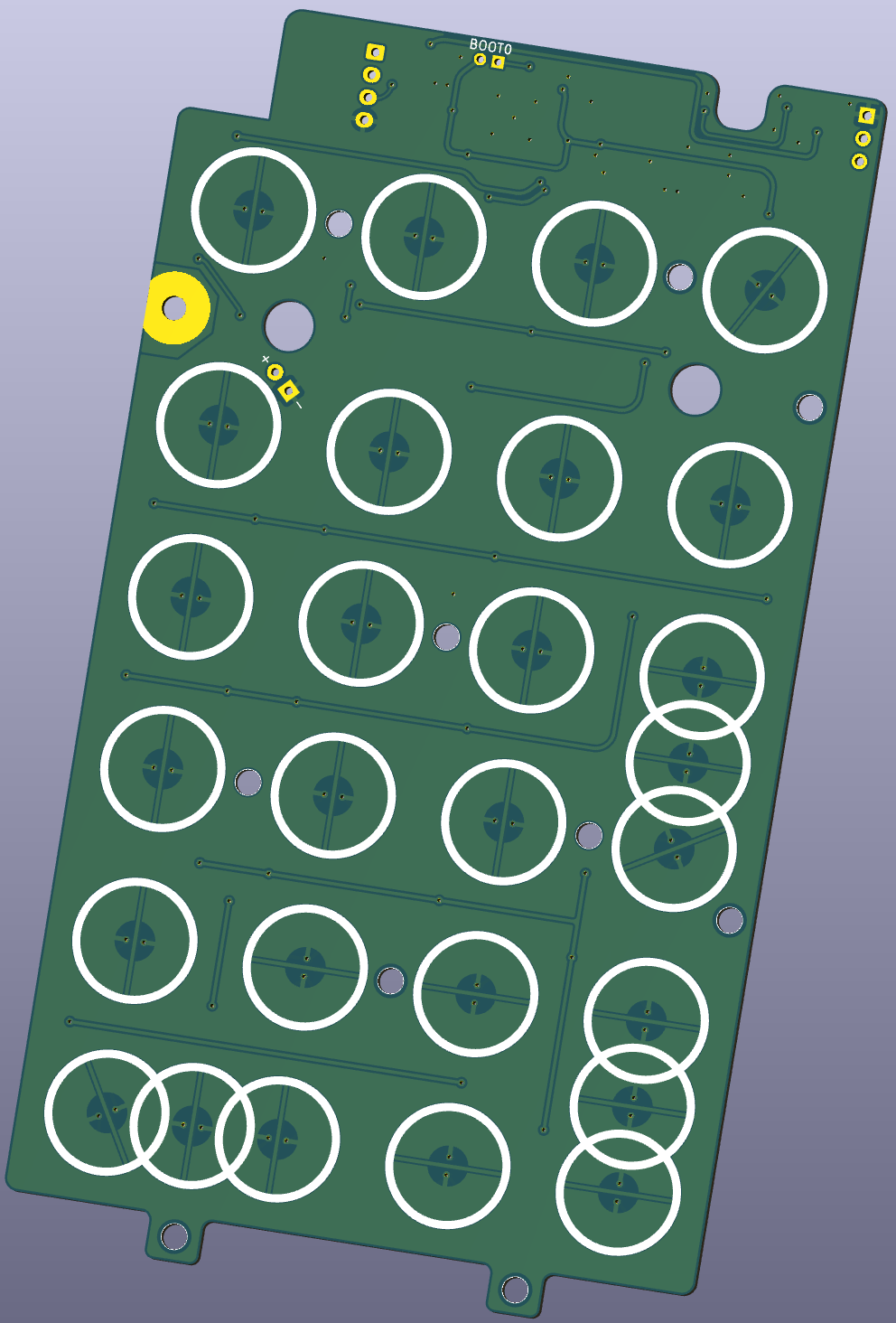

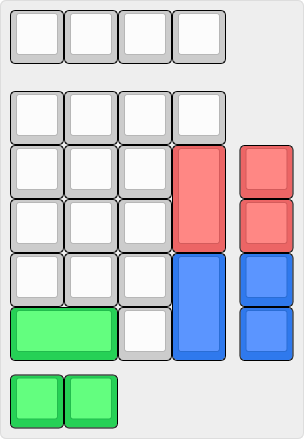

The supported layout options are the following:

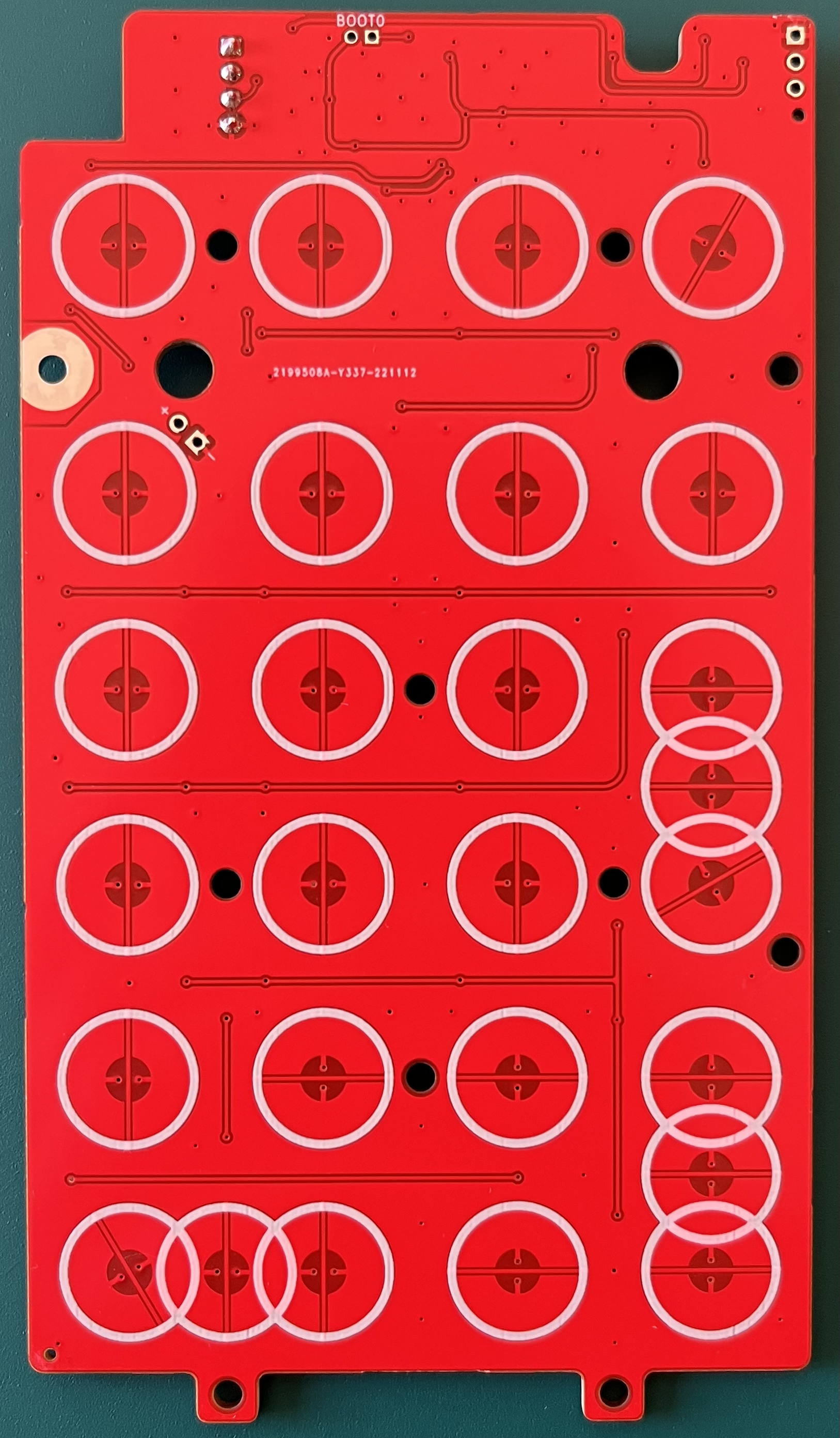

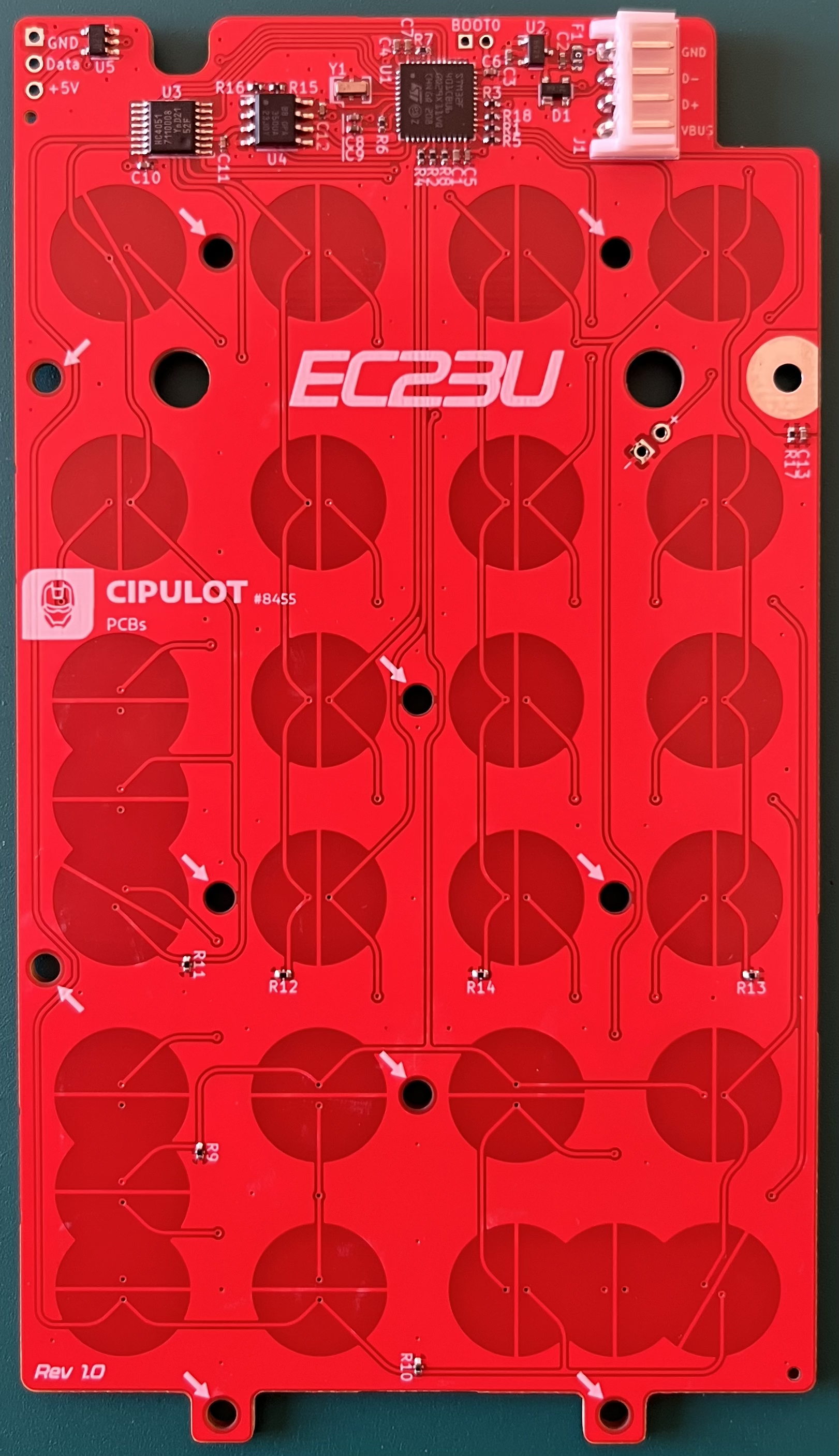

NOTE: The silkscreen text near the JST connector has the GND and VBUS label swapped. This is wrong and have been fixed in the latest revision.
This revision implements all the main features of the mainboard ad controllers mentioned in the specifications.

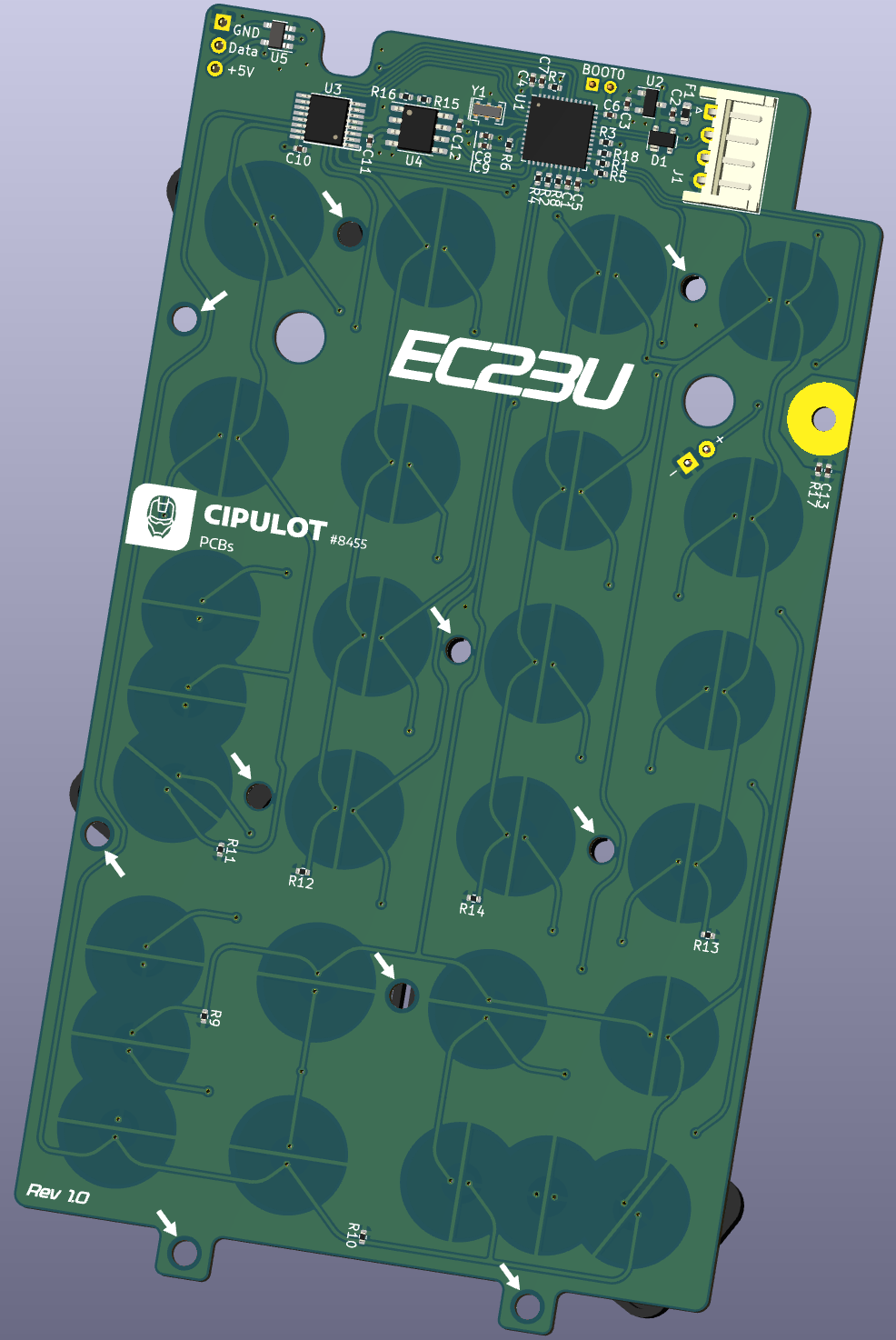

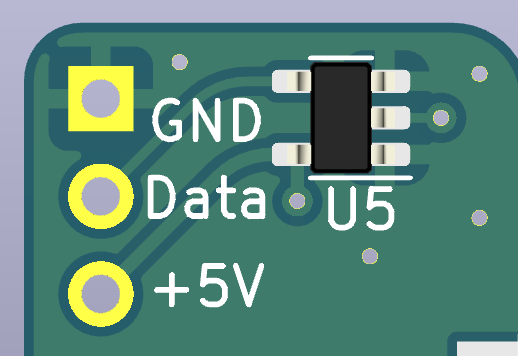

The mainboard features an RGB header for connecting +5V addressable RGB strips. THe properties of the lighting can be controlled through Vial or by assigning RGB control keycodes on the board itself.
The mainboard features a NumLock indicator LED. The LED is controlled by the MCU and reacts based on the system state. The LED used is a 3.0mm THT LED. Polarity is signalled by the silkscreen. The indicator is optional.
To access the DFU mode of the mainboard you can perform one of the following actions:

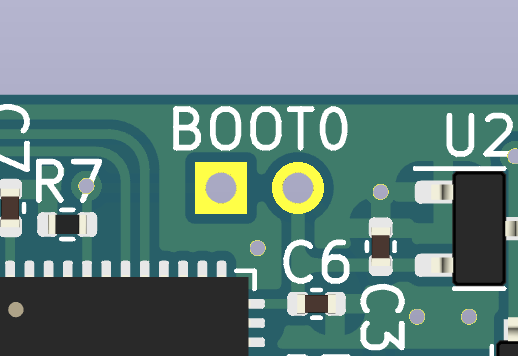

QK_BOOT keycode is assigned (if available)Boot0 pins on the mainboardThe production can be found in the Production folder.
In there you'll find the main PCB files and the JIS and HHKB plates.
As usual the *.zip files are the gerber files, BOM-*.csv are the BOM (Bill Of Material) files and POS-*.csv are the POS/CPL (Footprint POSition/Component Placement List) files.
Here follows the options to be used for assembly:
yesThis project is not endorse nor sponsored in any way by Topre Corporation and PFU Limited. The HHKB Logo and Topre logo are trademarks of their respective owners.
This project is released under the MIT License. For the license, please refer to the LICENSE.md file.
