STlinkV3-Adapter

Custom developed board that allow you to use the STlink-V3mini or STlink-V3MODS.This adapter board was designed to retain the STDC14 connector from STlink-V3mini.

SWD connector

Pin	Description
1	Target_VCC
2	Target_SWCLK
3	Target_GND
4	Target_SWDIO
5	Target_NRST
6	Target_SWO

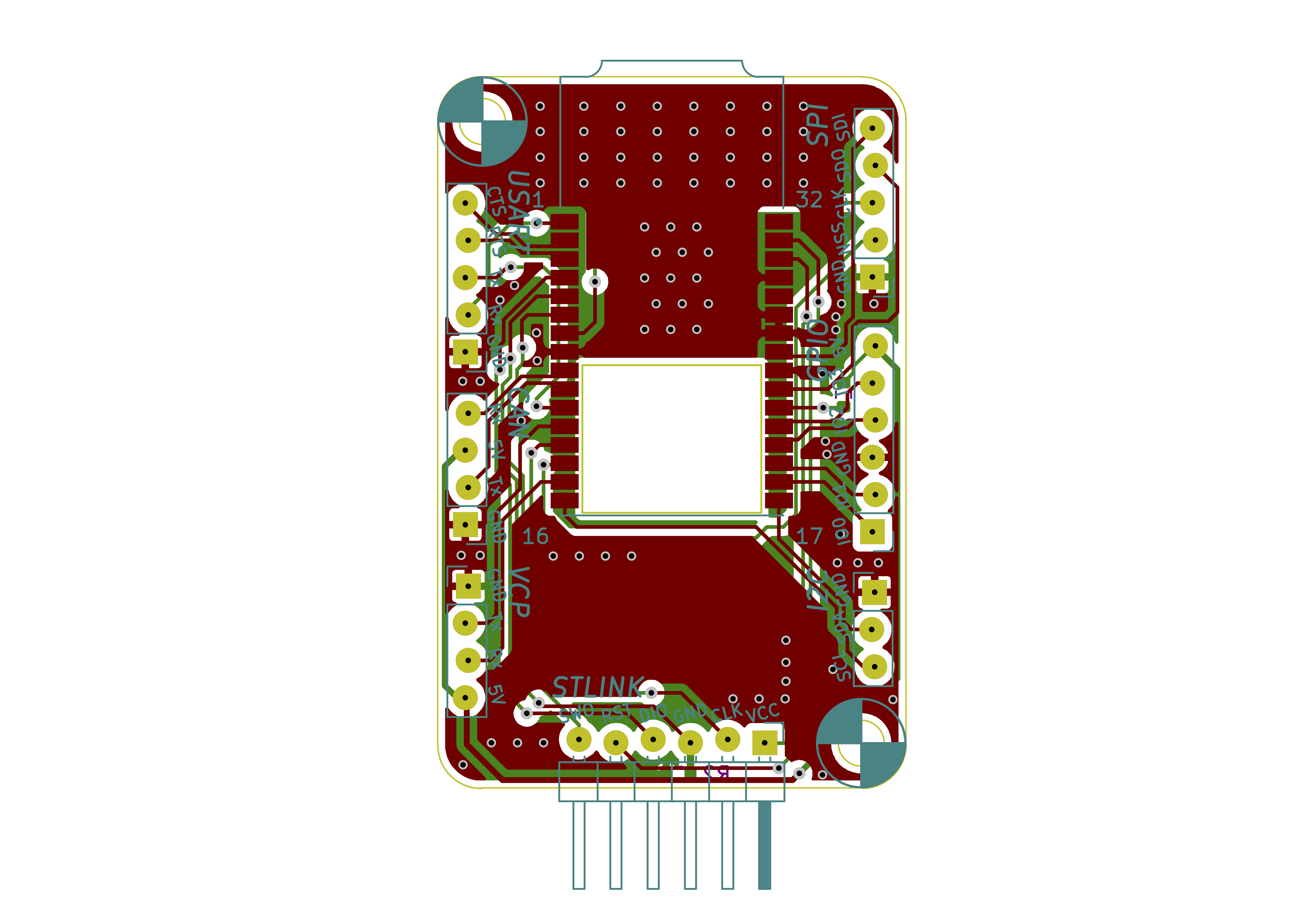

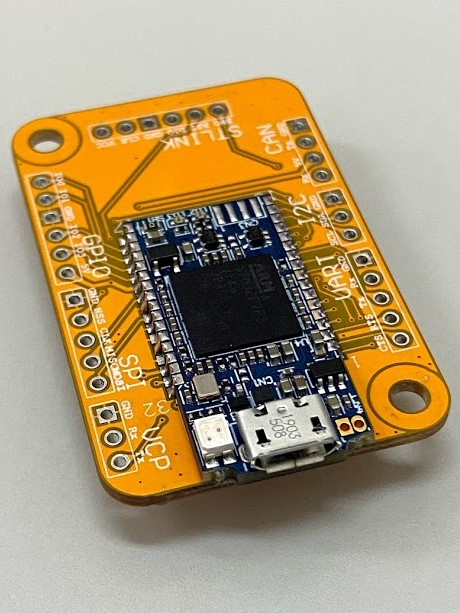

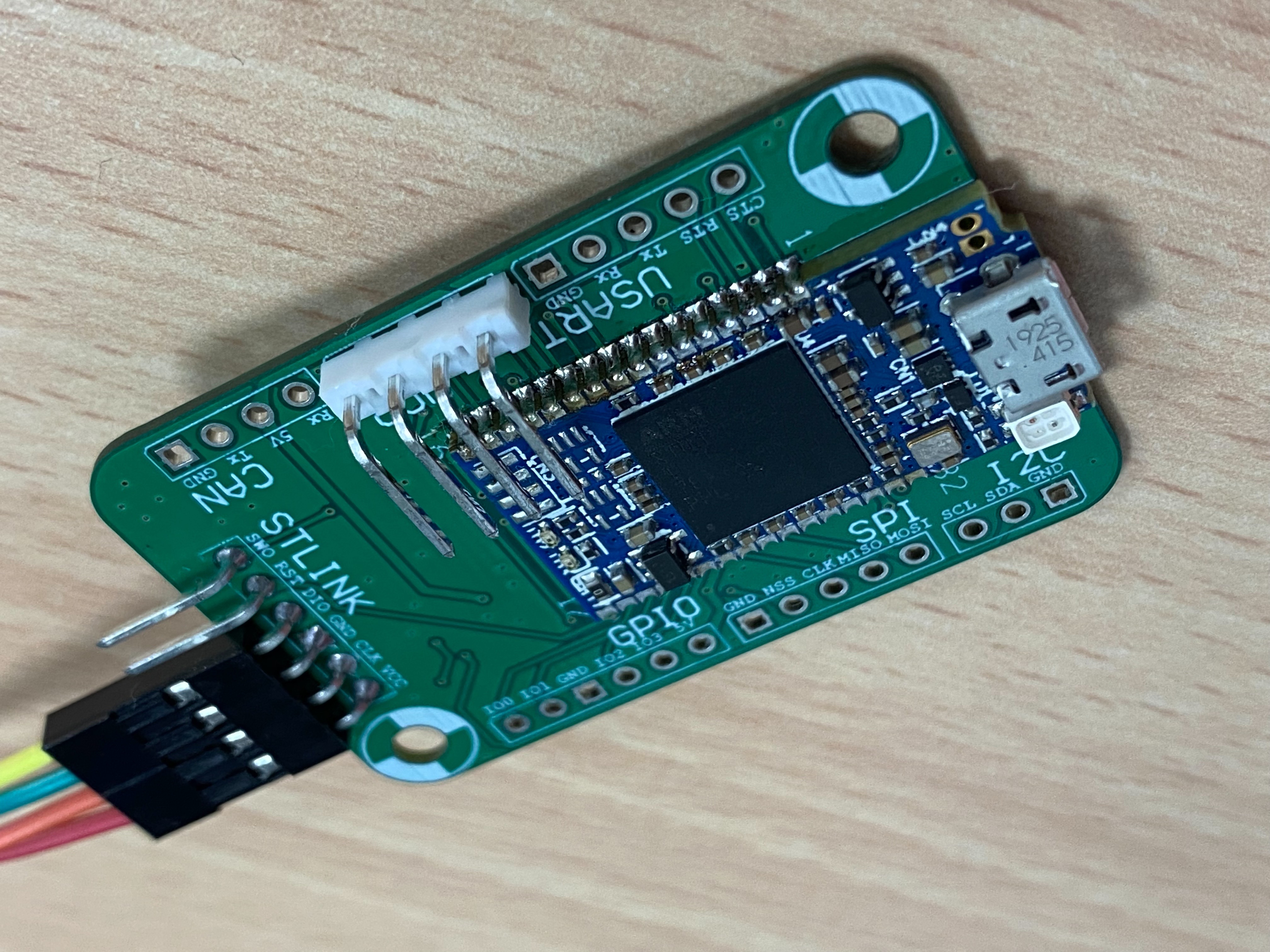

Preview of the board:

More information

The newly designed interposer board has not passed production verification, be careful of to use the adapter.

PCB SAMPLE EXPERT

Rev 1.1 COMPANY

Rev 1.0 COMPANY

Prerequisite

KiCAD STlink-V3 Module

STMicroelectronics Documents

• STLINK-V3MINI
• User manual UM2448
• User manual UM2502
• STLinkV3-Bridge

Contact us

Please feel free to contact me if you need any further information. Email: [email protected]

Contributer

Thank @JojoS62 created a small box that can be 3D printed: https://www.thingiverse.com/thing:5101077
