README

Wifi-ATmega328

Simple board with esp8266 + ATMega328

The board hardware include one esp8266, one AtMega328P together power unit 12-5 vcc -> 3.3V.
A Kicad project are available in the hardware folder.
Atmega 328 will be programmed by ICSP connector.

Software:

can be used the AT firmware (loaded in the esp8266) and the WiFiEspAT library
try to use with the WiFiESPNow library running in the esp8266 and manage with the ATMega328

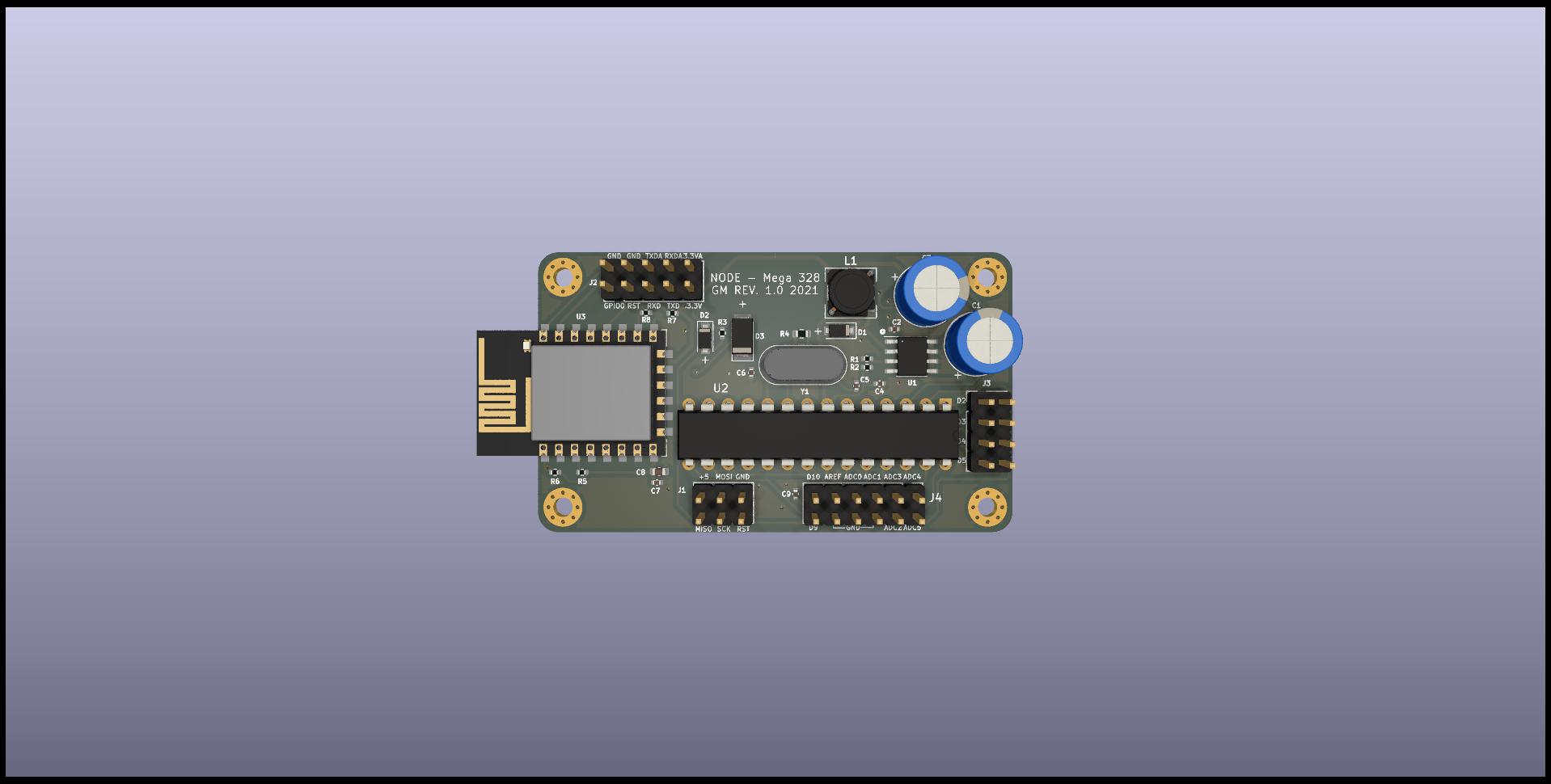

Board Top view:

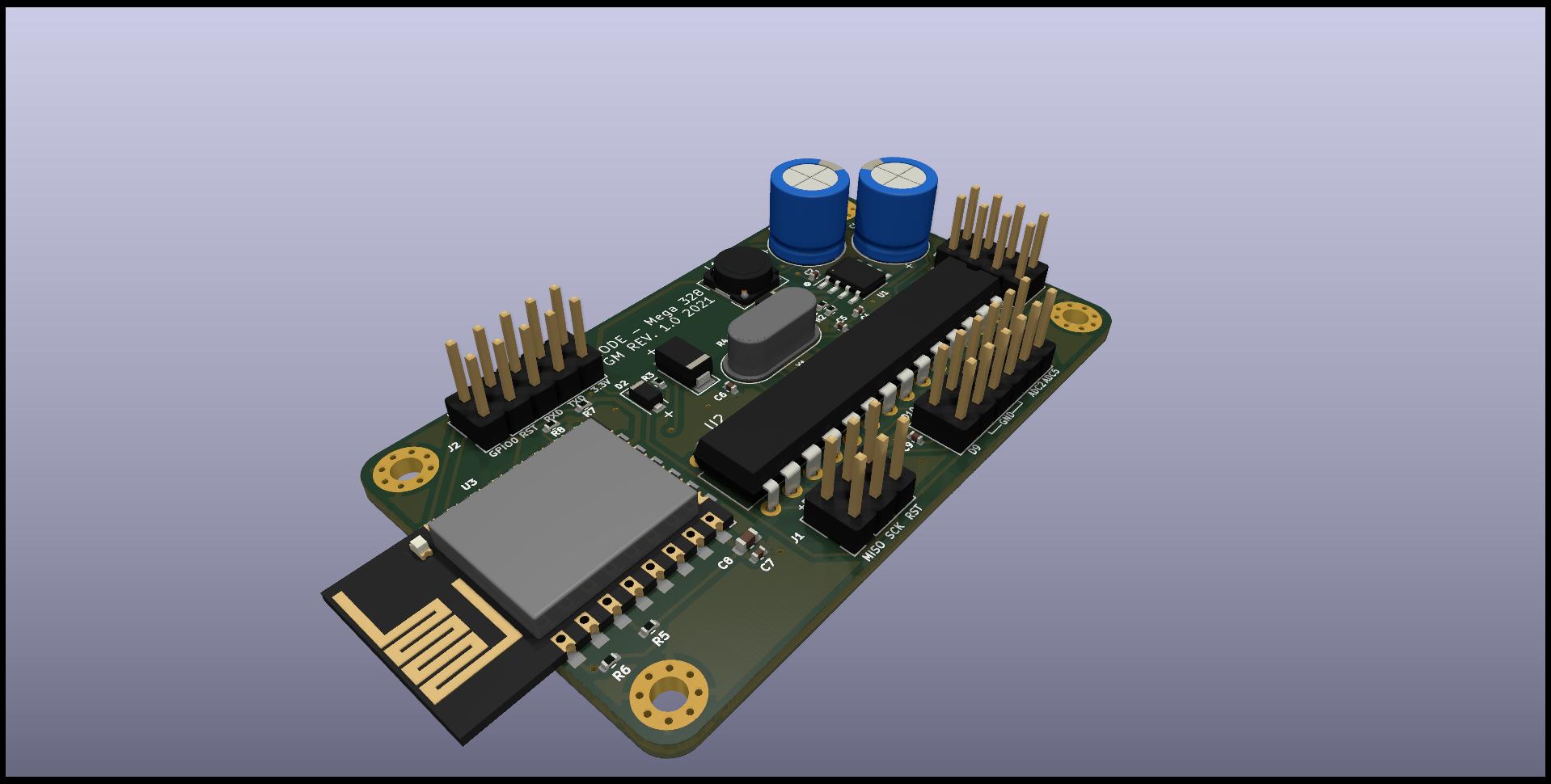

Board iso view:
