README

duet

Wireless unibody/unsplit portable keyboard.


[!NOTE] One duet is available for purchase right now

Features

  • wireless (nice!nano MCU)

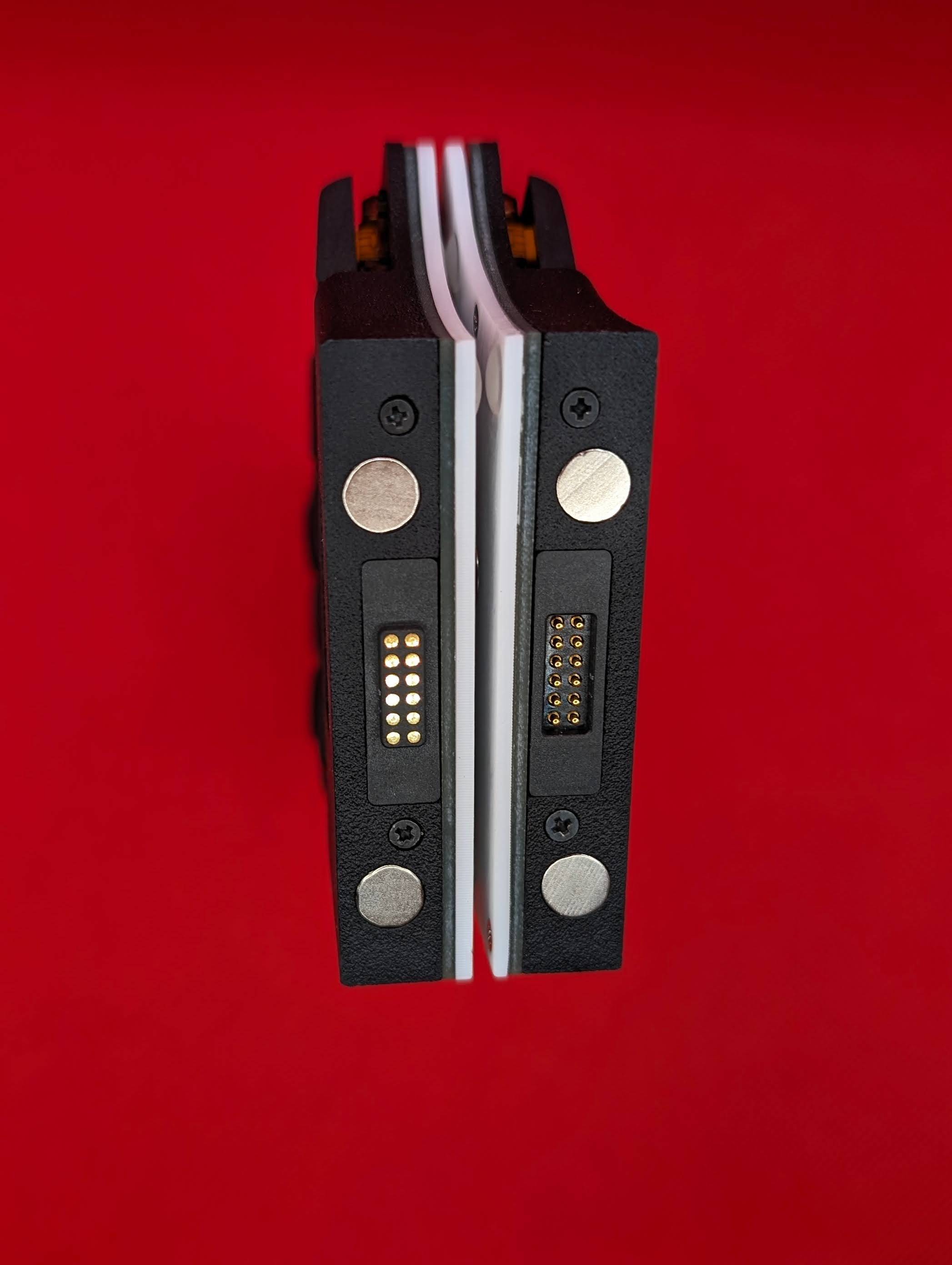

  • unibody that can be disassembled into two parts for traveling
  • 40 Choc V1 switches
  • 1 rotary encoder and 1 five-way switch

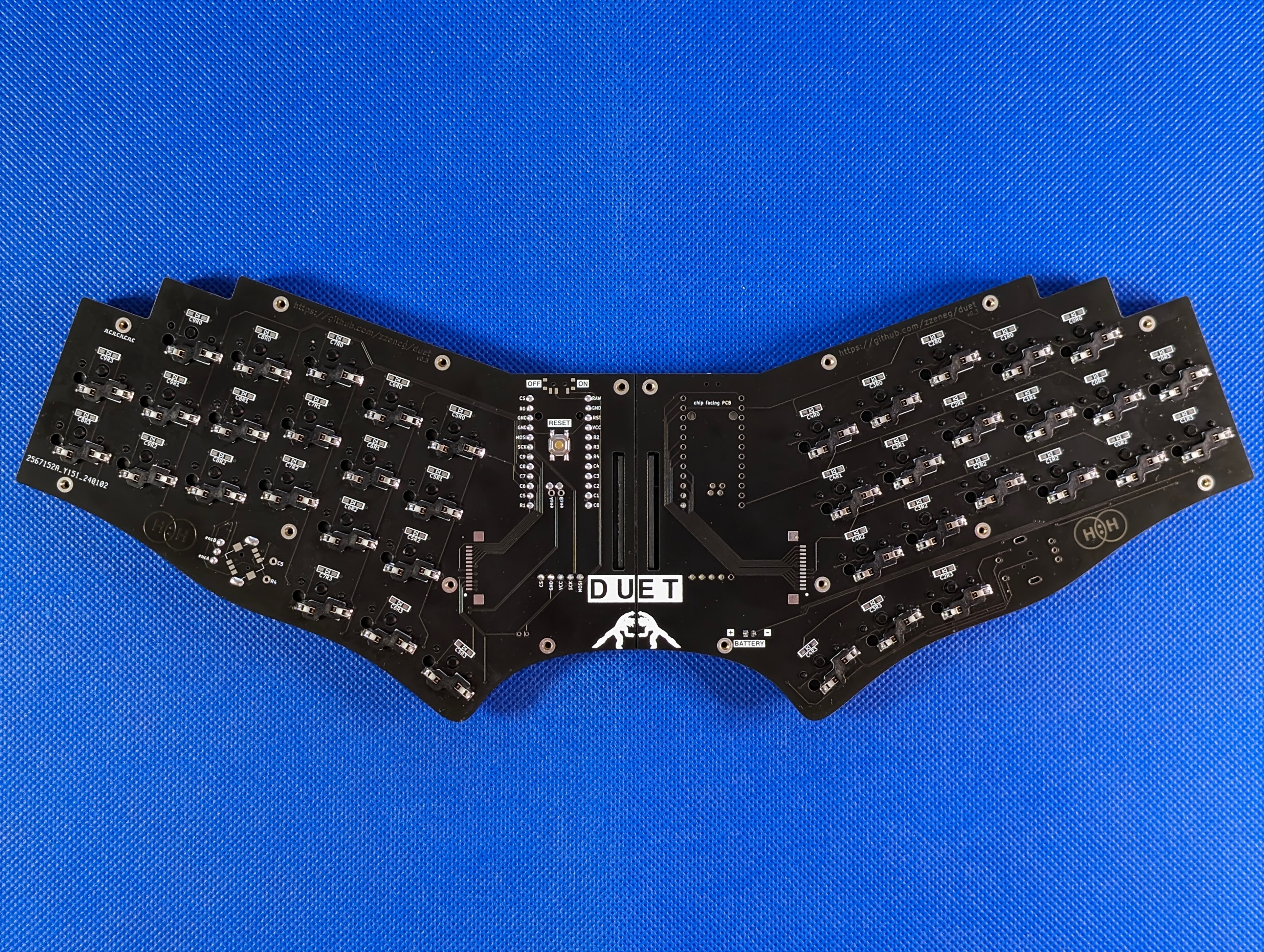

  • reversible PCB
  • 3D printed case
  • nice!view support

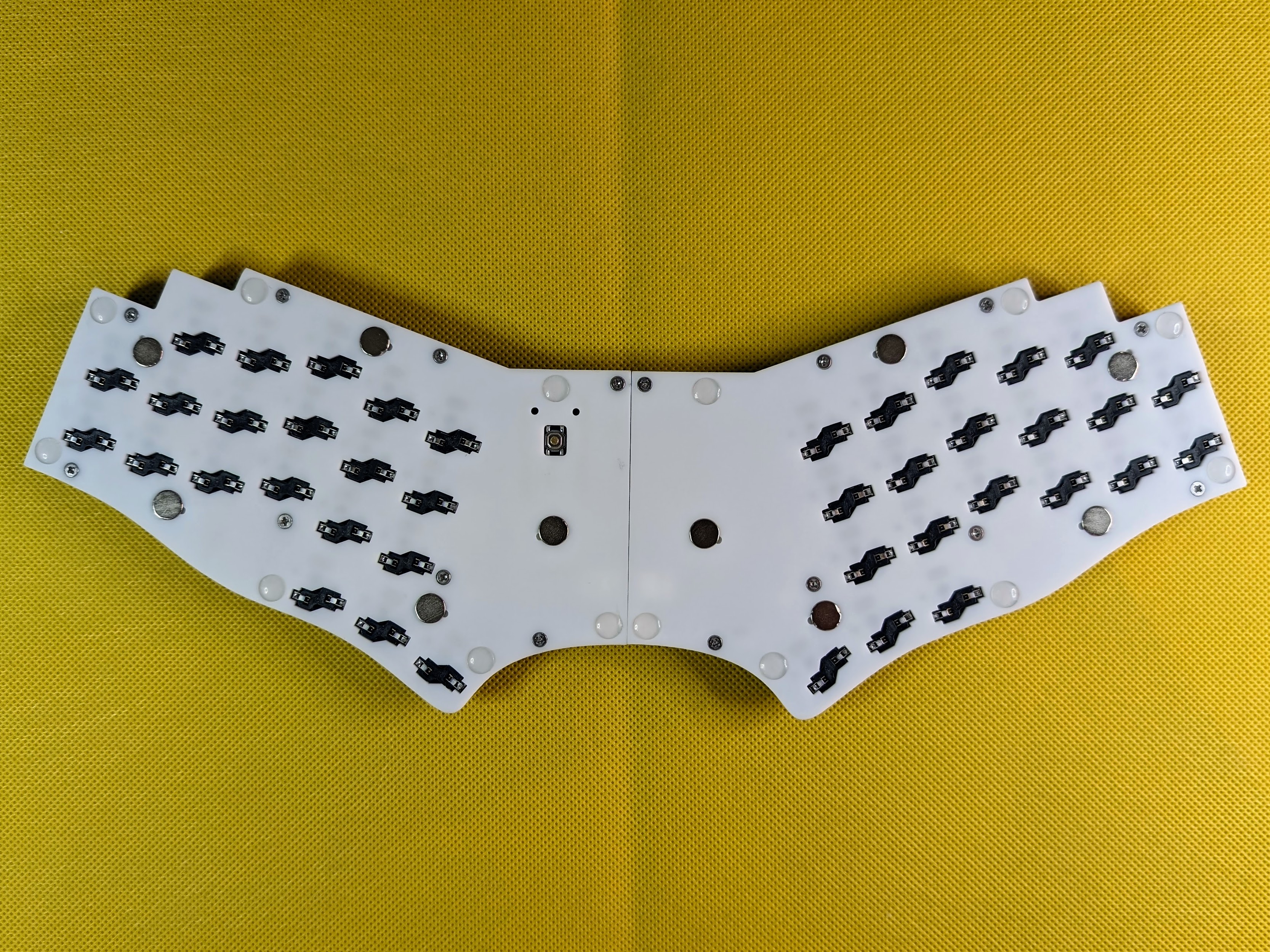

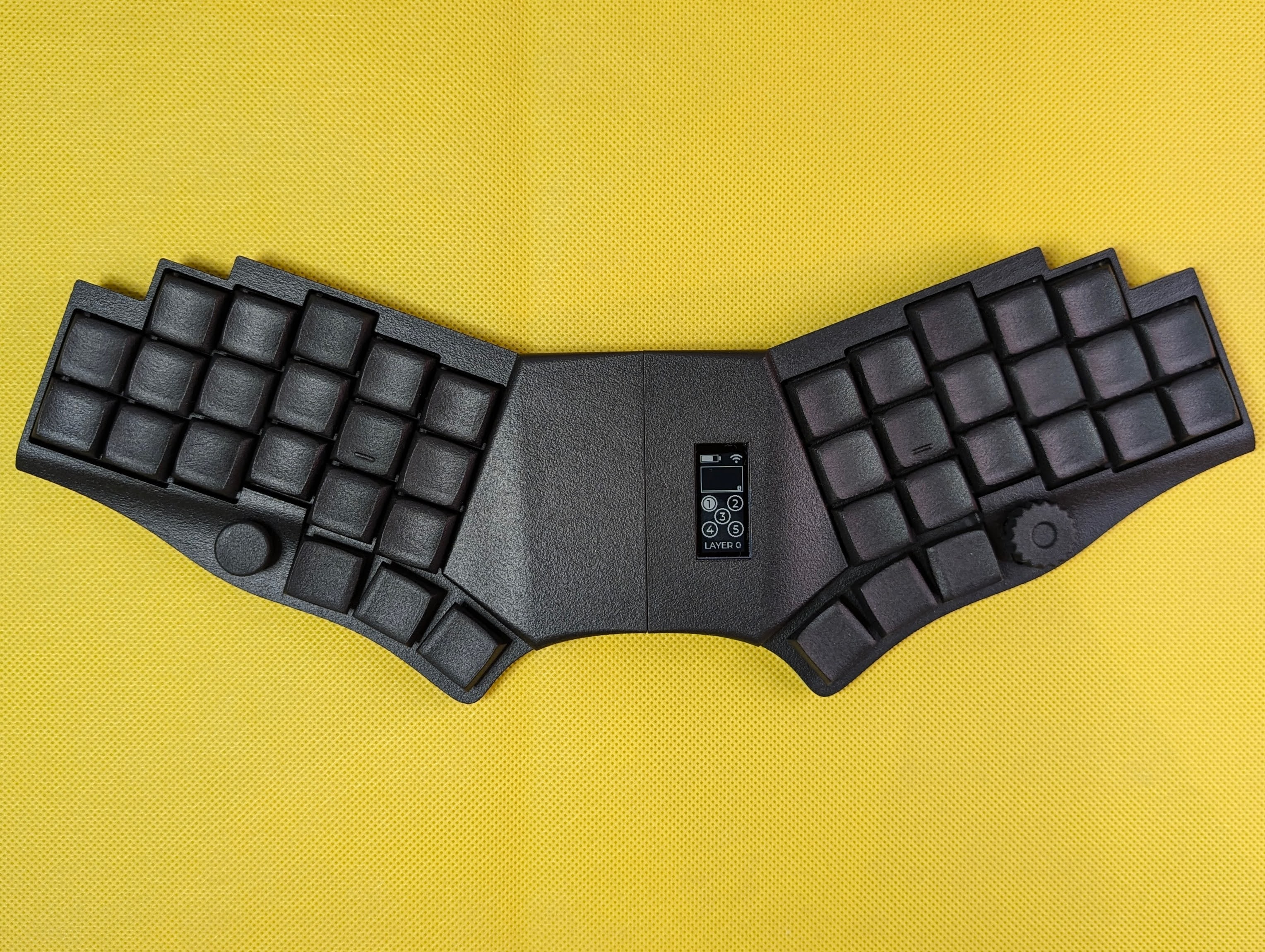

Photos

https://github.com/zzeneg/duet/assets/910255/740595a8-76a9-42da-903d-3cff3896a925

...more

Firmware

zmk-config - my custom keymap, use it for testing only. Fork and create your own keymap instead.

Instructions

Build guide

All files are available in repo or GitHub release.

Support

If you like my work and want to support my future designs, please consider sponsorship.
