Split keyboard with 40 keys using XIAO controllers.
Pica pica - european (common) magpie
[!NOTE] I created a beta version with small improvements for wireless version - https://github.com/zzeneg/pica40/tree/v2.2-beta?tab=readme-ov-file#v22. I'm fairly confident it should work but I'm not able to verify it at the moment. You can order it at your own risk, let me know if everything worked.

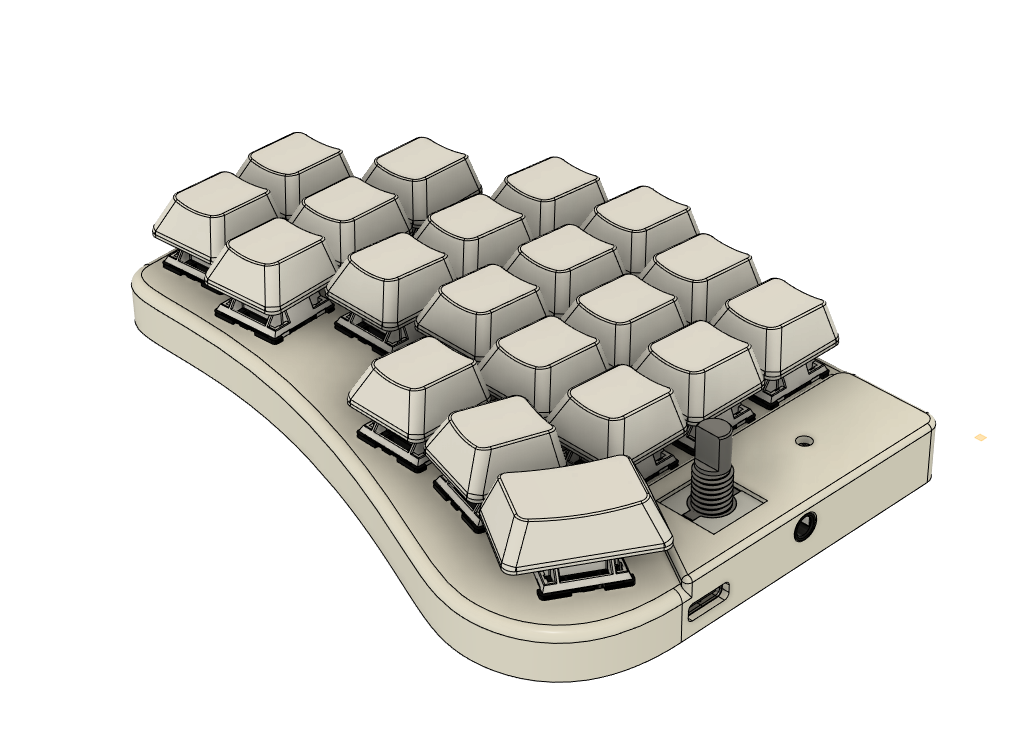

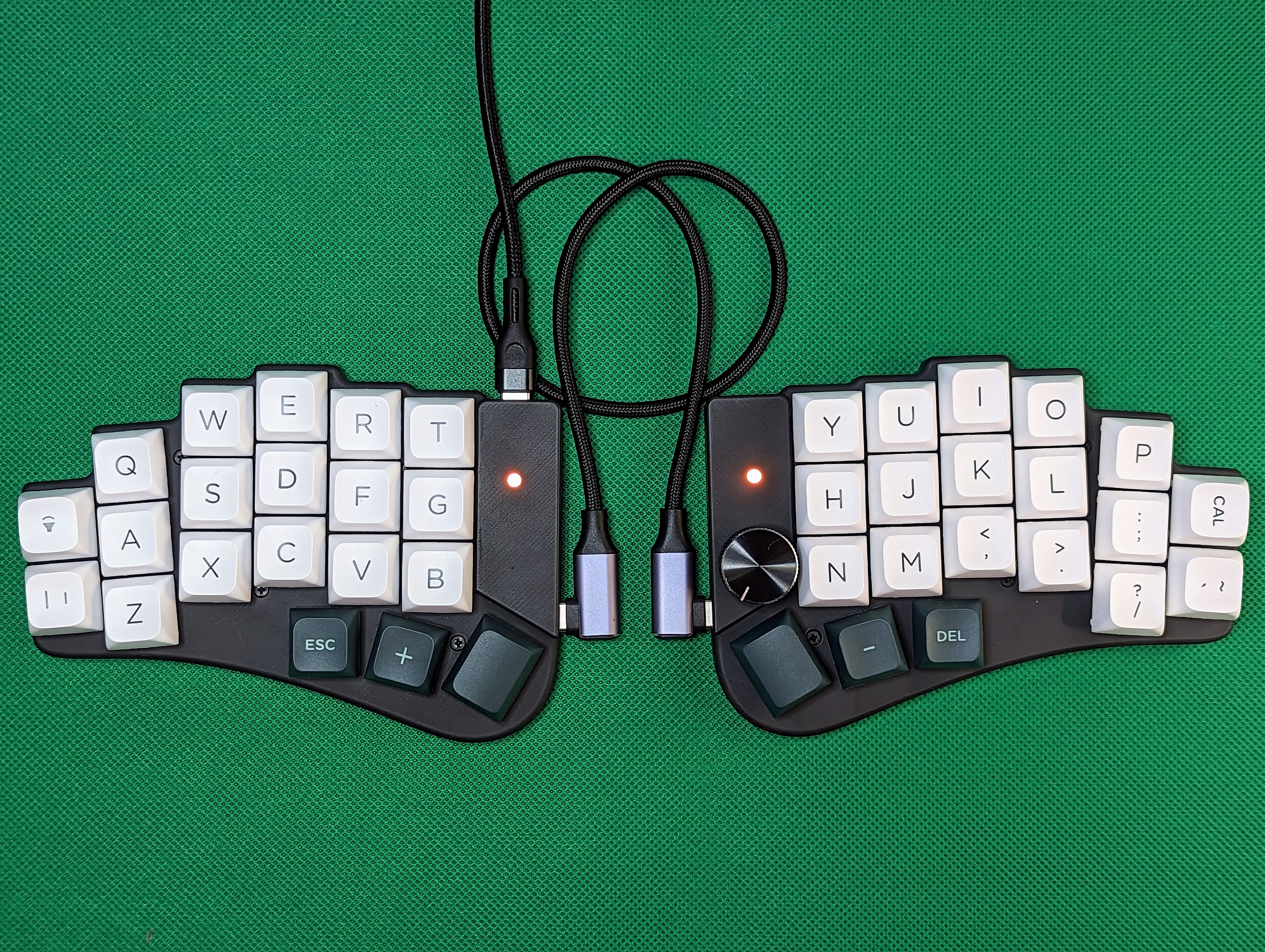

wired version with 3d printed case
wired/wireless versions with Choc V2

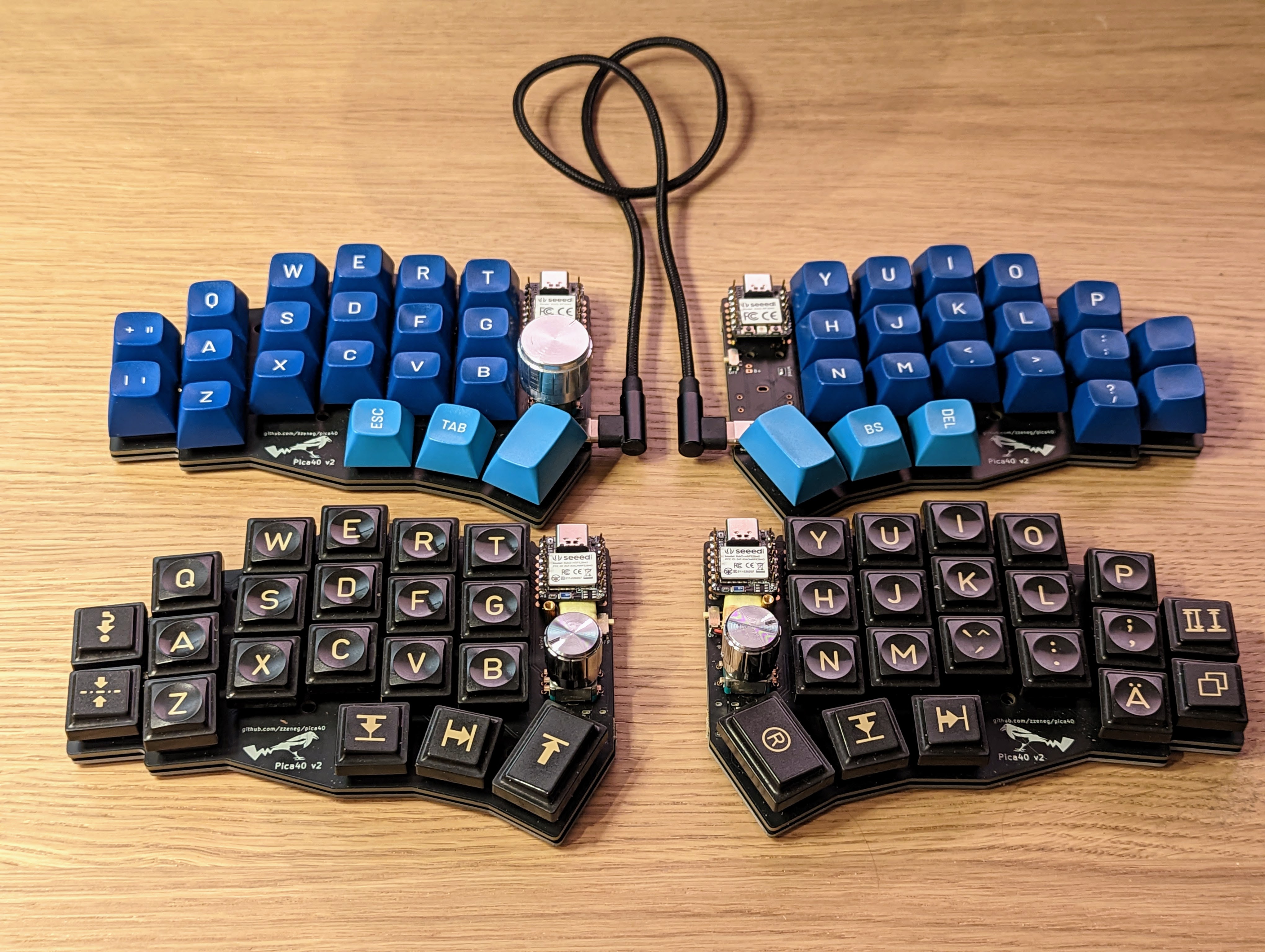

Pica40 family - ChocV2 with low profile keycaps, ChocV2 with MT3 keycaps, Pica40 v1 with MT3 keycaps, regular switches and hotswap sockets
All files are in stl folder.

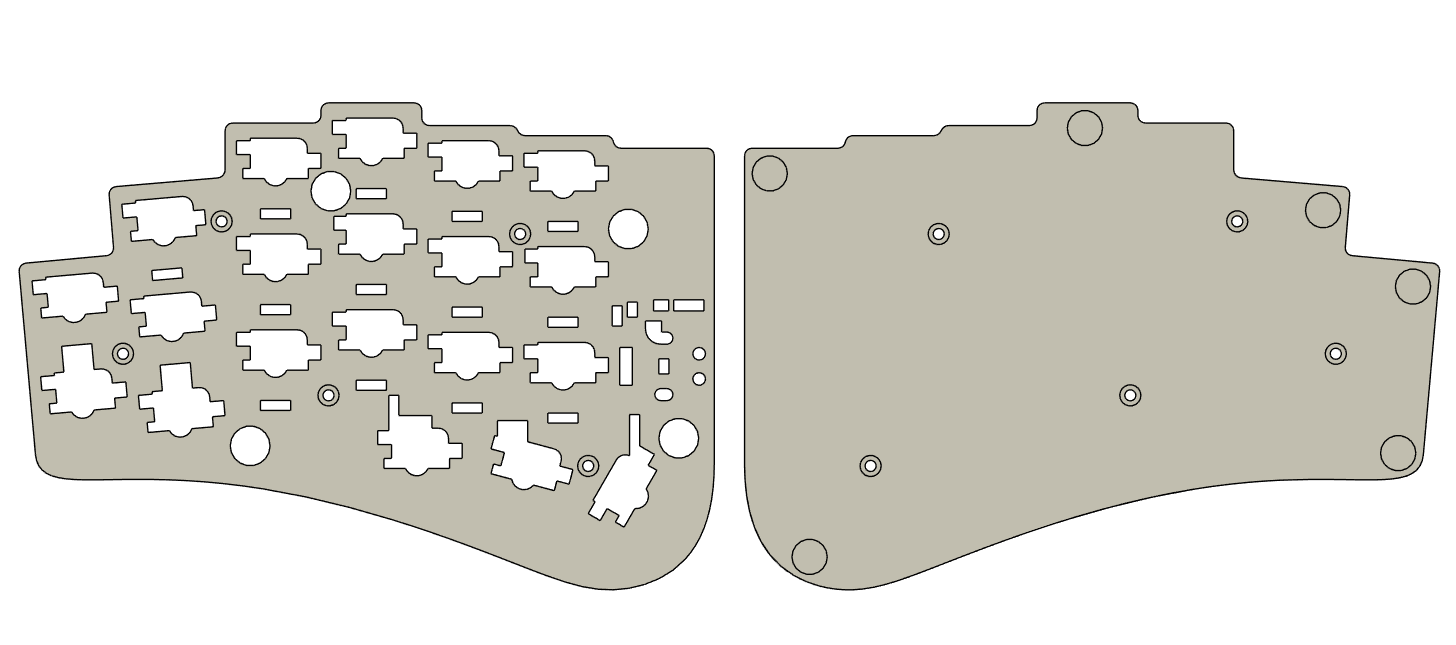

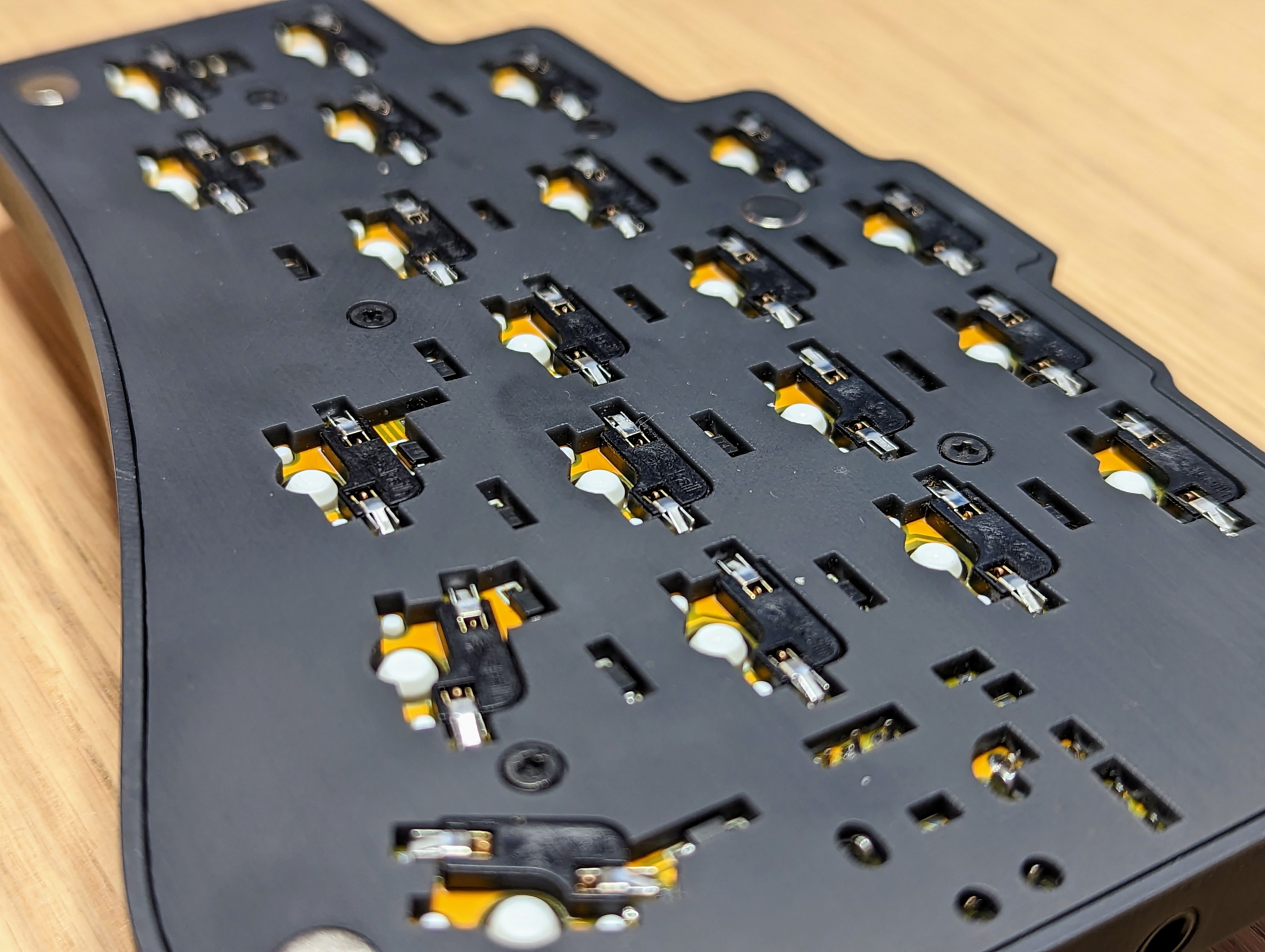

Normal version - solid cover, cutouts for legs. Thin version - 1.2mm lower than normal version, cutouts for all elements. Has additional cutouts for magnets.

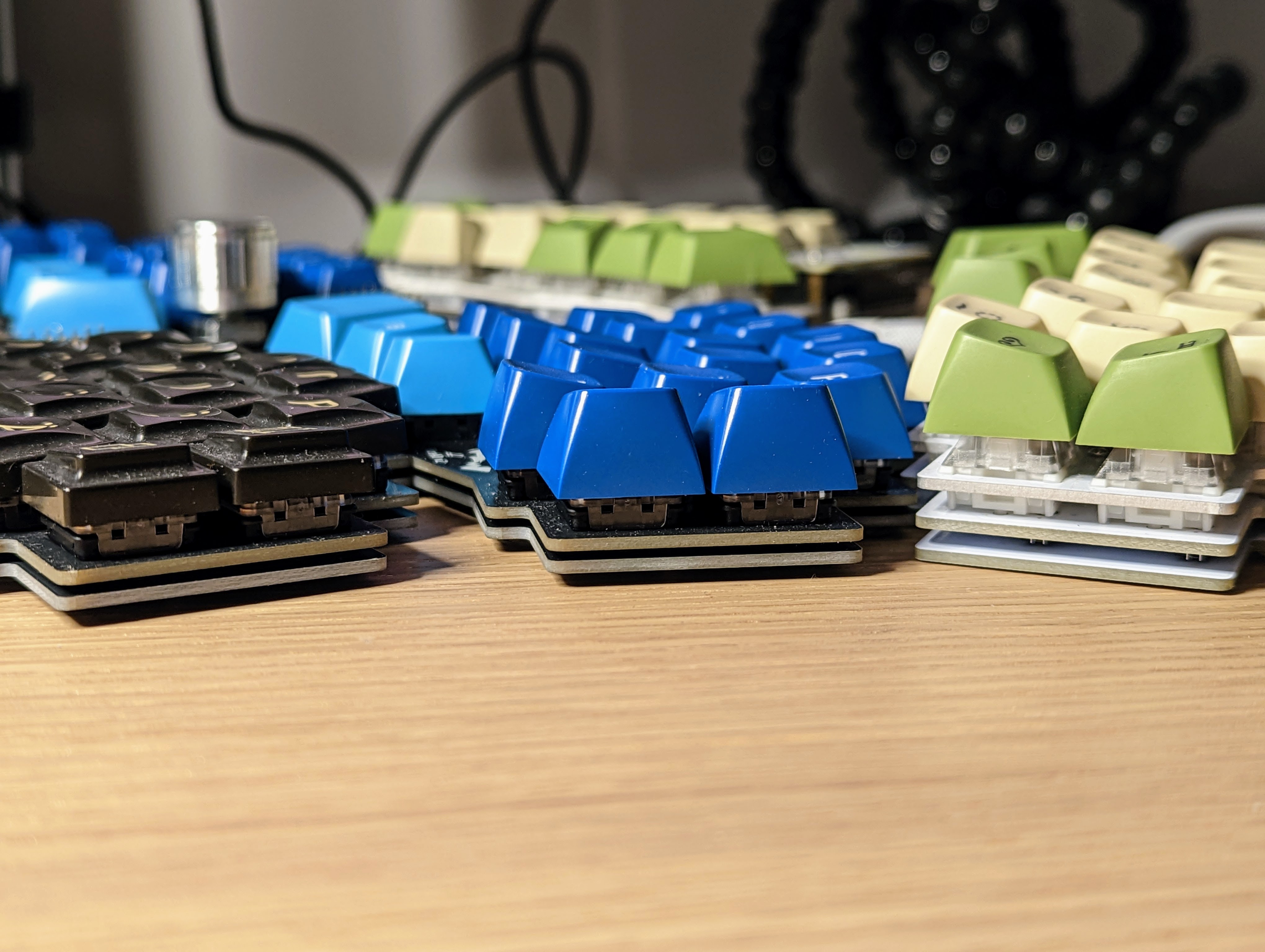

Thin vs normal:
TODO
For proper KiCad setup install my zzkeeb library.
If you like my work and want to support my future designs, please consider sponsorship.
