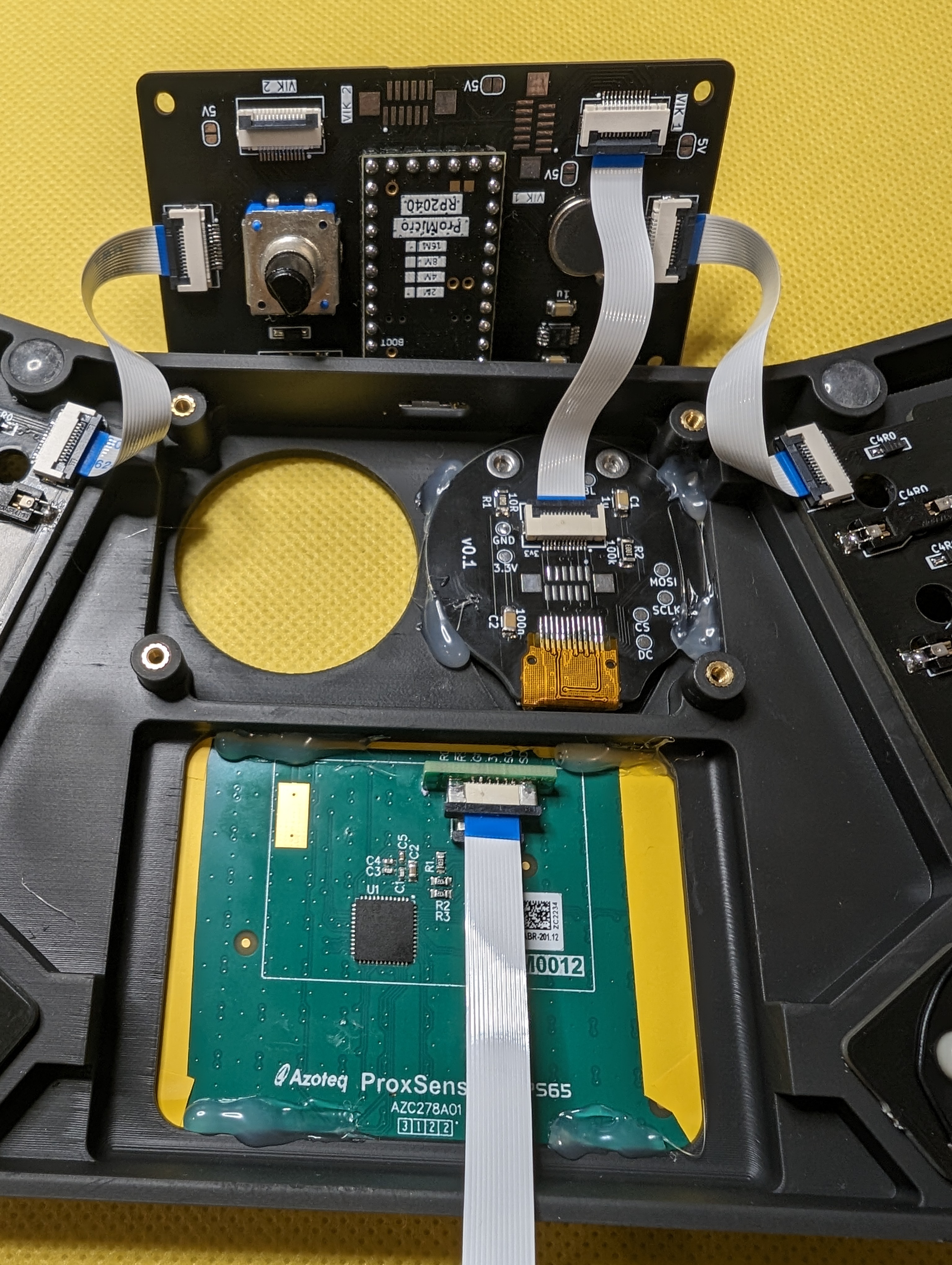

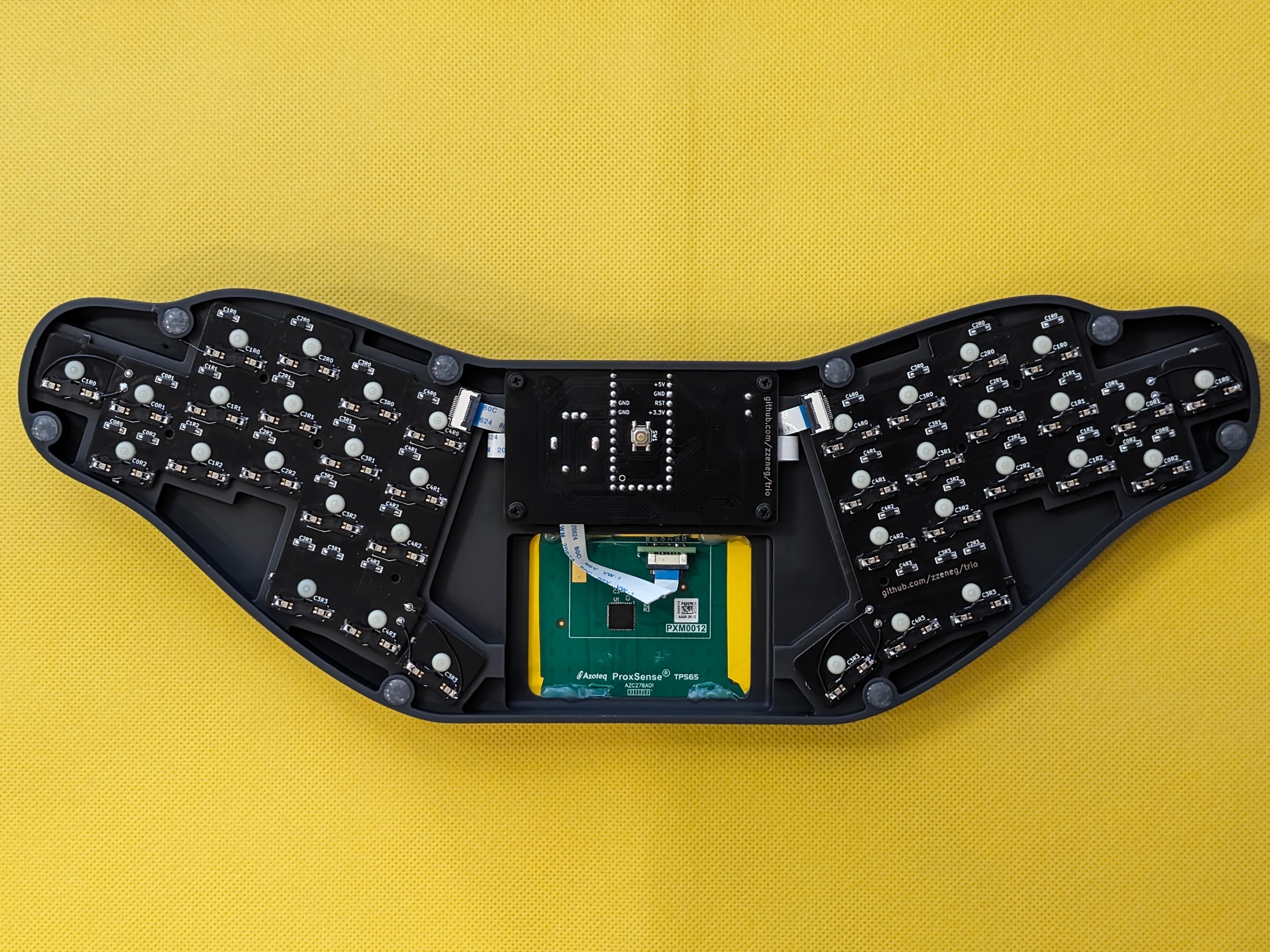

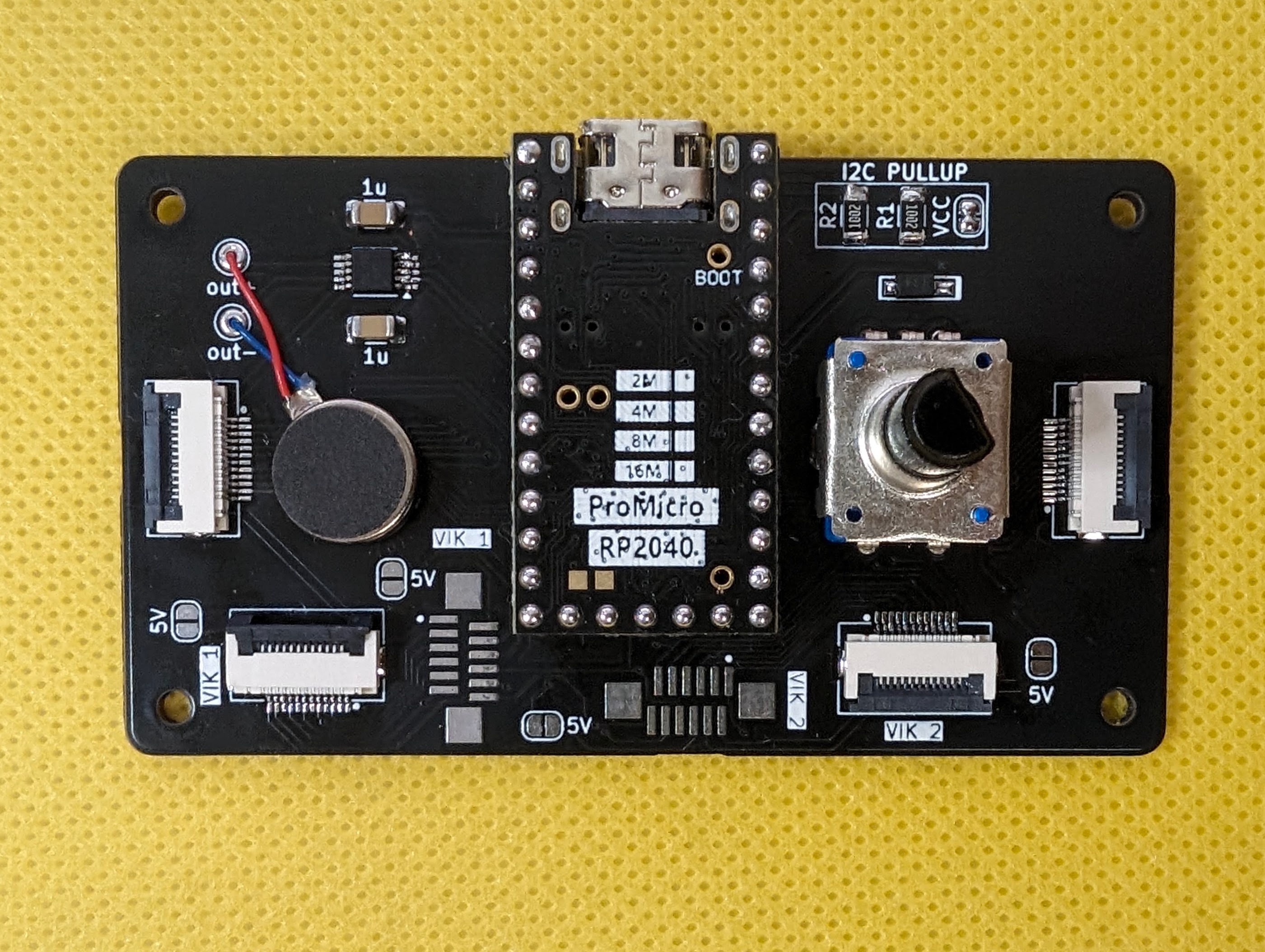

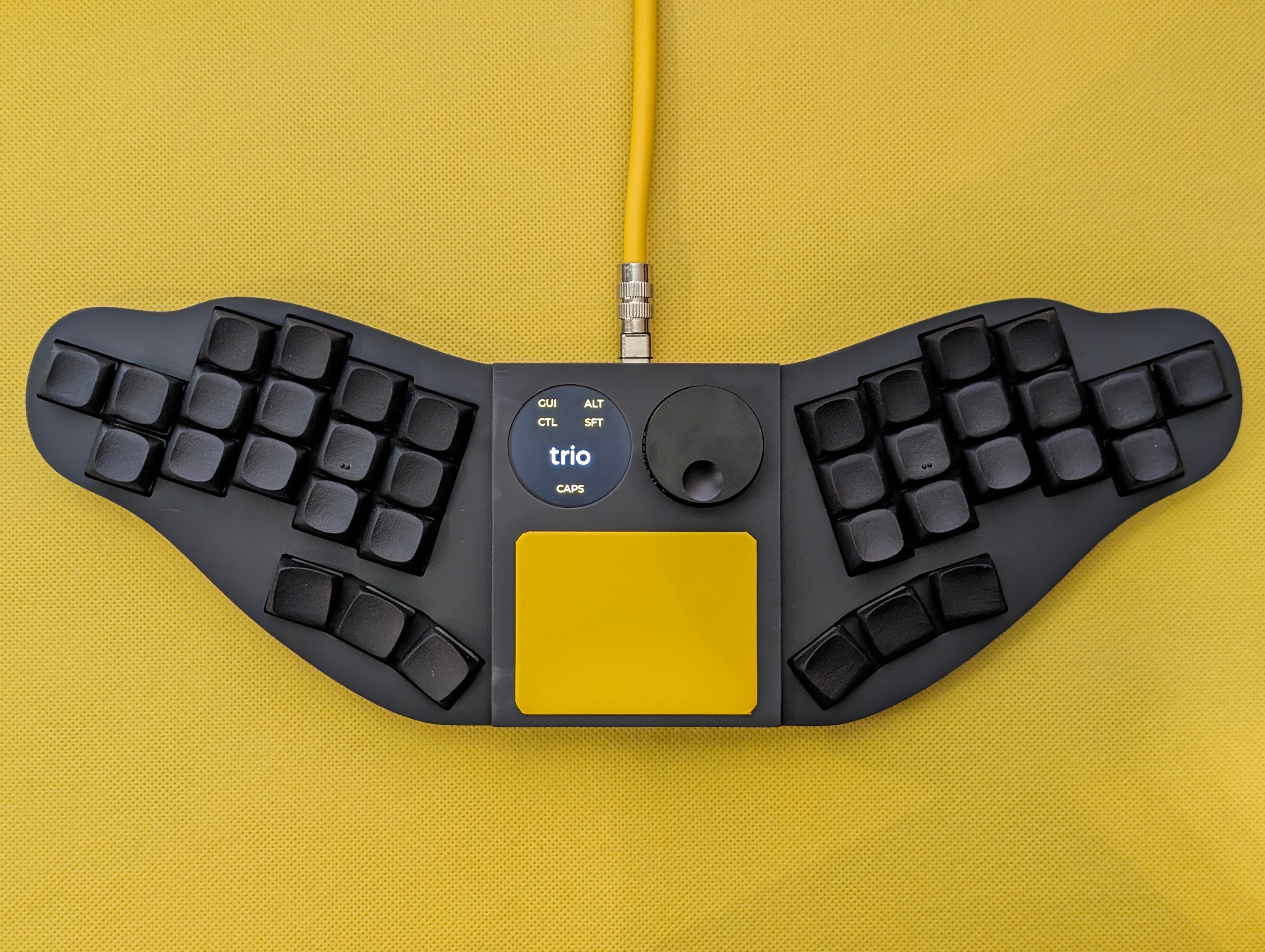

Modular unibody keyboard with two VIK modules.
[!CAUTION] This keyboard is designed for minimal vertical spacing (19x16mm). Regular keycaps will not fit, you must print your own - for example my DES MinY.
It's created as a cheap prototype to test VIK abilities and modules - all PCBs are under 100x100mm, one-piece case <0.3kg for cheap JLCPCB shipping.
Build process requires a lot of hand-soldering with 0.5mm pitch, you need good tools and experience to do that.
I do not recommend to build it exactly like that, but to use it as inspiration for your projects. Feel free to use and improve KiCad and Fusion 360 source files.
Companion app for Raw HID communication. Use "productId": 2120 for that keyboard.
Please see main config.h and rules.mk for comments and available options.
For proper KiCad setup install my zzkeeb library
