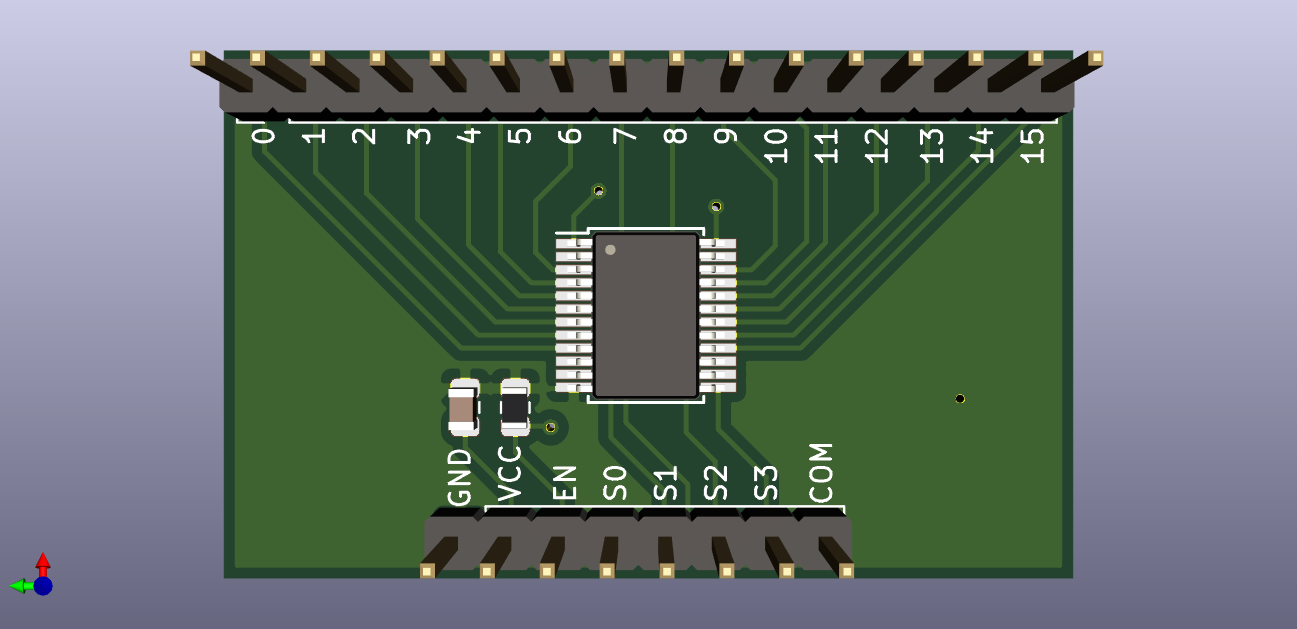

16-pin analog / digital multiplexor breakout board

Idea

If you have never used multiplexors, this IC connects a single pin to one of the several outputs, where an output pin is picked using other digital input pins. Think railroad switch, but for electronics, not for railroad.

I had some of those mux board around for quite some time and they are working nicely with Arduino, so I decided to make a copy of a very short schematic and to make my own layout. Why? Well, as usual, to test and be sure I can use them in my own devices later.

Documentation

Datasheet

To-Do

• Use a multimeter's continuity testing on the original to ensure I'm using correct pins
• Order a board prototype
• Do a bunch of tests to determine it's not worse than normal breakout boards
• Create a 8-pin layout

Links

• SparkFun breakout board
• Arduino code for interacting with Mux
