Description

a circuit to measure fast light responses

README

fast-response-diode

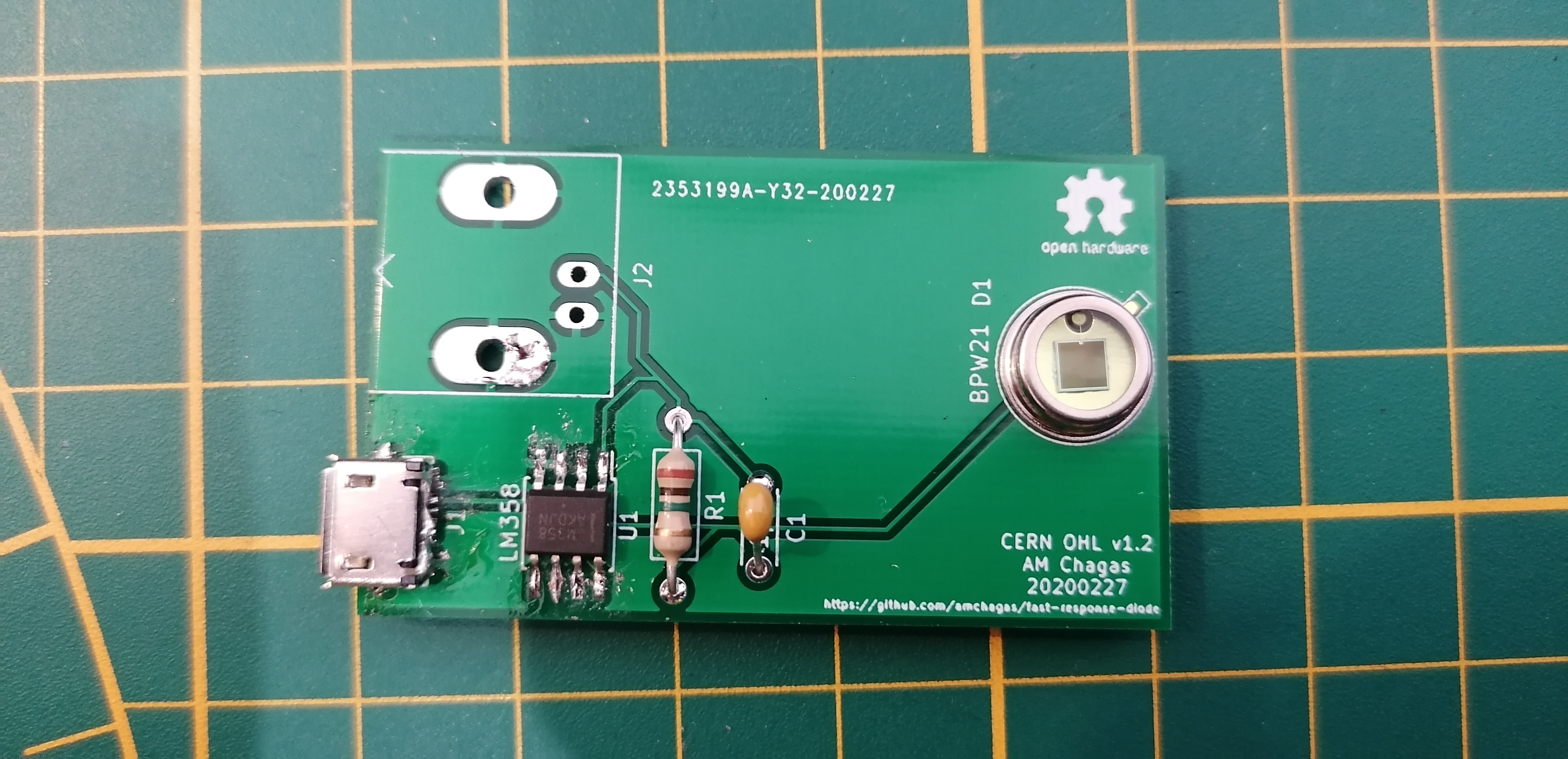

a circuit to measure fast changing light signals down to hundreds of microseconds

Previous work:

This board is based on this article https://www.mikrocontroller.net/articles/Lichtsensor_/_Helligkeitssensor

• fast_diode_pcb folder has the PCB files to produce this board as well as the bill of materials.

This board and components can be ordered easily at kitspace
