README

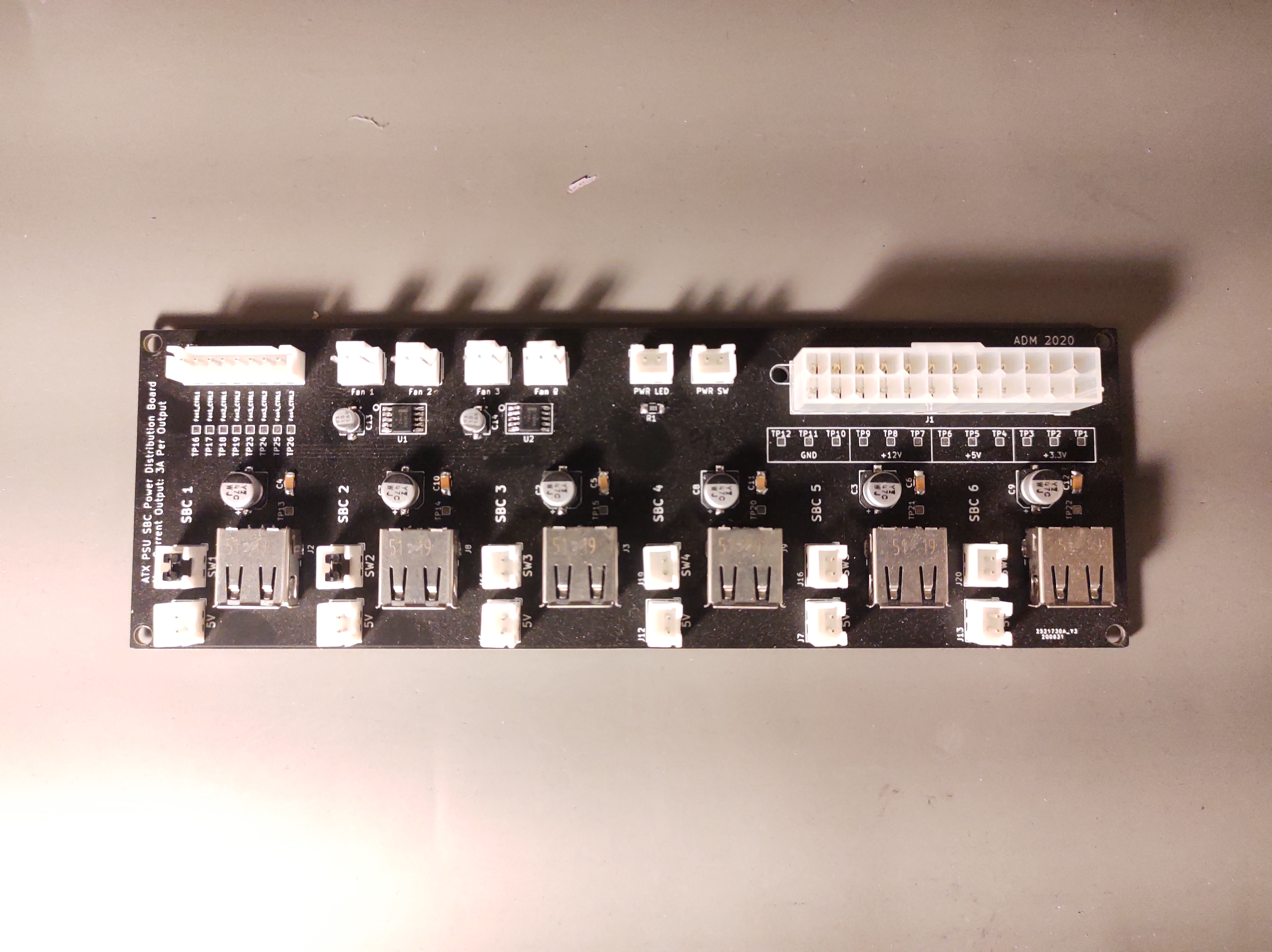

Undernet Systems Single Board Computer Power Distribution

These are the design files for a DIY power distribution board for Single Board Computers powered by an ATX PSU. This board was designed to supply 5V to up to 6 Single Board Computers. An ATX power supply is used as the main source of power.

This design contains the following features:

  • 6 USB A ports.
  • Up to 4A per USB port.
  • Compatible with most ATX power supplies.
  • Decoupling Capacitance for each port.
  • Optional JST connections for each port.
  • Optional external power switch input for each port.
  • Optional motor driver circuitry for cooling fan control (PWM controlled).
