Simple PCB for the Hantek 6022 AC mod

README

Hantek 6022BE AC mod

Simple pcb to add AC coupling to the Hantek 6022BE oscilloscope. Based on the widespread mod available here: https://github.com/OpenHantek/OpenHantek6022/blob/main/docs/HANTEK6022_AC_Modification.pdf

Compatible with the OpenHantek6022 project

Circuit

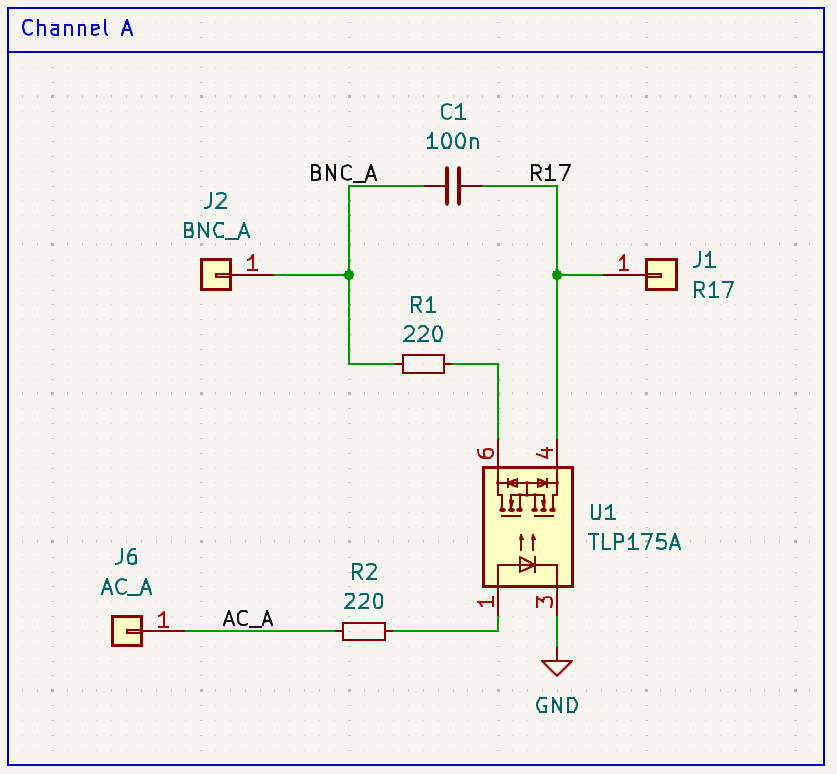

When AC_A is high C1 is short so the signal is DC coupled. When AC_A is low C1 is open so the signal is AC coupled.

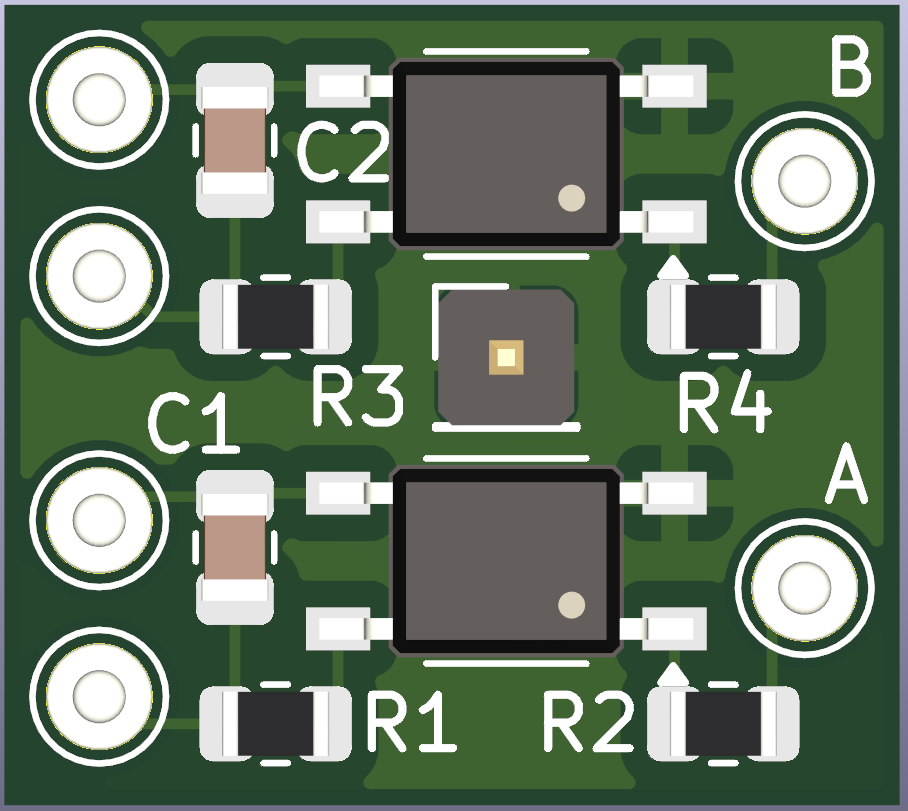

PCB

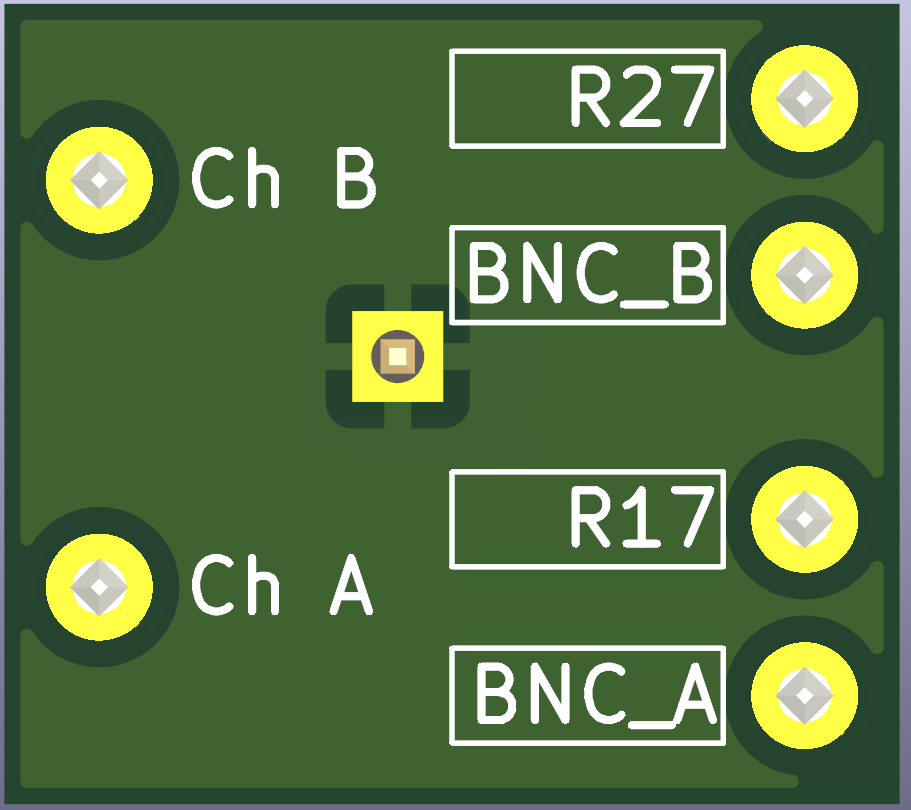

Back layer can be avoided especially in case of pcb milling.

BOM

Reference	Value	Datasheet	Footprint	Qty
C1,C2	100n	~	Capacitor_SMD:C_0805_2012Metric	2
R1,R2,R3,R4	220	~	Resistor_SMD:R_0805_2012Metric	4
U1,U2	TLP175A	Datasheet	Package_SO:MFSOP6-4_4.4x3.6mm_P1.27mm	2

Mounting

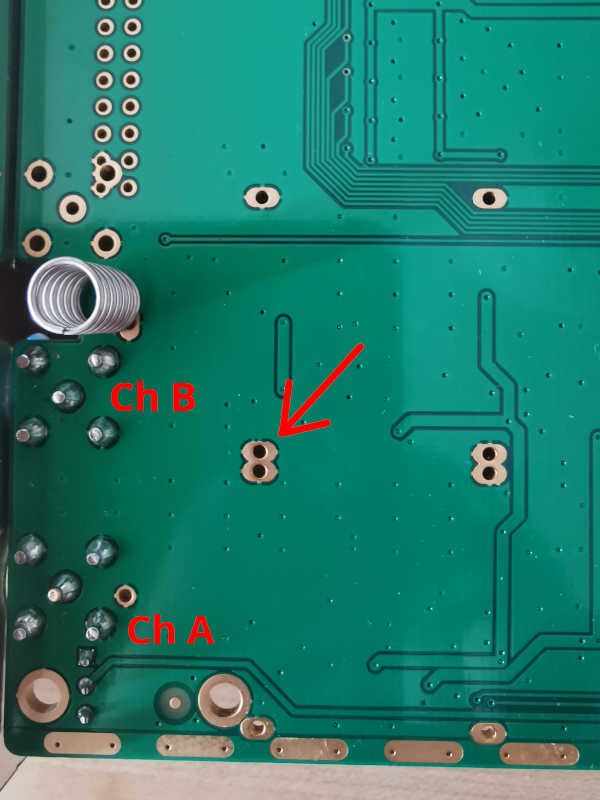

The pcb can be mounted on an unpopulated shield hole
