Description

Voltage Drop Amplifier Circuit for Side Channel DPA

README

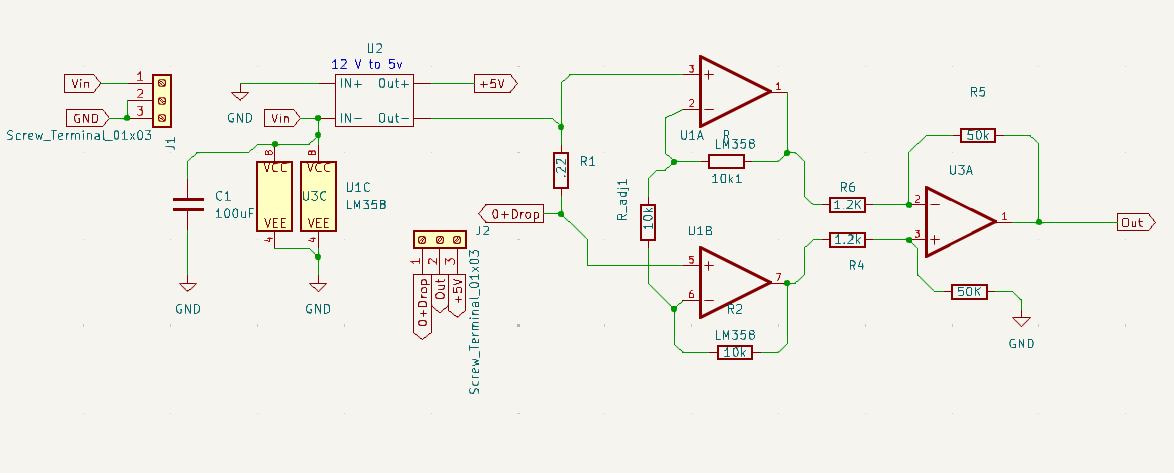

Schematics

View

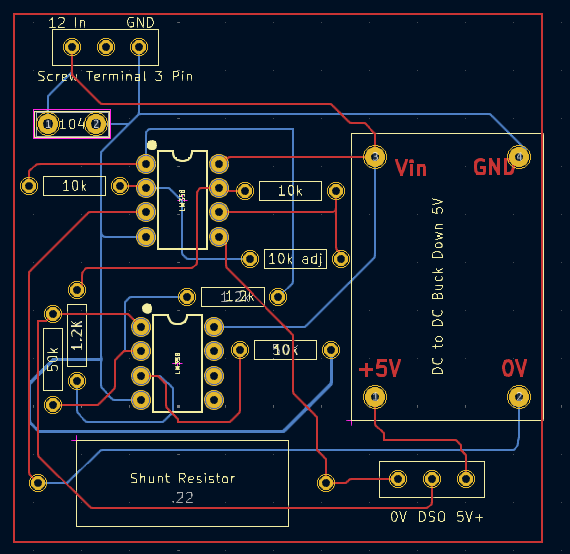

This is PCB design is not made for print and just made for reference

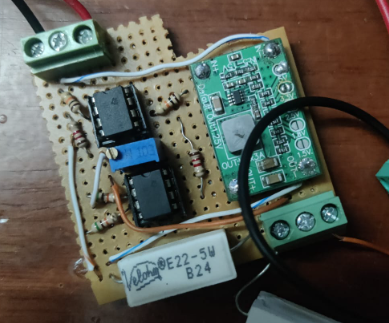

Prototype

How to connect

• First connect the 12 Adapter to the DC connector
• Then Connect the 0V to the FPGA , and 5V to the FPGA , in Bottom Right Screw terminal module 1st pin is 0v and Last pin is +5V
• Connect the center pin of the bottom right screw terminal to the DSO and connect the DSO probe's ground pin to the first pin of the top left corner

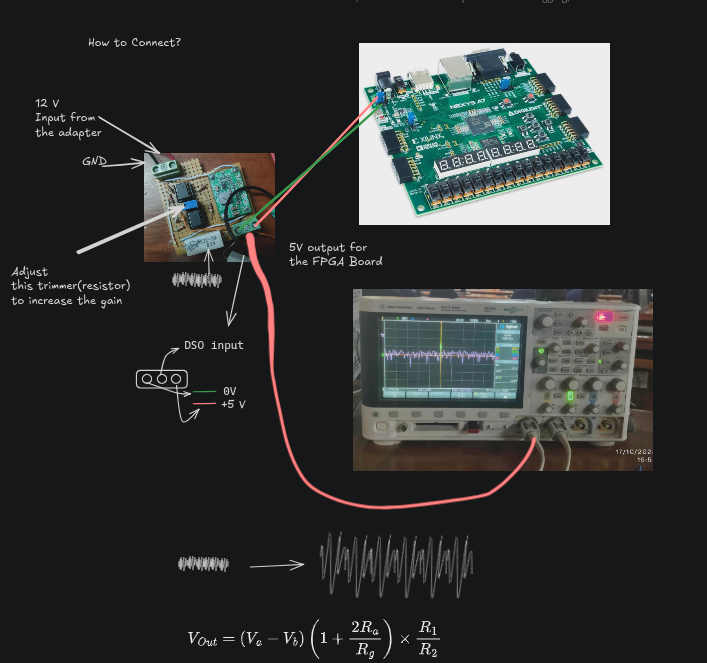

How to Connect?

Required : 12 V DC Adapter , 2 Jumper Wires
