Description

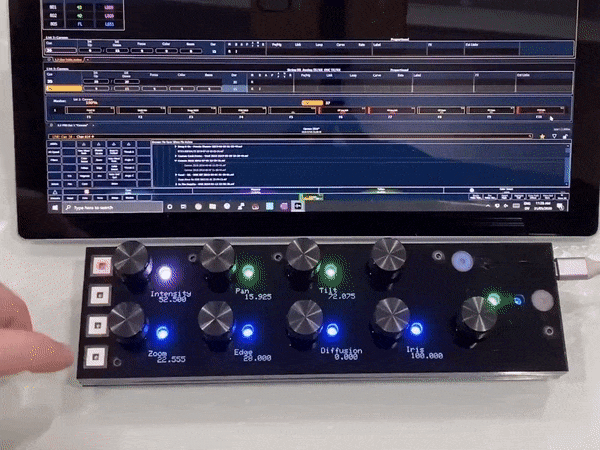

A 9-encoder (un-official) add on to the ETC Eos Family of Lighting Consoles and Software, using OSC over USB

README

Encoders for ETC Eos Hardware - Encoder Board Drawings

This folder contains all the svg drawings for the acrylic case. The initial layout was exported from extra layers in the KiCAD model, and then colours/line-widths adjusted to match that required by my local laser-cutter supplier.

If using these files to get your own case printed, check the file requirements of your laser-cutter supplier with what is used here. The colours, line-widths or file-format may need to be adjusted.

See below for descriptions of each file:

EncoderBoard-brd.svg,
EncoderBoard-Cmts_Usr.svg,
EncoderBoard-Dwgs_User.svg,
EncoderBoard-Eco1_User.svg,
EncoderBoard-Eco2_User.svg,
EncoderBoard-Margin.svg:
These are direct exports from the initial cut-out lines drawn in KiCAD PCB (the initial drawing was done in KiCAD on unused layers as it was the easiest way to line up with all the components).

01_EncoderBoard-2mm-Black-Bottom.svg,
02_EncoderBoard-4.5mm-Black-UnderLayer.svg,
03_EncoderBoard-4.5mm-Black-MidLayer.svg,
04_EncoderBoard-2mm-UpperLayer.svg,
05_EncoderBoard-3mm-TransBlack-Upper.svg:
These lay out each layer on a separate drawing.

EncoderBoard_2.0mm_Black_Gloss_Acrylic.svg,
EncoderBoard_3.0mm_Transparent_Black_Acrylic.svg,
EncoderBoard_4.5mm_Black_Gloss_Acrylic.svg:
These combine layers using the same acrylic material/thickness on a single drawing.

EncoderBoard_2.0mm_Black_Gloss_Acrylic.JPG,
EncoderBoard_3.0mm_Transparent_Black_Acrylic.JPG,
EncoderBoard_4.5mm_Black_Gloss_Acrylic.JPG:
These are renderings of the above three drawings and are informative only.
