README

PC104-Standard-KiCad

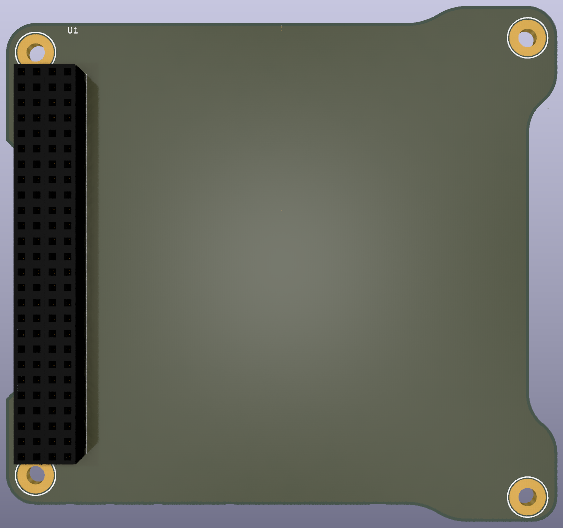

This repository contains schematics and footprints of the PC/104 standard. These designs are compatible with KiCad PCB design software. The footprints have also a suggested PCB boundary that facilitates the cable management of the CubeSat.

Derived from, although not affiliated with, pc104.org

TODO

PC/104 Express, Plus, etc.

KiCAD

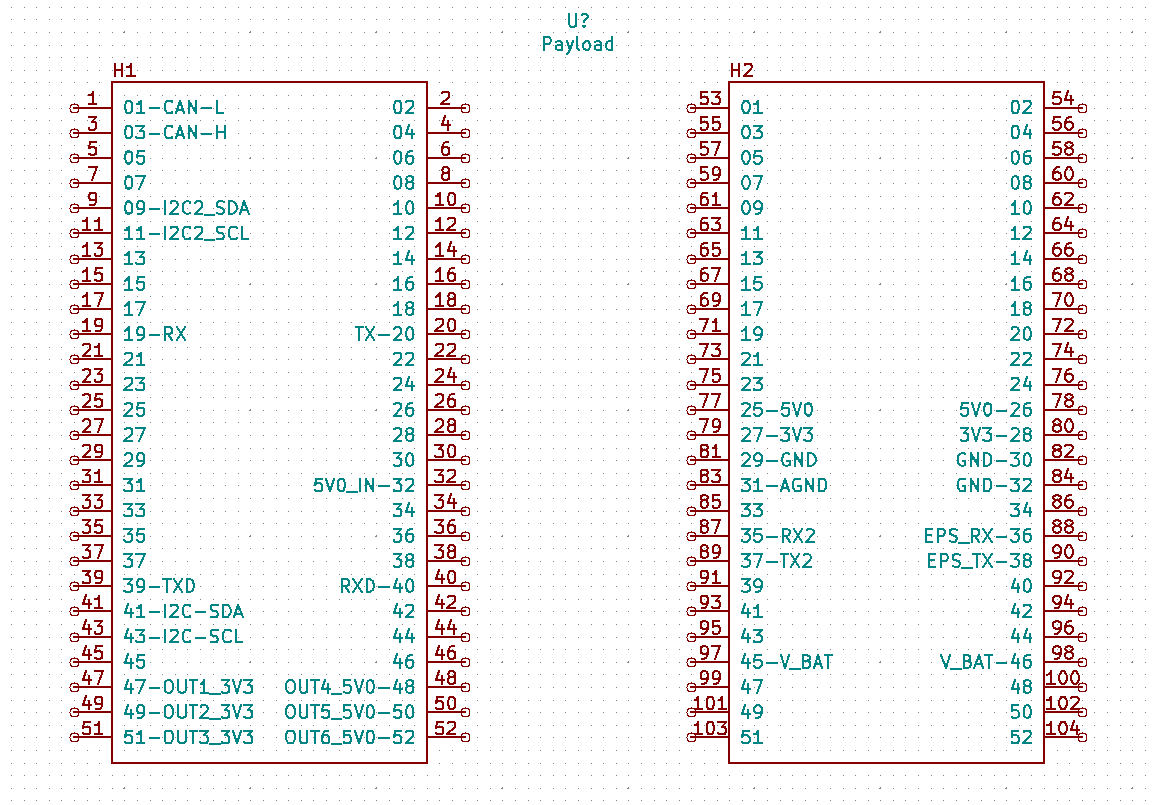

The KiCAD's schematic includes all the necessary pins assignments to speedup the payload design. The footprint already has the edge cuts done and it follows the PC104 specification.
