An 555 circuit entirely made out of THT transistors

README

Open555

Ever wondered how a 555 timer IC worked? Here you have it! A 555 IC, made entirely with THT transistors.

Schematic

PCB

Features

• Low power design! 3V operating voltage
• On board square wave generator
• Selectable features through solder bridges
• A Schematic on the back side!

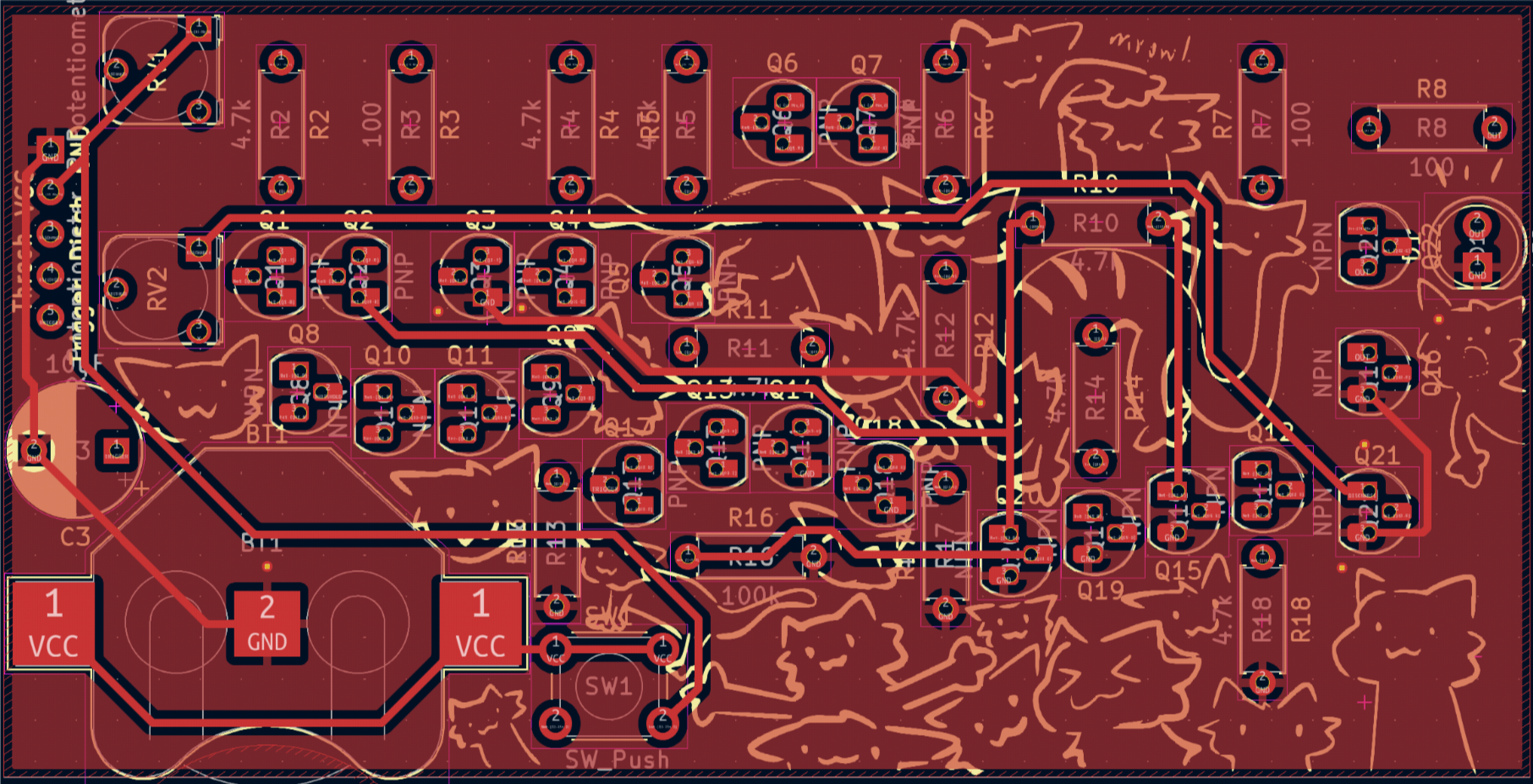

• Super cute cats on the front side - Kudos to @acornitum

How to build

Just order the PCB & components, open up the KiCAD file and build it accordingly.

BOM

• 1 Battery holder
• 1 10uF Capacitor
• 11 PNP Transistor
• 11 NPN Transistor
• 1 100k Resistor
• 1 10k Resistor
• 10 4.7k Resistor
• 3 220 Resistor
• 2 Potentiometer
• 1 Push Button

Made by @Cyao on slack :D

Made as a part of http://solder.hackclub.com/!
