A 4x10 CFX spaced low-profile mechanical keyboard.
Uncompromisingly small. Unabashedly uwu.
Also contains the source code for the 4x12 minipeg48 and the 4x4 kowgary16.
This keyboard works exclusively with CFX keycaps due to its tight spacing.
v0.0 PCBs confirmed to be working and should be good to be produced.
This keyboard is a 4x10 ortholinear keyboard with one of the smallest possible footprints. By using Chosfox's 16.5x16.5mm CFX keycap, this keyboard is more compact than a typical choc spaced keyboard. Combined with the integrated ATMega32U4 makes this one of the smallest mechanical keyboards possible. Uses kailh choc hotswap sockets.
This keyboard also has the design files needed to order your own accompanying 3D-printed/Aluminum CNC case!
All of the case files you need can be found in the case directory.
You can find the PCB source files in the pcb folder. The BOM files can be found in this folder.
case
You can find the files you need in this folder to print out a case for the keyboarddrafts
Stores any KLE or intermediate information used in making the casefirmware
Used to store any firmware relating to the keyboard. You should be able to find source files in my QMK forkoutlines
Outlines used to create the case and pcbpcb
Kicad project relating to the projectpcb folder, minus the kailh hotswap sockets)outlinesAdditionally, you should need

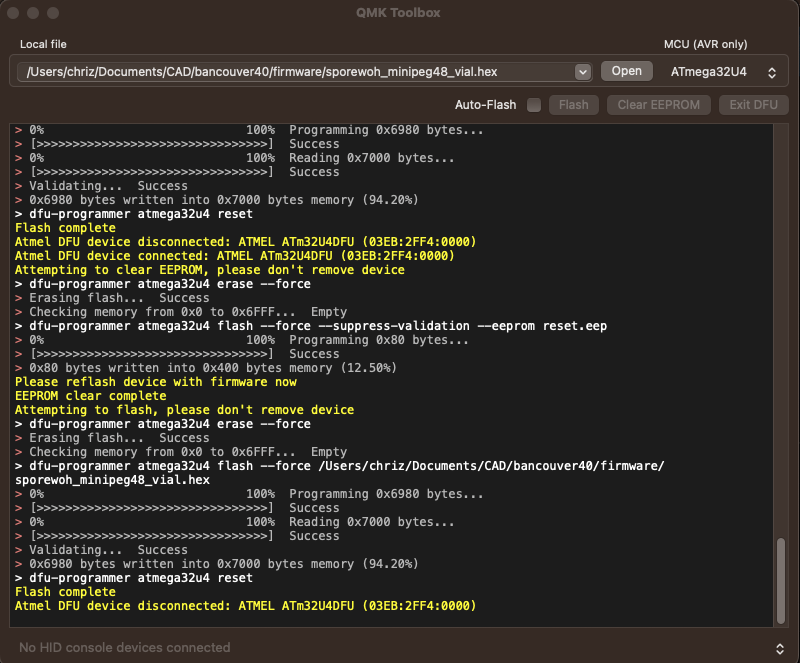

You can find a pre-compiled firmware file in the firmware folder of this repository. If you wish to customize the layout yourself, you can find the source code of the firmware here: https://github.com/ChrisChrisLoLo/qmk_firmware/blob/bancouver40/keyboards/sporewoh/bancouver40/readme.md.
Big thank you to PCBWay for sponsoring this by manufacturing the red aluminum case for me! The anodization coloring is stunning, and I'm impressed by the CNC case quality as a whole. PCBWay offers very reasonable prices for even singluar one-off case manufactures, so I recommend them if you want to look into ordering an aluminum case for yourself or for cnc prototyping as a whole! Case files, as well as a detailed design drawing (required for screw tappings) can be found in the case folder.
Also a big thank you to Chosfox for providing their Chocfox CFX keycaps as well as choc switches and hotswap sockets! I'm really excited that there's more offerings in the choc keycap space, and I'm a big fan of their square, spherical indented shape. They're very aethetically pleasing (i.e. very small and cute) and comfortable to type on. Chosfox is also continuing to invest in this line of products (1.25u+ keycaps, legends), so I highly recommend trying them out for any choc related keyboard you may have, bancouver40 or not!
