README

discipad

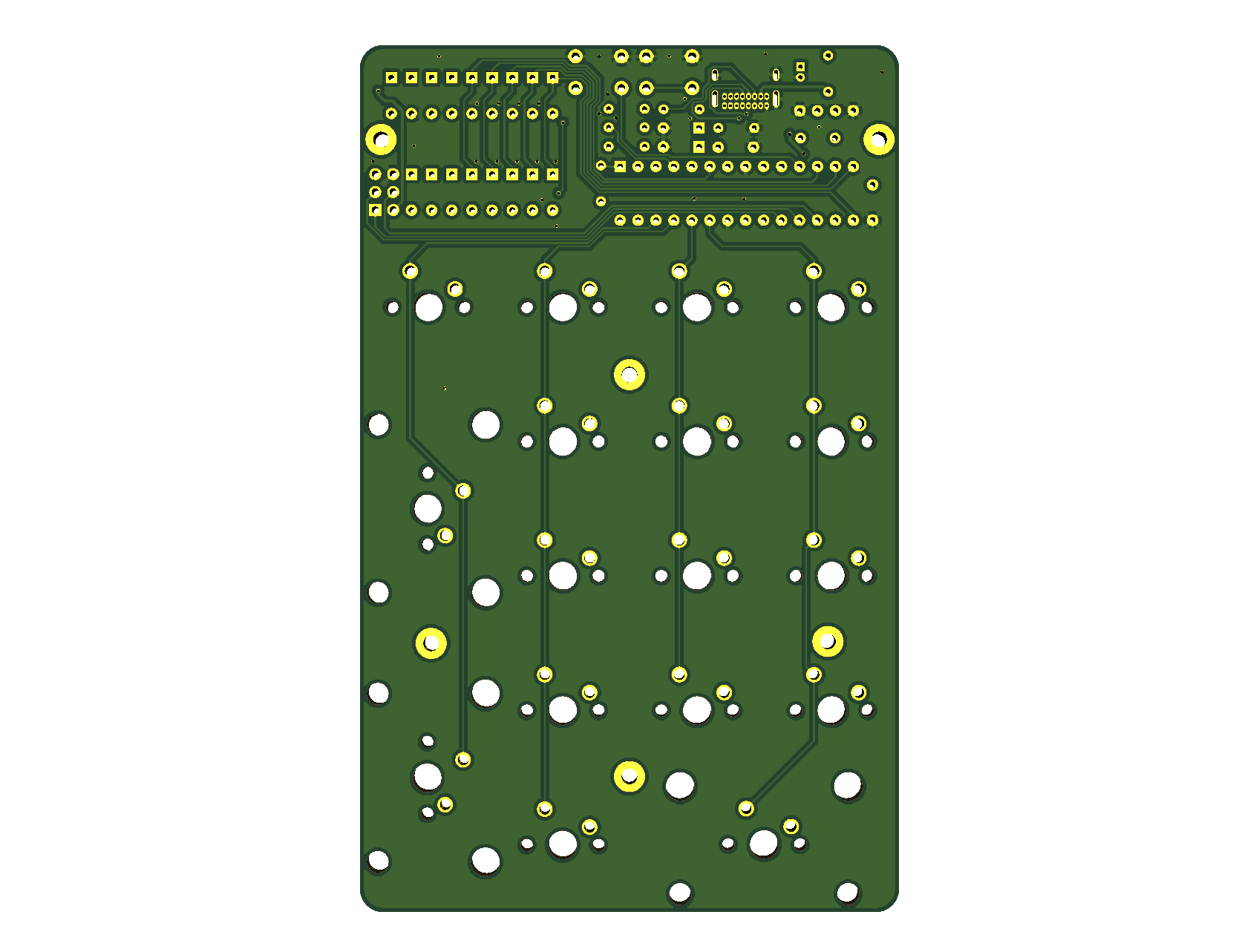

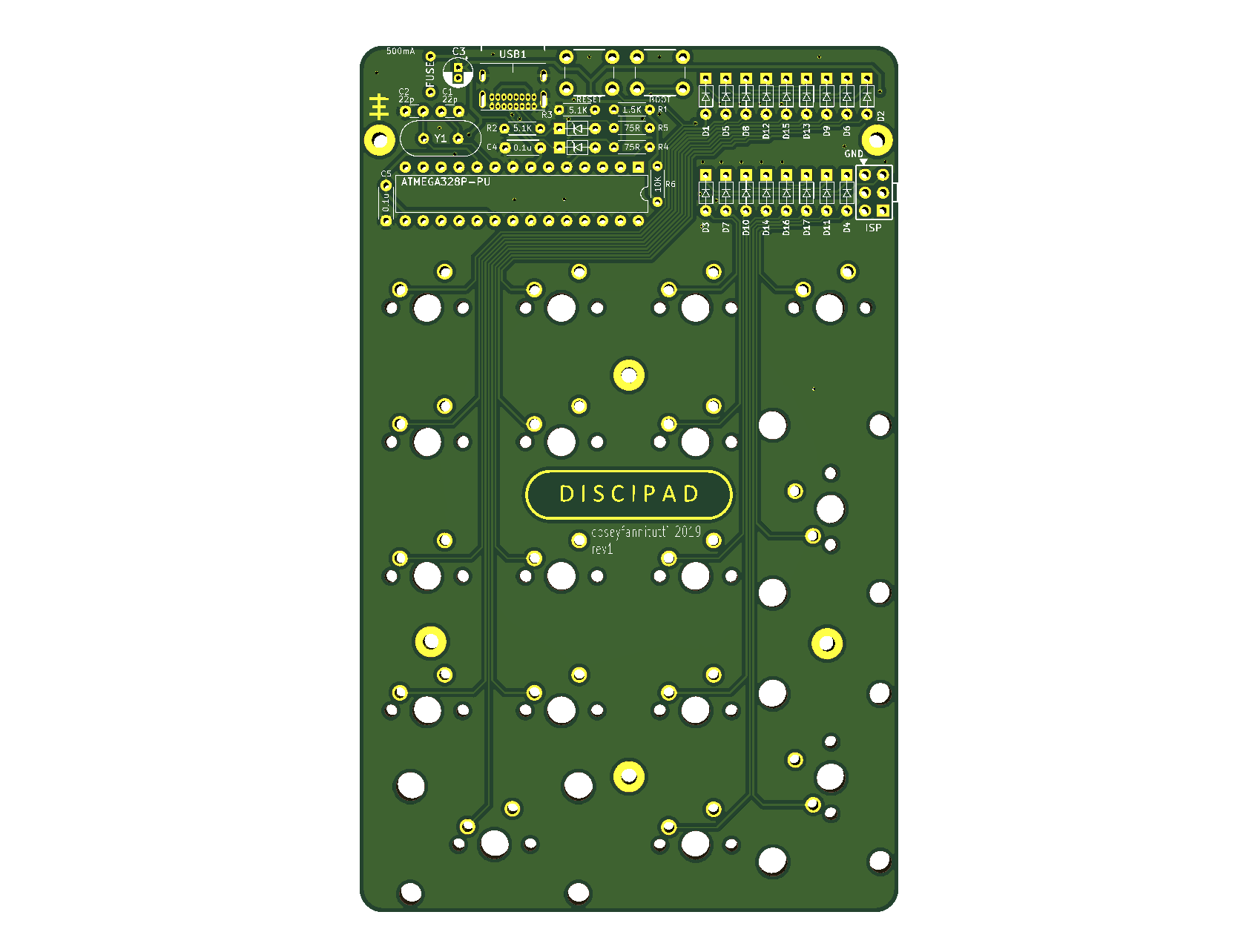

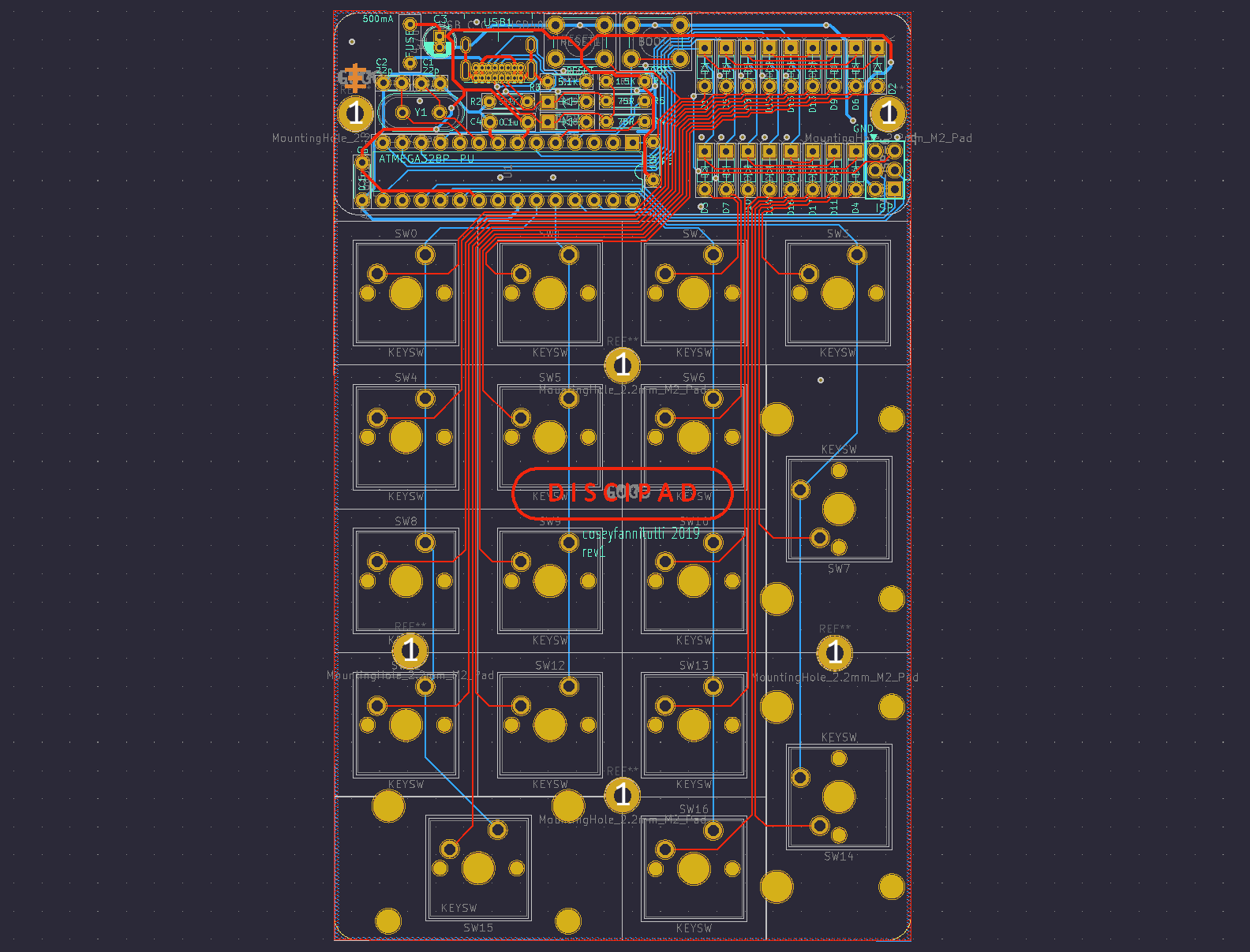

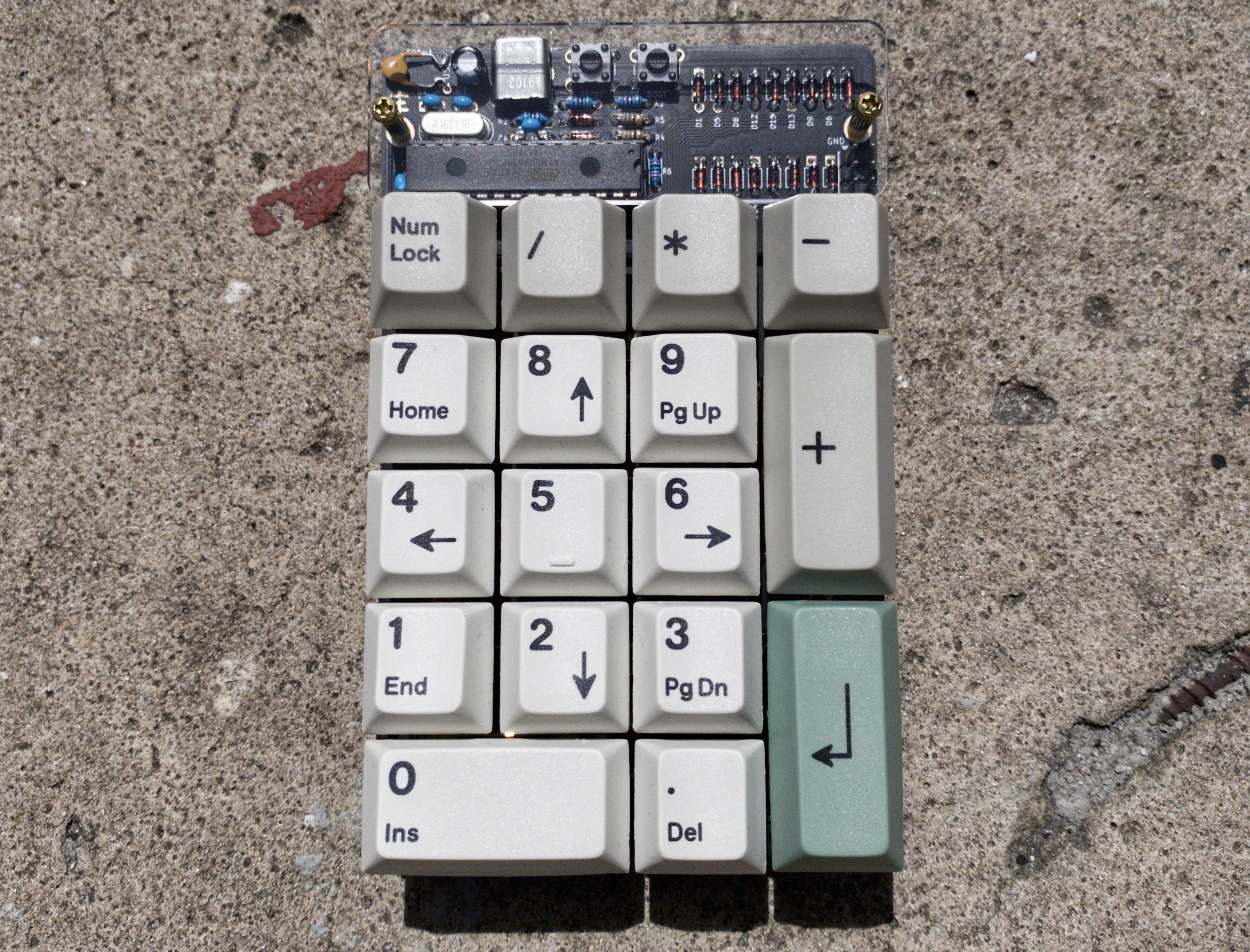

17-key numpad assembled with only through hole components, including usb type-c

BOM, Build Guide, and Flashing Information

Kits available at cftkb.com
