Imported from GitHub: Crane1195/Model-MX1 · commit 9662463 · license GPL-3.0

Description

Single switch PCBs

README

Model MX1

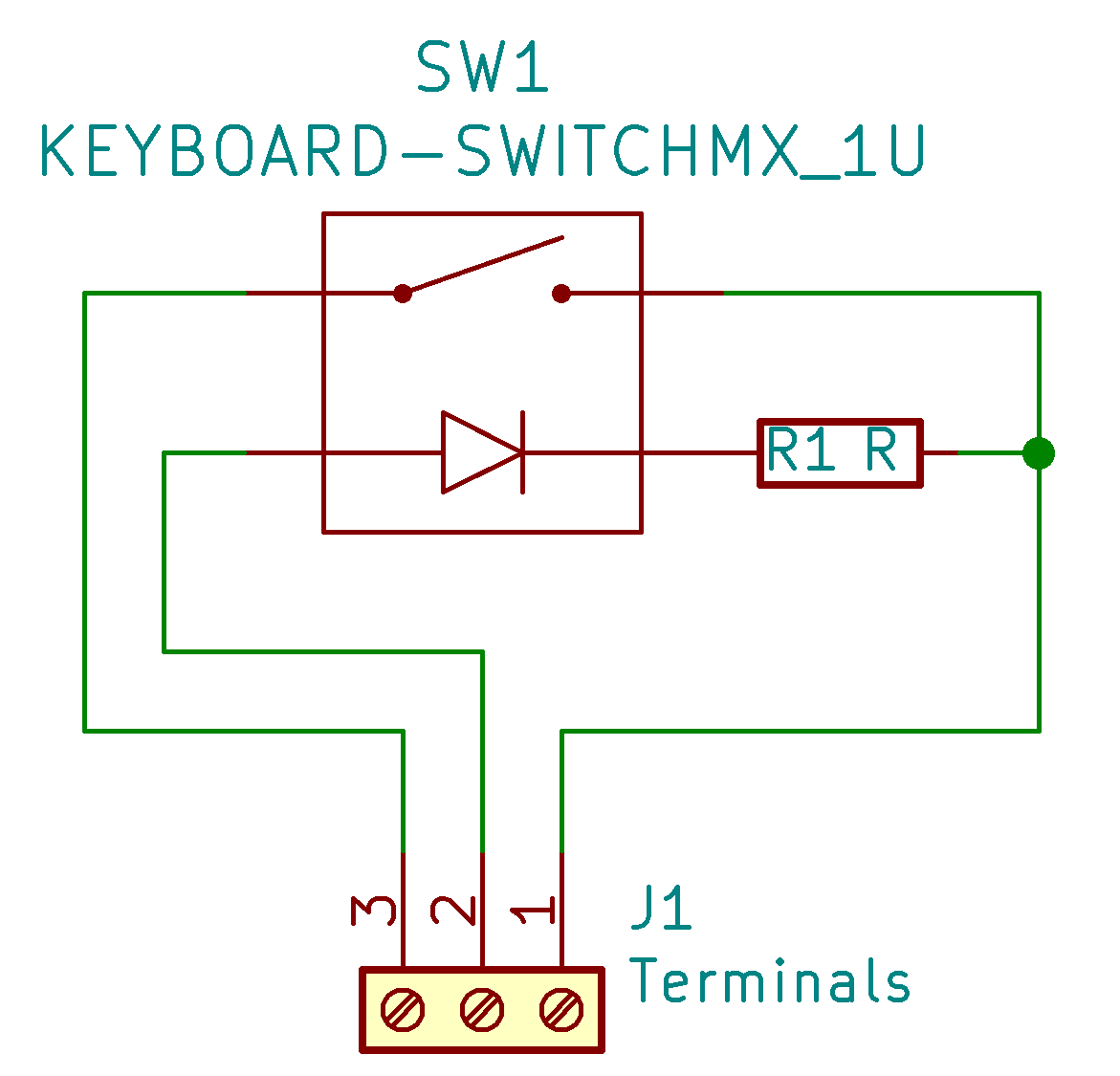

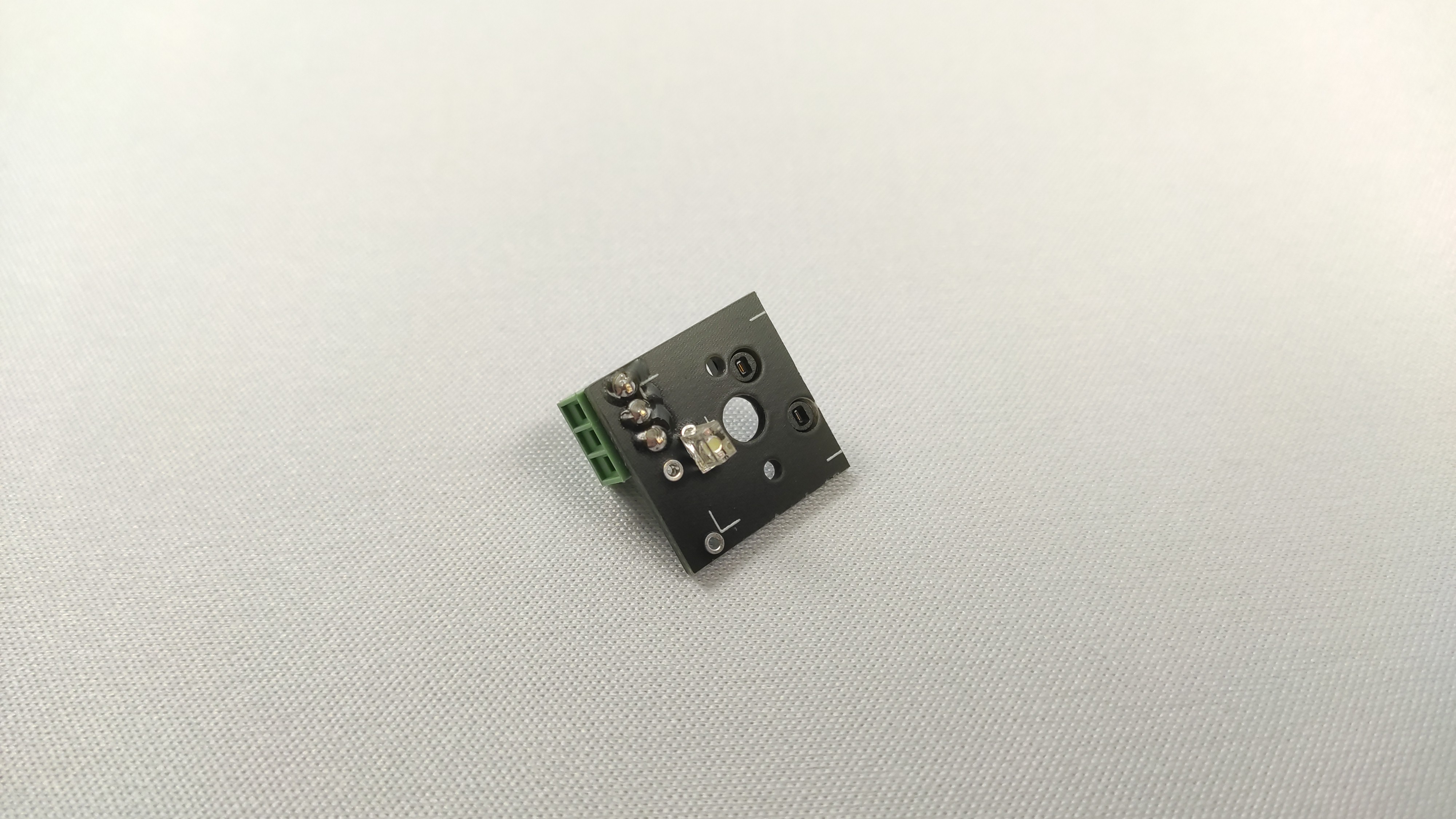

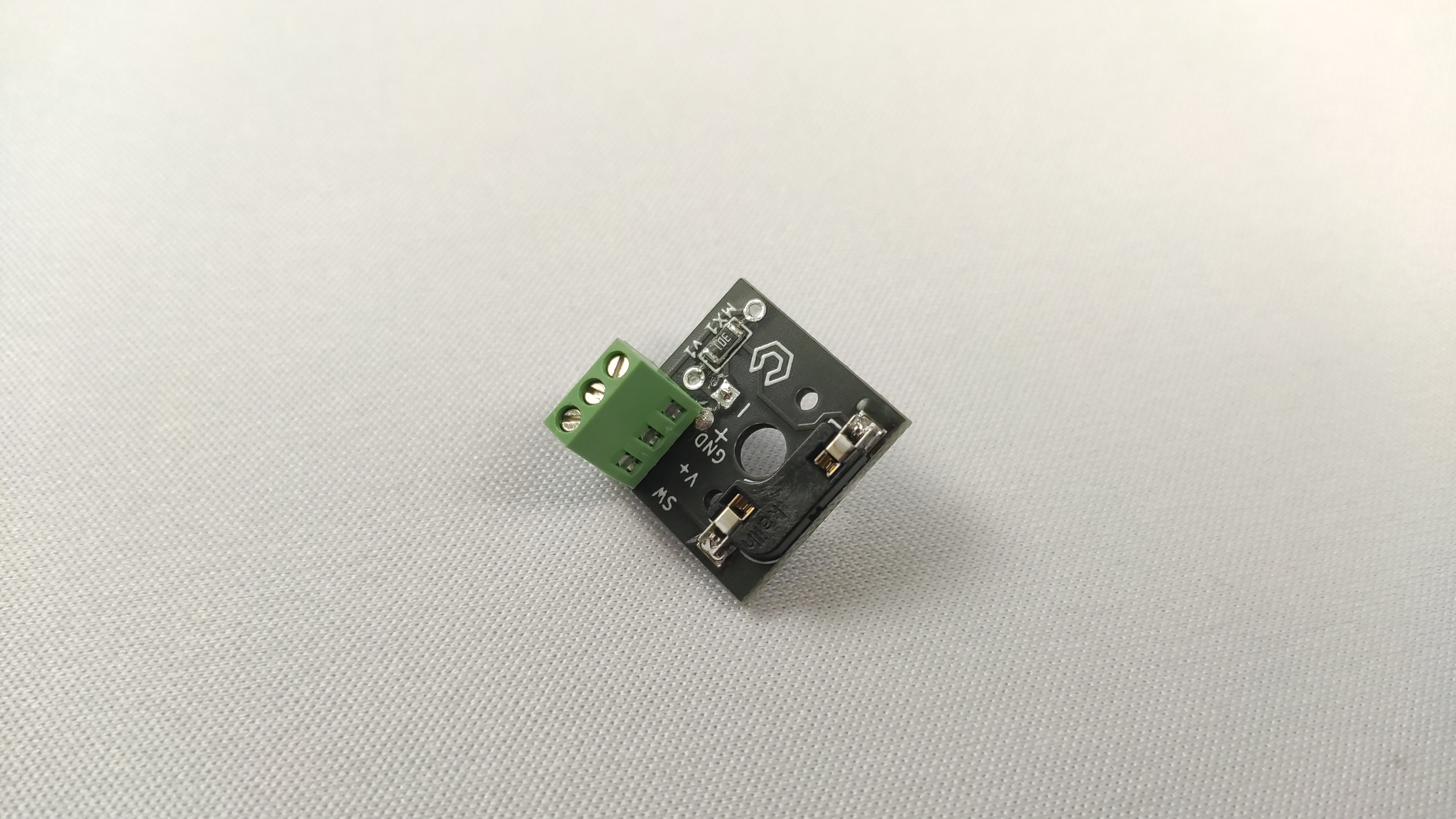

A single switch PCB with a Kailh hotswap socket, a 2 pin THT LED mount, a mount for both THT and SMT (0805) resistors, and a mount for a 3 position 2.54mm pitch screw terminal.

License

This project is licenced under the GNU GPL Version 3. See the included LICENSE file for details.
