AirRes Mask: A Precise and Robust Virtual Reality Breathing Interface Utilizing Breathing Resistance as Output Modality

README

AirResMask

The repository contains building plans for the AirRes mask described in the following publication. Please cite this publication, if you build upon content of this repository:

Markus Tatzgern, Michael Domhardt, Martin Wolf, Michael Cenger, Gerlinde Emsenhuber, Radomir Dinic, Nathalie Gerner, and Arnulf Hartl. 2022. AirRes Mask: A Precise and Robust Virtual Reality Breathing Interface Utilizing Breathing Resistance as Output Modality. In CHI Conference on Human Factors in Computing Systems (CHI ’22), April 29-May 5, 2022, New Orleans, LA, USA. ACM, New York, NY, USA, https://doi.org/10.1145/3491102.3502090

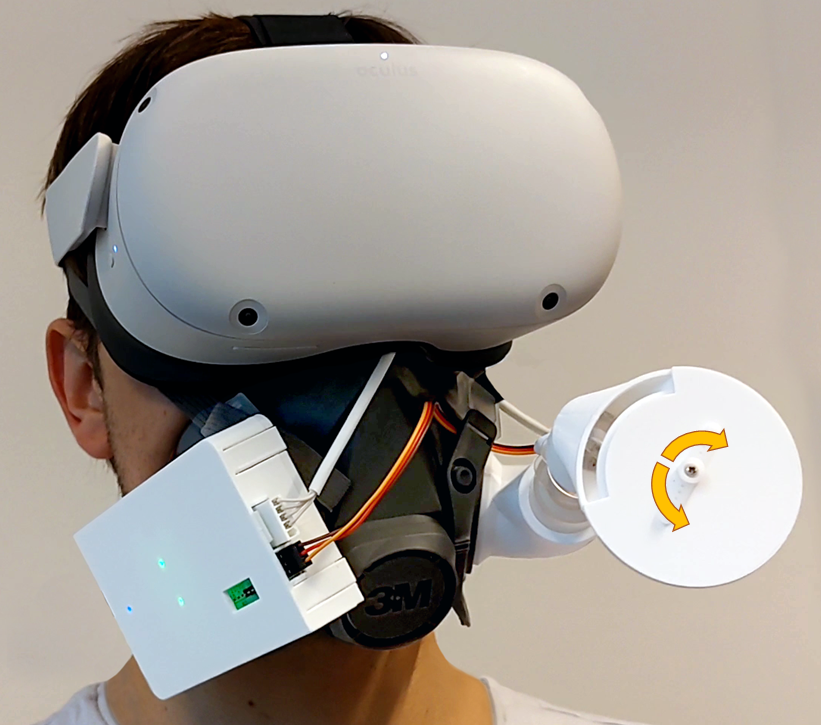

The assembled mask:

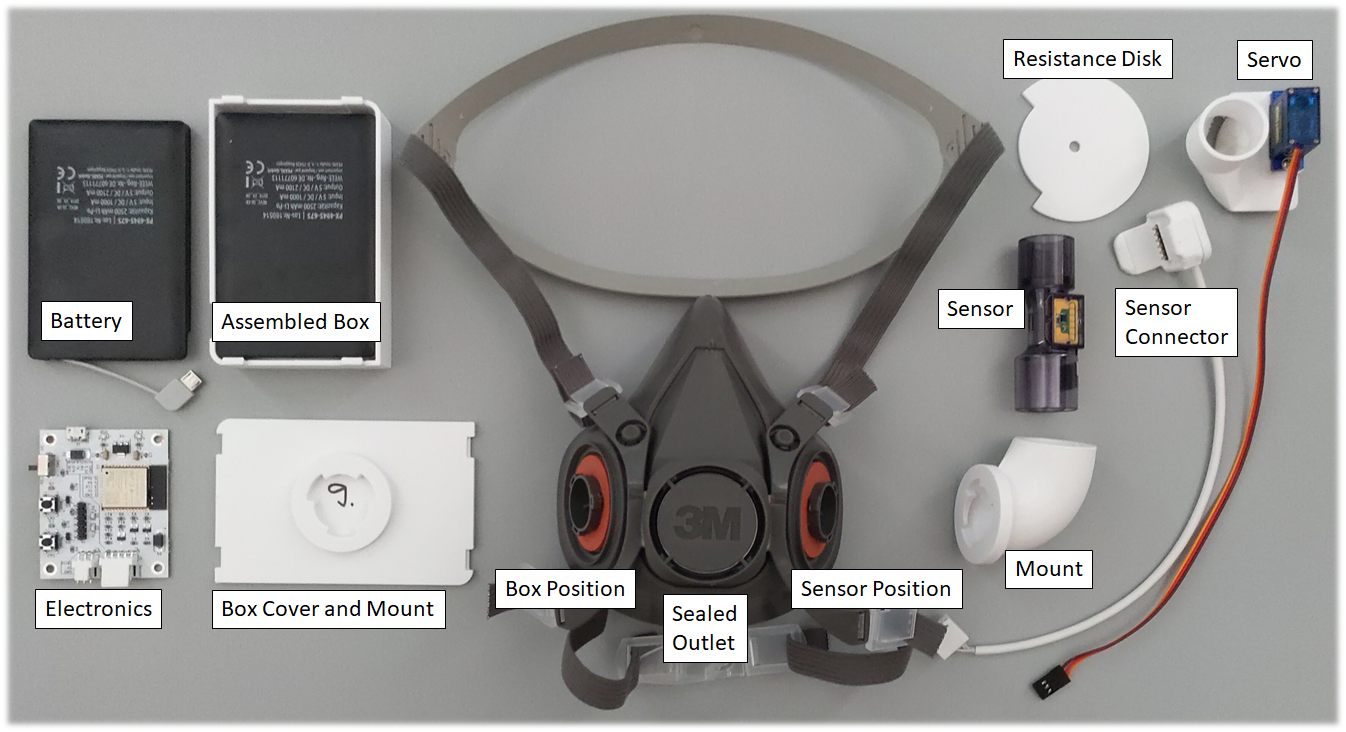

Exploded view of mask showing components:

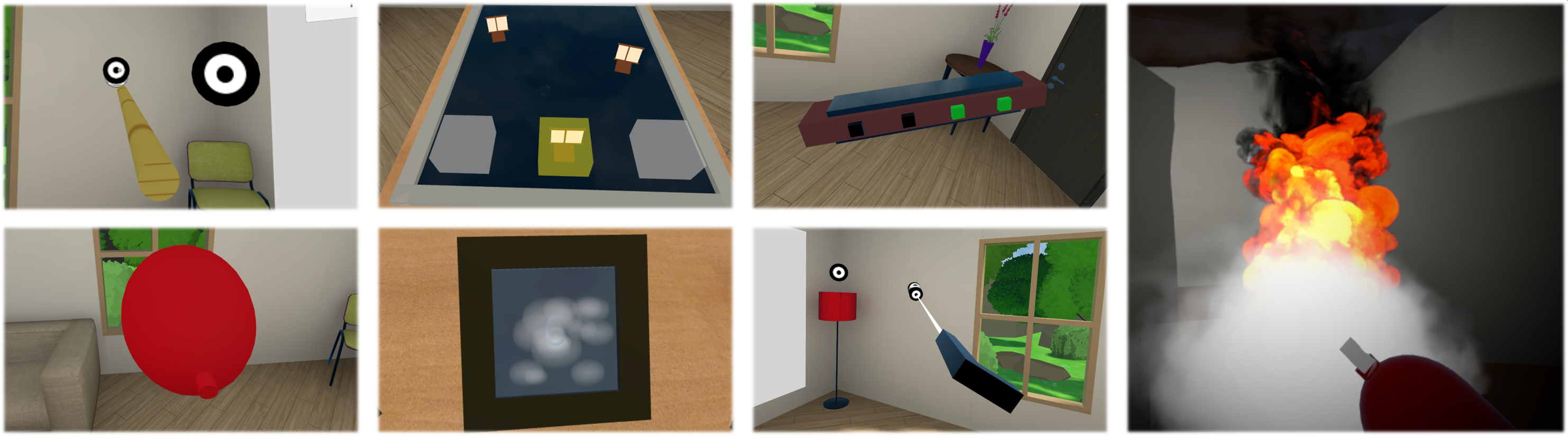

Example applications realized with mask:

This repository contains in the following folders:

• CAD: 3D models and printer files for custom parts of the mask
• Electronics: plans for custom electronics including a Bluetooth module
• Software: control software for the electronics and a Unity sample

Additional part list:

• Sensirion Mass Flow Meter SFM3300
• 3M Respirator 6300
• Servomotor SG90
• Power Bank with Micro USB connector

3rd party CAD files that could be interesting:

• Servomotor SG90
• Sensors: SFM3300-D, SFM3300-AW
