This repository contains a complete KiCad project for creating a PCB that implements the circuit design of Ian Ward in his YouTube video with the title of Homebrew CPU Project

README

Homebrew CPU Project PCB

My inspiration for this PCB came from following Ian Ward's project on his web site:

20xt6 Homebrew CPU Project

This PCB implements the LCD Character Display: Milestone 1 Complete! stage of this series of videos.

But there is more to come in the future, so checkout Ian's videos on his future plans:

Discrete Logic Rhythm Game Prototype (no CPU)

Designing a Rhythm Game: Homebrew CPU Plan Step 2

Maze Game Prototype (no CPU!)

I will try to keep up with him.

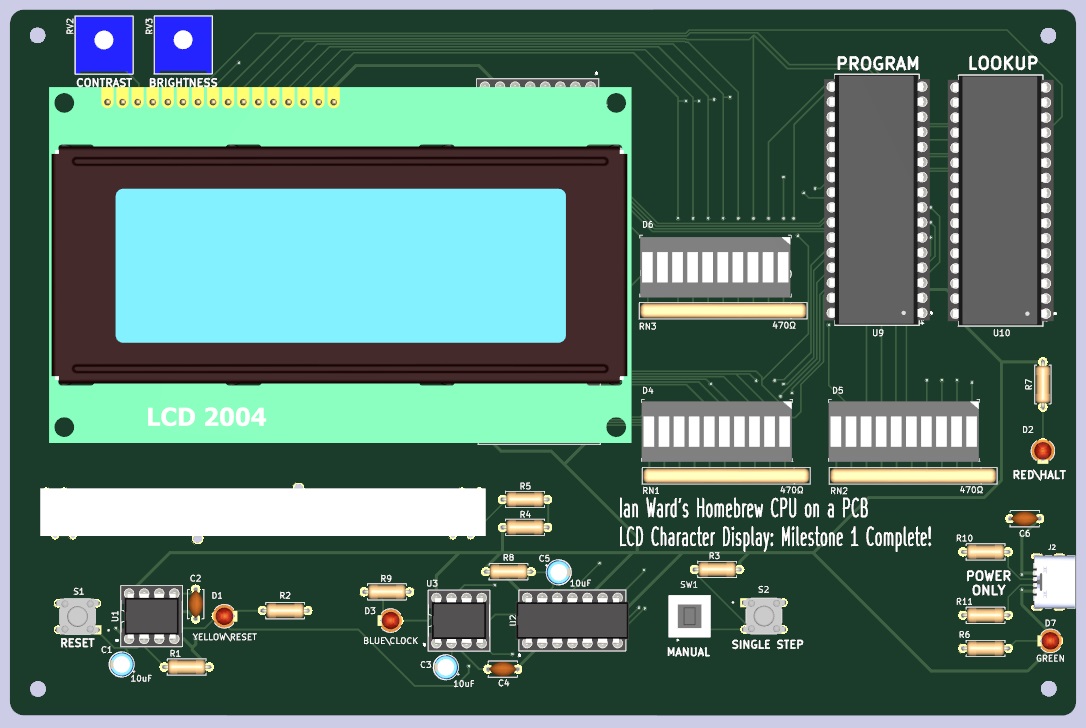

PCB Front Image PCB Front Image

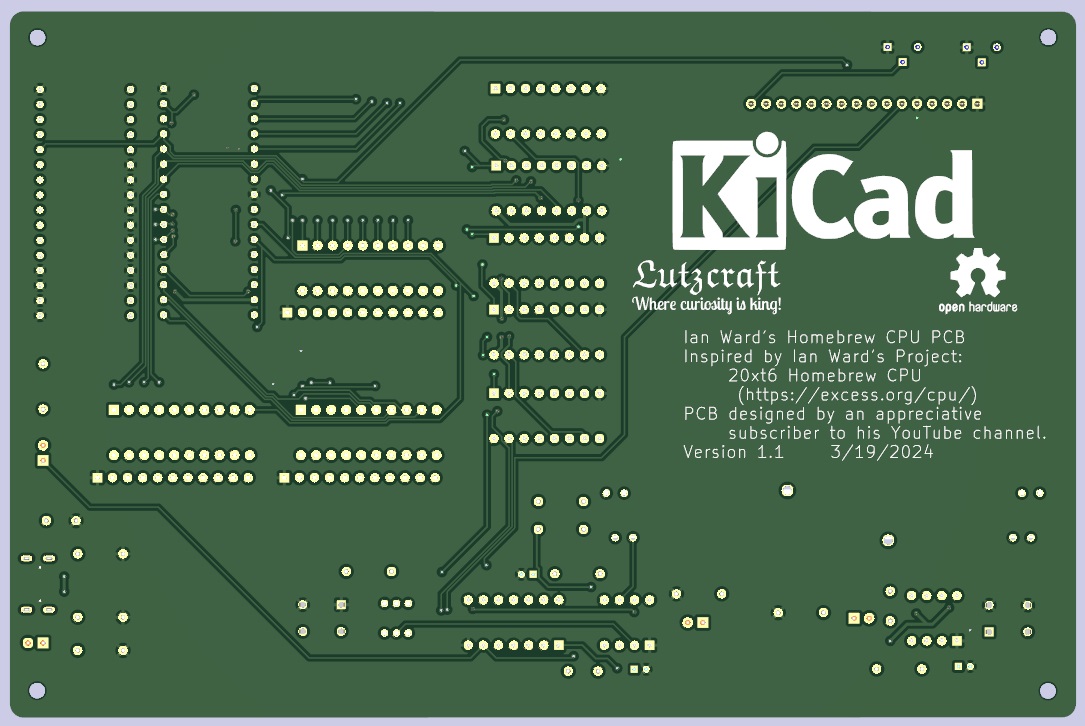

PCB Back Image PCB Back Image

Homebrew CPU PCB BOM

Wed, Mar 21, 2024, 08:58:15

Component Count: 25

RefQtyValueVendor\Part #Description
C1, C3, C5310uFGenericElectrolytic capacitor
C2, C4, C62.01uFDigikey\FG28C0G1H103JNT06Unpolarized capacitor
D11YELLOW\ResetGenericLED\3mm\Yellow
D21RED\HALTGenericLED\3mm\Red
D31BLUE\CLOCKGenericLED\3mm\Blue
D4, D5210_SEG_LED BAR_GRAPH (Blue)Digikey\1497-1079-5-NDLED Bar Graph\Blue\1x10
D6110_SEG_LED BAR_GRAPH (Yellow)Digikey\754-1179-5-NDLED Bar Graph\Yellow\1x10
D71GREENGenericLED\3mm\Green
J11PinSocket_1x16_P2.54mm_VerticalGenericFemale Pin Header\1x16\2.54mm pitch
J21UJC-HP-M-G-5-MSMT-TRDigikey\2223-UJC-HP-M-G-5-MSMT-TRDKR-NDType C/20 VDC/3A/Horizontal/6 Pin/Power Only
R1, R3, R831KohmDigikey\13-MFR-25FTE52-1KCT-NDResistor\1Kohm\1%\1/4W\Axial
R2, R6, R7, R94330ohmDigikey\13-MFR-25FRF52-330RCT-NDResistor\330ohm\1%\1/4W\Axial
R41220ohmGenericResistor\220ohm\1%\1/4W\Axial
R513ohmGenericResistor\3ohm\1%\1/4W\Axial
R10, R1125.1KohmDigikey\13-MFR-25FTE52-5K1CT-NDResistor\5K1ohm\1%\1/4W\Axial
RN1, RN2, RN33470ohmDigikey\4609X-101-471LF-NDResistor Array\8 Resistors\470ohm\9SIP
RV1110KohmJameco\2276439Panasonic EWAQ30C15A14 Audio Slide Pot
RV2, RV325KohmDigikey\3386P-1-502LFTrimmer Pot\5Kohms\0.5W\1/2W\Through Hole
SW11TL2230Digikey\EG6031-NDSwitch\Pushbutton\DPDT\Through Hole
S11REG SELECTDigikey\450-1654-NDSwitch\Tactile\SPST-NO\0.05A\24V\Through Hole
S21ENABLEDigikey\450-1654-NDSwitch\Tactile\SPST-NO\0.05A\24V\Through Hole
U1, U32LM555Digikey\LM555CNNS/NOPB-ND555 Timer/Oscillator\100kHz\8-PDIP
U2174LS00Digikey\296-1626-NDNAND Gate IC 4 Channel 14-PDIP
U4, U5, U6, U7, U8574LS163Digikey\296-3661-5-NDBinary Counter\4 Bit\Positive Edge\16-PDIP
U9, U102SST39SF040-70-4C-PHEDigikey\SST39SF040-70-4C-PHE-NDFLASH Memory\4Mbit\70ns\32-PDIP

The LCD and its 16-pin male header are represented only with 3D models, but you need a 2004 LCD with a soldered 16-pin male header with a pitch of 2.54mm to plug into the 16 pin female header to complete this PCB. I have found the best place to get these is on eBay.

Do NOT try to use a 2004 LCD with an I2C adapter on it.

Most symbols/footprints/models are contained under the 'libraries' directory. Capacitors, resistors and LEDs use KiCad symbols/footprints/models.

KiCad 7.0.10 was used to create this PCB. KiCad 8.0.1 is out now and this project opens in that version. The newer KiCad will warn that this project was created in previous version and will be saved in a the newer format. When closing the schematic or a PCB just discard any changes. If you do not you will not be able to use KiCad 7 any more without difficulties.

Models in KiCad's 3D view will display an appropriate socket under the ICs but these can be omitted on the PCB - they are used to make it easier to replace any components should they need it in the future. The only exceptions are the sockets for the SST39SF040 FLASH chips. These chips can be changed out for different program\lookup combinations, so you do not want to solder them to the PCB. I would recommend using 32-pin sockets from Aries Electronics or something equivalent, for example, Digikey\A410AE-ND.
