MX2U!

PCB Revision License: MIT

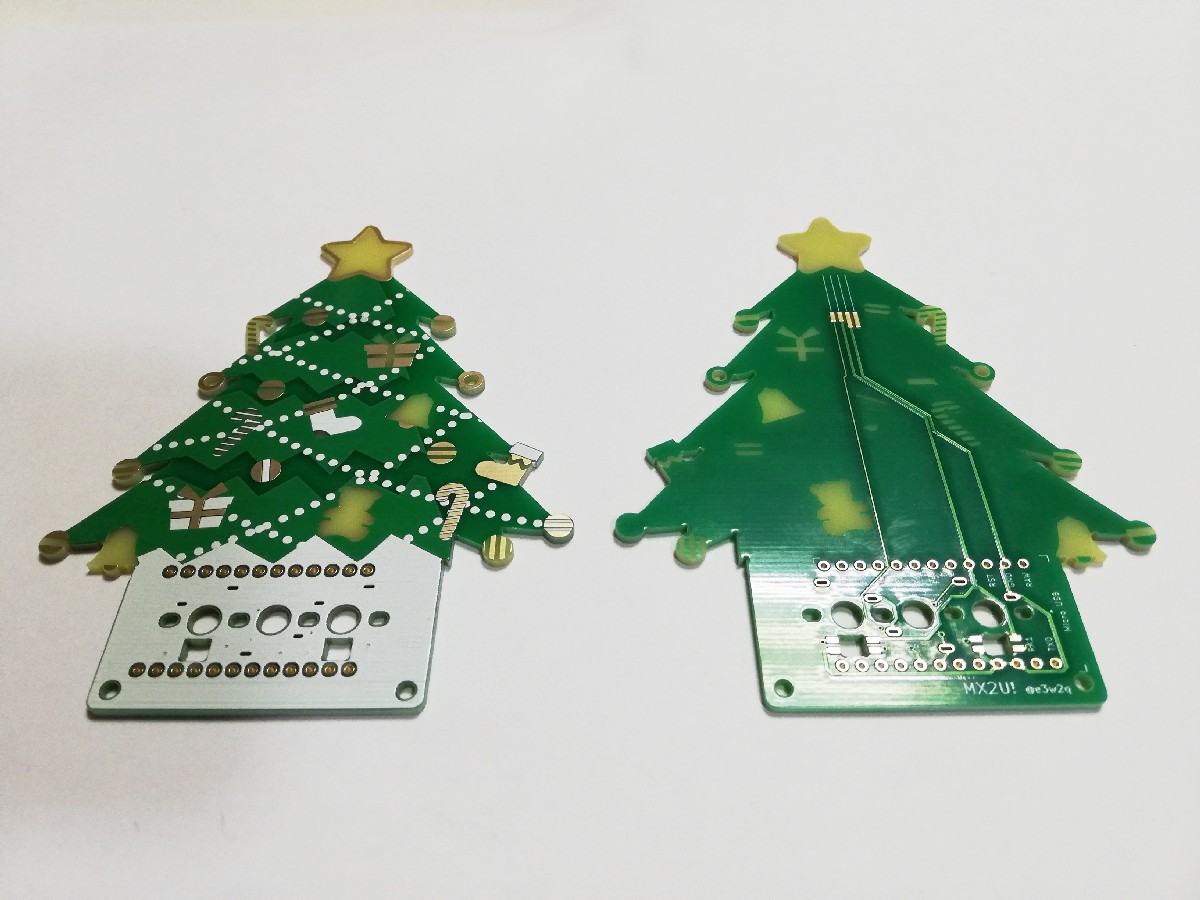

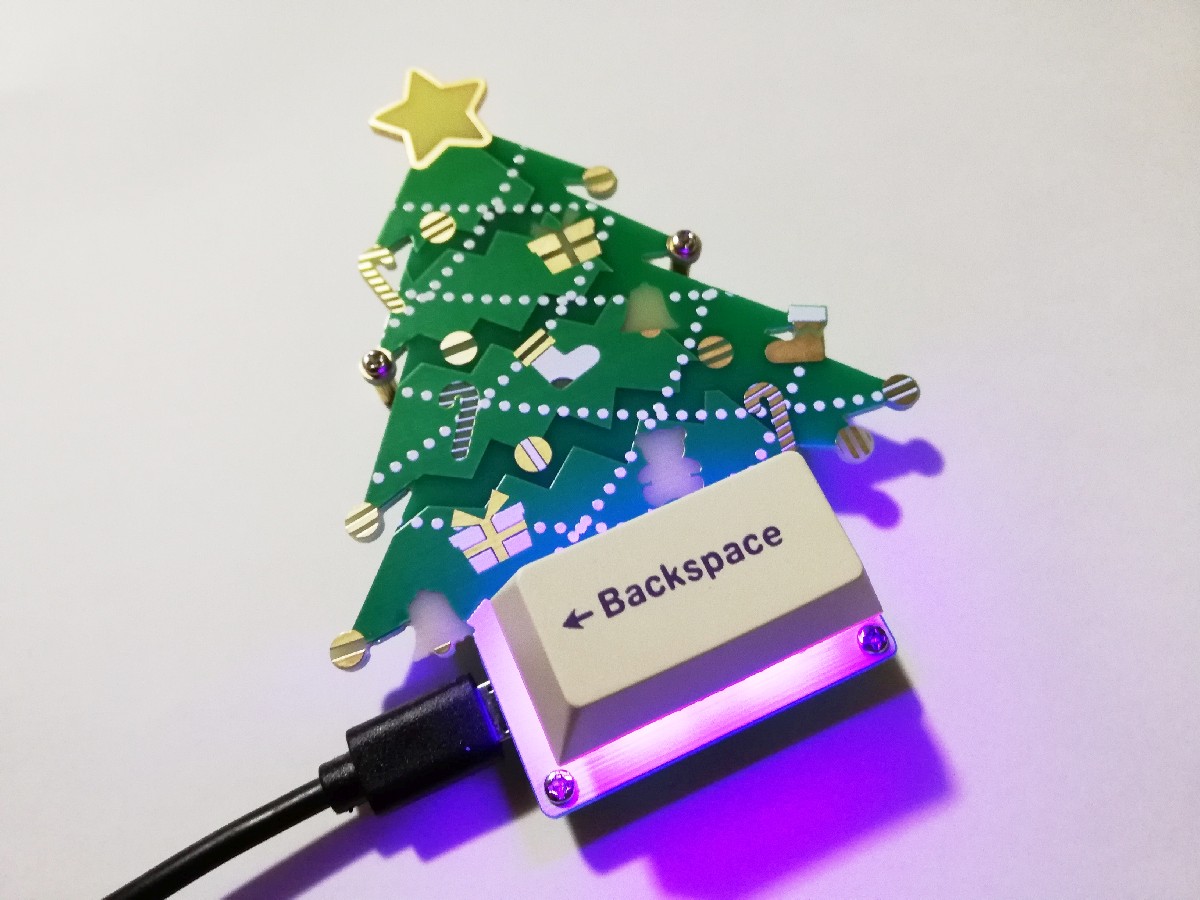

Happy Holidays Macro Pad.

What is the MX2U! ?

MX2U! is a macro pad for MX switches that can be used for fun at certain times of the year.

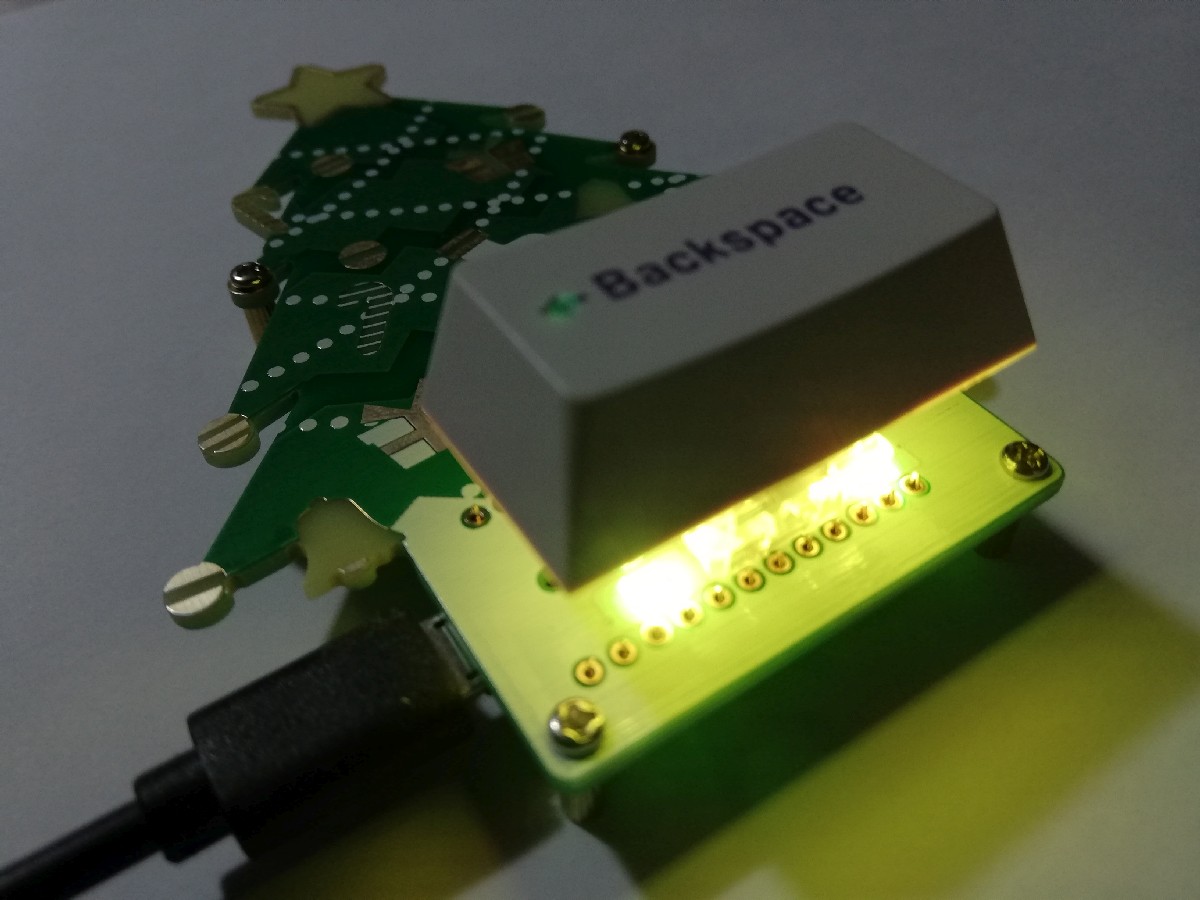

You can place a single 2U key or two 1U keys on this macro pad.

Note: When using the 2U key, the backlight goes directly into your eyes!
