DCC/RailCom Function Decoder for Minitrix Passenger Cars

README

RTB_D13

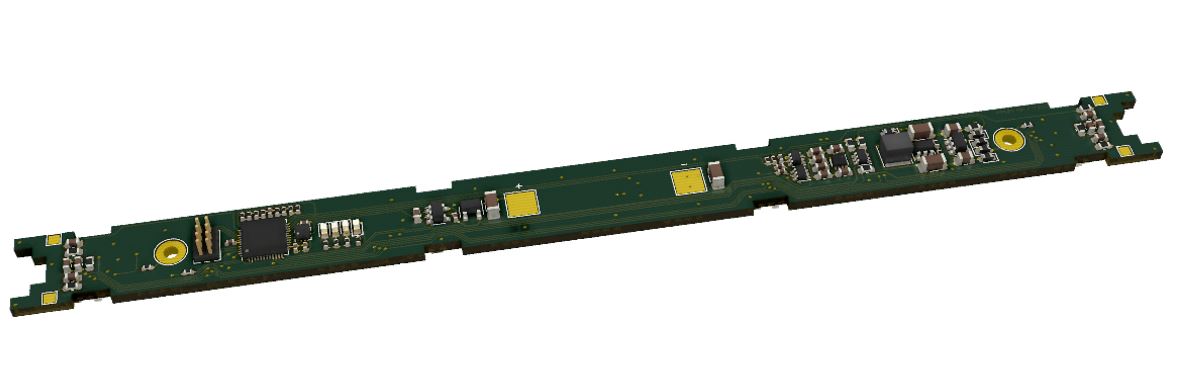

My Homebrew D13 LED decoder is a drop in design for Minitrix (#15791) coach with no mechanical modification required. The decoder is designed to integrate into the RTB digital control infrastructure.

• RTB_D12 - custom (Fleischmann V100)
• RTB_D15 - custom (Minitrix V160)
• RTB_D16 - NEM651
• RTB_D20 - NEM651
• RTB_D21 - Next18
• RTB_D22 - Plux16
• RTB_D23 - NEM652

• User Guide - DE
• User Guide - EN

Decoder features

• DCC
  • DCC-A automatic logon
  • DCC-R protocol extension
  • Service Mode Programming
• Railcom
  • Channel 1/2
  • POM, xPOM
  • DYN: QoS, Track-Voltage, Scap-Voltage, Temp, Ambient light

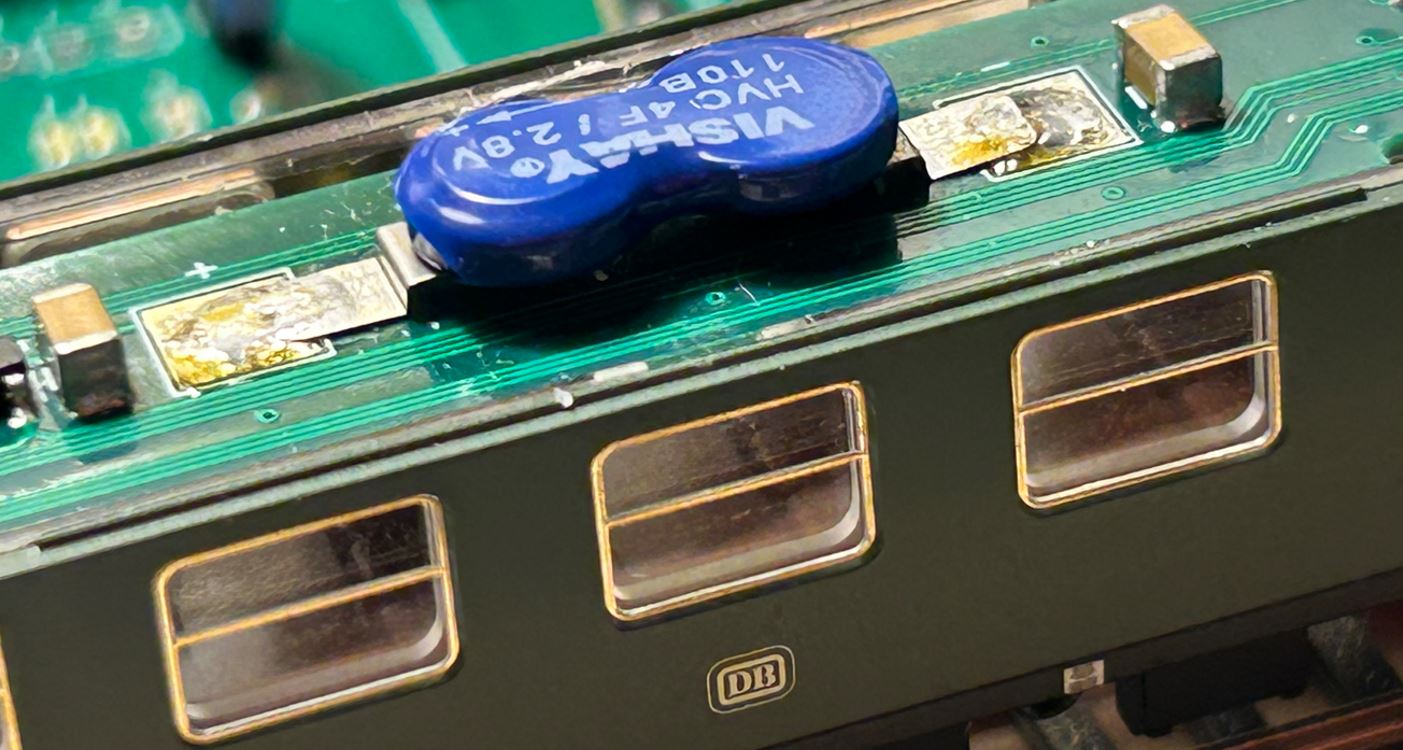

• 1x4F/2.8V SCAP (on PCB)
• Inrush limited
• step up/down converter
• max track voltage 25V

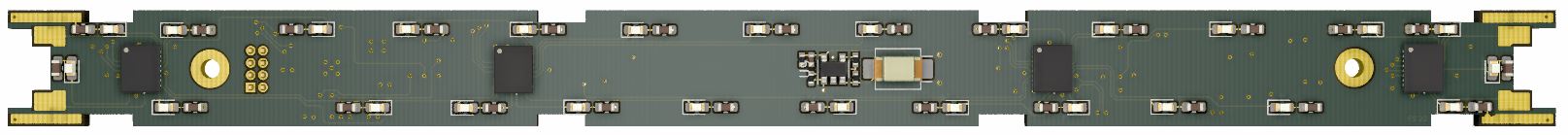

• Corridor (11 LEDs), Cabin (13 LEDs), Lavatory (2 LEDs)
• Status LEDs: heartbeat, charging, no-power
• motion sensor
• ambient light sensor
• fast firmware update within seconds on main tracks via DCC-R

Hardware

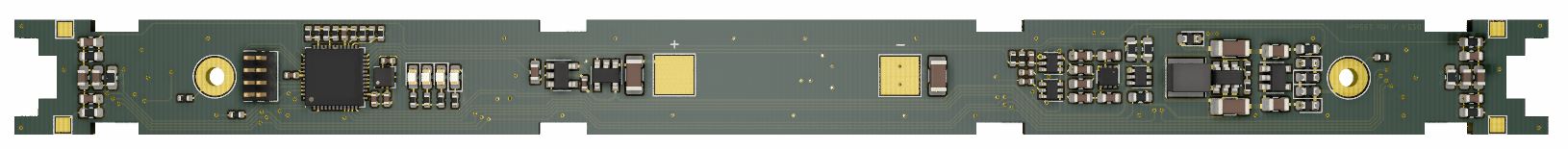

The current PCB layout uses SMD footprints with 0.5mm pitch and mainly 0603 parts. Reflow soldering is recommended whereas handsoldering will be difficult.

PCB

• 4-layer PCB, FR4, 1mm
• CPU: AVR64DA48

Kicad

Schematic | Layout | Gerber

:yellow_circle: Requires my Kicad project library RTB_SamacSys in the same directory tree.

Firmware

Filename structure: { pcb }{ code }{ version }.hex

Example: D13F0001.hex

	Description
pcb	Name of matching hardware (D13)
code	Type of code contained (R=rom, B=bootloader, F=flash, U=bld update, P=UPDI factory code)
version	Release version (####)

Firmware files

Images

YouTube

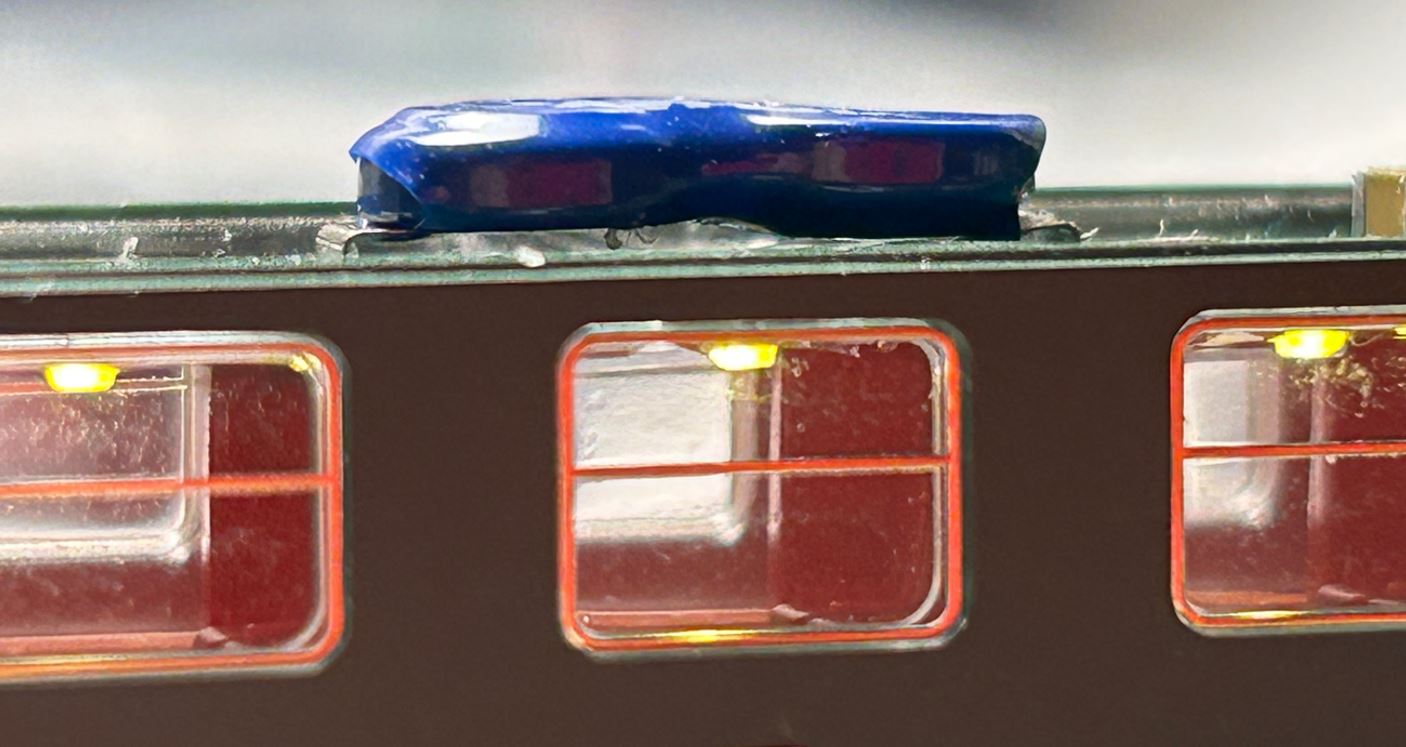

See the D13 decoder in action.

This project is intended for hobby use only and is distributed in accordance with the Apache License 2.0 agreement.
