README

bosonFrameGrabber

Project Stage: Basic MVP achieved

A Small FPGA based board. Designed to connect to a FLIR Boson Camera, and save images from the camera to a microSD card.

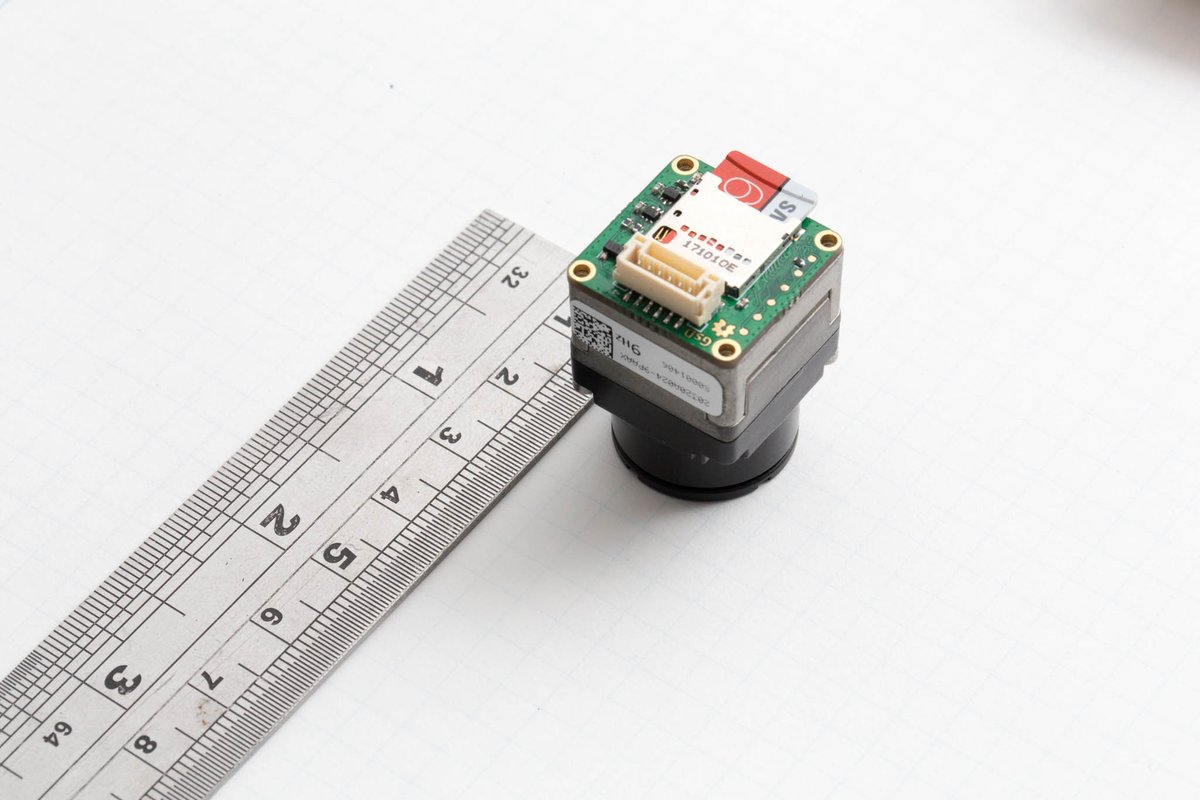

hw 1_02 is the latest functionaly hardware that fits just behind the back of the Boson. (Pictured Above)

Project Status:

  • hw 1_01 working (reached limitations of FPGA)
  • hw 1_02 status
    • designed/assembled prototypes
    • Working on Firmware on a softcore riscv CPU.
    • Basic capture system implmented in rtl.
    • Basic driver for SD card access using FatFS and SD-controller.
