README

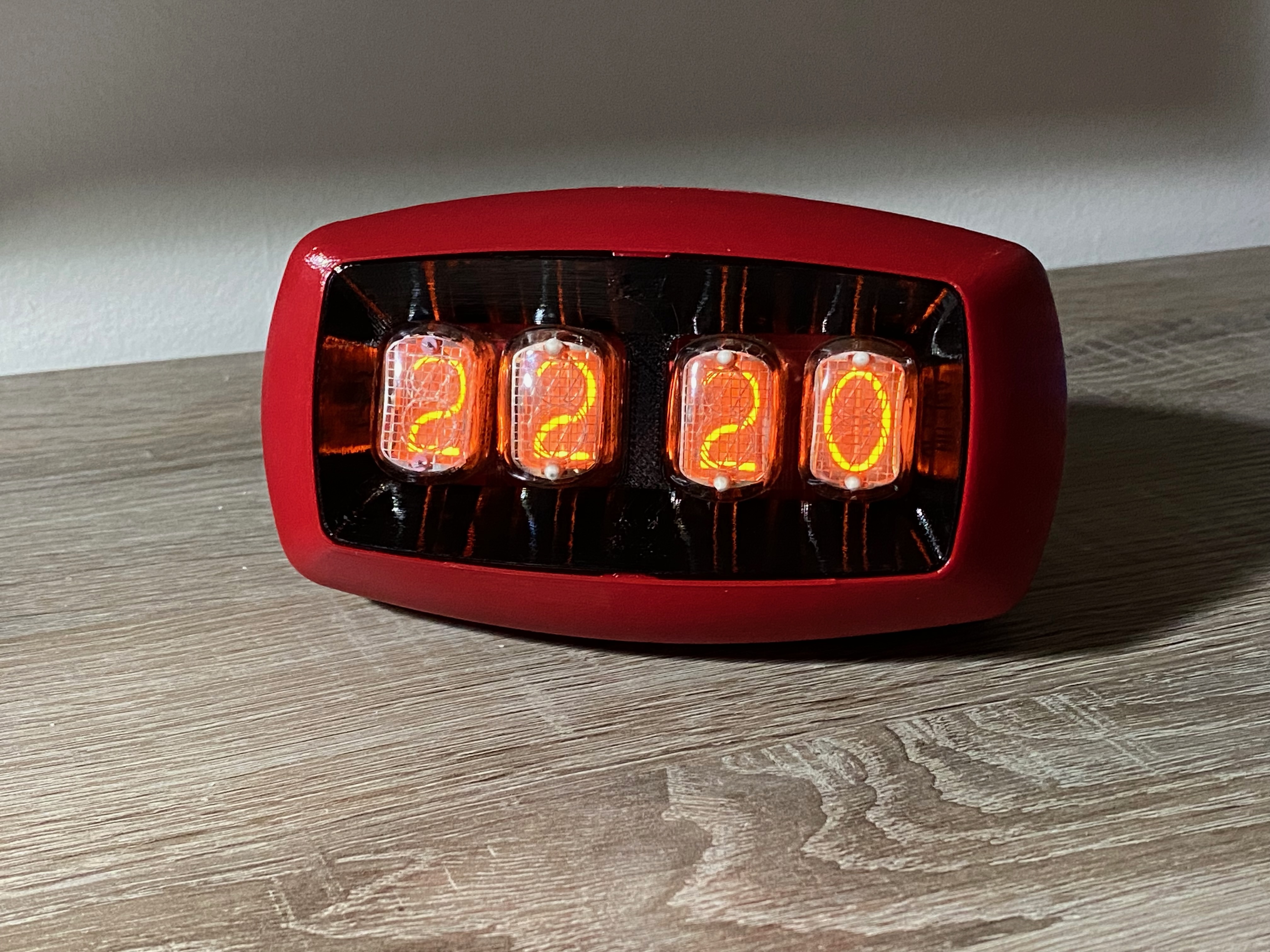

Yet another nixie clock

This repo contains hardware design files and firmware source code for a nixie tube clock.

The clock uses soviet IN-12 tubes and K155ID1 driver ICs.
