README

mini-motor-controller

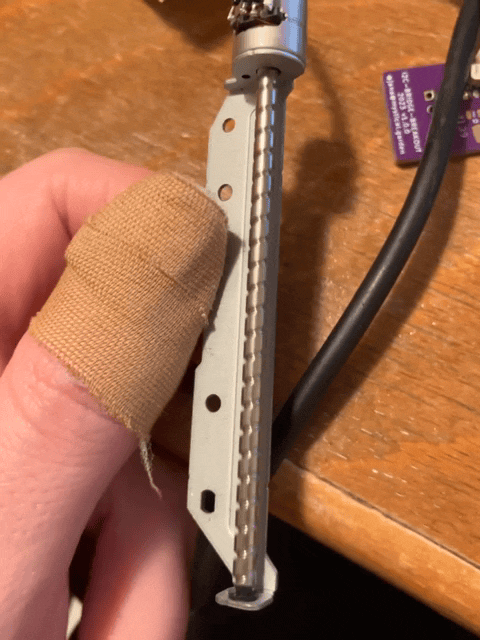

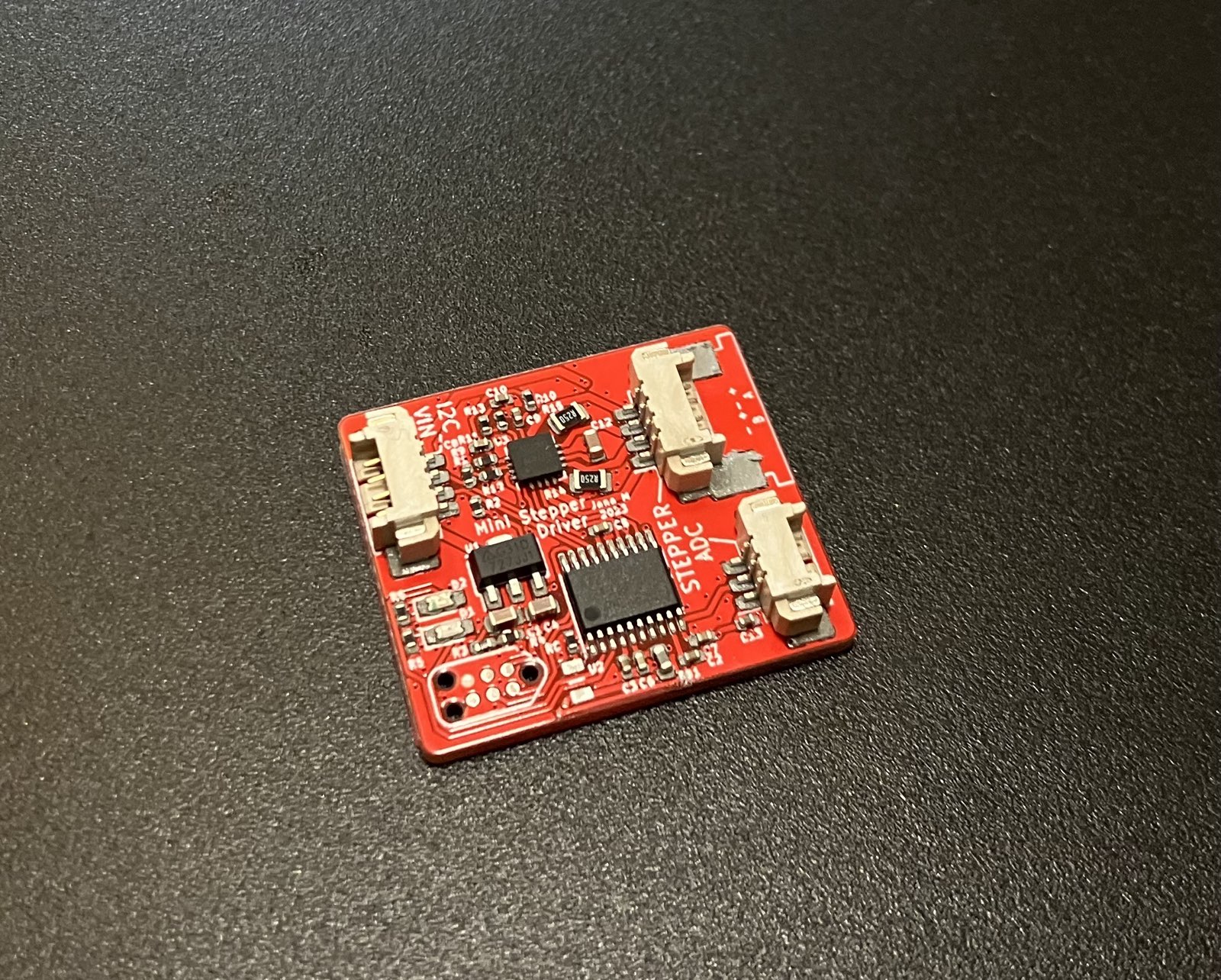

A motor controller for miniature stepper motors, such as used in CD head drives. The additional ADC input allows for position feedback. This project was intended to be used in a DIY motor fader, however this motorfader has not been designed yet.

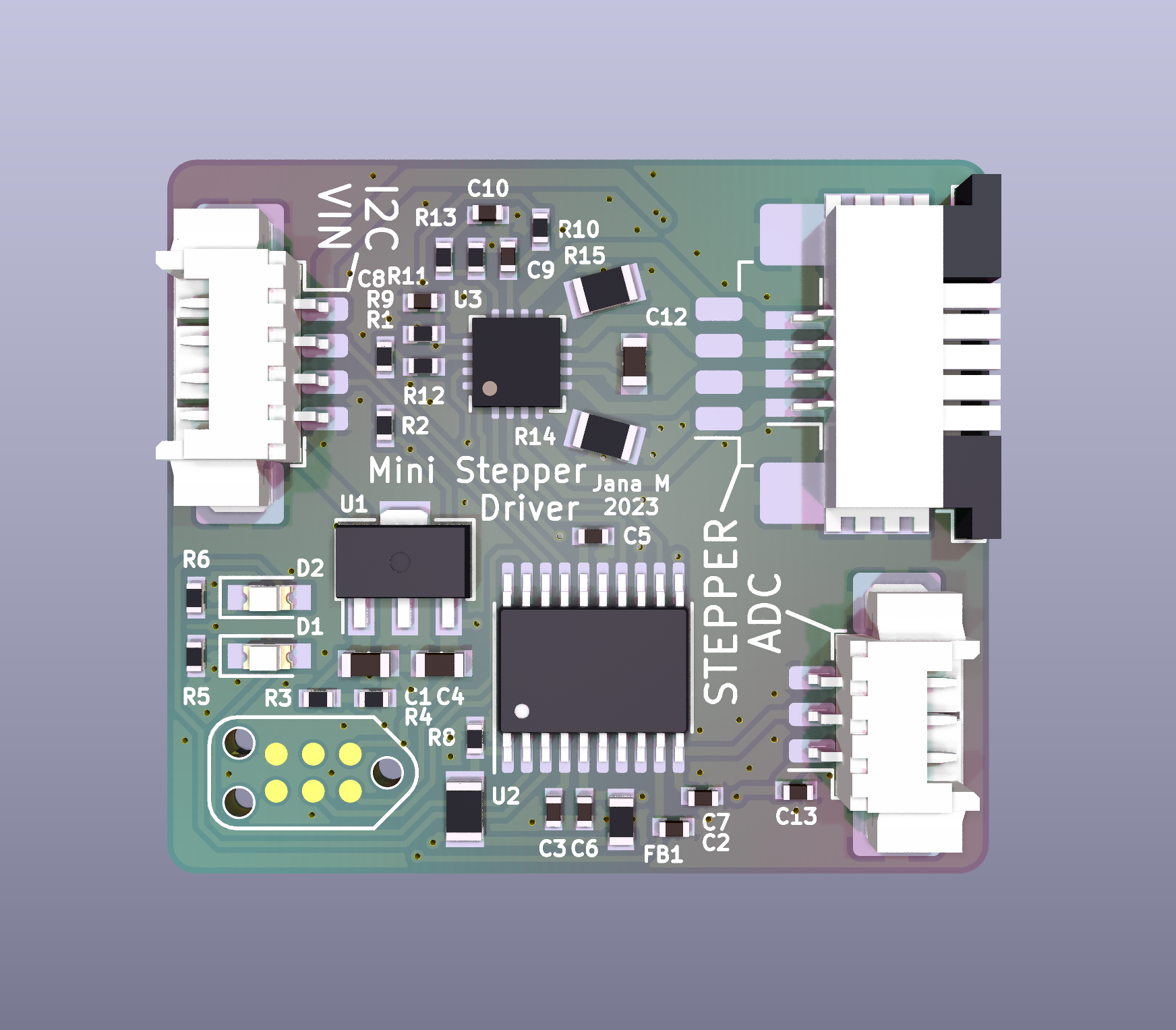

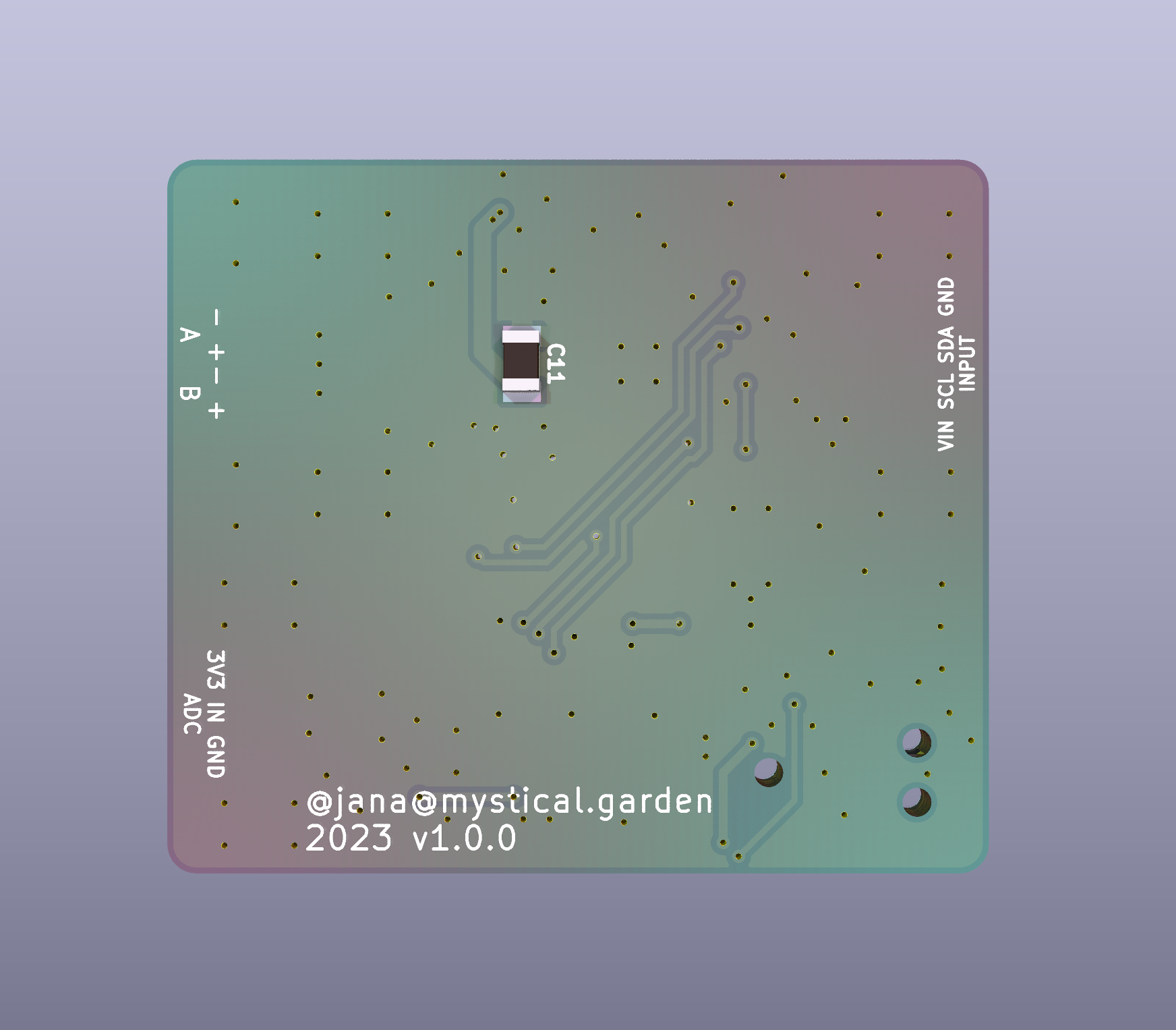

It features a cheap STM32F030 as brains with I2C as main IO to the host controller, an onboard regulator allows for an input voltage of up to 10V. The motor driver is a STSPIN220 with up to 1.3Arms.
