README

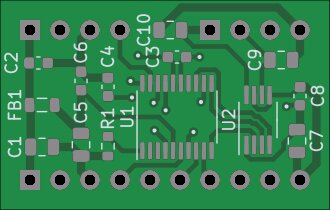

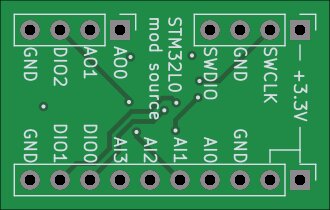

Small STM32L0 based modulation source PCB

Features:

  • tiny pcb
  • four analog inputs
  • three digital input/outputs
  • two analog outputs
  • it can be configured for various modulation duties, such as
    • a dual LFO
    • a single ADSR
    • other things?
  • drop it into various projects that need a small modulation source

Status:

TaskStatus
Schematic capture☑
PCB layout☑
Test build☑
Safe to order boards☑
Comments
