README

Rotten - DIY Pro Co RAT Clone

This repository contains the KiCad files for a DIY clone of the classic Pro Co RAT distortion effect pedal. The schematic is an implementation of the one found on ElectroSmash, so a big shout-out to them. The article on ElectroSmash has a great description of the functionality of the circuit.

Interactive BOM

An interactive HTML BOM can be found in the PCB/Rotten/bom directory. This can be used as a tool to easier populate the PCB.

Images

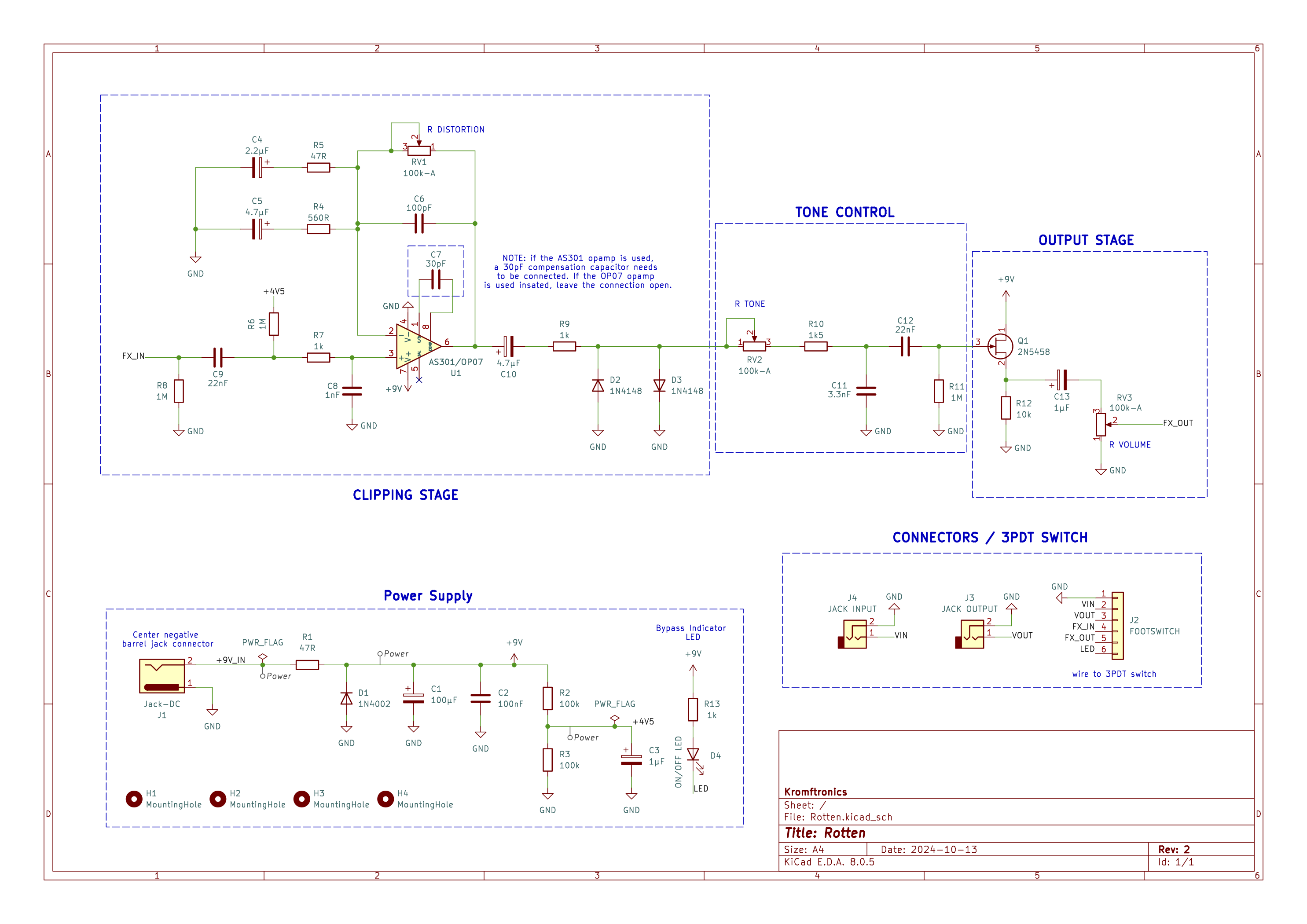

Schematic

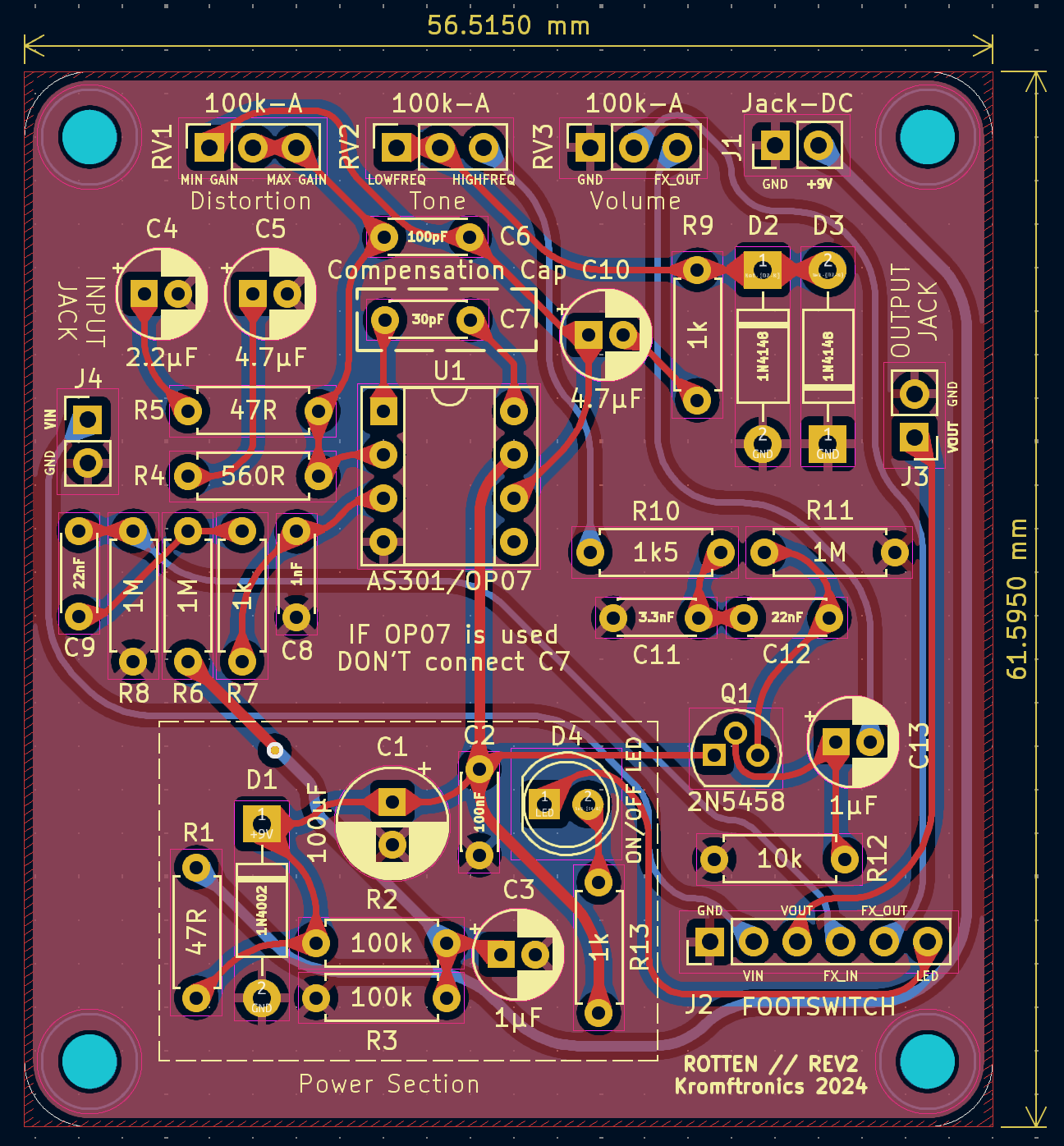

PCB

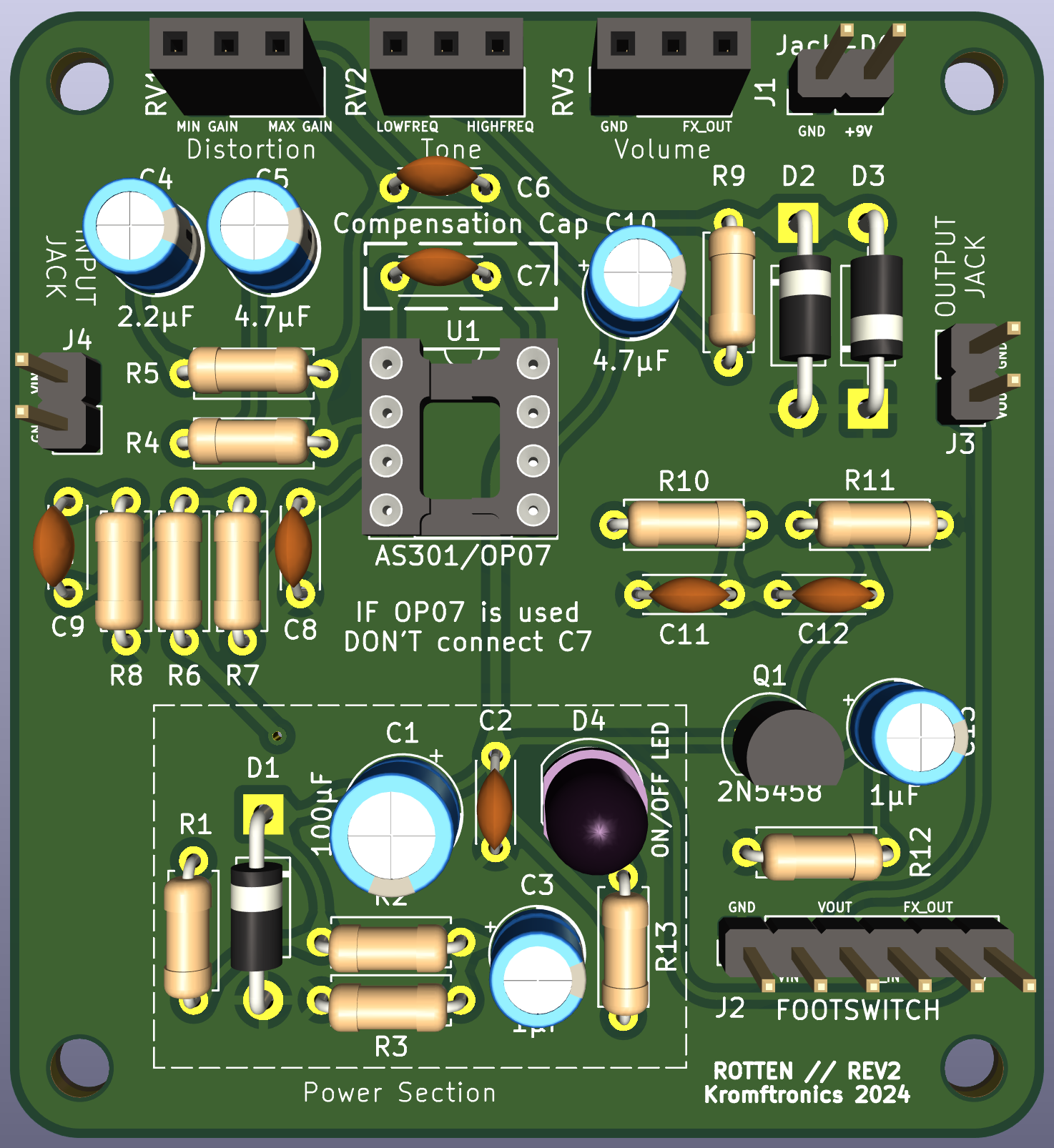

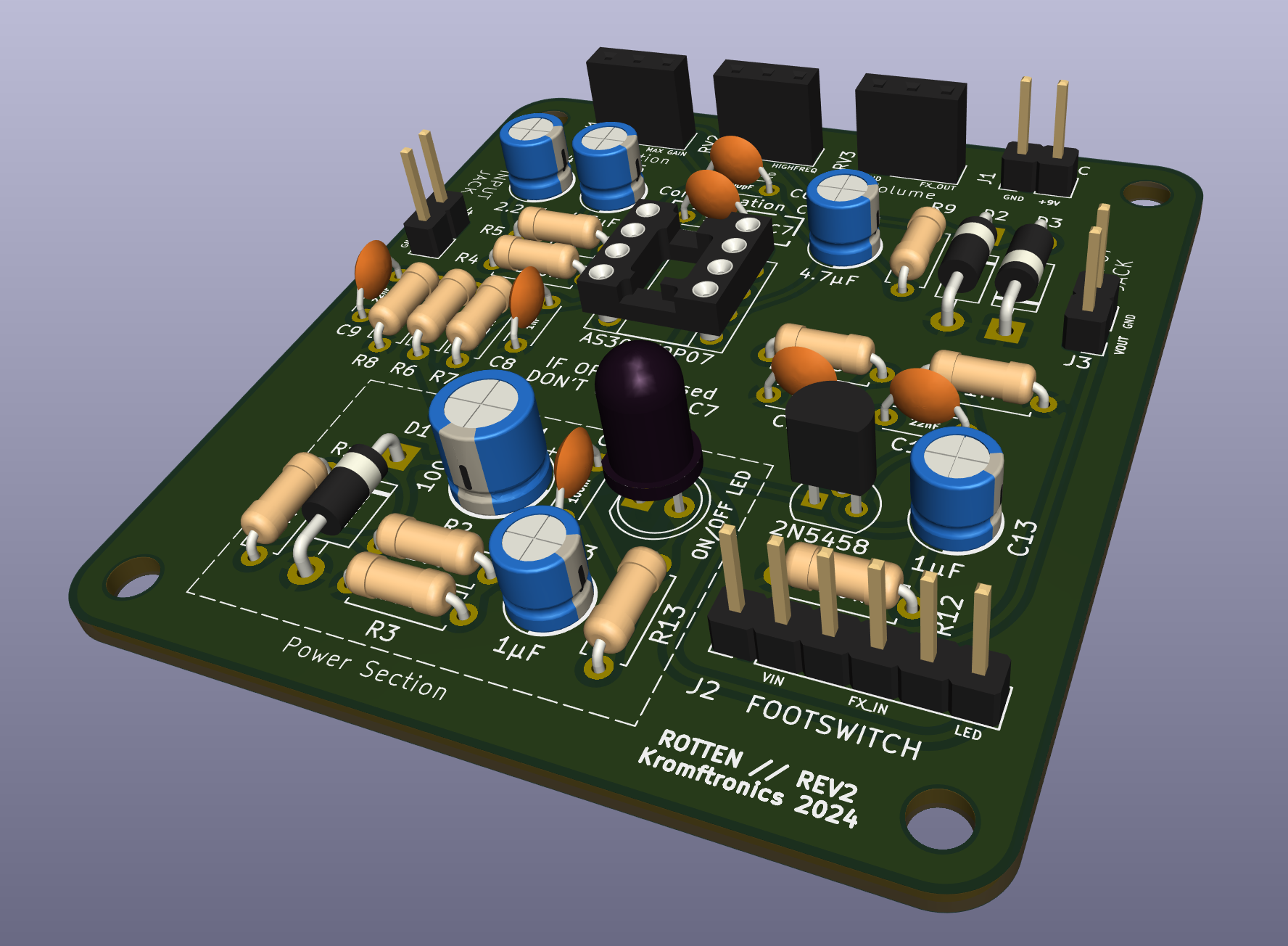

3D Model

Wiring

Footswitch - True Bypass Wiring

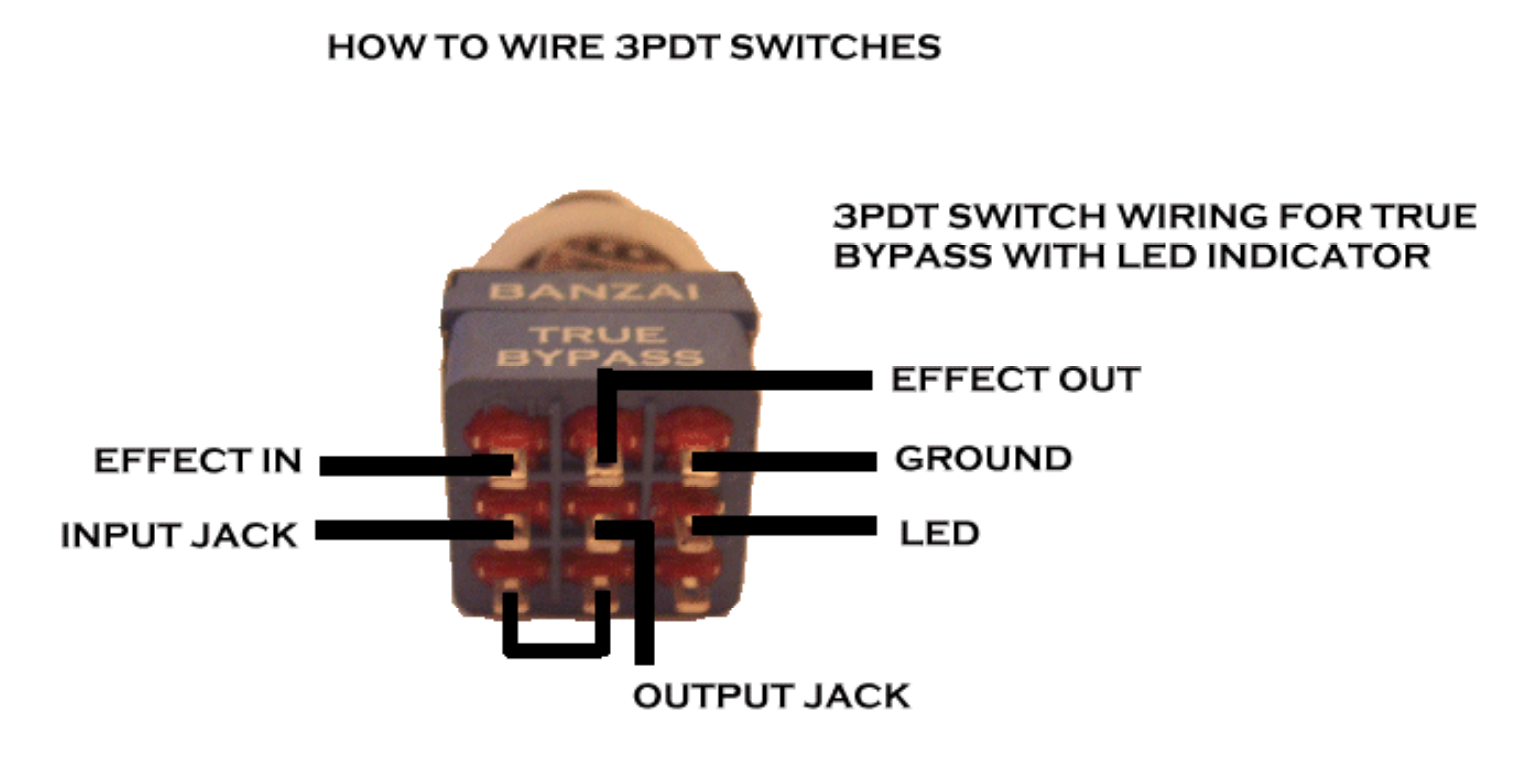

You will need a 3PDT type switch in order to wire things correctly. The six connections on the PCB needs to be wired to the switch as indicated by the image below.

source: https://support.banzaimusic.com/article/53-true-bypass-switch-wiring

I would recommend that you use the interactive BOM above to see what connection on the PCB matches the correct pin on the footswitch, since the silkscreen is very small and probably not readable on the actual physical PCB.

NOTE: If you don't want to use the LED indicator, you can disregard the GROUND and LED connections on the footswitch and don't solder these connections to the PCB.

Potentiometers

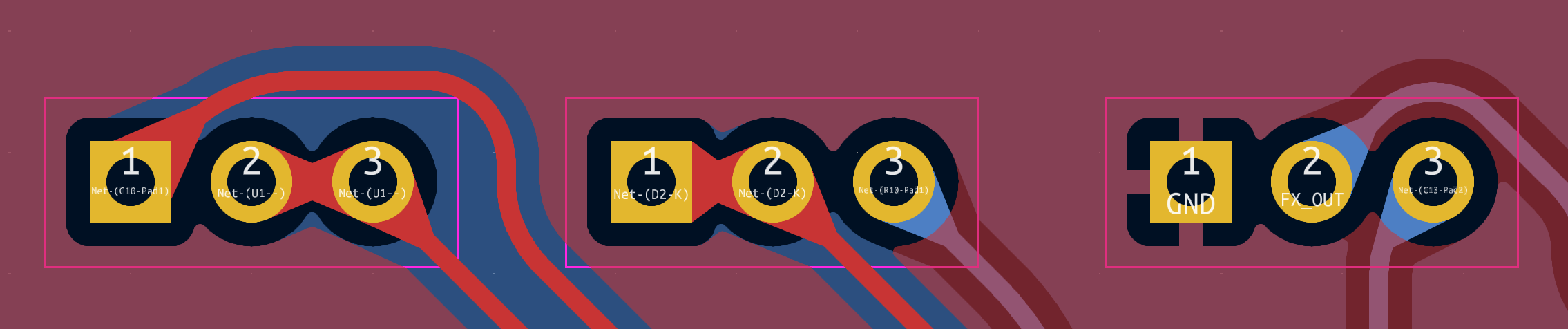

The PCB has been designed so pin 1, 2, and 3 on the board matches the pinout of the 100k Potentiometers. This means that pin 1 on the potentiometer should go to the square pad on the PCB, as indicated below.

Jack Connectors

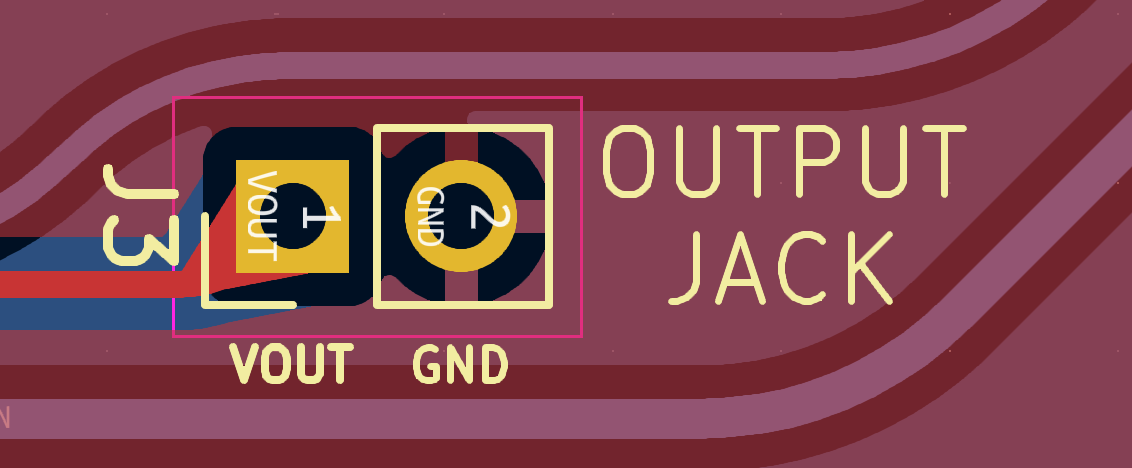

The Jack connectors (both the 1/4" audio jacks and the DC jack) only needs two connections. For the audio jacks, pin 1 should be soldered to the tib of the connector and the sleeve to pin 2. The silkscreen on the PCB also indicates which pad is ground or the signal, as can be seen below

The DC barrek jack needs to be connected center negatic in order for the effect to work with standard stompbox power supplies. This means that you should connect the tip to ground and the +9V to the sleeve of the barrel jack connector.
