GPS Development Board - ANTENOVA M20050-1 and ATGM332D-5N31

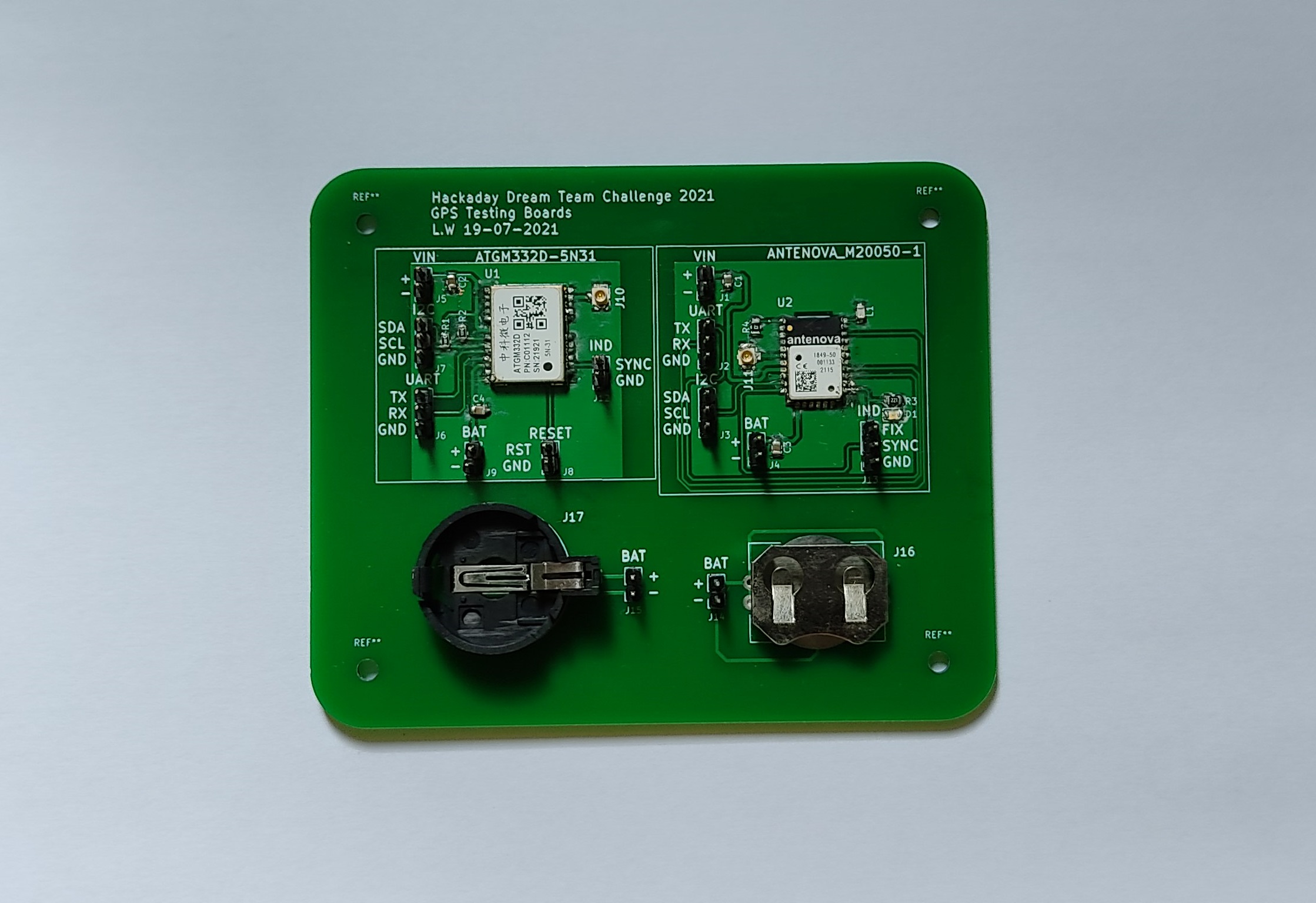

This repository contains the design of a development board for the ANTENOVA M20050-1 and the ATGM332D-5N31. The PCB was designed using KiCad.

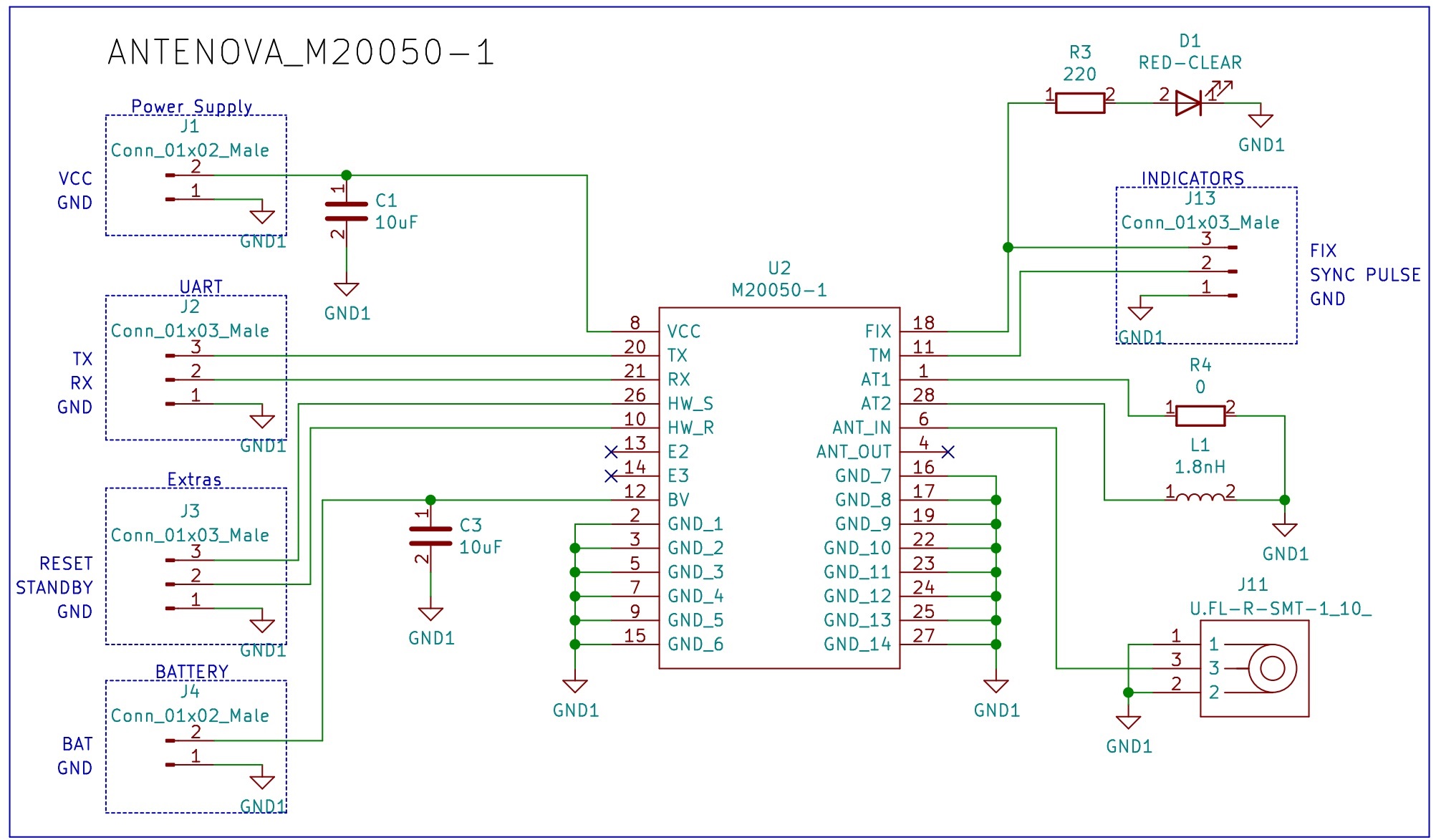

Schematic for the ANTENOVA M20050-1

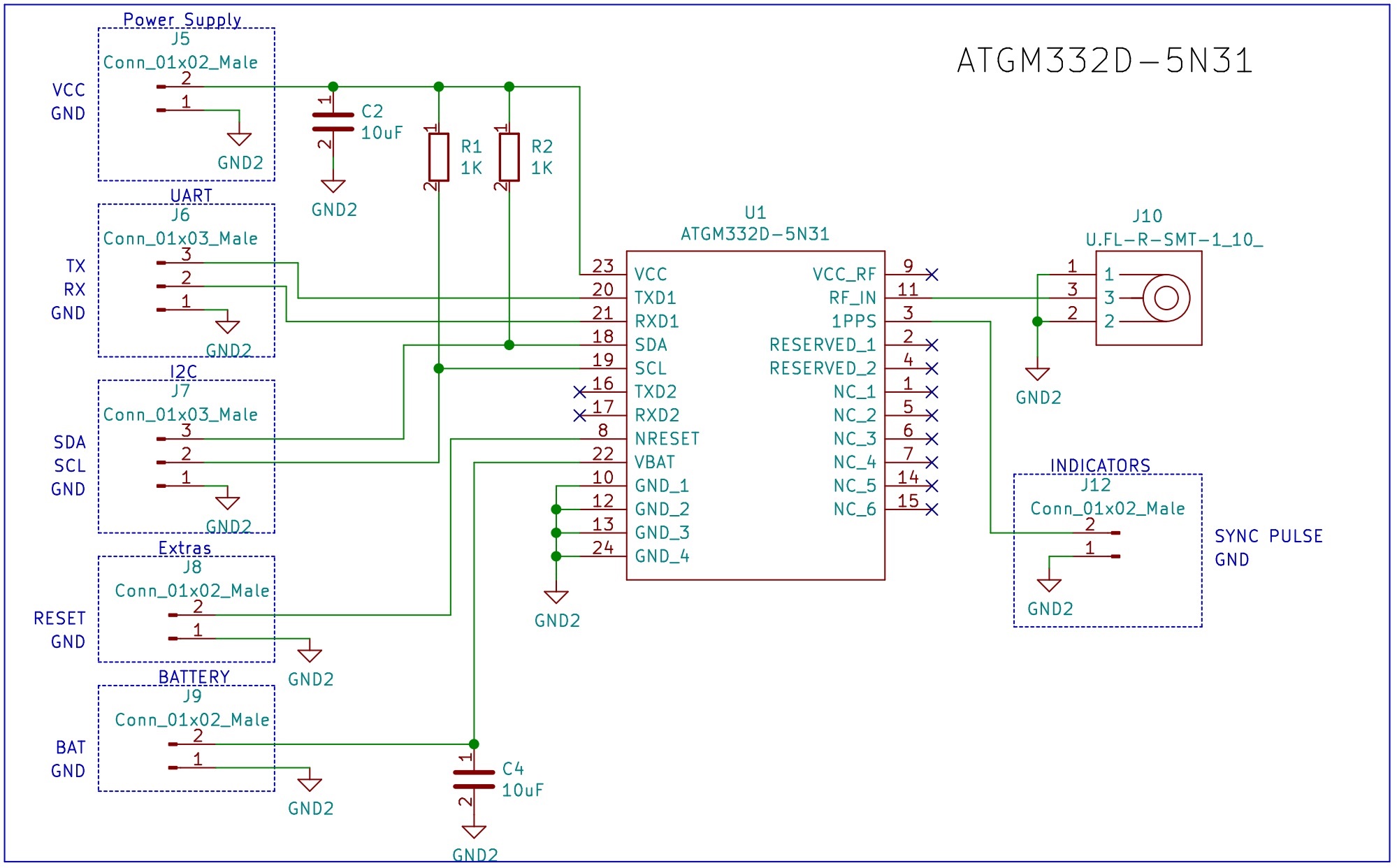

Schematic for the ATGM332D-5N31

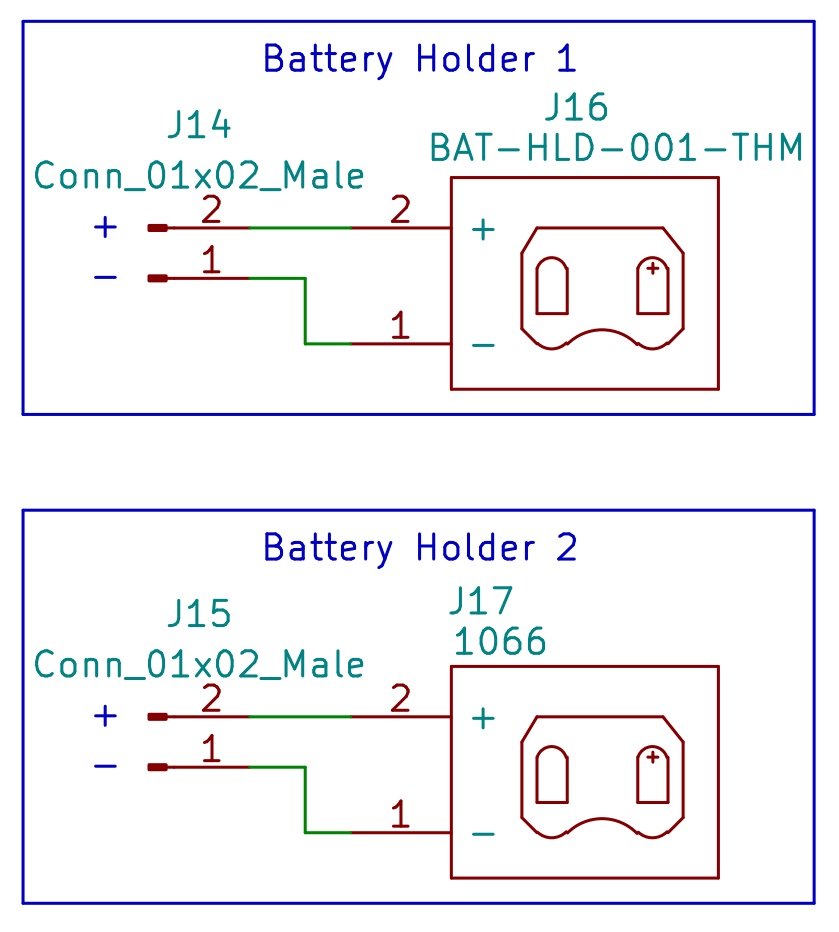

Additional Coin Battery Holders

Bill of Materials

ReferenceQuantity
10 µF ±10% 6.3V Ceramic Capacitor X5R 0805 (2012 Metric)4
Red 630nm LED Indication - Discrete 1.9V 0805 (2012 Metric)1
U.FL (UMCC) Connector Receptacle, Male Pin 50Ohm Surface Mount Solder2
Battery Retainer Coin, 20.0mm 1 Cell PC Pin1
Battery Holder (Open) Coin, 20.0mm 1 Cell PC Pin1
Unshielded Multilayer Inductor 100mOhm Max 0805 (2012 Metric)1
1K ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200 Thick Film2
220 Ohms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thick Film1
0 Ohms Jumper 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thick Film1
ATGM332D-5N31 GNSS Series GPS+BDS 12.2x16x2.4mm Satellite Positioning Modules ROHS1
Antenova M20050-1 series RF Receiver GPS 1.575GHz -165dBm - On-Board, Trace Module1
Conn Header 40POS 2.541

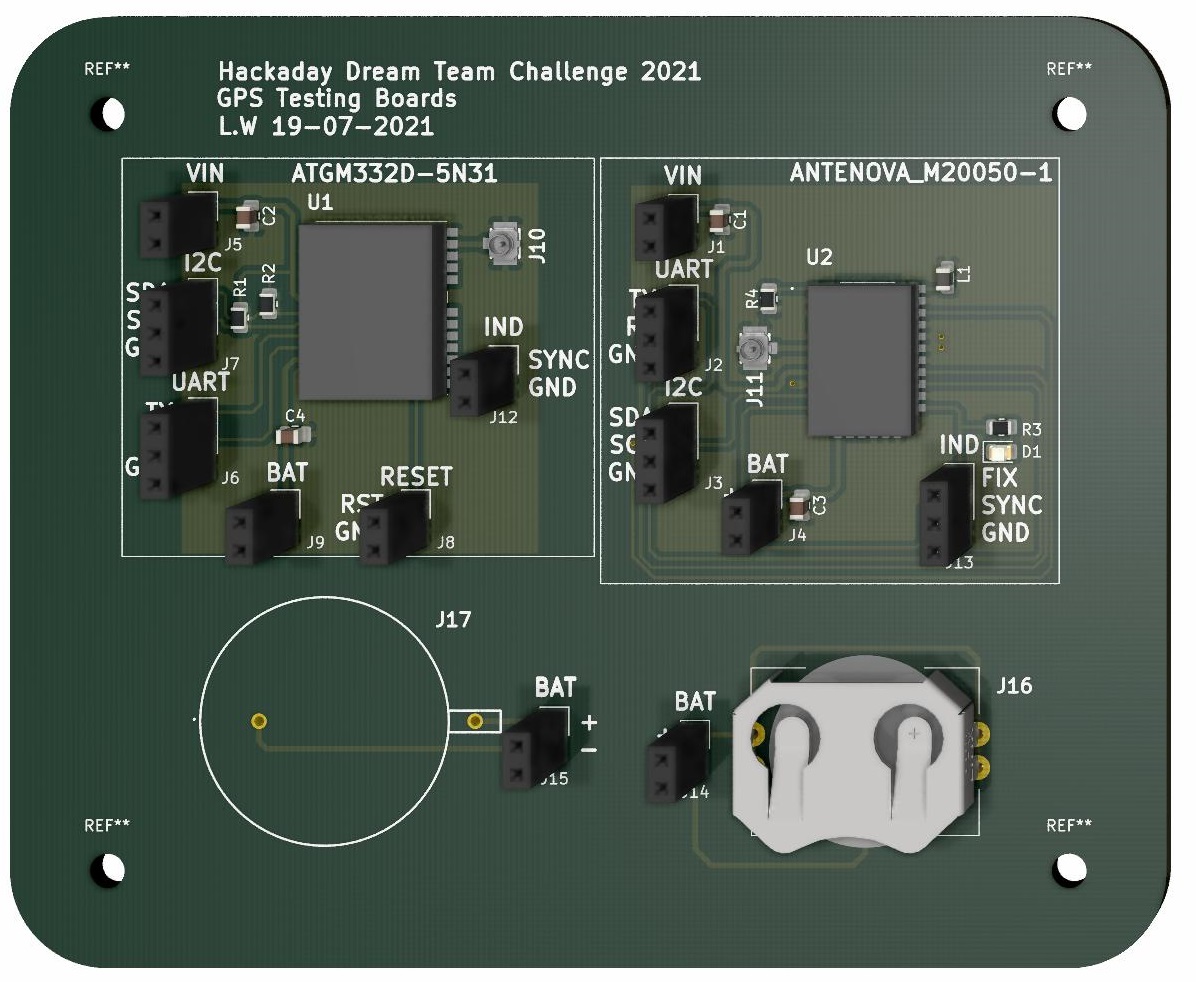

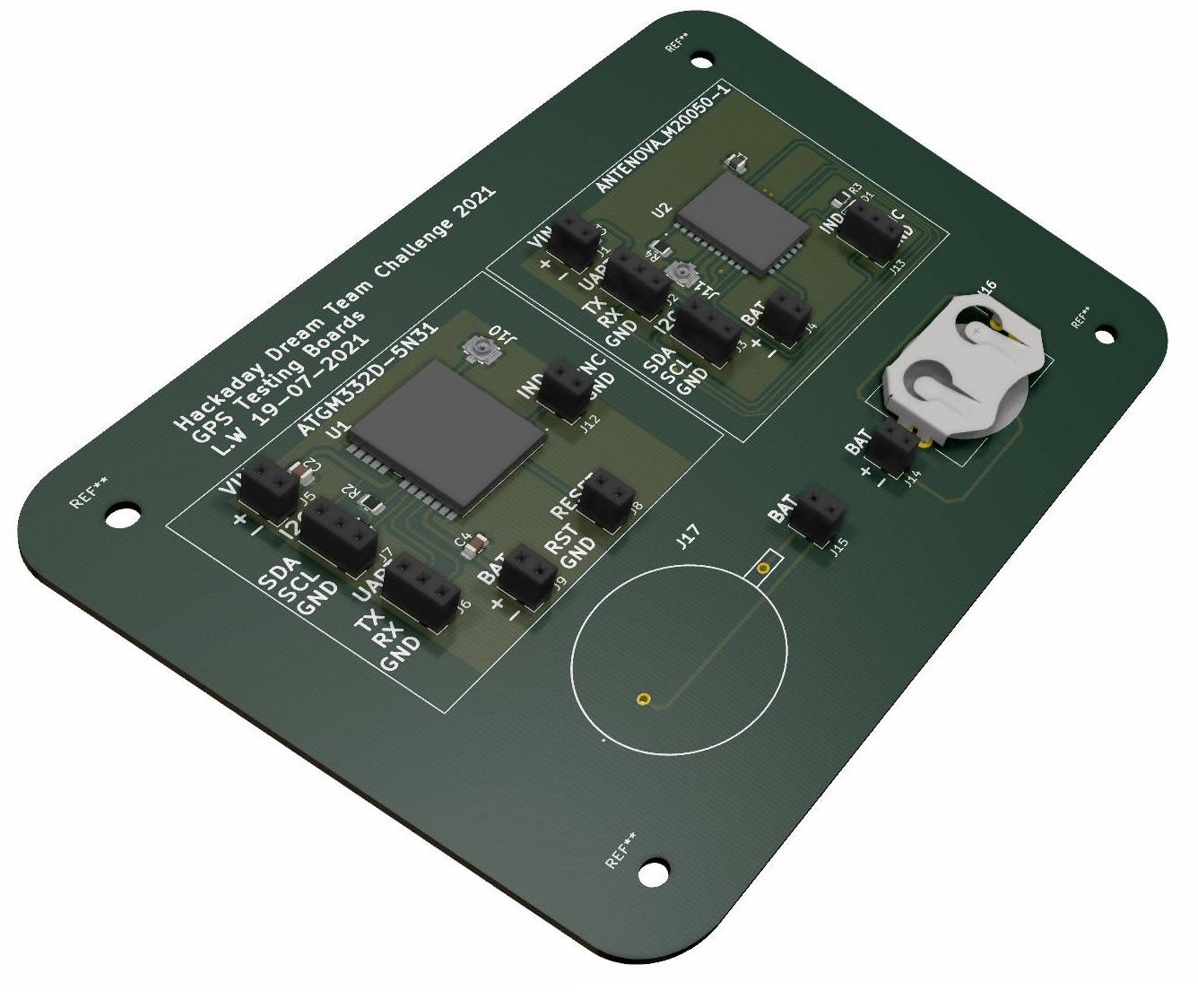

3D Model
