README

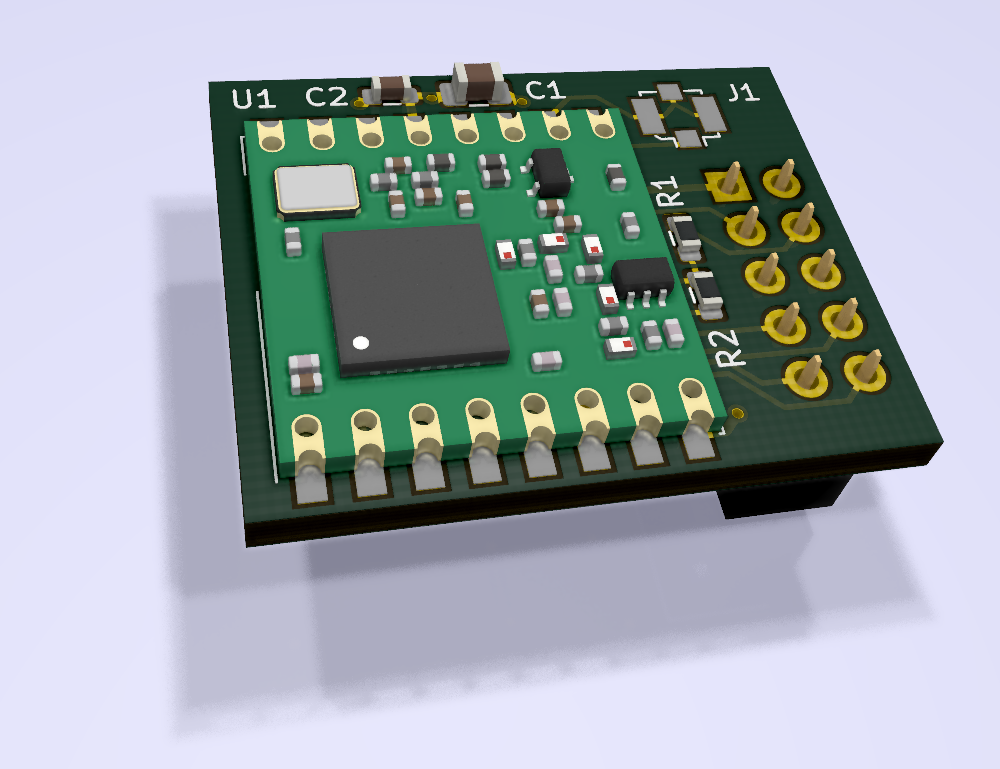

LoRa communication board based on HopeRF RFM95 for UEXT connector

Designed with KiCad 5.

Features

  • UEXT connector to communicate with host MCU
  • Separate antenna connector
