Description
ESP32 based garage door controller. There are a lot of ESPHome based garage door controller projects on the web. What makes this one unique is usined a rotary encoder to determine garage door position.
README
ESP32 Garage Door Controller
ESPHome based garage door controller. There are a lot of garage door controller projects on the web, what makes this one unique is the use of a rotary encoder to determine garage door position. You need a garage door opener that supports a SPST switch to operate. Some openers (I'm talking about Chamberlain models) don't have this option on the unit.
On a side note: Chamberlain recently stopped third party API access to MyQ which killed control for all sorts of home automation including Home Assistant. I realize that company's have the right to limit access and to control their ecosystem. But what Chamberlain did was close access to their API after many people bought their opener with third party access available. They also did this so that you will be forced to pay for access your garage door opener from your phone. There is no reason to buy a Chamberlain system when there are other systems that don't charge for access and have open APIs. Vote with your pocketbook and just say NO to Chamberlain Garage Door Openers!
Status
- The Entire assembly has been attached to my Genie garage door opener for the last year and has been operating like a champ!

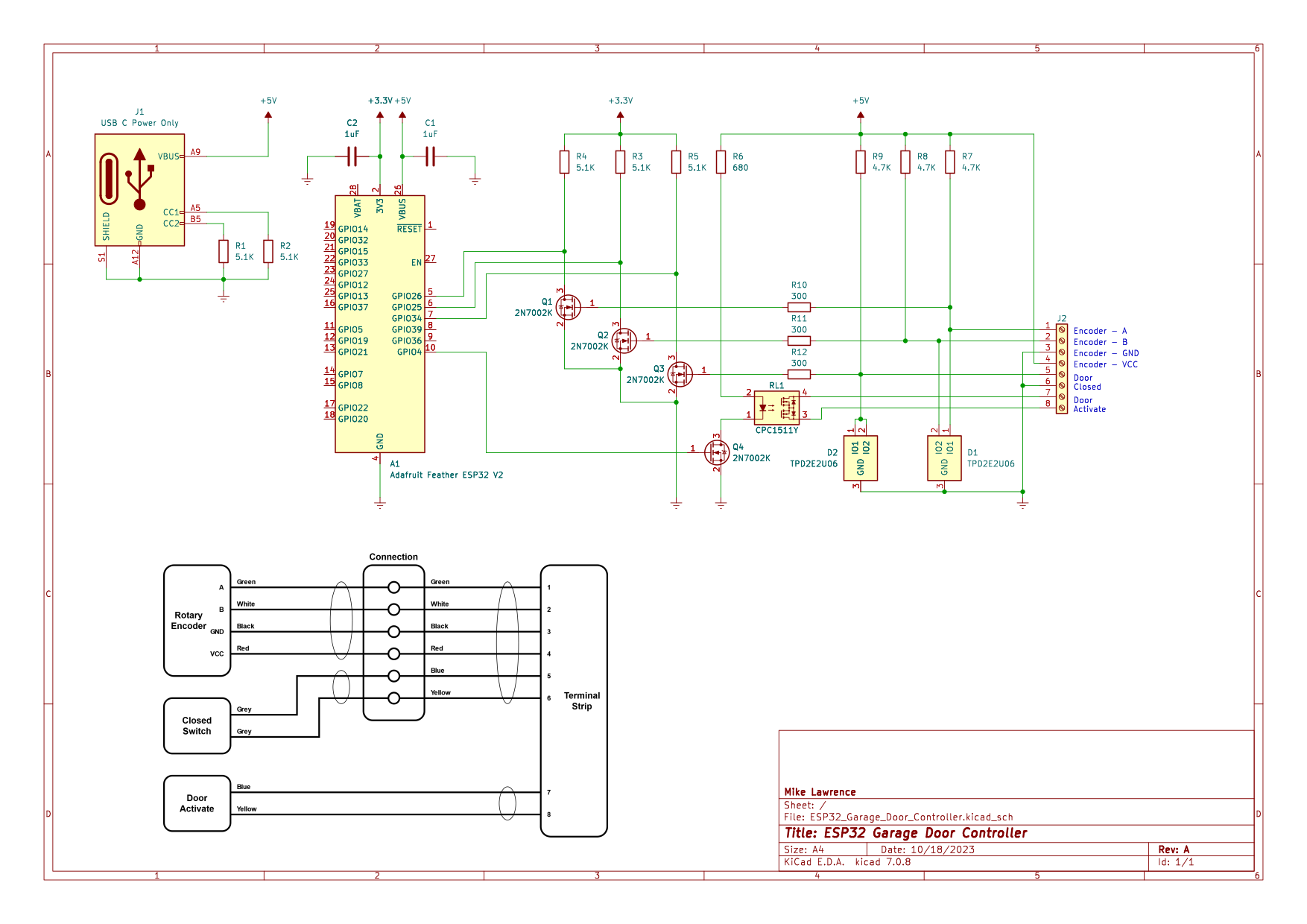

PCB
PCB is designed in KiCad which is a great free EDA toolset

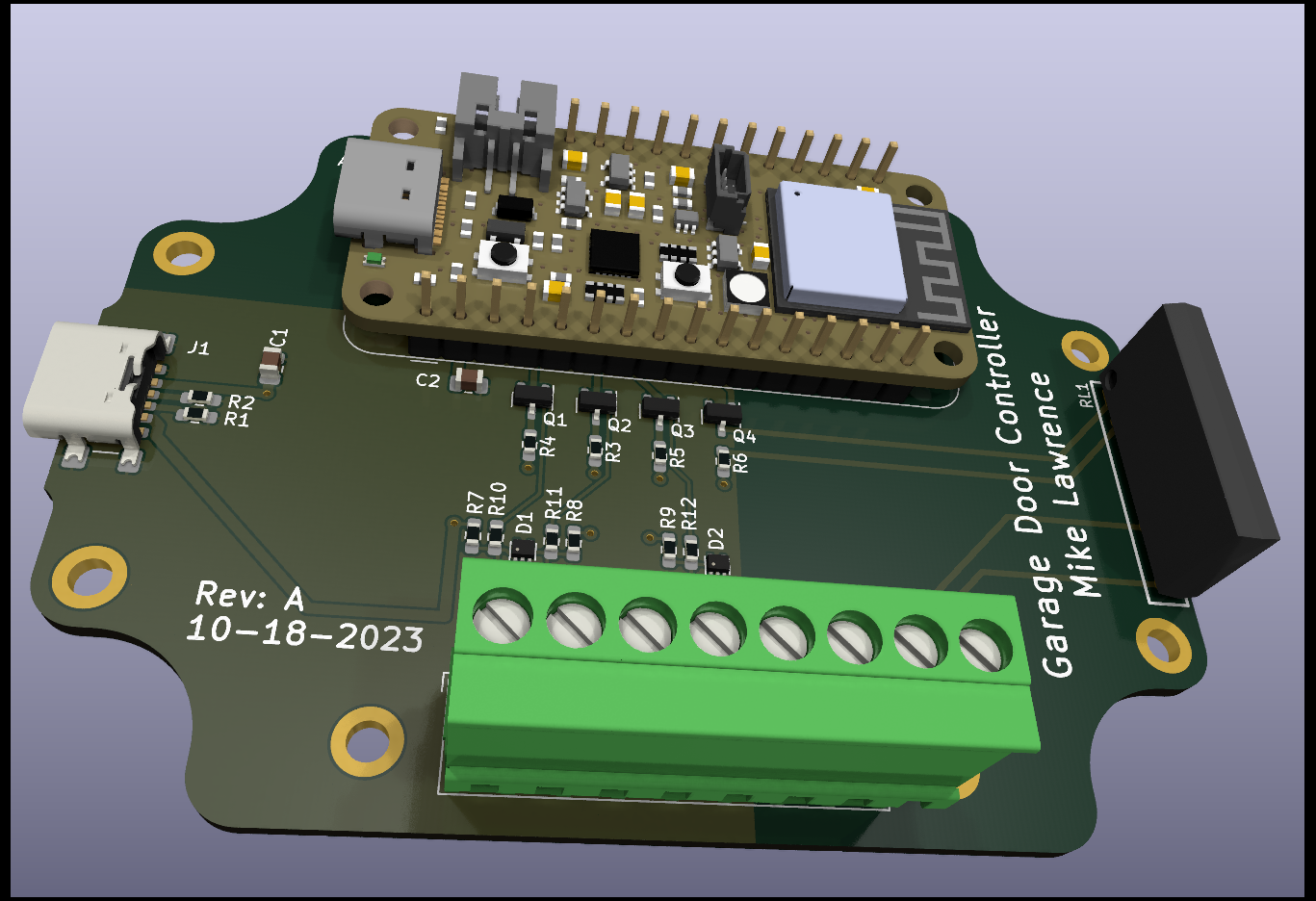

PCB Preview
PCB Parts List
| Qty | Reference | Value | Description | Manufacturer | Part Number |
|---|---|---|---|---|---|
| 1 | A1 | Mod, Adafruit Feather ESP32 V2 | Adafruit | 5400 | |
| 2 | C1, C2 | 1uF | Cap, Ceramic, 1uF, 10V, 10%, 0805 | Kemet | C0805C105K8RACTU |
| 1 | D1, D2 | IC, High-Speed ESD Protection Device, SOT-553 | TI | TPD2E2U06DRLR | |
| 1 | J1 | Conn, USB-C Power Only, SMT | GCT | USB4135-GF-A | |
| 1 | J2 | Conn, Terminal Strip, 8-Pos, 3.5 mm | Phoenix Contact | 1843664 | |
| 1 | Conn, Terminal Strip, 8-Pos, 3.5 mm (mate) | Phoenix Contact | 1863217 | ||
| 1 | Q1-Q4 | Trans, N-Ch MOSFET, 60V, 300mA, SOT-23 | OnSemi | 2N7002K | |
| 1 | R1-R5 | 5.1k | Res, 5.1k, 100mW, 5%, 0603 | YAGEO | RC0603JR-075K1L |
| 1 | R6 | 680 | Res, 680, 100mW, 5%, 0603 | YAGEO | RC0603JR-07680RL |
| 1 | R7-R9 | 4.7k | Res, 4.7k, 100mW, 5%, 0603 | YAGEO | RC0603JR-074K7L |
| 1 | R10-R12 | 300 | Res, 300, 100mW, 5%, 0603 | YAGEO | RC0603JR-07300RL |
| 1 | RL1 | IC, Solid State Relay, 230V, 450mA, SIP | IXYS | CPC1511Y |

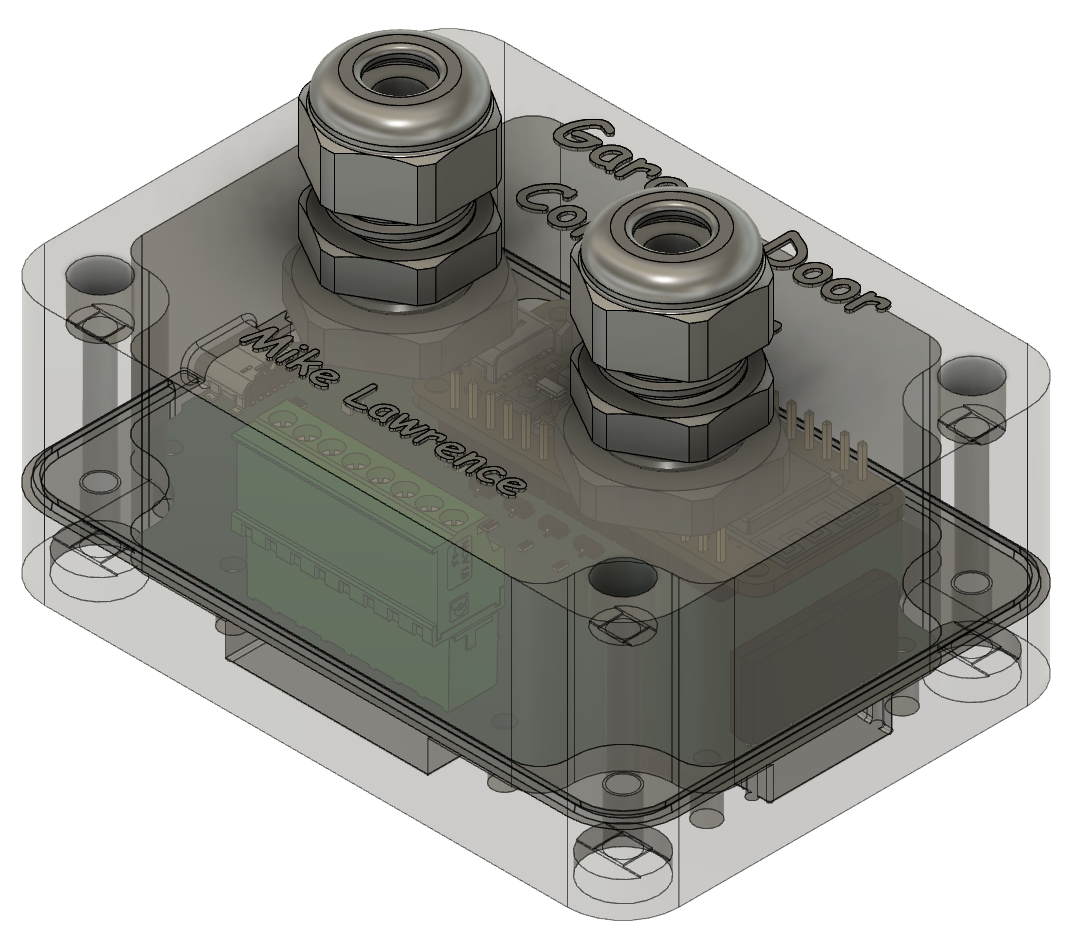

3D Box
I used Autodesk Fusion 360 to design a small clamshell box. This box has holes for 10mm X 3mm round magnets which hold the box pretty securely on a metal opener. There are two version of the box. One has two holes in the lid for standard PG0 gland nuts. The other has three holes for gland nuts.
Use M2.5 brass inserts and M2.5X8mm screws to hold the PCB. Use M3 brass inserts and M3x25mm screws to screw the box halves together. I've included STEP files so that you can 3D Print your own. I've also included the Autodesk Fusion 360 file so you can modify to your heart's content.
Code
substitutions:
name: "car-garage-door"
friendly_name: "Car Garage Door"
max_count: "7000"
invert_encoder: "true"
esphome:
name: ${name}
friendly_name: ${friendly_name}
name_add_mac_suffix: false
esp32:
board: adafruit_feather_esp32_v2
framework:
type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: !secret api_key
# Enable Over-the-Air updates
ota:
platform: esphome
password: !secret ota_password
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
# using fast_connect since it is required for hidden networks.
fast_connect: true
# Captive portal credentials
ap:
ssid: "${friendly_name} Hotspot"
password: !secret hotspot_password
# Enable Fallback WiFi hotspot
captive_portal:
# Enable easy WiFi config via serial port
improv_serial:
globals:
- id: door_state
type: int
restore_value: no
# CLOSED = 0, OPENING = 1, STOPPED OPENING = 2, CLOSING = 3, STOPPED CLOSING = 4, OPEN = 5
- id: max_count
type: int
restore_value: no
initial_value: "${max_count}"
light:
- platform: neopixelbus
id: led
name: "${friendly_name} LED"
internal: true
type: GRB
variant: WS2812
pin: GPIO0
num_leds: 1
switch:
- platform: gpio
id: button_press
name: "${friendly_name} Button"
internal: true
pin: GPIO4
binary_sensor:
- platform: gpio
id: garage_open
name: "${friendly_name} Sensor"
pin:
number: GPIO34
mode: INPUT
inverted: true
device_class: garage_door
publish_initial_state: true
filters:
- delayed_on_off: 50ms
on_press:
then:
- sensor.rotary_encoder.set_value:
id: position_encoder
value: 0
- logger.log: "Closed Switch: Reset Encoder Value"
sensor:
- platform: rotary_encoder
id: position_encoder
name: "${friendly_name} Position"
internal: true
pin_a:
number: GPIO26
# inverted: true
mode: INPUT_PULLUP
pin_b:
number: GPIO25
mode: INPUT_PULLUP
resolution: 1
min_value: 0
max_value: 10000
restore_mode: ALWAYS_ZERO
publish_initial_value: true
filters:
- lambda: !lambda |-
int min = round(id(max_count) / 50.0);
int max = id(max_count) - min;
if (x > max) {
return 100.0;
} else if (x < min) {
return 0.0;
} else {
// round to nearest 5 %
return round(round(x * 100 / id(max_count)) / 5) / 20.0;
}
- delta: 0.005
- platform: wifi_signal
name: "${friendly_name} WiFi RSSI"
disabled_by_default: true
update_interval: 60s
- platform: uptime
name: "${friendly_name} Uptime"
disabled_by_default: true
update_interval: 60s
text_sensor:
- platform: wifi_info
ip_address:
name: "${friendly_name} IP Address"
disabled_by_default: true
cover:
- platform: template
id: template_cover
name: "${friendly_name}"
device_class: garage
optimistic: false
assumed_state: false
has_position: true
lambda: |-
static double last_position = 0.0;
static uint32_t last_change = 0;
double position = id(position_encoder).state;
auto call = id(led).turn_on();
call.set_brightness(0.5);
call.set_transition_length(0);
if (position == 0.0) {
id(template_cover).current_operation = CoverOperation::COVER_OPERATION_IDLE;
id(door_state) = 0; // CLOSED
call.set_rgb(0.0,1.0,0.0); // LED is green
} else if (position == 1.0) {
id(template_cover).current_operation = CoverOperation::COVER_OPERATION_IDLE;
id(door_state) = 5; // OPEN
call.set_rgb(1.0,0.0,0.0); // LED is red
} else if (last_position < position) {
id(template_cover).current_operation = CoverOperation::COVER_OPERATION_OPENING;
id(door_state) = 1; // OPENING
call.set_rgb(1.0,0.5,0.0); // LED is orange
} else if (last_position > position) {
id(template_cover).current_operation = CoverOperation::COVER_OPERATION_CLOSING;
id(door_state) = 3; // CLOSING
call.set_rgb(1.0,0.5,0.0); // LED is orange
} else if (millis() - last_change > 1000) {
// the one second wait before recognizing a stopped state allows for bounce when stopped
id(template_cover).current_operation = CoverOperation::COVER_OPERATION_IDLE;
if (id(door_state) == 1) {
id(door_state) = 2; // STOPPED OPENING
// if position hasn't changed the cover doesn't publish a current_operation change
id(template_cover).publish_state();
} else if (id(door_state) == 3) {
id(door_state) = 4; // STOPPED CLOSING
// if position hasn't changed the cover doesn't publish a current_operation change
id(template_cover).publish_state();
}
}
if (position != last_position) {
last_change = millis();
}
last_position = position;
return position;
open_action:
- lambda: !lambda |-
if (id(door_state) == 0) { // CLOSED
// CLOSED -> OPENING
ESP_LOGD("main", "Open action when door is CLOSED, single tap");
id(single_press).execute();
} else if (id(door_state) == 1) { // OPENING
// already OPENING
ESP_LOGD("main", "Open action when door is OPENING, do nothing");
} else if (id(door_state) == 2) { // STOPPED OPENING
// STOPPED OPENING(2) -> CLOSING -> STOPPED CLOSING -> OPENING
ESP_LOGD("main", "Open action when door is STOPPED OPENING, triple tap");
id(triple_press).execute();
} else if (id(door_state) == 3) { // CLOSING
// CLOSING -> STOPPED CLOSING -> OPENING
ESP_LOGD("main", "Open action when door is CLOSING, double tap");
id(double_press).execute();
} else if (id(door_state) == 4) { // STOP CLOSING
// STOPPED CLOSING -> OPENING
ESP_LOGD("main", "Open action when door is STOPPED CLOSING, single tap");
id(single_press).execute();
} else if (id(door_state) == 5) { // OPEN
// already OPEN
ESP_LOGD("main", "Open action when door is OPEN, do nothing");
}
close_action:
- lambda: !lambda |-
if (id(door_state) == 0) { // CLOSED
// already CLOSED
ESP_LOGD("main", "Close action when door is CLOSED, do nothing");
} else if (id(door_state) == 1) { // OPENING
// OPENING -> STOPPED OPENING -> CLOSING
ESP_LOGD("main", "Close action when door is OPENING, double tap");
id(double_press).execute();
} else if (id(door_state) == 2) { // STOPPED OPENING
// STOPPED OPENING -> CLOSING
ESP_LOGD("main", "Close action when door is STOPPED OPENING, single tap");
id(single_press).execute();
} else if (id(door_state) == 3) { // CLOSING
// already CLOSING
ESP_LOGD("main", "Close action when door is CLOSING, do nothing");
} else if (id(door_state) == 4) { // STOPPED CLOSING
// STOPPED CLOSING -> OPENING -> STOPPED OPENING -> CLOSING
ESP_LOGD("main", "Close action when door is STOPPED CLOSING, triple tap");
id(triple_press).execute();
} else if (id(door_state) == 5) { // OPEN
// OPEN -> CLOSING
ESP_LOGD("main", "Close action when door is OPEN, single tap");
id(single_press).execute();
}
stop_action:
- lambda: !lambda |-
if (id(door_state) == 0) { // CLOSED
// already stopped
ESP_LOGD("main", "Stop action when door is CLOSED, do nothing");
} else if (id(door_state) == 1) { // OPENING
// OPENING -> STOPPED OPENING
ESP_LOGD("main", "Stop action when door is OPENING, single tap");
id(single_press).execute();
} else if (id(door_state) == 2) { // STOPPED OPENING
// already stopped
ESP_LOGD("main", "Stop action when door is STOPPED OPENING, do nothing");
} else if (id(door_state) == 3) { // CLOSING
// CLOSING -> STOPPED CLOSING
ESP_LOGD("main", "Stop action when door is CLOSING, single tap");
id(single_press).execute();
} else if (id(door_state) == 4) { // STOPPED CLOSING
// already stopped
ESP_LOGD("main", "Stop action when door is STOPPED CLOSING, do nothing");
} else if (id(door_state) == 5) { // OPEN
// already stopped
ESP_LOGD("main", "Stop action when door is OPEN, do nothing");
}
script:
- id: single_press
then:
- if:
# do nothing if another press script is running
condition:
and:
- not:
script.is_running: double_press
- not:
script.is_running: triple_press
then:
- switch.turn_on: button_press
- delay: 0.2s
- switch.turn_off: button_press
- delay: 2s
- id: double_press
then:
- if:
# do nothing if another press script is running
condition:
and:
- not:
script.is_running: single_press
- not:
script.is_running: triple_press
then:
- switch.turn_on: button_press
- delay: 0.2s
- switch.turn_off: button_press
- delay: 1s
- switch.turn_on: button_press
- delay: 0.2s
- switch.turn_off: button_press
- delay: 2s
- id: triple_press
then:
- if:
# do nothing if another press script is running
condition:
and:
- not:
script.is_running: single_press
- not:
script.is_running: double_press
then:
- switch.turn_on: button_press
- delay: 0.2s
- switch.turn_off: button_press
- delay: 1s
- switch.turn_on: button_press
- delay: 0.2s
- switch.turn_off: button_press
- delay: 1s
- switch.turn_on: button_press
- delay: 0.2s
- switch.turn_off: button_press
- delay: 2s
