This is a small breakout Printed Circuit Board (PCB) that is based on the STM32 microcontroller as well as the ESP32 dev module. The PCB is designed using the free and open source software KiCad.
The PCB is based on the STM32L0 series, specifically the STM32L031G6U6 microcontroller which is a low power based MCU. The MCU is operated with a High Speed Internal (HSI) clock signal of a 16 MHz crystal oscillator (No external quartz is needed).
It's operating with an input voltage from 12V to 5V. The input voltage will be filtered and reduced to 3V3 in order to power the STM32 MCU as well as the ESP32 module.
The purpose of this PCB is to control the temperature with a PID controller. It has two connectors for that, one for reading temperature value with a thermostat, a thermocouple, or a temperature IC (LM36/LM35) that gives an analog signal, and the other connector is used to control the temperature using a Solid State Relay (SSR) controlled by a PWM signal.
The data read from the STM32 MCU is transmitted to the ESP32 dev module via 'USART' protocol in order to send the data to the cloud and the temperature could be controlled wirelessly anywhere with a smart phone or a web application.
STM32 MCU can be flashed using SWD programmer and the ESP32 dev module could be programmed using a USB-to-TTL converter.
Please :star: this repo to help us improve the quality.

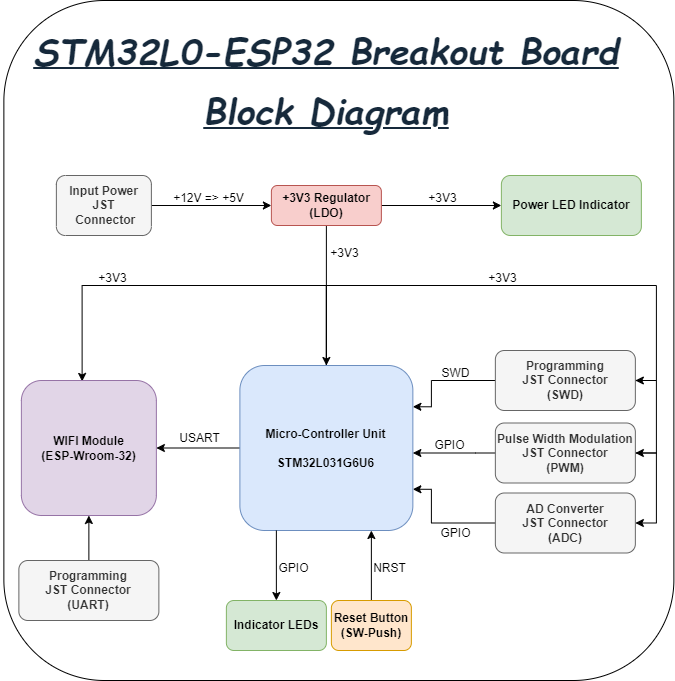

| PCB System Block |
|---|

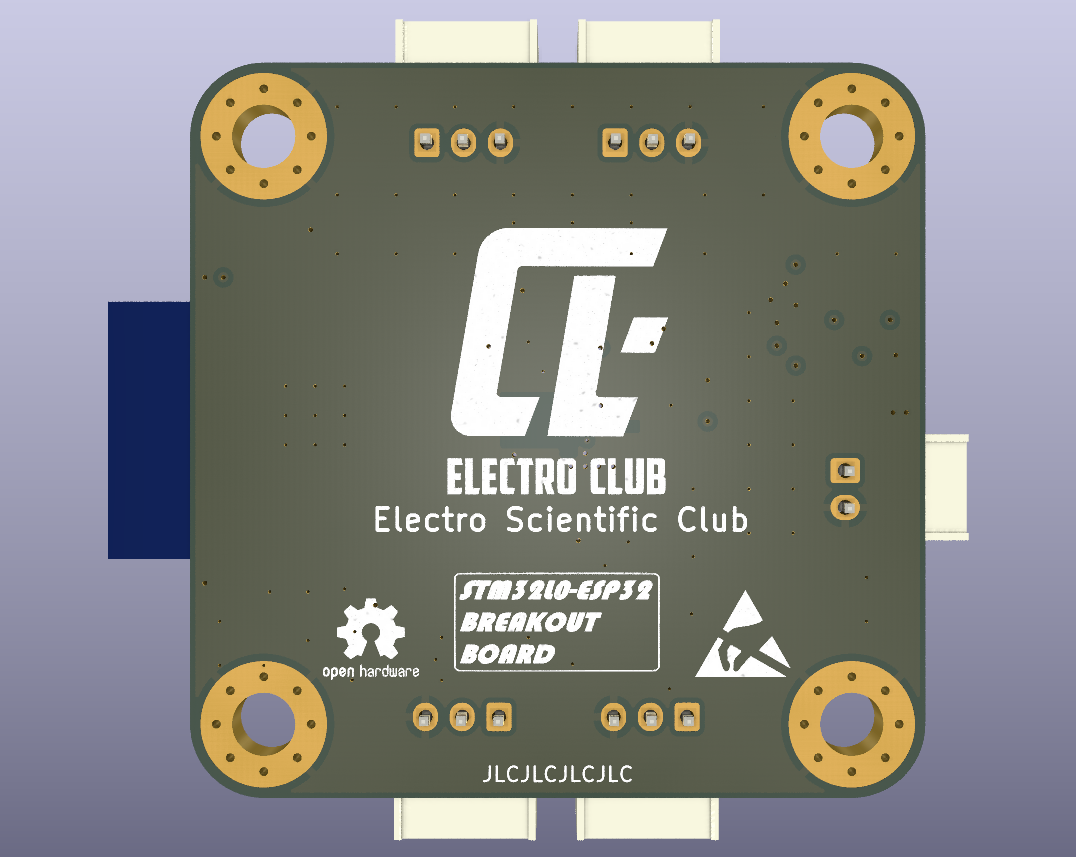

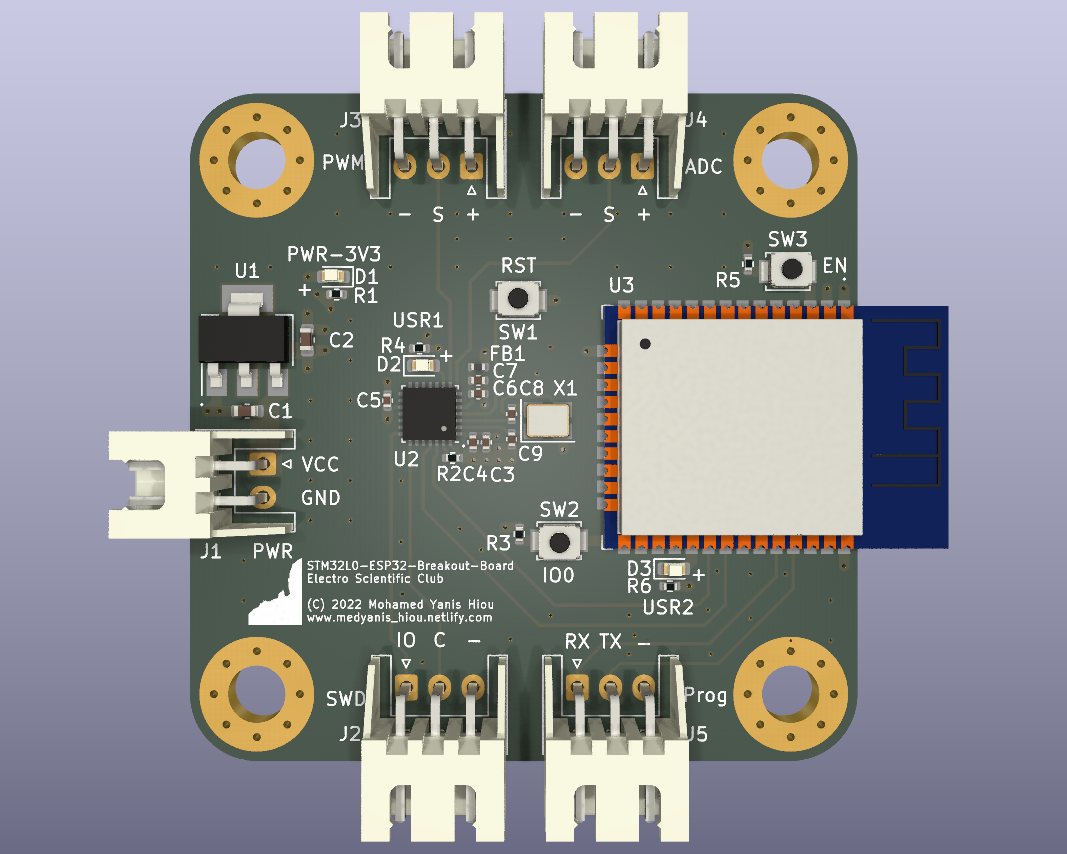

| Front View | Back View |
|---|---|

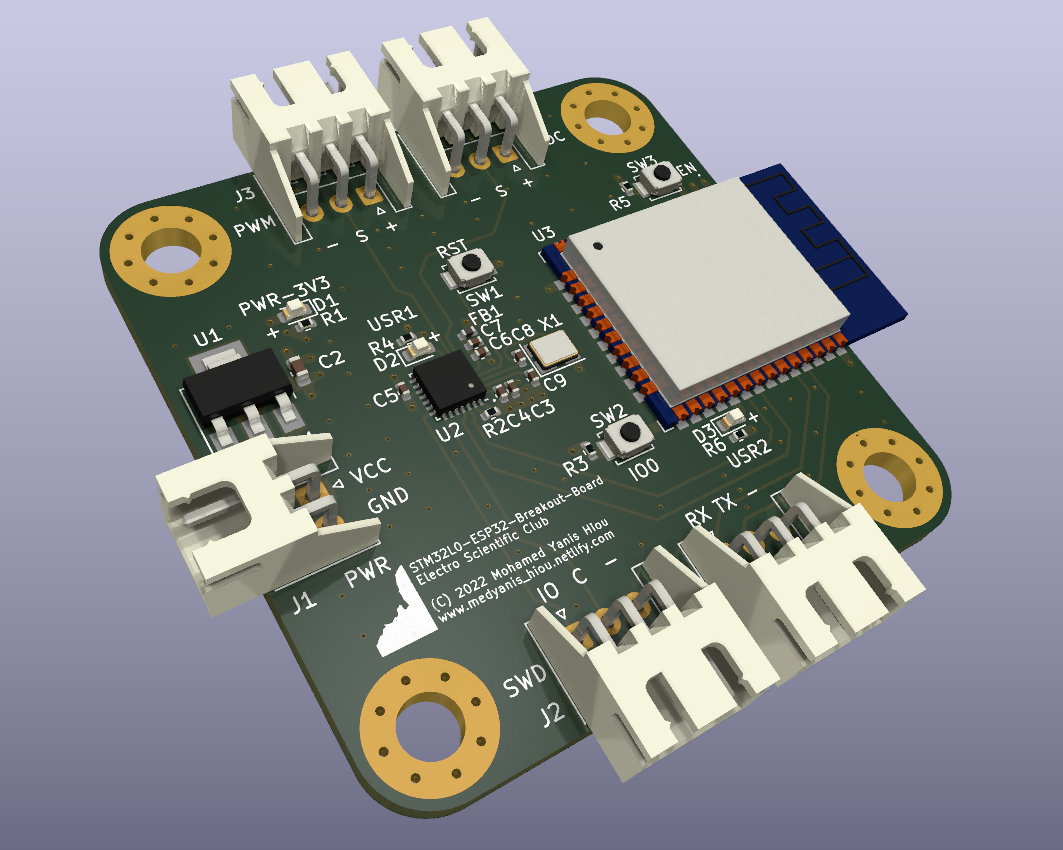

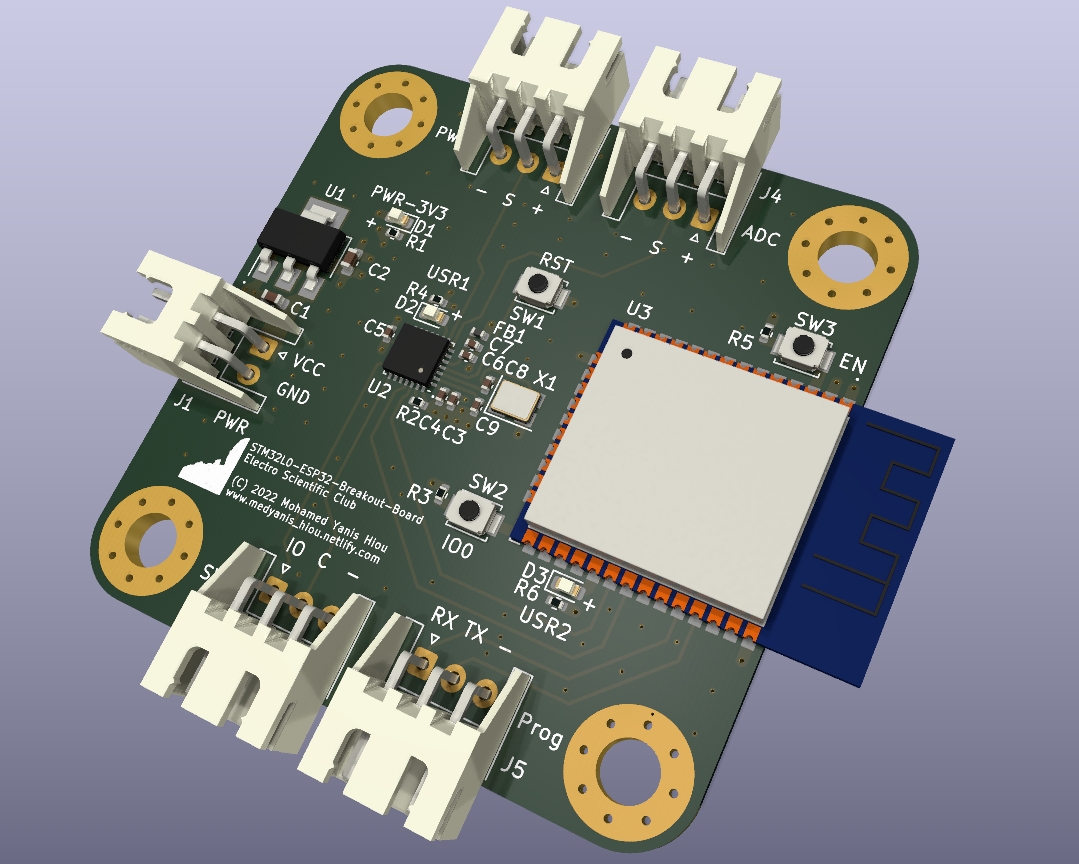

| Side View 1 | Side View 2 |

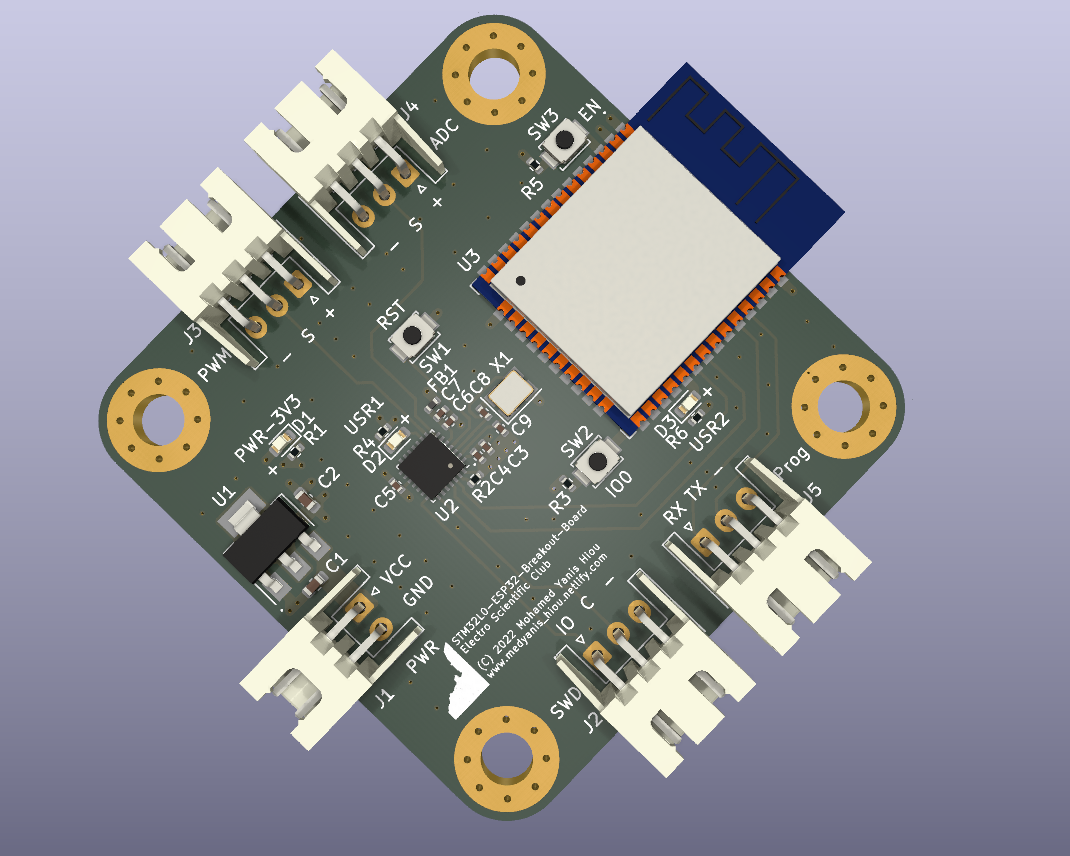

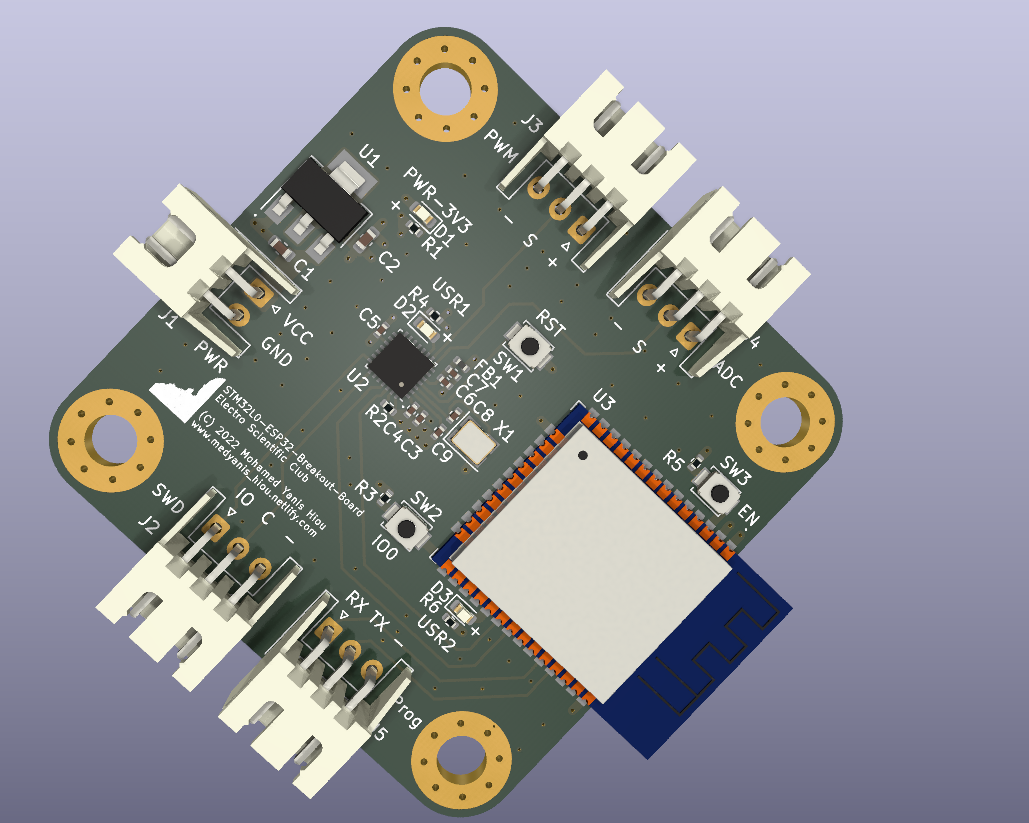

| Side View 3 | Side View 4 |
If you want to review the PCB or yoou wanna edit the schematics/layout, you only need to install KiCad software to your machine.
Open the Datasheets folder and you will find all the datasheets, applications notes, and design guidelines that help you understand the design better.
git clone https://github.com/mohamedyanis/STM32L0-ESP32-Breakout-Board.git
The content of this project is licenced under the BSD 3-Clause "New" or "Revised" License.
If you want to contribute to this project and make it better with new ideas, your pull request is very welcomed.
If you find any issue just put it in the repository issue section, thanks!
