README

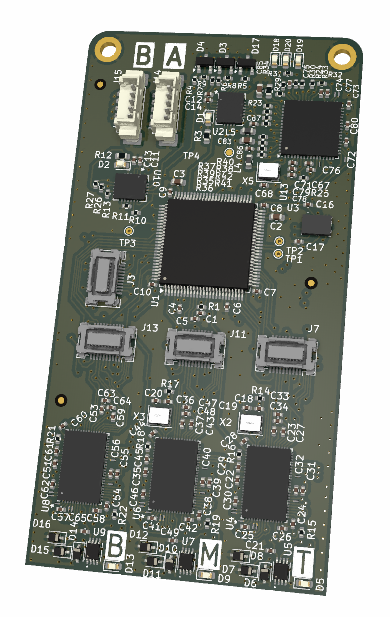

"Poulpe_3d" Electronic Board

"Poulpe_3d" is build from "Poulpe" as it aims on driving Orbita 3 Dofs. It is paireds with boards "Ventouse_3d" that drive 3 small BLDC Motors.

Basically

  • Primarly designed for Reachy 2 gamma.
  • Powered in 24V.
  • Designed with KiCAD 7.
