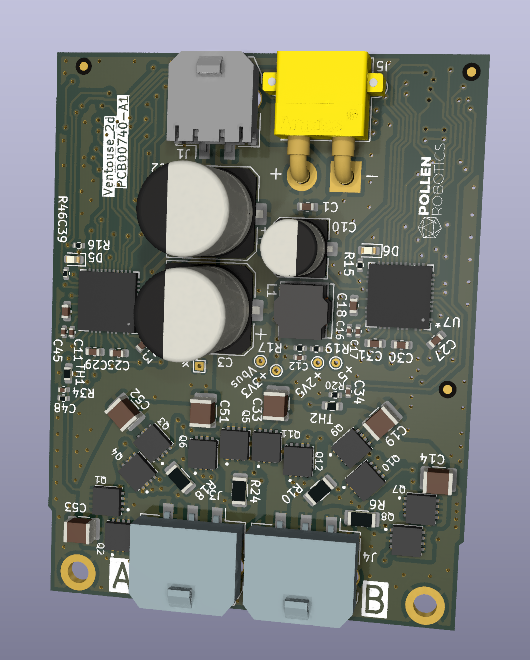

"Ventouse_2d" Electronic Board

"Ventouse_2d" is build from "Themis" as it aims on driving Orbita 2 Dofs. It is paired with boards "Poulpe_2d" that controls 2 BLDC Motors.

Basically

  • Primarly designed for Reachy 2 gamma.
  • Powered in 24V.
  • Designed with KiCAD 7.
