A fully addressable 3D LED display for animations, games, and visual effects.
Holocub V2 is a large-scale 16×16×16 RGB LED cube (4096 voxels total) built with WS2812B addressable LEDs.
It is designed to display dynamic animations, interactive effects, and data visualizations in 3D.
The cube is controlled by a microcontroller (planned: RPi Pico 2W / other capable MCU) and supports both procedural animations and pre-rendered frames loaded from an SD card.
| Component | Specification |
|---|---|
| Cube Size | 16 × 16 × 16 voxels |
| Total LEDs | 4096 WS2812B RGB LEDs |
| LED Type | WS2812B (5V, individually addressable) |
| PSUs | 4 × 5v 350w |
| Data Lines | One per 16×16 vertical layer (16 total) |
| LED Strip Arrangement | Snake layout per layer (serpentine wiring) |
| MCU | Raspberry Pi Pico 2W (planned) / Teensy 4.1 (more power but no internal BLE and wifi) |
| Storage | MicroSD card (frame/animation storage) |
| Power Injection | Multiple injection points per strip |
| Estimated Max Power | ~1.23 kW at full white (theoretical max) |
Short description
HoloBoard is a custom PCB designed for the Holocub project, acting as the main control and interface board.
It hosts a Raspberry Pi Pico 2W, integrates a piezo buzzer, and features two bidirectional logic-level shifters for for the communication between the pico and the WS2812B as 3v3 logic could cause interference.

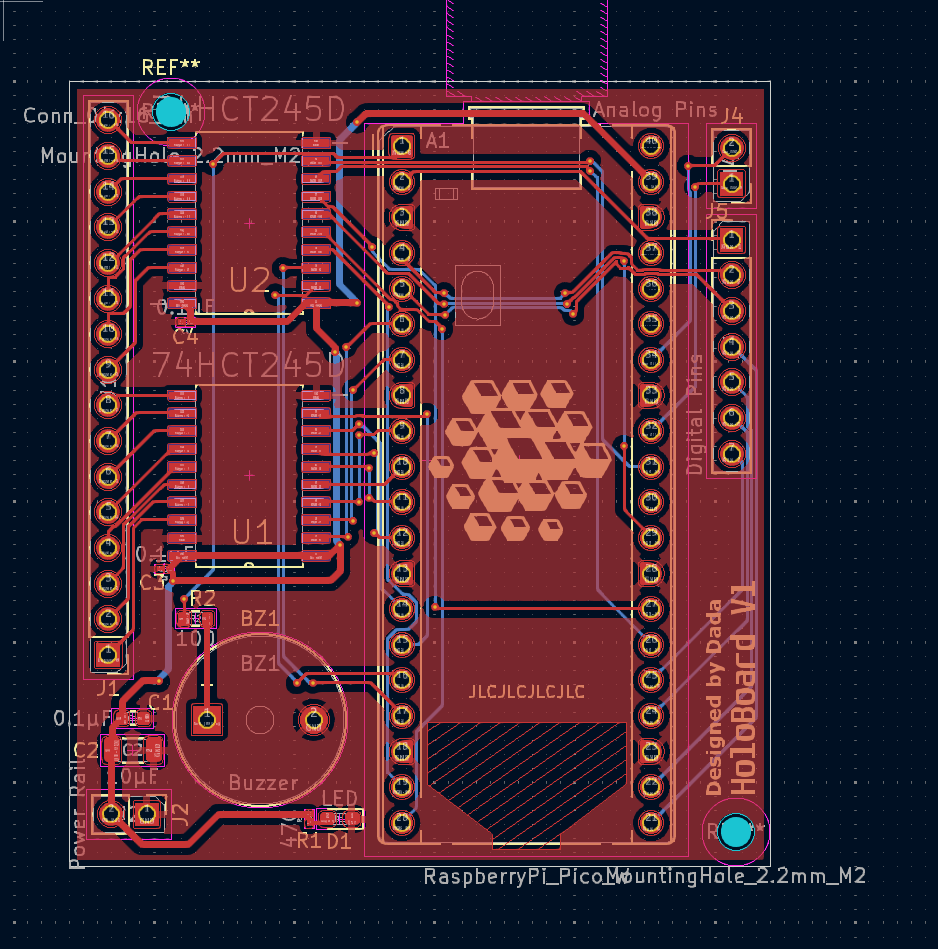

Figure 1 — The HoloBoard schematic in KeyCad.

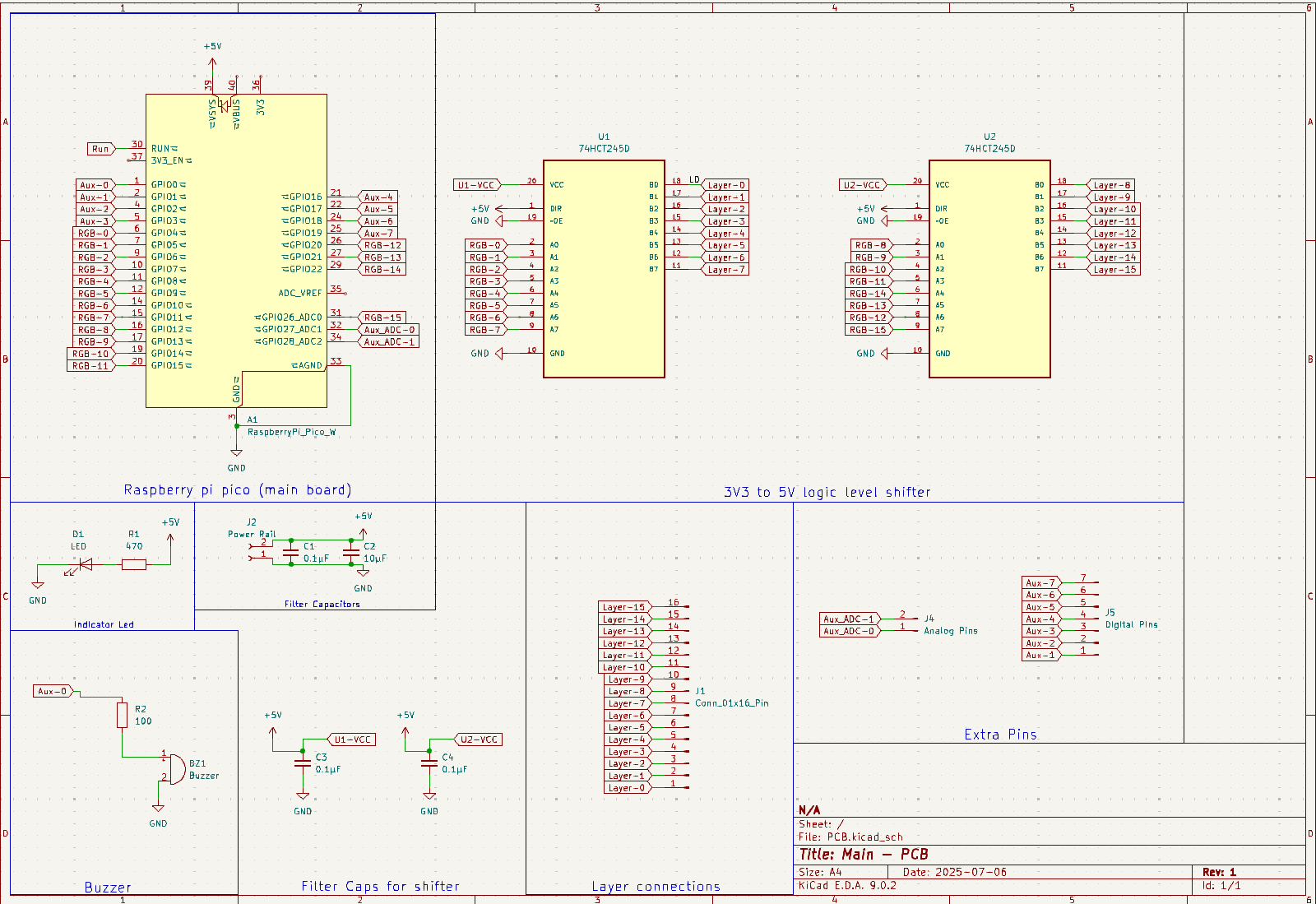

Figure 2 — components used, I/O's, connections.

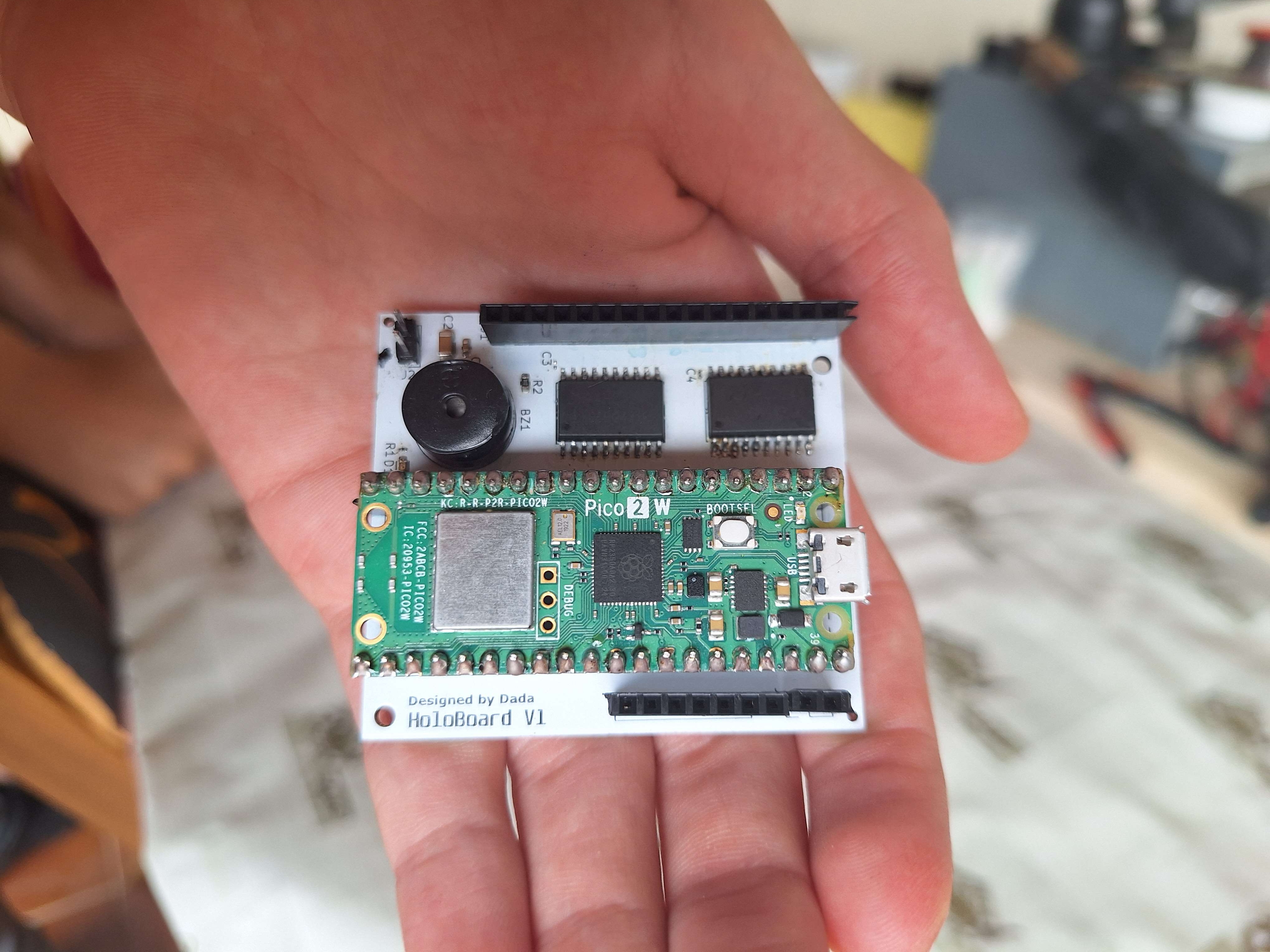

Figure 3 — Front view, Pico 2W inserted.

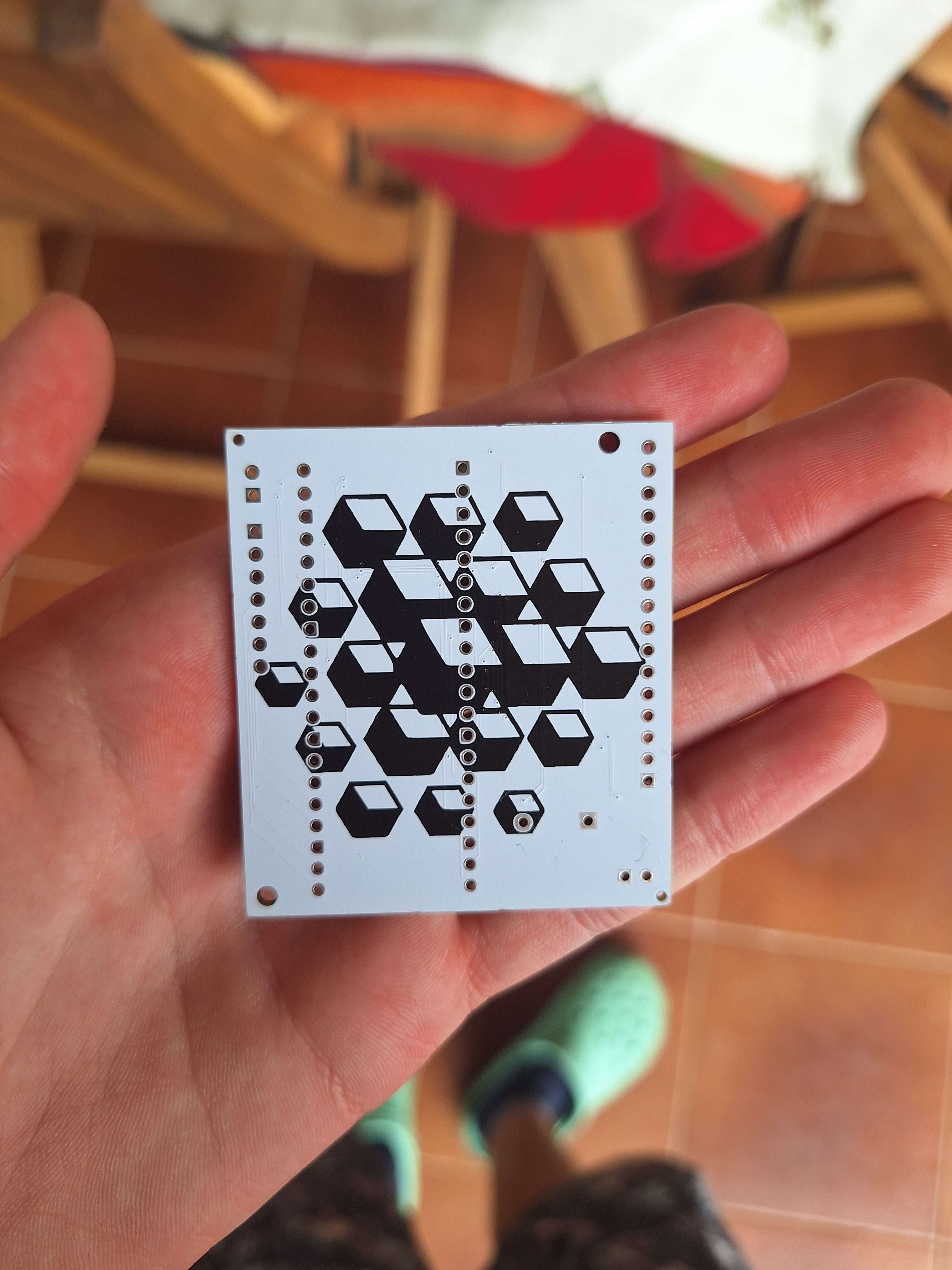

Figure 4 — Back view showing soldering and Logo.

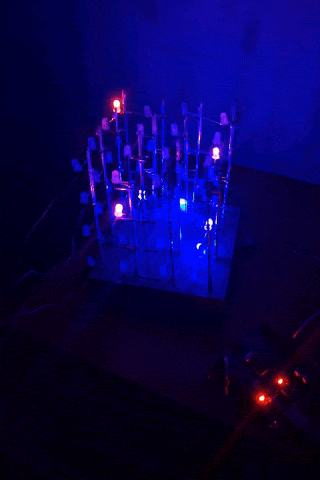

voxelMatrix[x][y][z] buffer for color control..vox file for animations or custom binary format./animationsvoxelMatrix.bmp or custom .hca (Holocub Animation) binary formatHoloBoard, SD card reader on 4×4×4 cube ✅# PlatformIO
pio run --target upload
src/main.inoMIT License – You are free to use, modify, and distribute this project with attribution.
