README

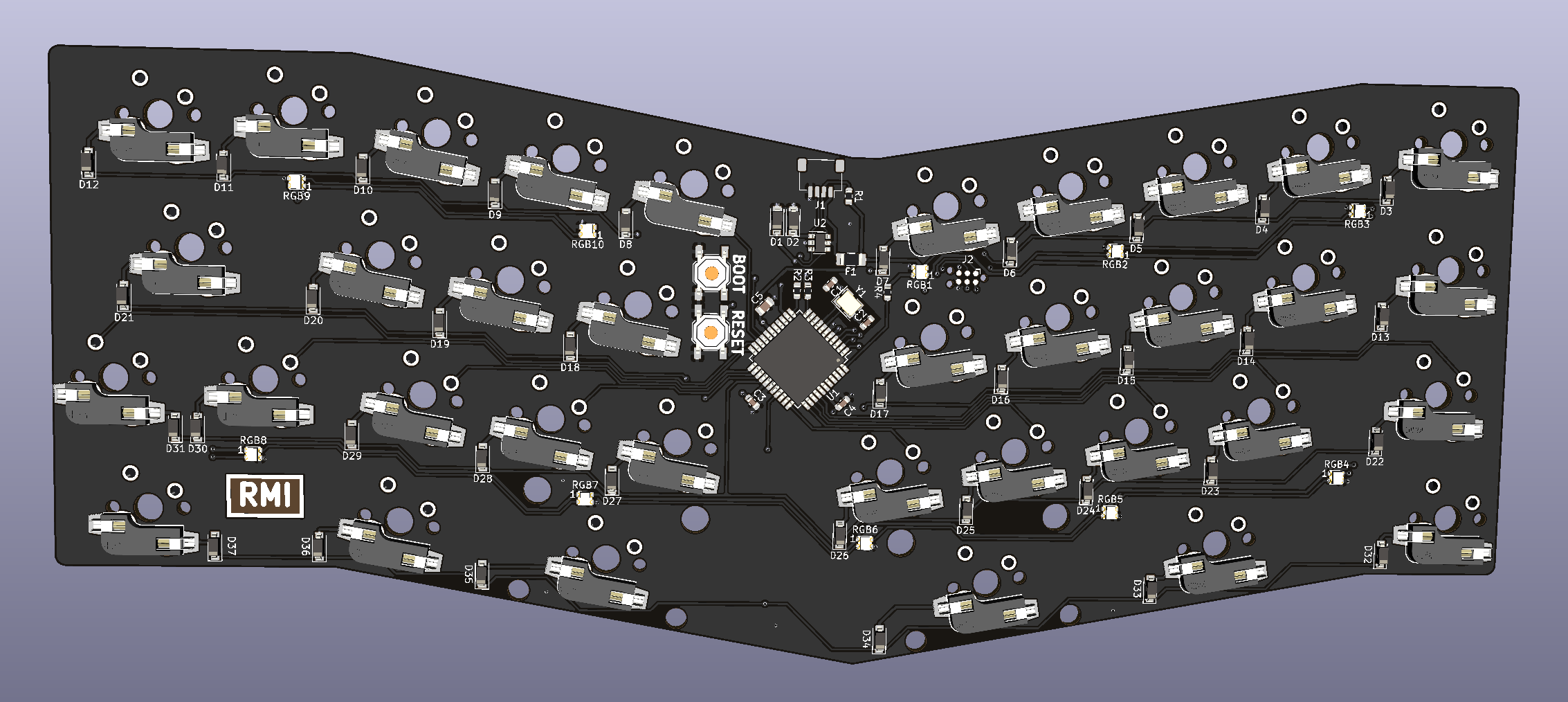

C-13X-PCB

Features

  • ATmega32A
  • ai03 daughterboard compatible
  • Solder and Kailh hotswap compatible

How to order

  1. JLCPCB.com
  2. Upload the gerber zip file from the Gerbers directory.
  3. Select SMT assembly as an option.
  4. Select the bottom side to assemble.
  5. Upload the BOM and CPL files from the JLCPCB directory.
  6. Place your order.
  7. ???
  8. Profit!

After ordering

Once you've received the boards, you will have to flash a bootloader on it before being able to flash any QMK firmware on it.

Instructions for that can be found using here.

Flashing QMK firmware on it

TBD because I've yet to order boards for myself

License

This has the same license as the C-13X. See the LICENSE file for more details.
